ZN6-C248 (2014)
Toyota 86
Production
Nov 2014
-
Apr 2015
Engine
FA20
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1203- )

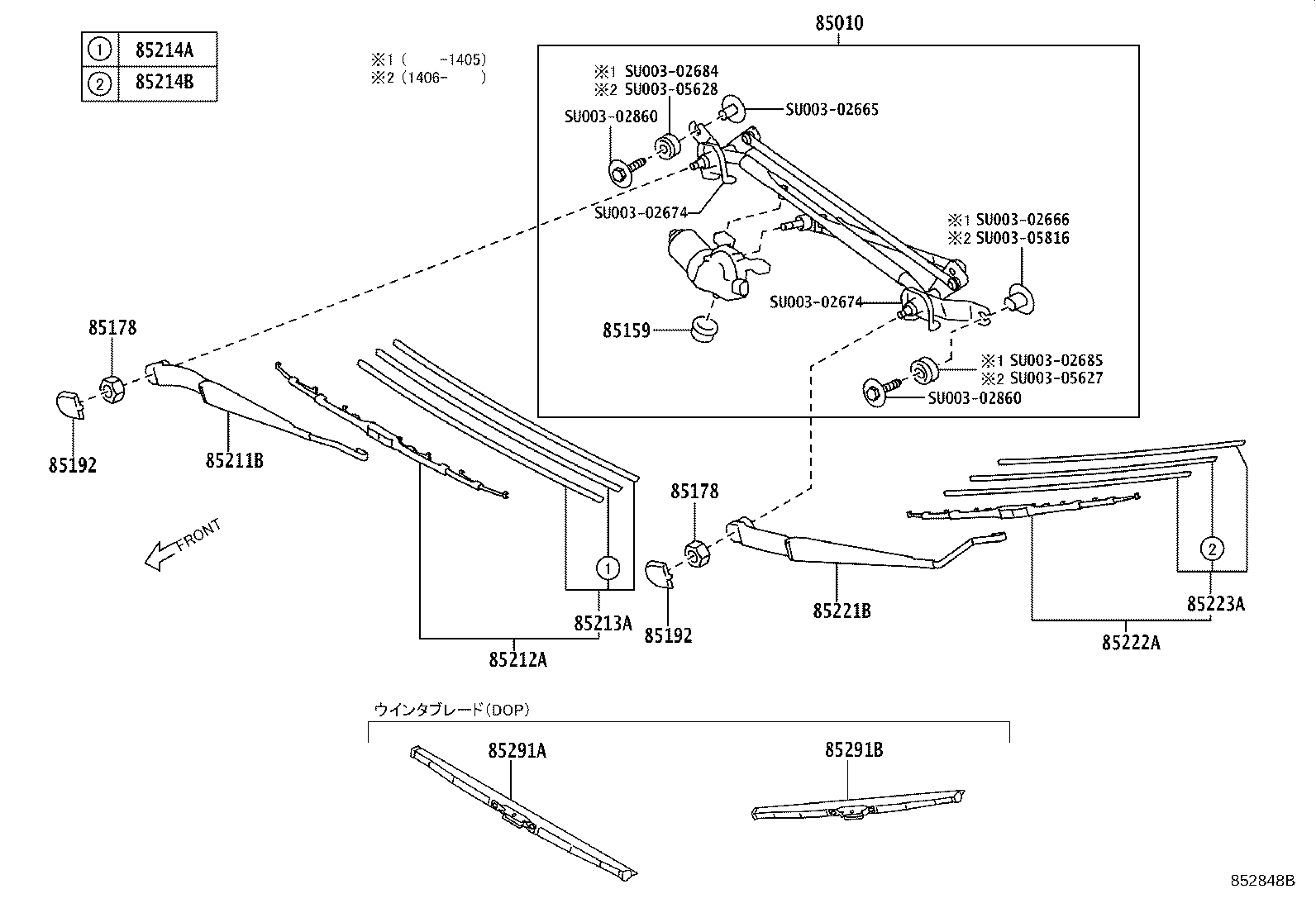

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85010 - MOTOR & LINK ASSY, FR WIPER | ||||
| SU003-02663 |
ZN6 |
1 | ||
| 85159 - CUSHION, WINDSHIELD WIPER MOTOR | ||||
| SU003-02686 |
ZN6 |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| SU003-00045 |
ZN6 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| SU003-00045 |
ZN6 |
2 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| SU003-02675 |
ZN6 |
2 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| SU003-02675 |
ZN6 |
2 | ||
| 85211B - ARM, FRONT WIPER, RH | ||||
| SU003-02669 |
ZN6 |
1 | ||
| 85212A - BLADE, FR WIPER, RH | ||||
| SU003-02676 |
ZN6 |
1 | ||
| 85213A - RUBBER, WIPER BLADE, RH | ||||
| SU003-04213 |
ZN6 |
1 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| SU003-04215 |
ZN6 |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| SU003-04216 |
ZN6 |
1 | ||
| 85221B - ARM, FRONT WIPER, LH | ||||
| SU003-02671 |
ZN6 |
1 | ||
| 85222A - BLADE, FR WIPER, LH | ||||
| SU003-02680 |
ZN6 |
1 | ||
| 85223A - RUBBER, FRONT WIPER BLADE, LH | ||||
| SU003-04214 |
ZN6 |
1 | ||
| 85291A - BLADE, FRONT WIPER, WINTER, RH | ||||
| 85291-22090 |
ZN6 |
1 | ||
| 85291B - BLADE, FRONT WIPER, WINTER, LH | ||||
| 85291-33060 |
ZN6 |
1 | ||
| Common parts | ||||
| SU003-02665 | ||||
| SU003-02666 | ||||
| SU003-02674 | ||||
| SU003-02684 | ||||
| SU003-02685 | ||||
| SU003-02860 | ||||
| SU003-05627 | ||||
| SU003-05628 | ||||
| SU003-05816 | ||||
(1608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-02665 | ||||
| SU003-02860 | ||||
| SU003-05627 | ||||
| SU003-05628 | ||||
| SU003-05816 | ||||
