ZN6-C248 (2014)

Toyota 86

Production Nov 2014 - Apr 2015
Engine FA20
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

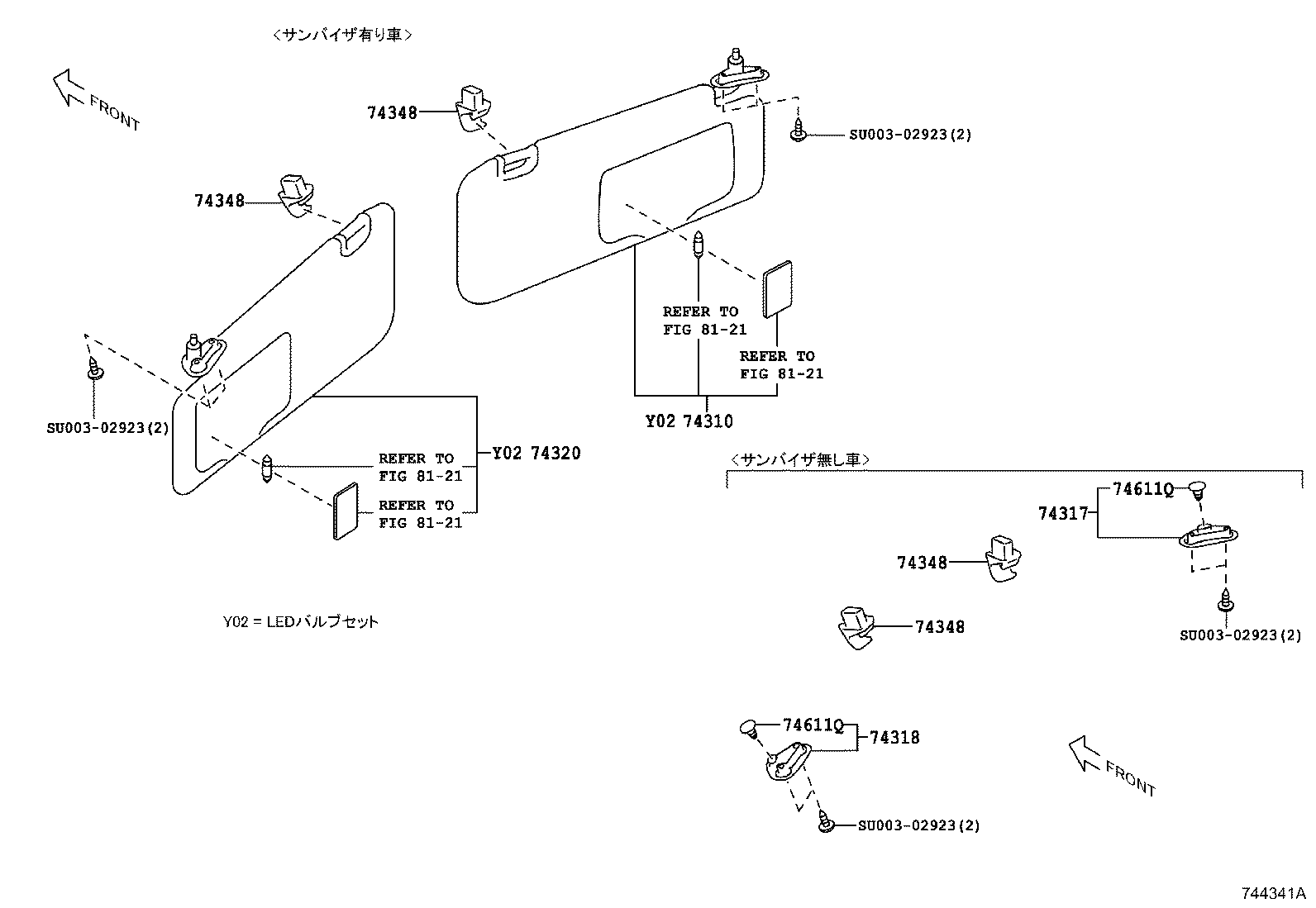

ILLUST NO. 1 OF 2(1203- )

Click highlighted areas on diagram

diagram 74310 74317 74318 74320 74348 74348 74348 74348 74611Q 74611Q 8121 8121 8121 8121 SU00302923 SU00302923 SU00302923 SU00302923
Part # Description Qty Price
74310 - VISOR ASSY, RH
SU003-03172

ZN6..RC

BLACK

 1
74320 - VISOR ASSY, LH
SU003-03173

ZN6..RC

BLACK

 1
74348 - HOLDER, VISOR
SU003-03180

ZN6

BLACK

 2
74348 - HOLDER, VISOR
SU003-03180

ZN6

BLACK

 2
74348 - HOLDER, VISOR
SU003-03180

ZN6

BLACK

 2
74348 - HOLDER, VISOR
SU003-03180

ZN6

BLACK

 2
Common parts
SU003-02923
Linked diagrams
8121

ILLUST NO. 2 OF 2(1203- )

Click highlighted areas on diagram

diagram 6701 6701 74210 74220 74221 74222 74231 74232 74603A 74630C 74640C 8401 8401 8401 SU00300063
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
SU003-04447

ZN6..G,RC,RCG

BLACK

 1
74220 - ARMREST ASSY, FRONT, LH
SU003-04448

ZN6..G,RC,RCG

BLACK

 1
74221 - COVER, DOOR ARMREST, RH
SU003-03270

ZN6..G,RC,RCG

 1
74222 - COVER, DOOR ARMREST, LH
SU003-03271

ZN6..G,RC,RCG

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
SU003-04438

ZN6..RC

BLACK

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
SU003-04439

ZN6..G,RC,RCG

BLACK

 1
74603A - GROMMET (FOR FRONT ASSIST GRIP)
SU003-02591

ZN6

 4
74630C - GRIP ASSY, DOOR ASSIST, RH
SU003-04425

ZN6..G,RC,RCG

BLACK

 1
74640C - GRIP ASSY, DOOR ASSIST, LH
SU003-04427

ZN6..G,RC,RCG

BLACK

 1
Common parts
SU003-00063
Linked diagrams
6701
8401

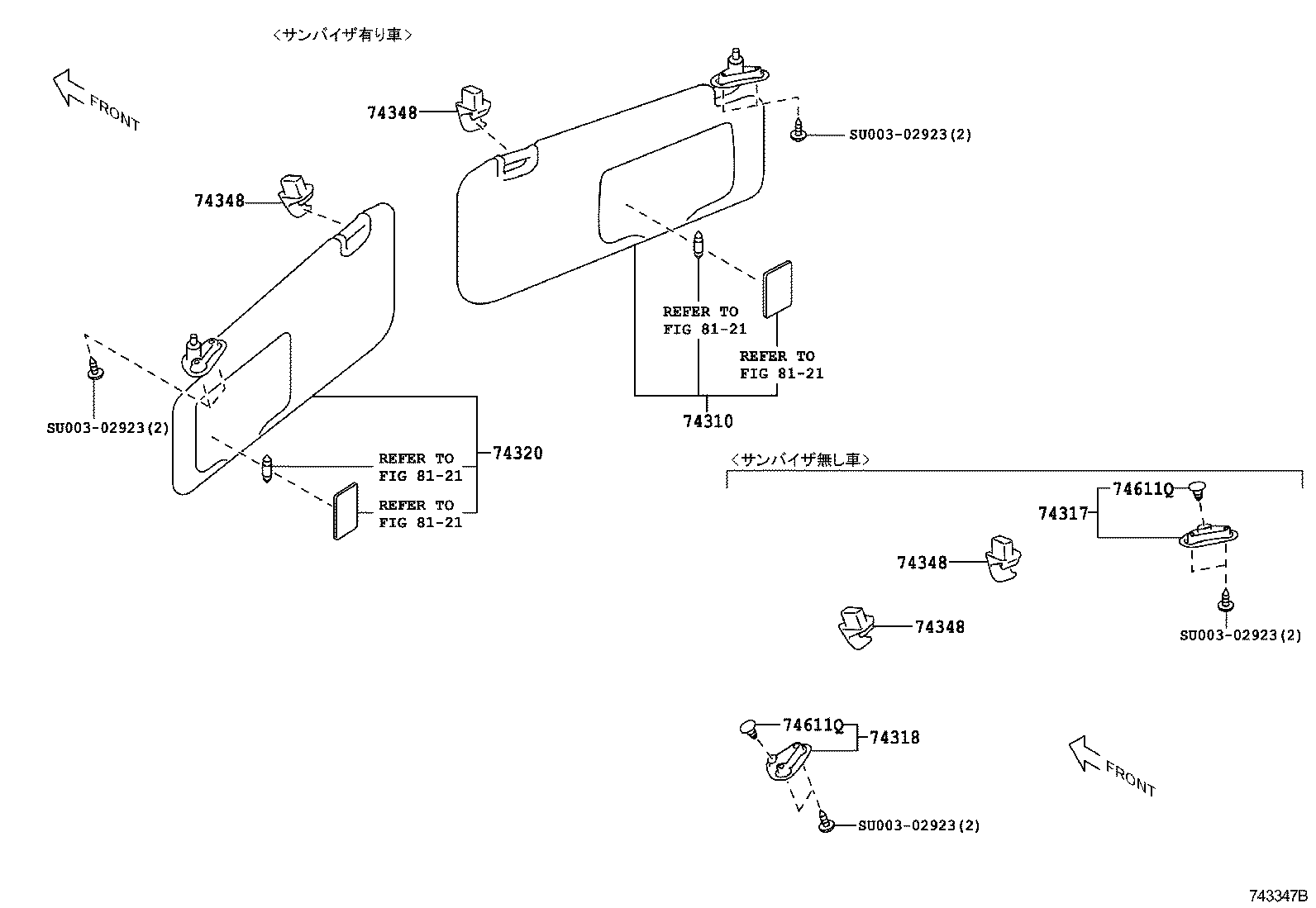

ILLUST NO. 1 OF 2(1608- )

Click highlighted areas on diagram

diagram 74310 74317 74318 74320 74348 74348 74348 74348 74611Q 74611Q 8121 8121 8121 8121 SU00302923 SU00302923 SU00302923 SU00302923
Part # Description Qty Price
Common parts
SU003-02923
Linked diagrams
8121

ILLUST NO. 2 OF 2(1608- )

Click highlighted areas on diagram

diagram 6701 6703 74210 74220 74221 74222 74231 74232 74603A 74630C 74640C 8115 8121 8121 8401 8401 8401 SU00300063
Part # Description Qty Price
Common parts
SU003-00063
Linked diagrams
6701
6703
8115
8121
8401
