ZN6-C248 (2014)
Toyota 86
Production
Nov 2014
-
Apr 2015
Engine
FA20
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

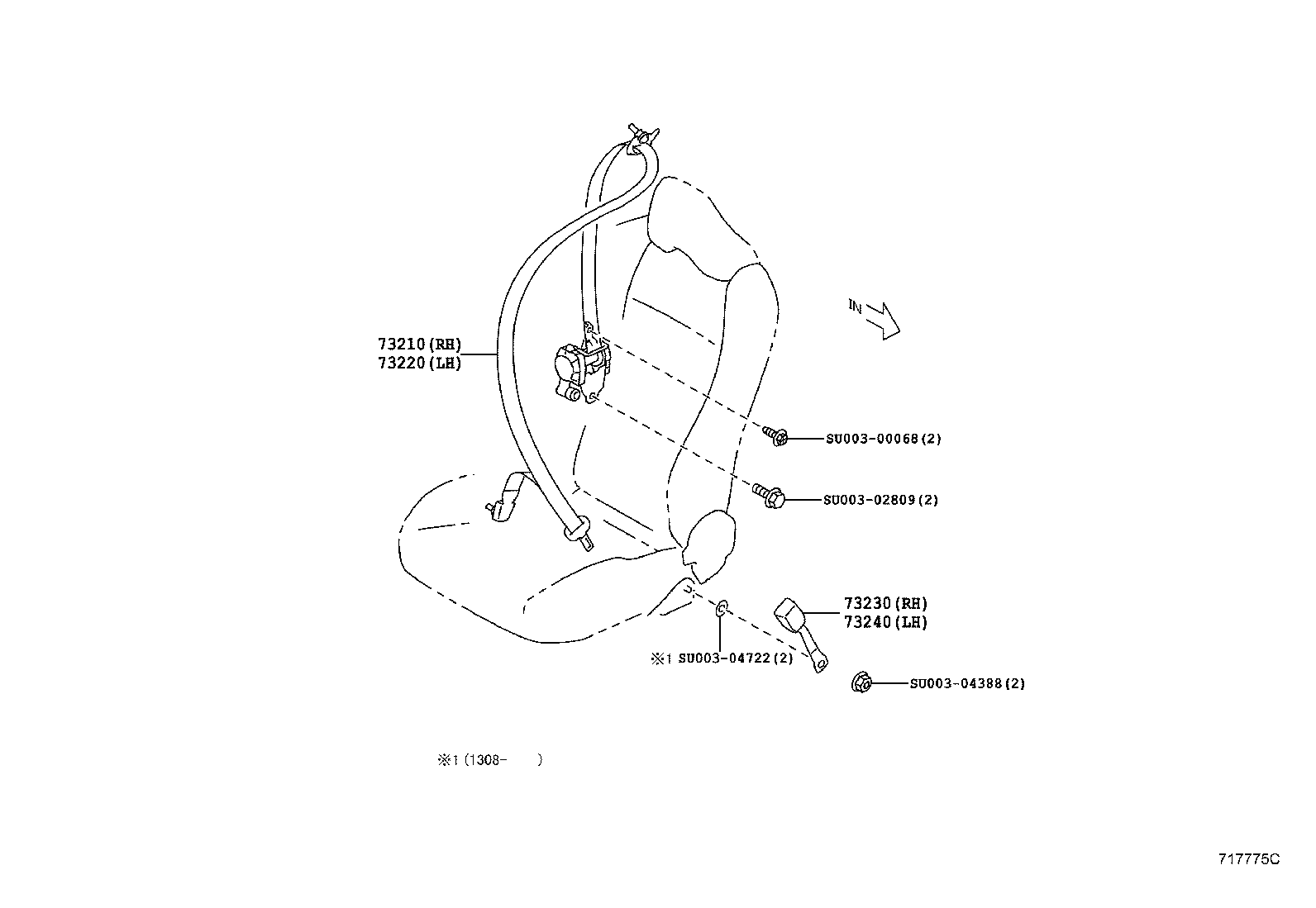

ILLUST NO. 1 OF 2(1203- )
Click highlighted areas on diagram
ﾌﾛﾝﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| SU003-01870 |
ZN6 BLACK |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| SU003-01871 |
ZN6 BLACK |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| SU003-01880 |
ZN6 BLACK |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| SU003-01881 |
ZN6 BLACK |
1 | ||
| Common parts | ||||
| SU003-00068 | ||||
| SU003-02809 | ||||
| SU003-04388 | ||||
| SU003-04722 | ||||

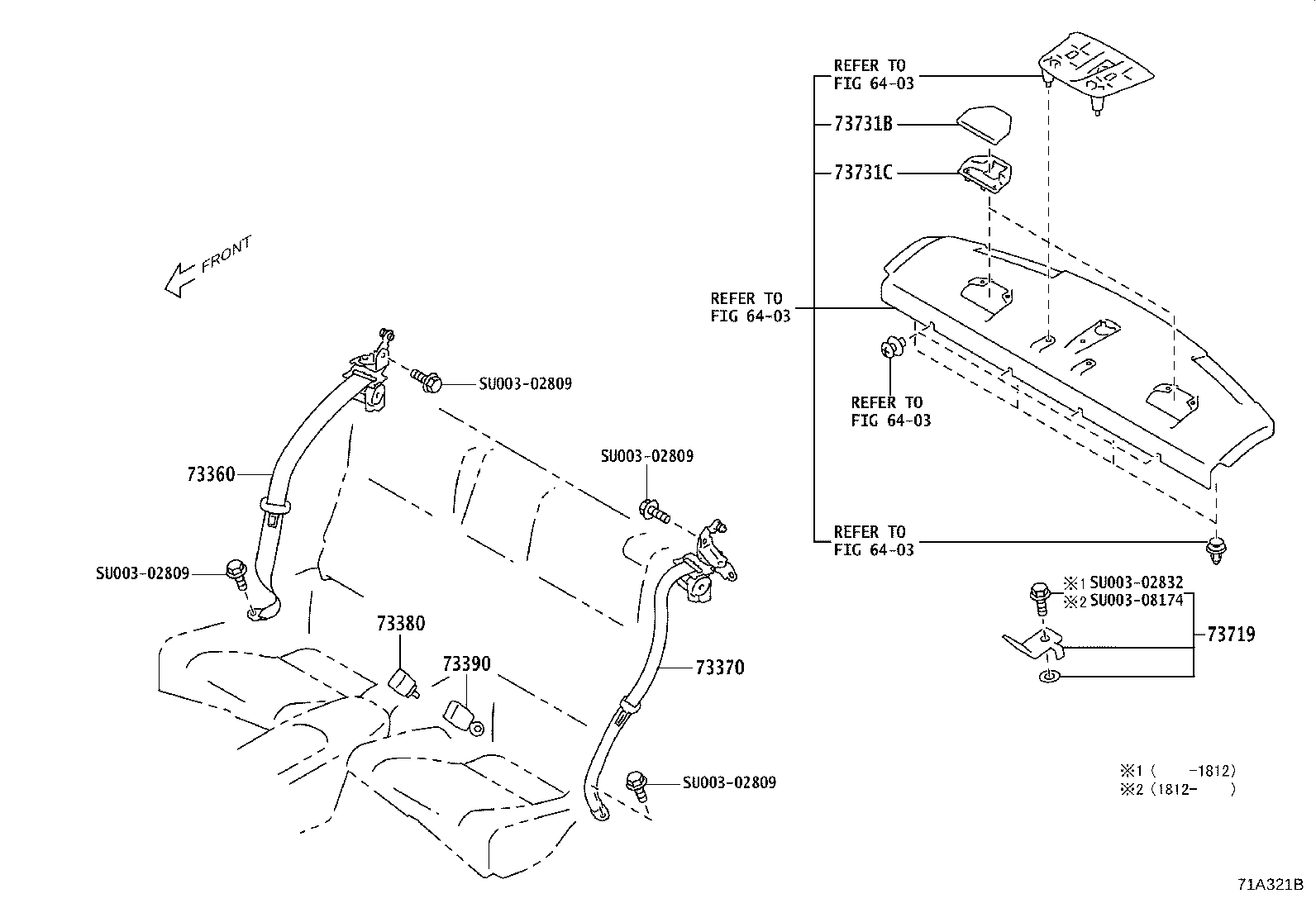

ILLUST NO. 2 OF 2(1203- )
Click highlighted areas on diagram
ﾘﾔｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| SU003-01885 |
ZN6 BLACK |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| SU003-01886 |
ZN6 BLACK |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| SU003-01887 |
ZN6 BLACK |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| SU003-01887 |
ZN6 BLACK |
1 | ||
| 73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR | ||||
| SU003-03399 |
ZN6 |
2 | ||
| 73731B - COVER, CHILD RESTRAINT SEAT, NO.1 | ||||
| SU003-01902 |
ZN6 BLACK |
2 | ||
| 73731C - COVER, CHILD RESTRAINT SEAT, NO.2 | ||||
| SU003-01903 |
ZN6 BLACK |
2 | ||
| Common parts | ||||
| SU003-02809 | ||||
| SU003-02832 | ||||
| Linked diagrams | ||||
| 6403 | ||||

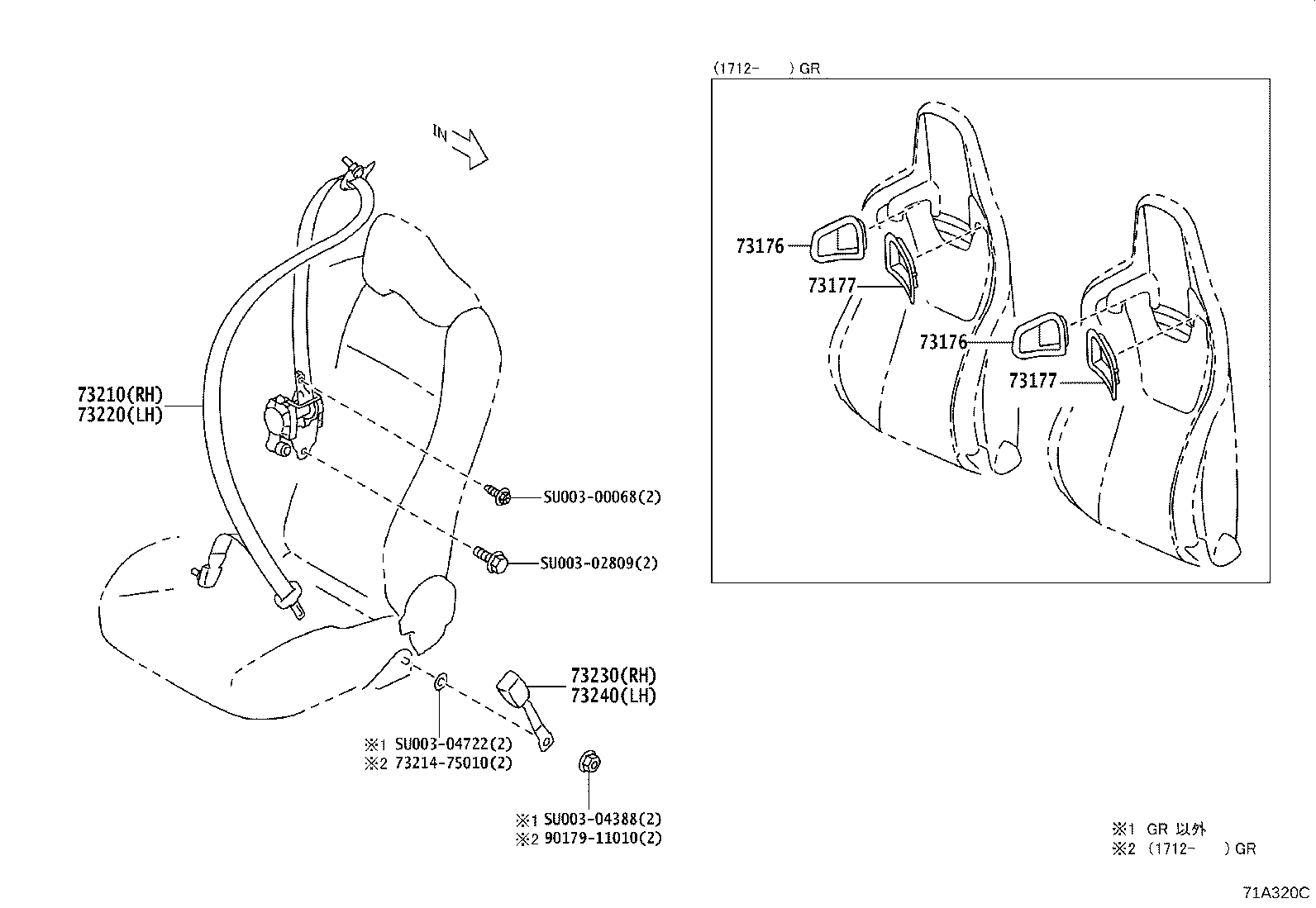

ILLUST NO. 1 OF 2(1608- )
Click highlighted areas on diagram
ﾌﾛﾝﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 73214-75010 | ||||
| 90179-11010 | ||||
| SU003-00068 | ||||
| SU003-02809 | ||||
| SU003-04388 | ||||
| SU003-04722 | ||||
ILLUST NO. 2 OF 2(1608- )
Click highlighted areas on diagram
ﾘﾔｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-02809 | ||||
| SU003-02832 | ||||
| SU003-08174 | ||||
| Linked diagrams | ||||
| 6403 | ||||
