ZN6-C248 (2014)
Toyota 86
Production
Nov 2014
-
Apr 2015
Engine
FA20
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

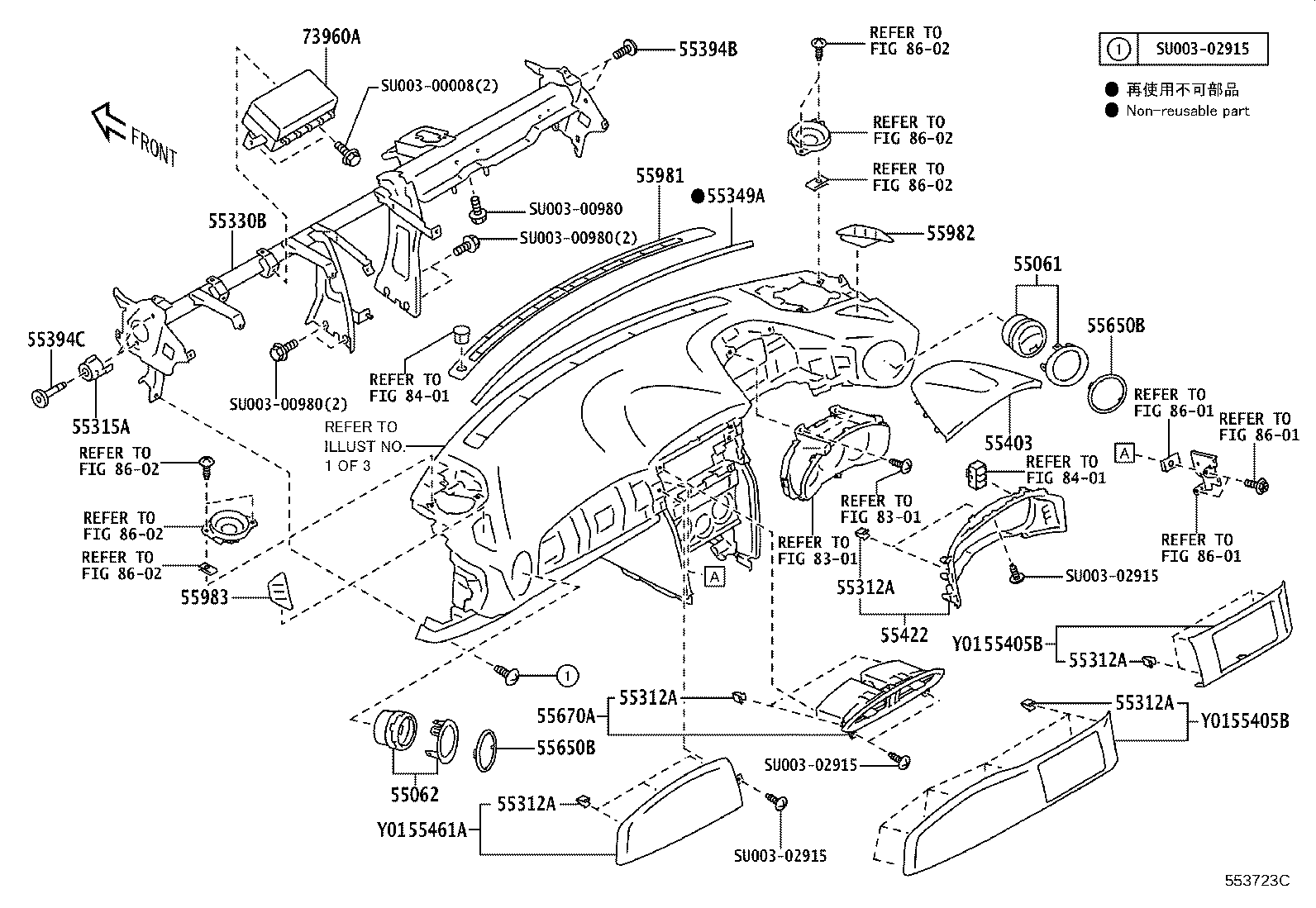

ILLUST NO. 1 OF 3(1203- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55044B - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER | ||||
| SU003-01917 |
ZN6..G,RC,RCG |
1 | ||
| 55045C - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, UPPER | ||||
| SU003-01918 |
ZN6..G,RC,RCG |
1 | ||
| 55302C - PANEL SUB-ASSY, INSTRUMENT | ||||
| SU003-01905 |
ZN6 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| SU003-01907 |
ZN6 |
1 | ||
| 55309C - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| SU003-01966 |
ZN6 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| SU003-02967 |
ZN6 |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| SU003-02991 |
ZN6 |
2 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| SU003-01923 |
ZN6 |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| SU003-01925 |
ZN6 |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| SU003-01975 |
ZN6 |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| SU003-01968 |
ZN6 |
1 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| SU003-02856 |
ZN6 |
2 | ||
| 55394C - BOLT, INSTRUMENT PANEL | ||||
| SU003-02855 |
ZN6 |
2 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| SU003-01951 |
ZN6 |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| SU003-01952 |
ZN6 |
1 | ||
| 55434E - CAP | ||||
| SU003-02961 |
ZN6 |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| SU003-01927 |
ZN6..G,RC,RCG |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| SU003-01928 |
ZN6..G,RC,RCG |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| SU003-01956 |
ZN6 |
2 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| SU003-04310 |
ZN6 |
2 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| SU003-01953 |
ZN6 |
1 | ||
| 55557C - DAMPER, GLOVE COMPARTMENT DOOR | ||||
| SU003-01972 |
ZN6 |
1 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| SU003-01964 |
ZN6 |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| SU003-01946 |
ZN6..RC,RCG |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| SU003-03426 |
ZN6 |
1 | ||
| Common parts | ||||
| SU003-00008 | ||||
| SU003-00980 | ||||
| SU003-01974 | ||||
| SU003-02866 | ||||
| SU003-02915 | ||||
| SU003-02931 | ||||

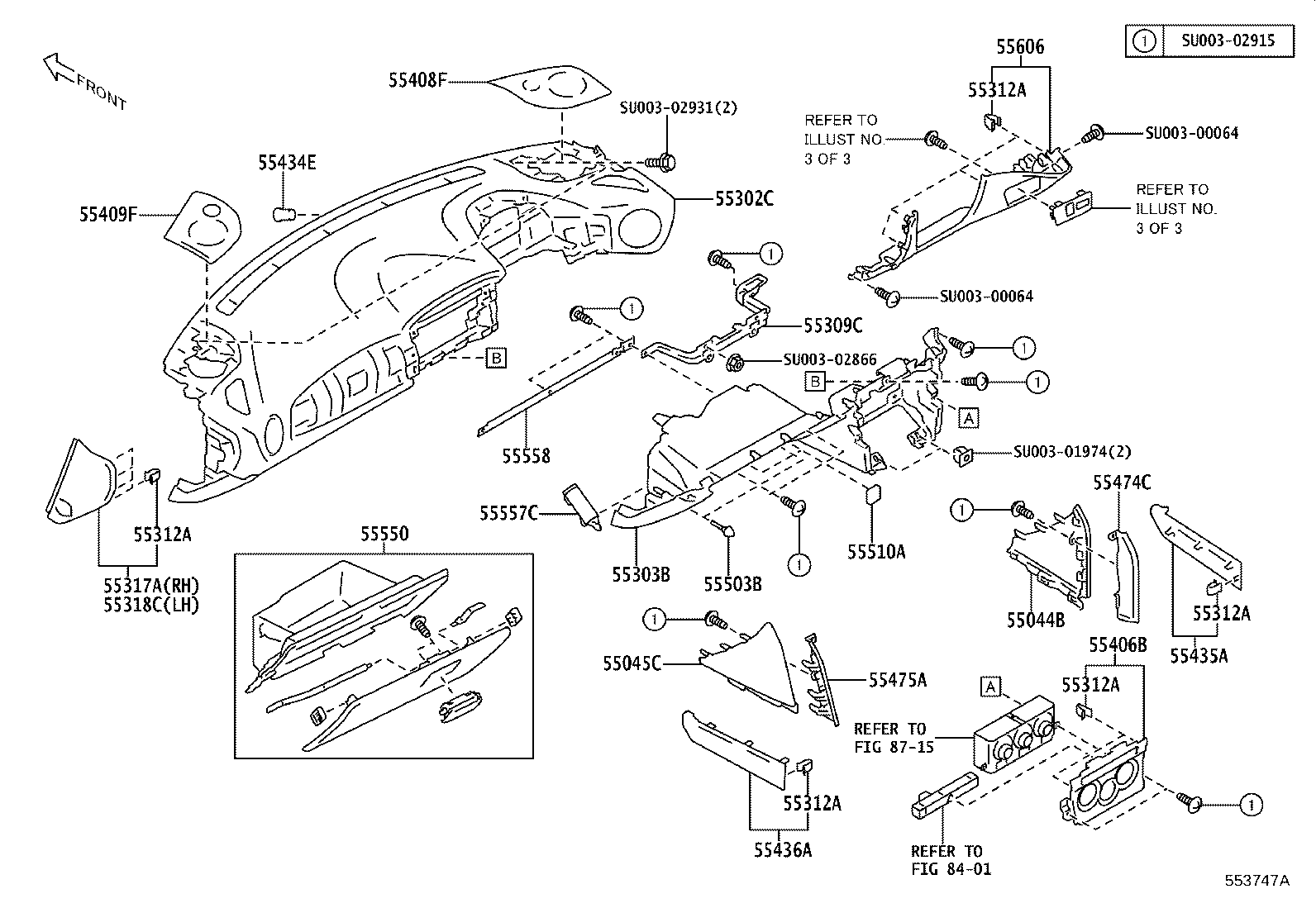

ILLUST NO. 2 OF 3(1203- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| SU003-01940 |
ZN6 |
1 | ||
| 55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2 | ||||
| SU003-01941 |
ZN6 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| SU003-02967 |
ZN6 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| SU003-02967 |
ZN6 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| SU003-02967 |
ZN6 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| SU003-02967 |
ZN6 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| SU003-02967 |
ZN6 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| SU003-02967 |
ZN6 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| SU003-02967 |
ZN6 |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| SU003-02967 |
ZN6 |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| SU003-01959 |
ZN6 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| SU003-01913 |
ZN6..G,RC,RCG |
1 | ||
| 55422 - ORNAMENT, INSTRUMENT PANEL METER, UPPER | ||||
| SU003-01957 |
ZN6 |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| SU003-01970 |
ZN6 |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| SU003-01971 |
ZN6 |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| SU003-01980 |
ZN6 |
1 | ||
| 55650B - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| SU003-01915 |
ZN6..G,RC,RCG |
2 | ||
| 55650B - BEZEL, INSTRUMENT PANEL REGISTER | ||||
| SU003-01915 |
ZN6..G,RC,RCG |
2 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| SU003-01944 |
ZN6..G,RC,RCG |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| SU003-01949 |
ZN6 |
1 | ||
| 55983 - GARNISH, DEFROSTER NOZZLE, NO.3 | ||||
| SU003-01950 |
ZN6 |
1 | ||
| Common parts | ||||
| SU003-00064 | ||||
| SU003-02915 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8401 | ||||
| 8715 | ||||
ILLUST NO. 3 OF 3(1203- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55449D - BASE, SWITCH | ||||
| SU003-02495 |
ZN6..RC,RCG |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 4(1608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-00008 | ||||
| SU003-00980 | ||||
| SU003-02915 | ||||
| Linked diagrams | ||||
| 8301 | ||||
| 8401 | ||||
| 8601 | ||||
| 8602 | ||||

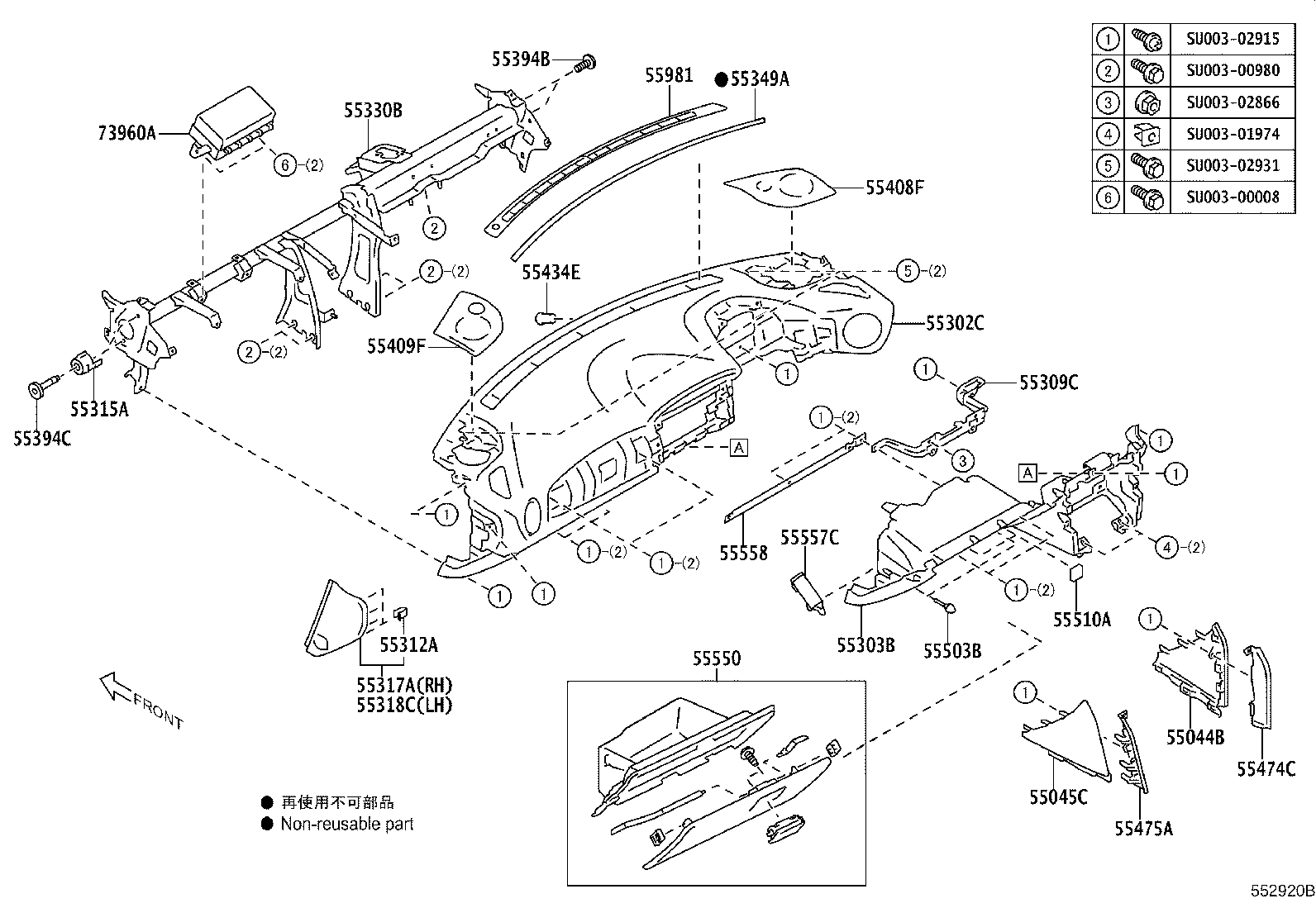

ILLUST NO. 1 OF 4(1608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-00064 | ||||
| SU003-01974 | ||||
| SU003-02866 | ||||
| SU003-02915 | ||||
| SU003-02931 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8715 | ||||
ILLUST NO. 3 OF 4(1608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||
