ZN6-C248 (2014)
Toyota 86
Production
Nov 2014
-
Apr 2015
Engine
FA20
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

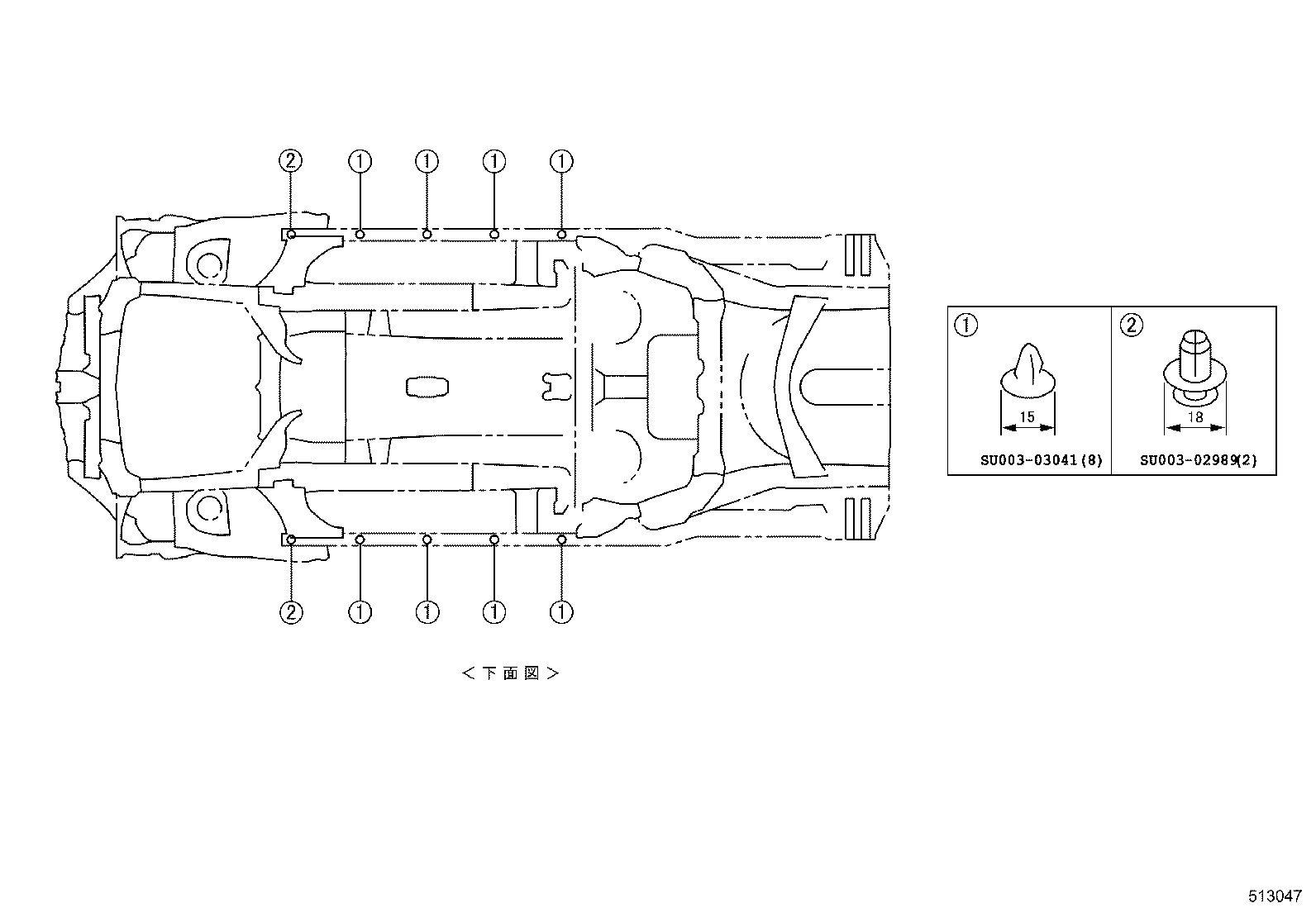

ILLUST NO. 3 OF 3(1203- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-02989 | ||||
| SU003-03041 | ||||
ILLUST NO. 1 OF 3(1203- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| SU003-00349 |
ZN6 |
1 | ||
| 52205H - CUSHION SUB-ASSY, BODY MOUNTING, REAR RH | ||||
| SU003-01224 |
ZN6 |
1 | ||
| 52206C - CUSHION SUB-ASSY, BODY MOUNTING, REAR LH | ||||
| SU003-01225 |
ZN6 |
1 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| SU003-00350 |
ZN6 |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| SU003-00351 |
ZN6 |
1 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| SU003-00353 |
ZN6 |
2 | ||
| 52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER | ||||
| SU003-00352 |
ZN6 |
2 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| SU003-02807 |
ZN6 |
4 | ||
| 52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1 | ||||
| SU003-02807 |
ZN6 |
4 | ||
| 57104E - MEMBER SUB-ASSY, FRONT CROSS | ||||
| SU003-00348 |
ZN6 |
1 | ||
| Common parts | ||||
| SU003-02792 | ||||
| SU003-02801 | ||||
| SU003-02816 | ||||
| SU003-02824 | ||||
| SU003-05212 | ||||
| Linked diagrams | ||||
| 4101 | ||||

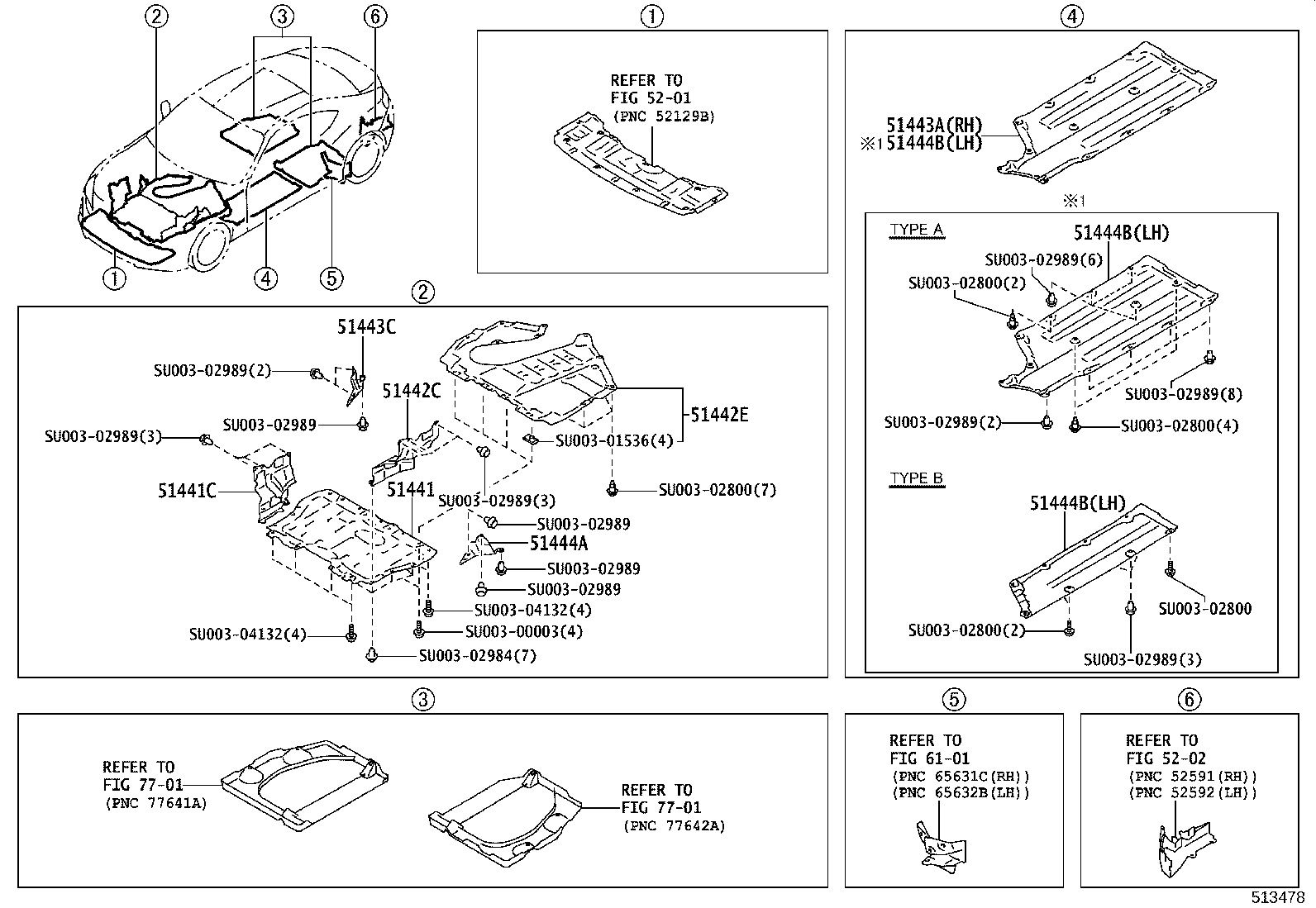

ILLUST NO. 2 OF 3(1203- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| SU003-01383 |
ZN6 |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| SU003-01384 |
ZN6 |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| SU003-01385 |
ZN6 |
1 | ||
| 51442E - COVER, ENGINE UNDER, NO.2 | ||||
| SU003-01379 |
ZN6 |
1 | ||
| 51443C - COVER, ENGINE UNDER, REAR RH | ||||
| SU003-01386 |
ZN6 |
1 | ||
| 51444A - COVER, ENGINE UNDER, REAR LH | ||||
| SU003-01387 |
ZN6 |
1 | ||
| 51444B - COVER, ENGINE UNDER, REAR LH | ||||
| SU003-01049 |
ZN6..G,RC,RCG TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 51444B - COVER, ENGINE UNDER, REAR LH | ||||
| SU003-01049 |
ZN6..G,RC,RCG TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 51444B - COVER, ENGINE UNDER, REAR LH | ||||
| SU003-01049 |
ZN6..G,RC,RCG TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| Common parts | ||||
| SU003-00003 | ||||
| SU003-01536 | ||||
| SU003-02800 | ||||
| SU003-02984 | ||||
| SU003-02989 | ||||
| SU003-04132 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5202 | ||||
| 6101 | ||||
| 7701 | ||||
ILLUST NO. 3 OF 3(1608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-02989 | ||||
| SU003-03041 | ||||
ILLUST NO. 2 OF 3(1608-1911)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-00003 | ||||
| SU003-01536 | ||||
| SU003-02800 | ||||
| SU003-02984 | ||||
| SU003-02989 | ||||
| SU003-04132 | ||||
| Linked diagrams | ||||
| 5201 | ||||
| 5202 | ||||
| 6101 | ||||
| 7701 | ||||
