ZN6-C248 (2014)
Toyota 86
Production
Nov 2014
-
Apr 2015
Engine
FA20
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

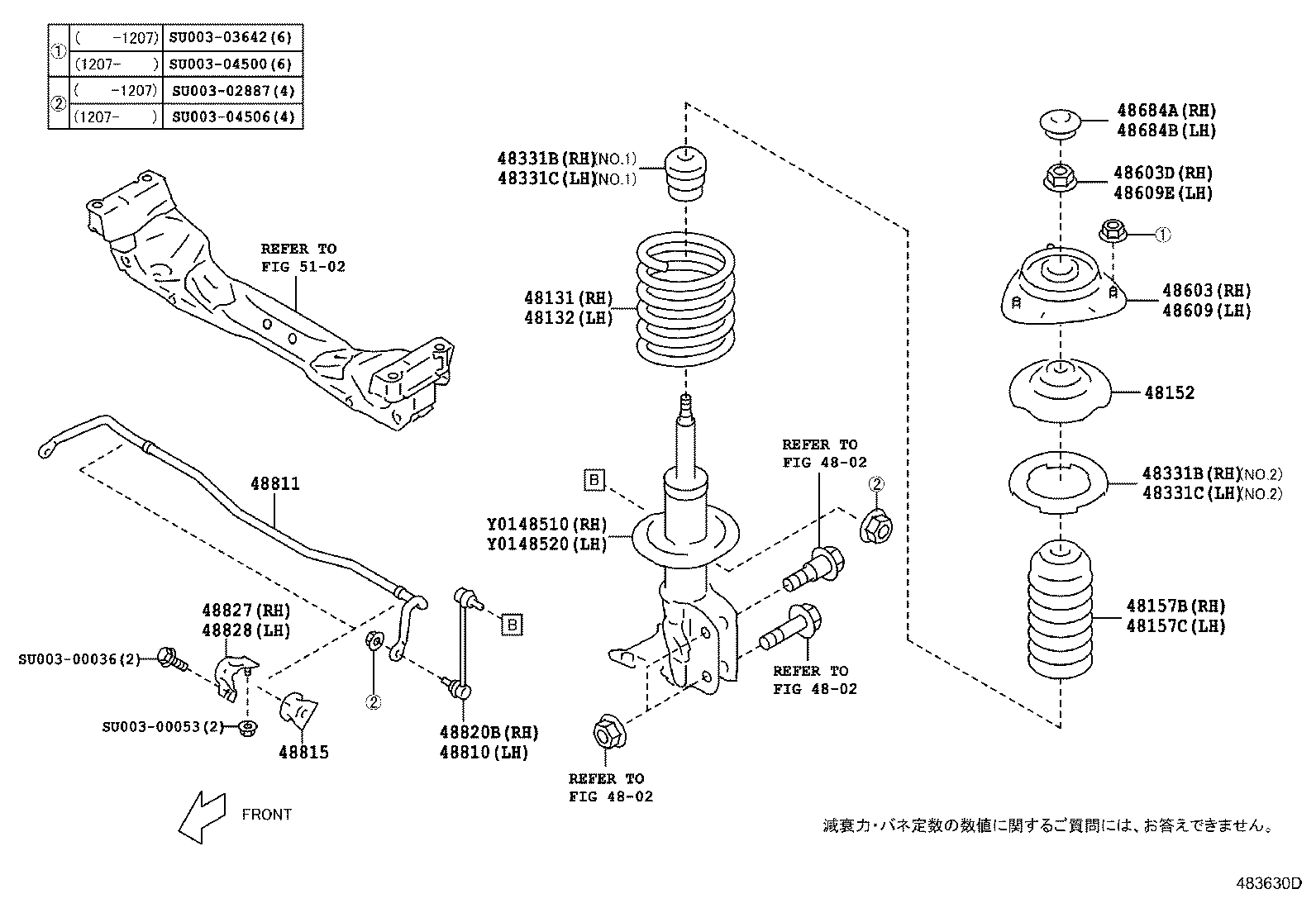

(1203- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| SU003-04143 |
ZN6..RC,RCG |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| SU003-04143 |
ZN6..RC,RCG |
1 | ||
| 48152 - SEAT, FRONT SPRING | ||||
| SU003-00376 |
ZN6 |
2 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| SU003-00375 |
ZN6 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| SU003-00375 |
ZN6 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| SU003-00374 |
ZN6 NO.1 |
1 | ||
| SU003-00377 |
ZN6 NO.2 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| SU003-00374 |
ZN6 NO.1 |
1 | ||
| SU003-00377 |
ZN6 NO.2 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| SU003-00374 |
ZN6 NO.1 |
1 | ||
| SU003-00377 |
ZN6 NO.2 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| SU003-00374 |
ZN6 NO.1 |
1 | ||
| SU003-00377 |
ZN6 NO.2 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| SU003-00371 |
ZN6 MARK 20310−CA000 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| SU003-00372 |
ZN6 MARK 20310−CA010 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| SU003-00373 |
ZN6 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| SU003-02868 |
ZN6 |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| SU003-00373 |
ZN6 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| SU003-02868 |
ZN6 |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| SU003-00378 |
ZN6 |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| SU003-00378 |
ZN6 |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| SU003-00394 |
ZN6 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| SU003-00391 |
ZN6 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| SU003-00392 |
ZN6 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| SU003-00394 |
ZN6 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| SU003-00393 |
ZN6 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| SU003-00393 |
ZN6 |
1 | ||
| Common parts | ||||
| SU003-00036 | ||||
| SU003-00053 | ||||
| SU003-02887 | ||||
| SU003-03642 | ||||
| SU003-04500 | ||||
| SU003-04506 | ||||
| Linked diagrams | ||||
| 4802 | ||||
| 5102 | ||||

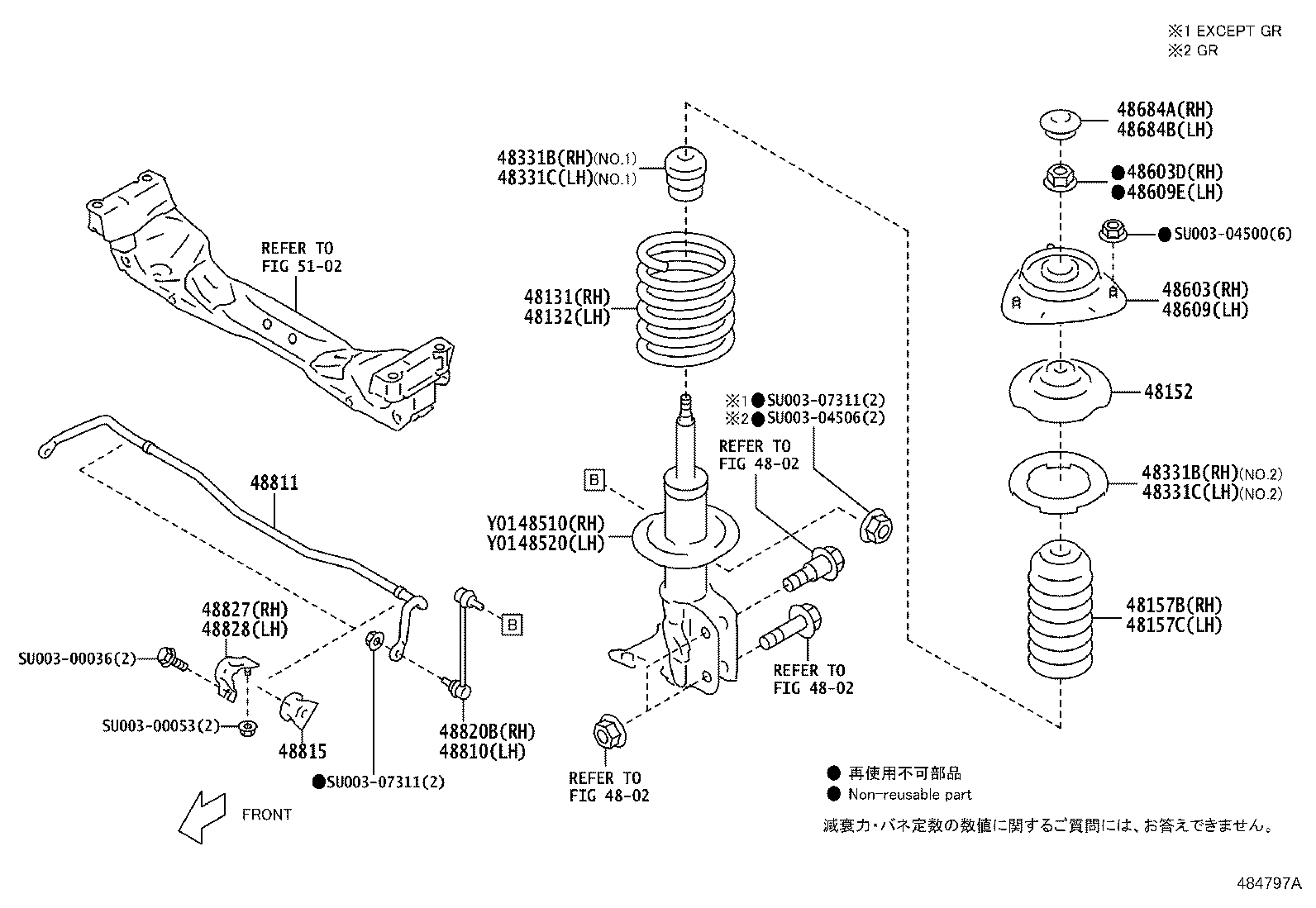

(1608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-00036 | ||||
| SU003-00053 | ||||
| SU003-04500 | ||||
| SU003-04506 | ||||
| SU003-07311 | ||||
| Linked diagrams | ||||
| 4802 | ||||
| 5102 | ||||
