ZN6-C248 (2014)
Toyota 86
Production
Nov 2014
-
Apr 2015
Engine
FA20
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 4(1203- )
Click highlighted areas on diagram

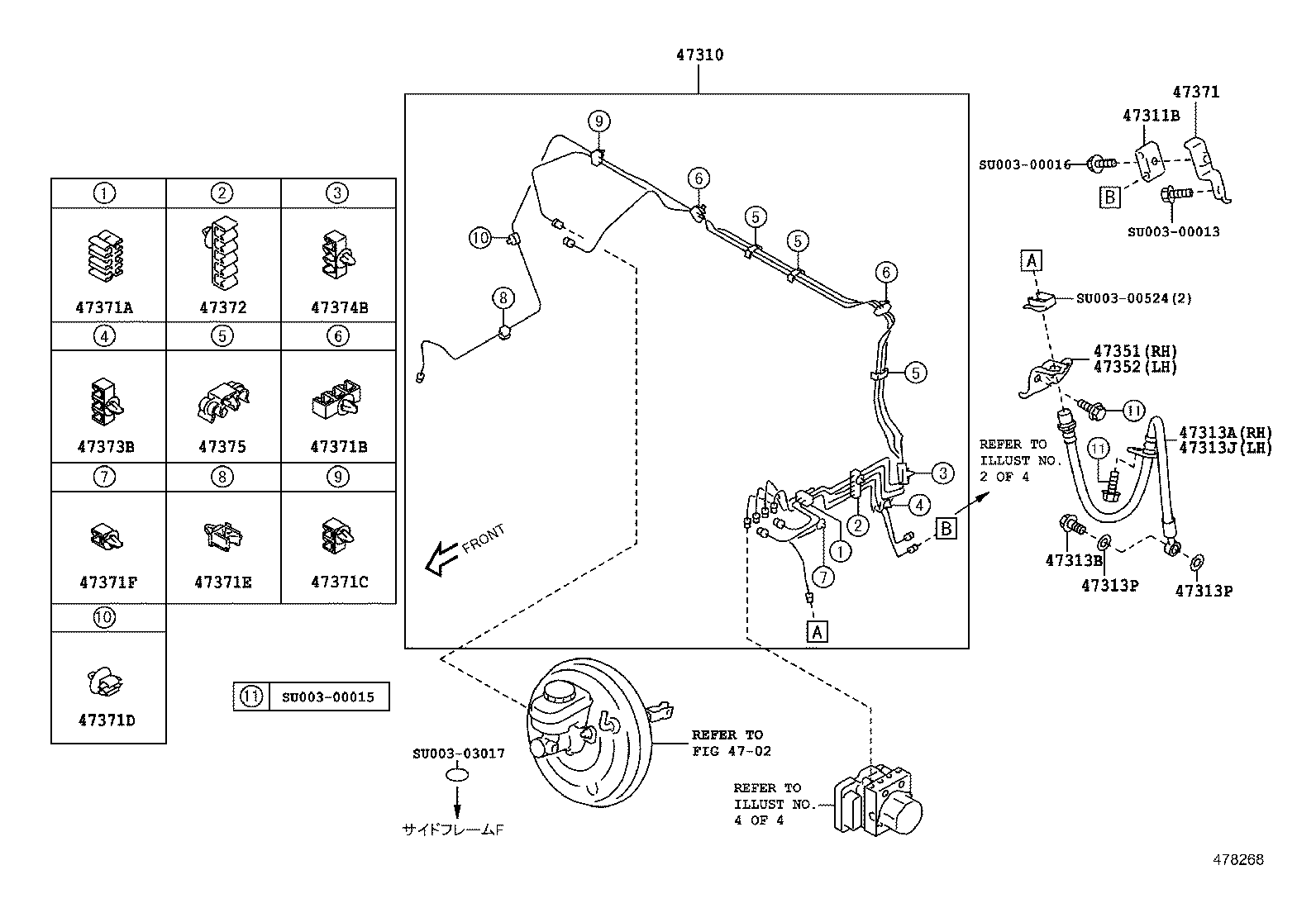

ﾌﾛﾝﾄﾌﾞﾚｰｷﾁｭｰﾌﾞ&ﾎｰｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47310 - TUBE ASSY, BRAKE, NO.1 | ||||
| SU003-00594 |
ZN6 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| SU003-00598 |
ZN6 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| SU003-00616 |
ZN6 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| SU003-00600 |
ZN6 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| SU003-00617 |
ZN6 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| SU003-00127 |
ZN6 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| SU003-00127 |
ZN6 |
4 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| SU003-04289 |
ZN6 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| SU003-04290 |
ZN6 |
1 | ||
| 47371 - BRACKET, CONNECTOR | ||||
| SU003-00601 |
ZN6 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| SU003-00605 |
ZN6 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| SU003-00604 |
ZN6 |
2 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| SU003-00612 |
ZN6 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| SU003-00599 |
ZN6 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| SU003-00608 |
ZN6 |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| SU003-00607 |
ZN6 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| SU003-00611 |
ZN6 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| SU003-00609 |
ZN6 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| SU003-00610 |
ZN6 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| SU003-00613 |
ZN6 |
3 | ||
| Common parts | ||||
| SU003-00013 | ||||
| SU003-00015 | ||||
| SU003-00016 | ||||
| SU003-00524 | ||||
| SU003-03017 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 3 OF 4(1203- )
Click highlighted areas on diagram

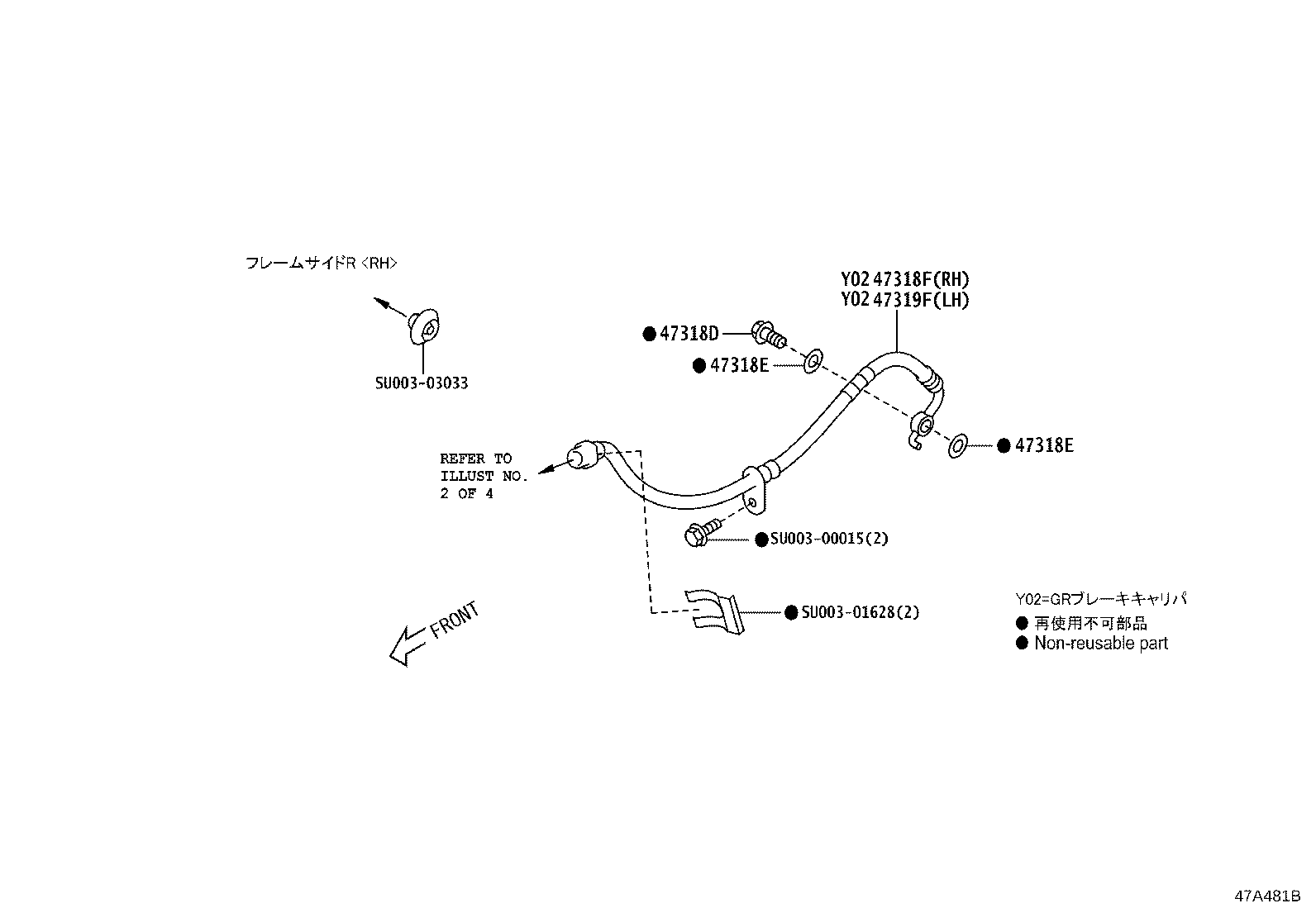

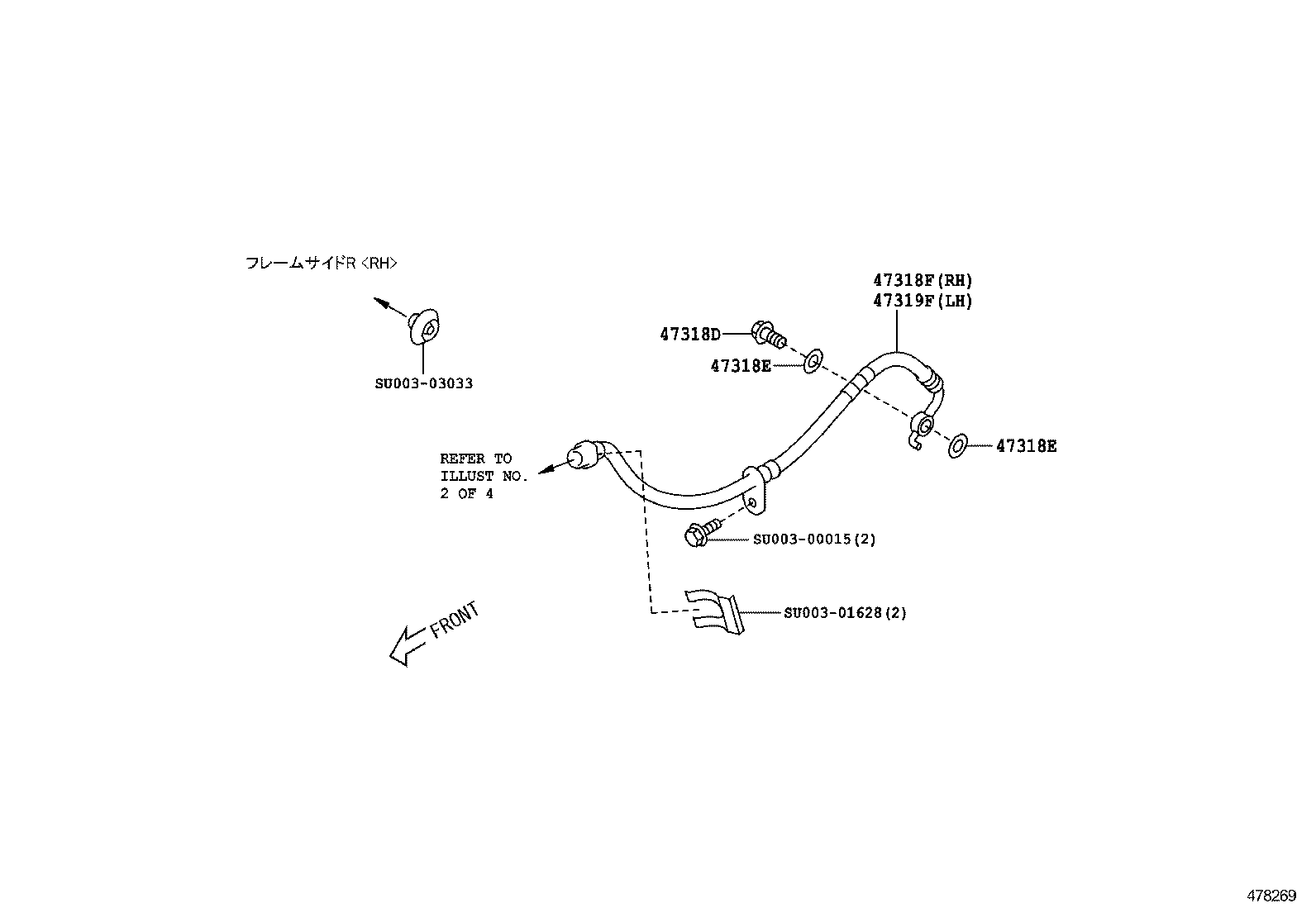

ﾘﾔﾌﾞﾚｰｷﾎｰｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| SU003-00600 |
ZN6 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| SU003-00127 |
ZN6 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| SU003-00127 |
ZN6 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| SU003-00620 |
ZN6..G,RC |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| SU003-00621 |
ZN6..G,RC |
1 | ||
| Common parts | ||||
| SU003-00015 | ||||
| SU003-01628 | ||||
| SU003-03033 | ||||
ILLUST NO. 4 OF 4(1203- )
Click highlighted areas on diagram

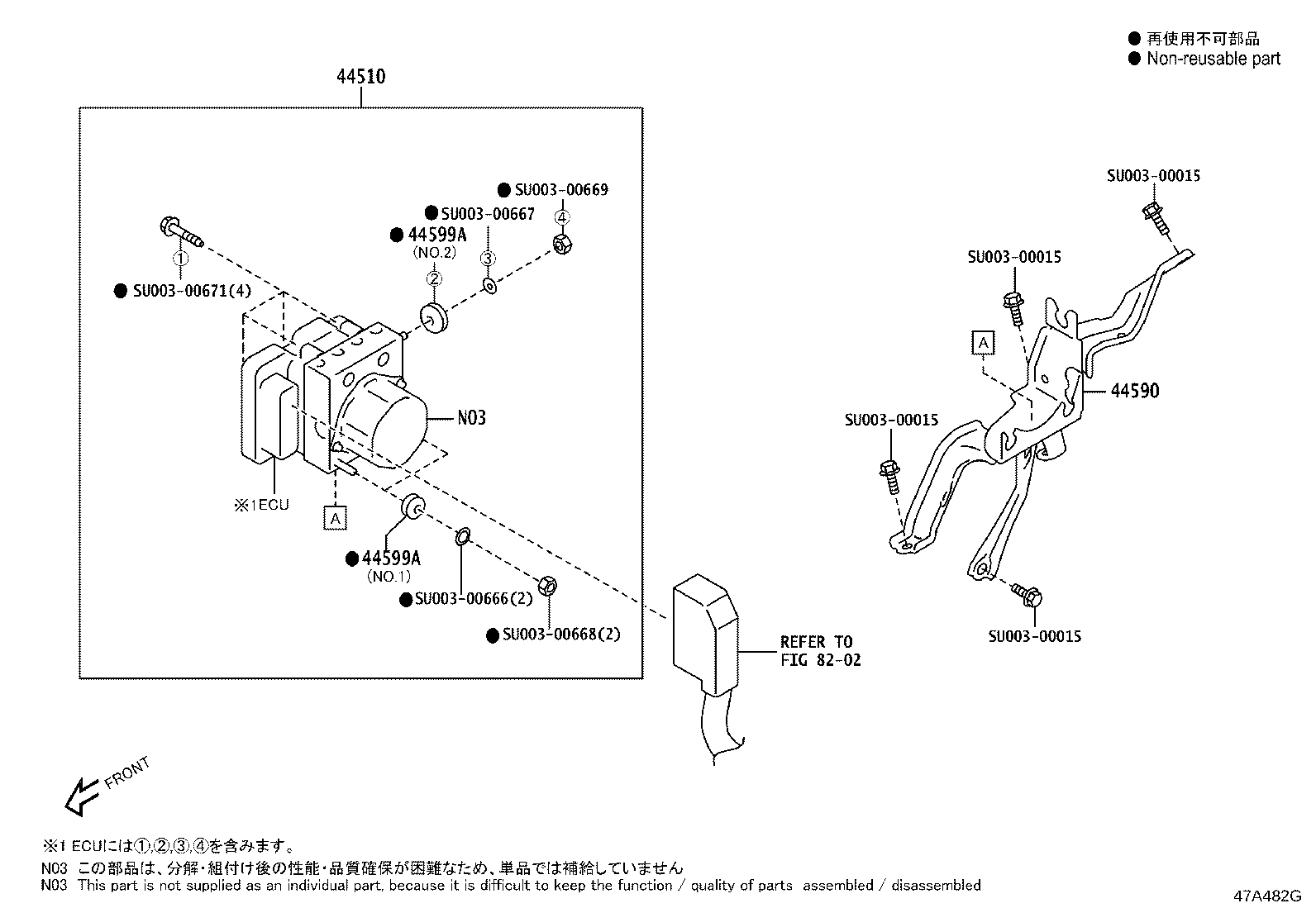

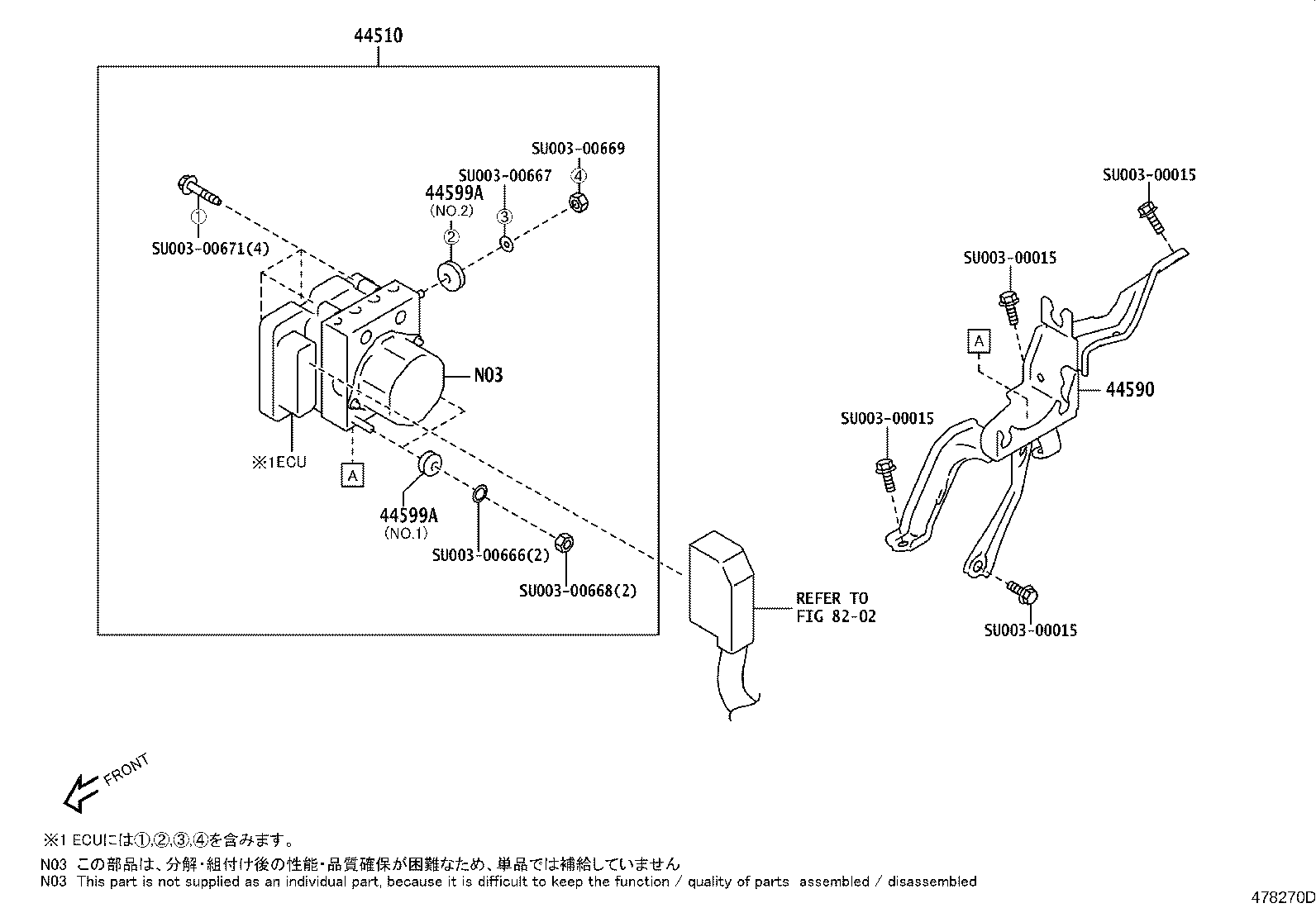

ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| SU003-04296 |
ZN6..RC |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| SU003-00661 |
ZN6 |
1 | ||
| 44599A - DAMPER, BRAKE ACTUATOR | ||||
| SU003-00659 |
ZN6 NO.1 |
2 | ||
| SU003-00660 |
ZN6 NO.2 |
1 | ||
| 44599A - DAMPER, BRAKE ACTUATOR | ||||
| SU003-00659 |
ZN6 NO.1 |
2 | ||
| SU003-00660 |
ZN6 NO.2 |
1 | ||
| Common parts | ||||
| SU003-00015 | ||||
| SU003-00666 | ||||
| SU003-00667 | ||||
| SU003-00668 | ||||
| SU003-00669 | ||||
| SU003-00671 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 4(1203- )
Click highlighted areas on diagram

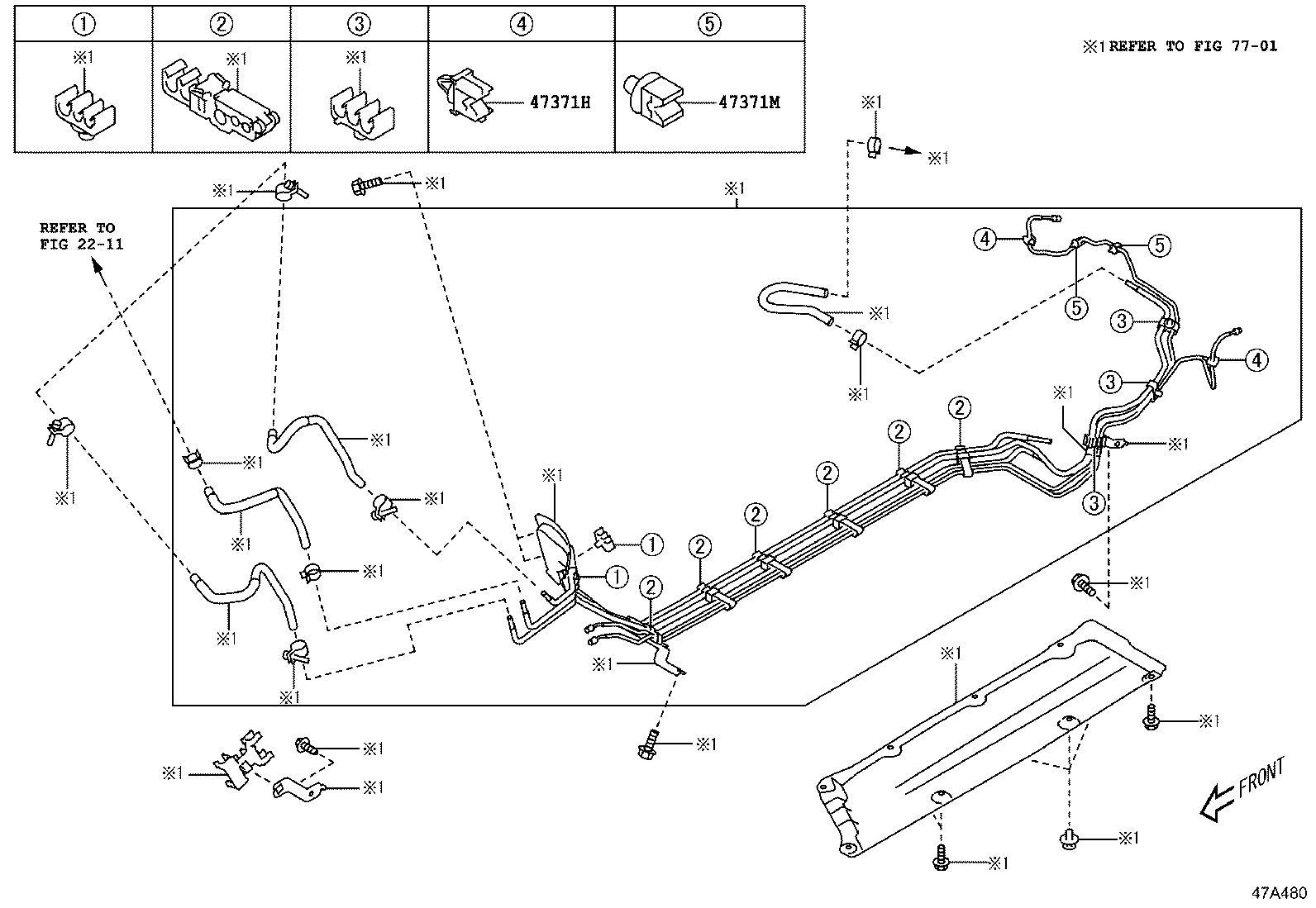

ﾘﾔﾌﾞﾚｰｷﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| SU003-00608 |
ZN6 |
2 | ||
| 47371M - CLAMP, BRAKE TUBE, NO.13 | ||||
| SU003-00607 |
ZN6 |
2 | ||
| Linked diagrams | ||||
| 2211 | ||||
| 7701 | ||||
ILLUST NO. 1 OF 4(1608- )
Click highlighted areas on diagram
ﾌﾛﾝﾄﾌﾞﾚｰｷﾁｭｰﾌﾞ&ﾎｰｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-00013 | ||||
| SU003-00015 | ||||
| SU003-00016 | ||||
| SU003-00524 | ||||
| SU003-03017 | ||||
| Linked diagrams | ||||
| 4702 | ||||
ILLUST NO. 2 OF 4(1608- )
Click highlighted areas on diagram
ﾘﾔﾌﾞﾚｰｷﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 2211 | ||||
| 7701 | ||||
ILLUST NO. 3 OF 4(1608- )
Click highlighted areas on diagram
ﾘﾔﾌﾞﾚｰｷﾎｰｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-00015 | ||||
| SU003-01628 | ||||
| SU003-03033 | ||||
ILLUST NO. 4 OF 4(1608- )
Click highlighted areas on diagram
ﾌﾞﾚｰｷｱｸﾁｭｴｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-00015 | ||||
| SU003-00666 | ||||
| SU003-00667 | ||||
| SU003-00668 | ||||
| SU003-00669 | ||||
| SU003-00671 | ||||
| Linked diagrams | ||||
| 8202 | ||||
