ZN6-C248 (2014)
Toyota 86
Production
Nov 2014
-
Apr 2015
Engine
FA20
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

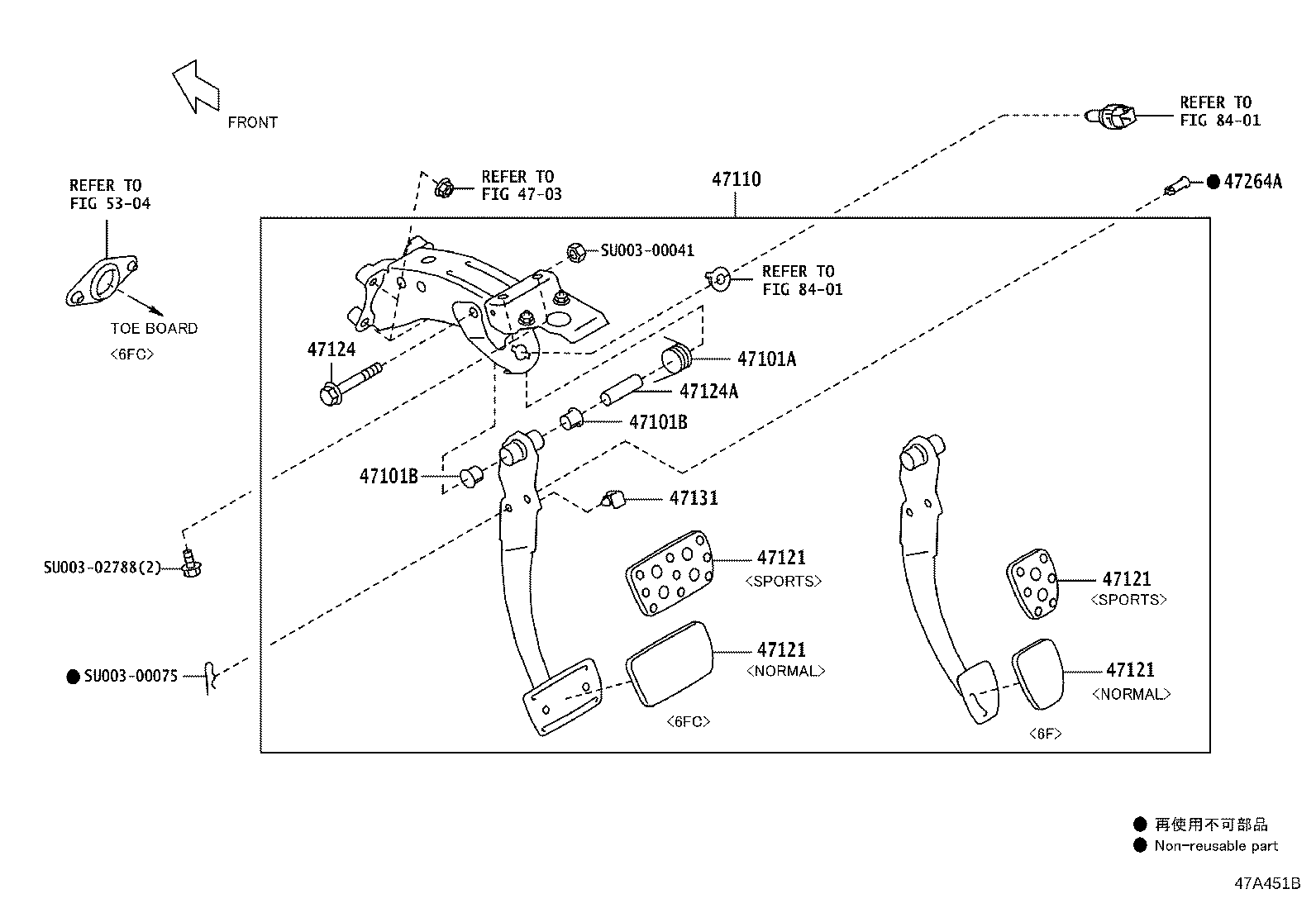

(1203- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| SU003-00977 |
ZN6 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| SU003-02123 |
ZN6 |
2 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| SU003-02123 |
ZN6 |
2 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| SU003-00954 |
ZN6..RC,RCG |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| SU003-00961 |
ZN6..RC,RCG |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| SU003-00961 |
ZN6..RC,RCG |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| SU003-00961 |
ZN6..RC,RCG |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| SU003-00961 |
ZN6..RC,RCG |
1 | ||
| 47124 - SHAFT, BRAKE PEDAL | ||||
| SU003-00987 |
ZN6 |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| SU003-00981 |
ZN6 |
1 | ||
| 47131 - CUSHION(FOR STOP LAMP SWITCH) | ||||
| SU003-00983 |
ZN6 |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| SU003-02938 |
ZN6 |
1 | ||
| Common parts | ||||
| SU003-00005 | ||||
| SU003-00041 | ||||
| SU003-00075 | ||||
| SU003-02788 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 5304 | ||||
| 8401 | ||||

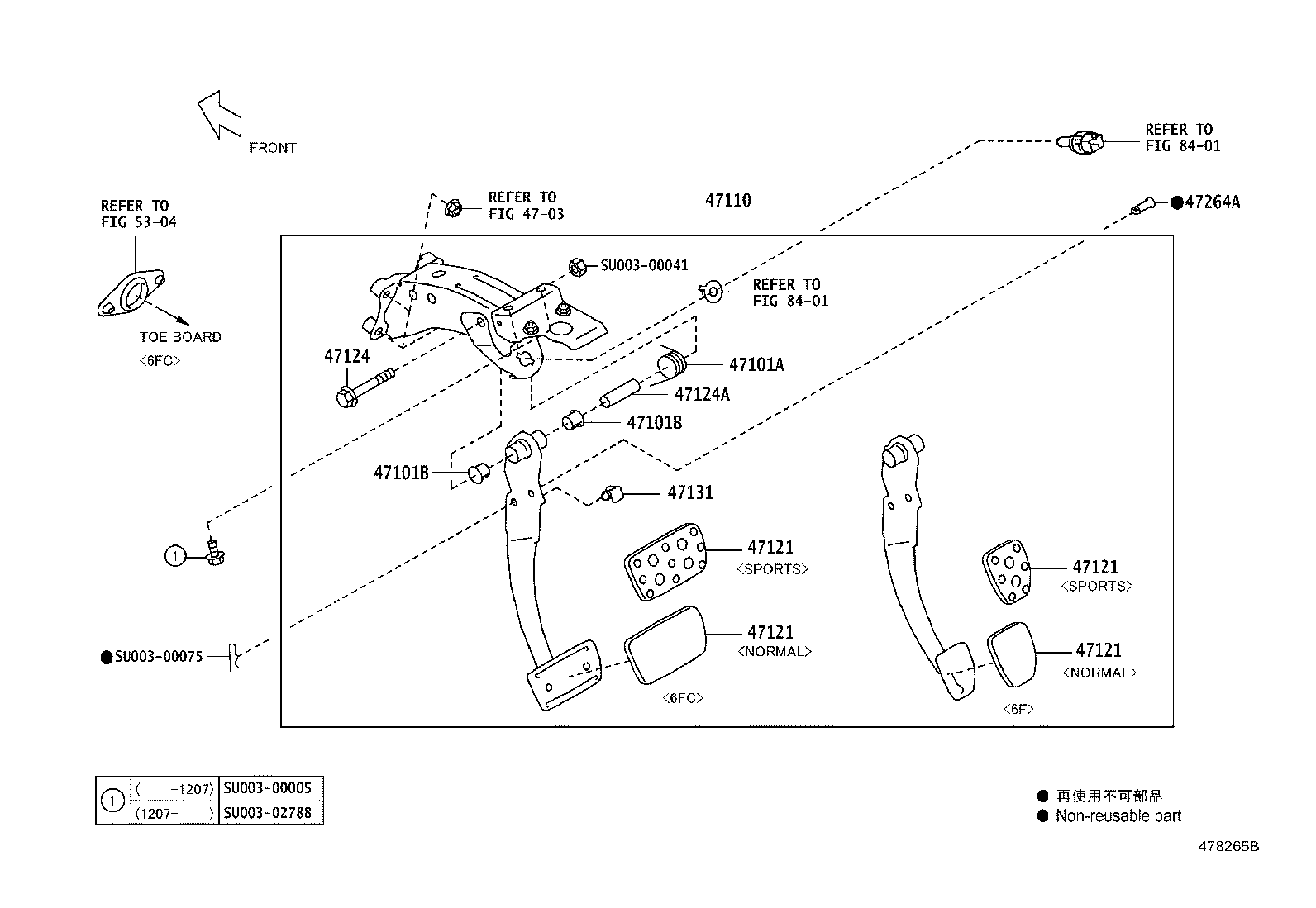

(1608- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-00041 | ||||
| SU003-00075 | ||||
| SU003-02788 | ||||
| Linked diagrams | ||||
| 4703 | ||||
| 5304 | ||||
| 8401 | ||||
