ZN6-C248 (2014)
Toyota 86
Production
Nov 2014
-
Apr 2015
Engine
FA20
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

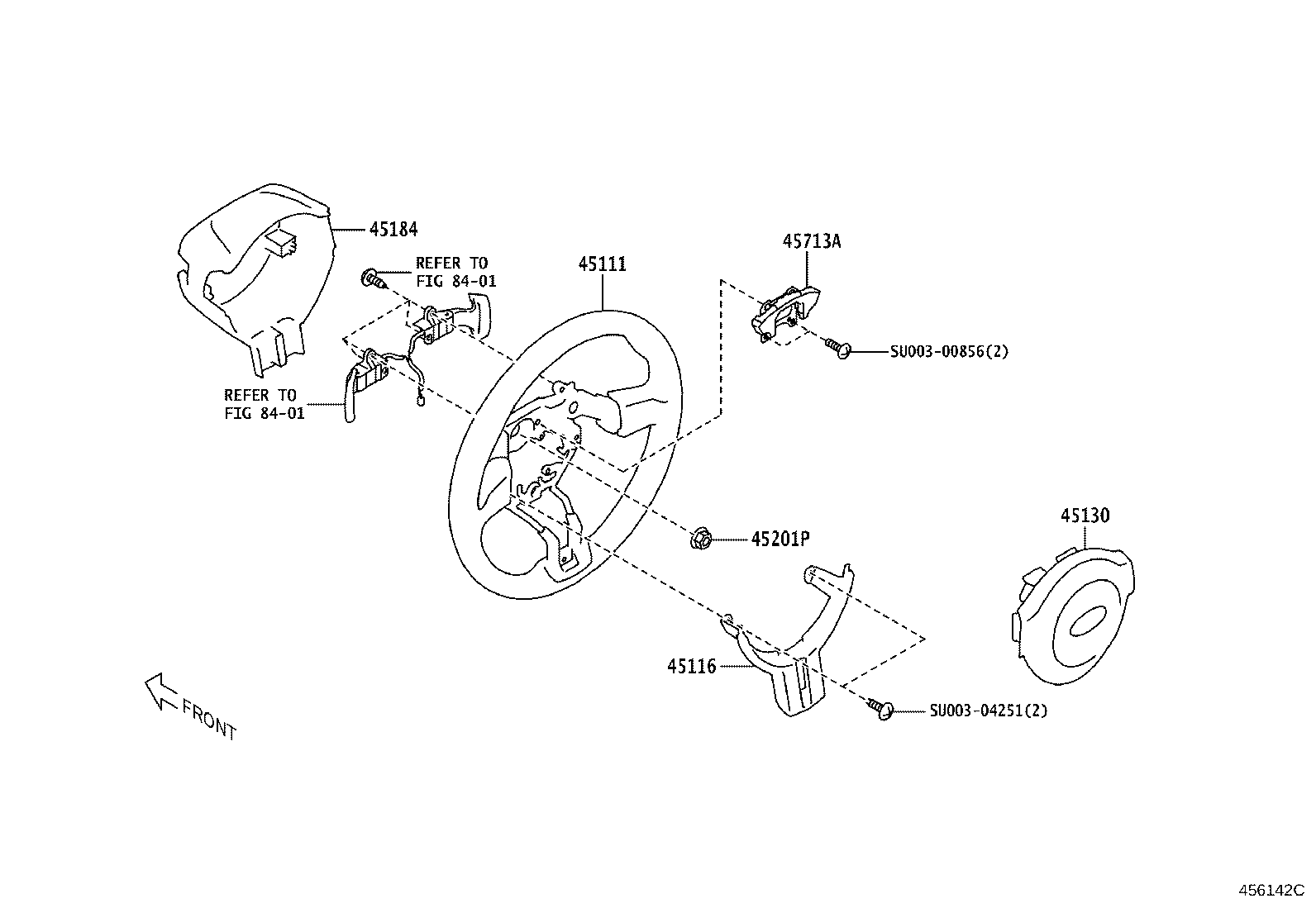

ILLUST NO. 1 OF 2(1203- )
Click highlighted areas on diagram
ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45111 - WHEEL, STEERING | ||||
| SU003-00843 |
ZN6..RC,RCG BLACK |
1 | ||
| 45116 - ORNAMENT, STEERING WHEEL, NO.1 | ||||
| SU003-04253 |
ZN6..RC,RCG |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| SU003-03410 |
ZN6 BLACK |
1 | ||
| 45184 - COVER, STEERING WHEEL BOSS, LOWER | ||||
| SU003-04247 |
ZN6..6F;ZN6..6FC..G |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| SU003-00056 |
ZN6 |
1 | ||
| 45713A - DAMPER, STEERING SHAKE | ||||
| SU003-00857 |
ZN6 |
1 | ||
| Common parts | ||||
| SU003-00856 | ||||
| SU003-04251 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1203- )
Click highlighted areas on diagram
ﾎｰﾝﾎﾞﾀﾝﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| SU003-02406 |
ZN6 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||

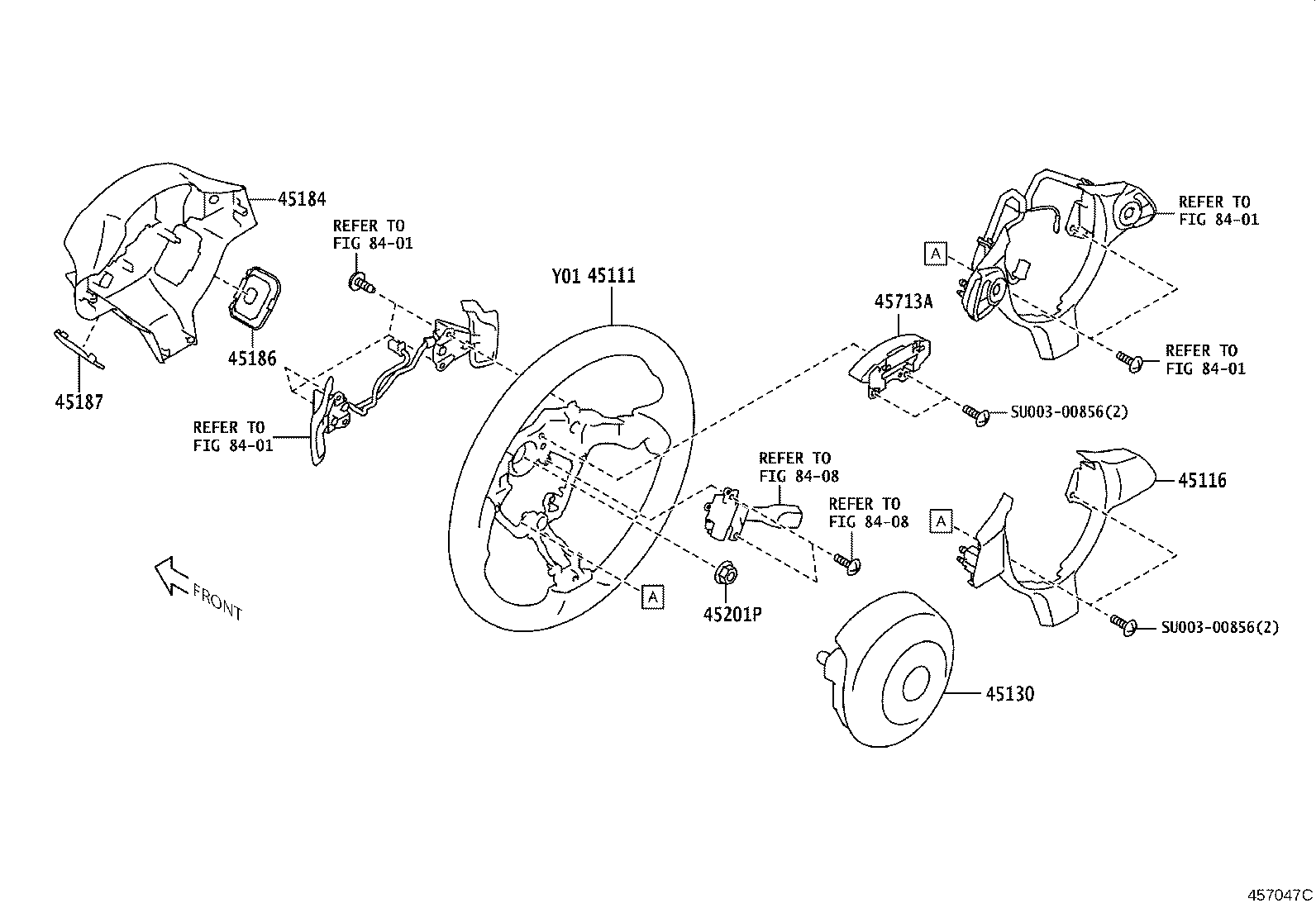

ILLUST NO. 1 OF 2(1608- )
Click highlighted areas on diagram
3ﾎﾝｽﾎﾟｰｸ,ｽﾃｱﾘﾝｸﾞﾎｲｰﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-00856 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8408 | ||||
ILLUST NO. 2 OF 2(1608- )
Click highlighted areas on diagram
ﾎｰﾝﾎﾞﾀﾝﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 8401 | ||||
