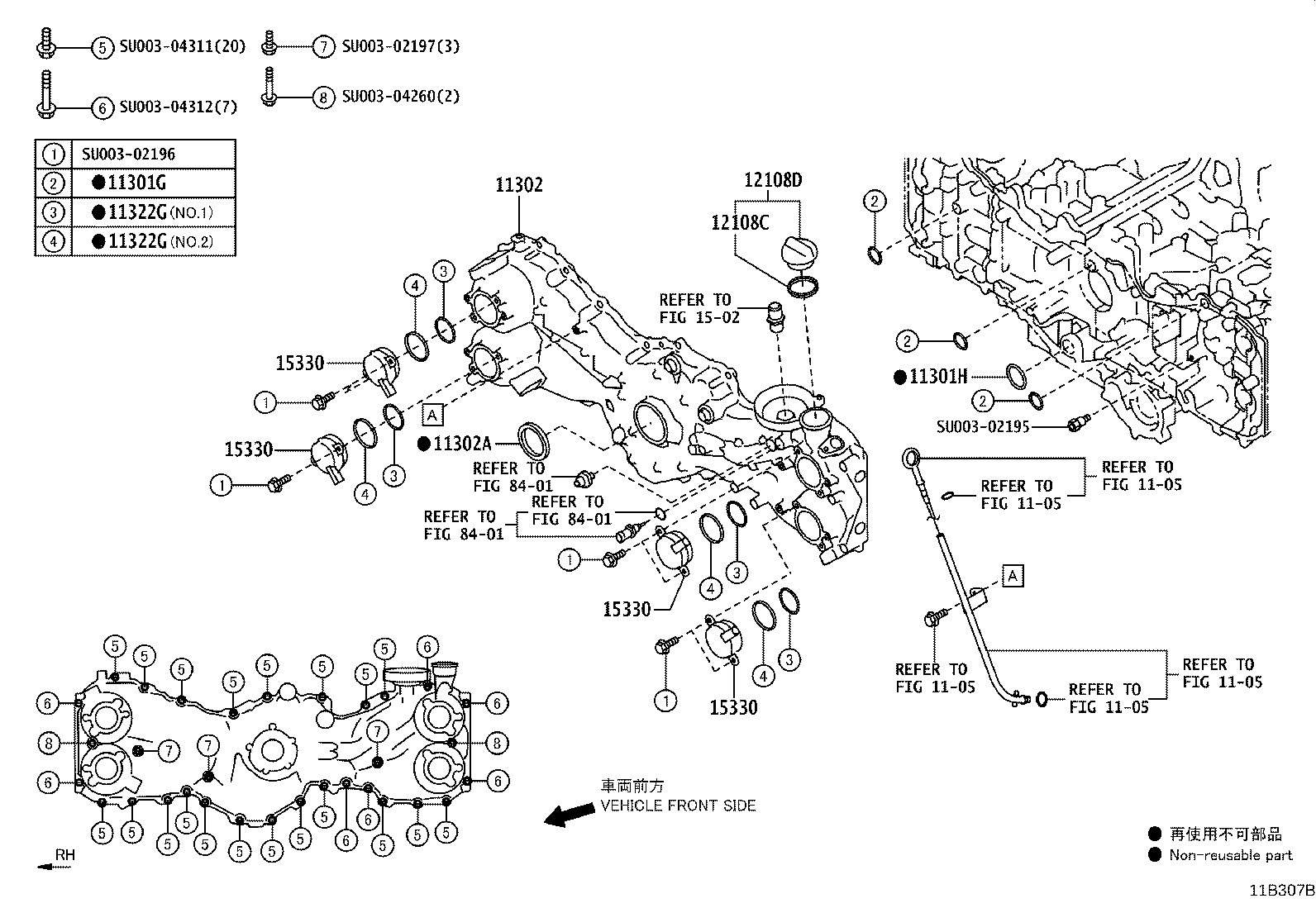

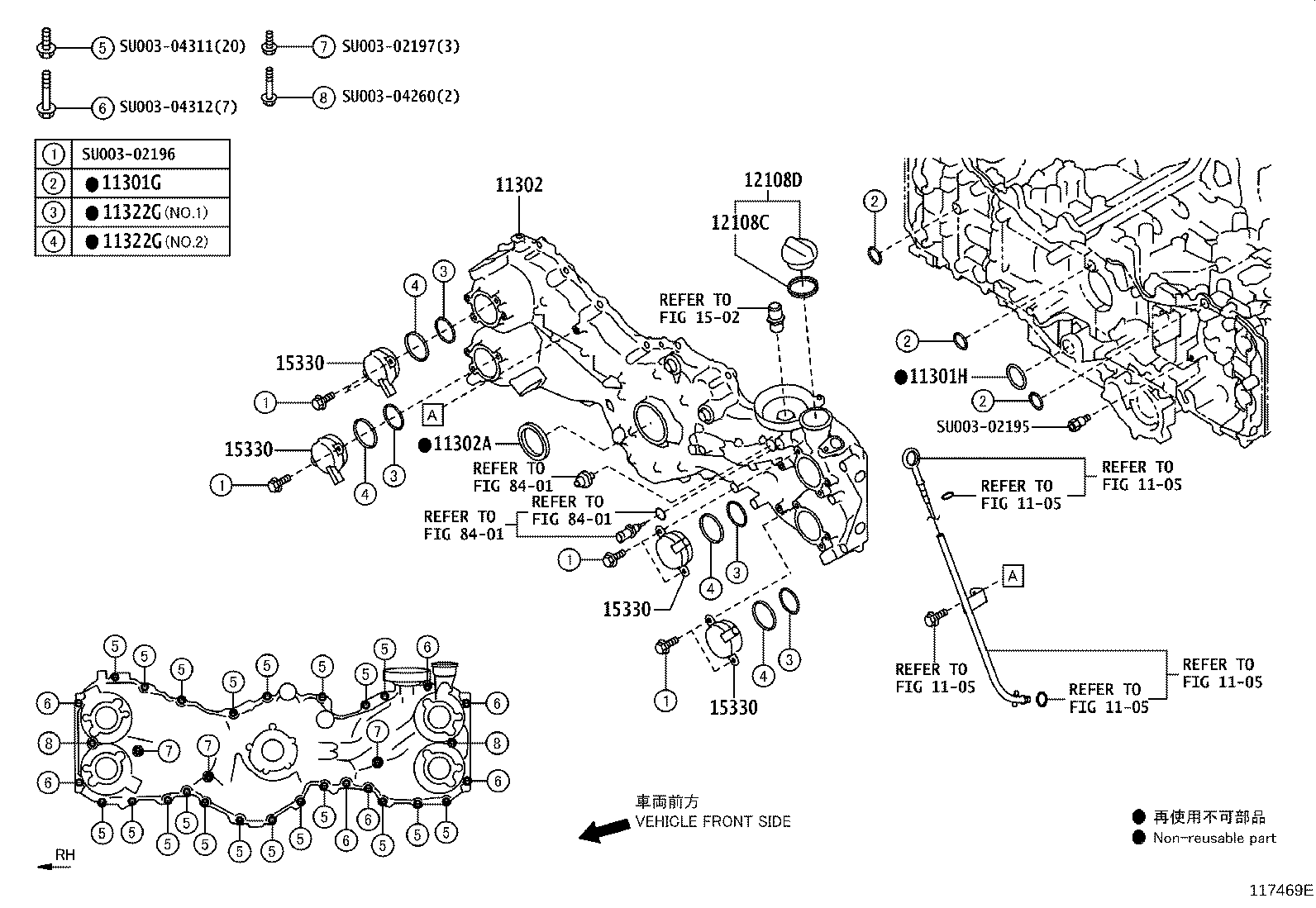

Toyota 86 ZN6 TIMING GEAR COVER & REAR END PLATE

Part #	Description	Period	Qty
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
SU003-02183	FA20..ZN6	03/2012 - 08/2013	3
11301H - RING, O(FOR TIMING GEAR CASE, LOWER)
SU003-02186	FA20..ZN6	03/2012 - 08/2013	1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
SU003-00186	FA20..ZN6	03/2012 - 10/2012	1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
SU003-02180	FA20..ZN6	03/2012 - 08/2013	1
11322G - RING, O(FOR TIMING GEAR COVER)
SU003-00332	FA20..ZN6 NO.2	03/2012 - 08/2013	4
SU003-02191	FA20..ZN6 NO.1	03/2012 - 08/2013	4
11322G - RING, O(FOR TIMING GEAR COVER)
SU003-00332	FA20..ZN6 NO.2	03/2012 - 08/2013	4
SU003-02191	FA20..ZN6 NO.1	03/2012 - 08/2013	4
12108C - GASKET
SU003-02160	FA20..ZN6	03/2012 - 08/2013	1
12108D - CAP ASSY, OIL FILLER
SU003-04083	FA20..ZN6	03/2012 - 08/2013	1
15330 - VALVE ASSY, CAM TIMING OIL CONTROL
SU003-00096	FA20..ZN6	03/2012 - 08/2013	4
SU003-06052	FA20..ZN6	02/2015 - 03/2015	4
15330 - VALVE ASSY, CAM TIMING OIL CONTROL
SU003-00096	FA20..ZN6	03/2012 - 08/2013	4
SU003-06052	FA20..ZN6	02/2015 - 03/2015	4
15330 - VALVE ASSY, CAM TIMING OIL CONTROL
SU003-00096	FA20..ZN6	03/2012 - 08/2013	4
SU003-06052	FA20..ZN6	02/2015 - 03/2015	4
15330 - VALVE ASSY, CAM TIMING OIL CONTROL
SU003-00096	FA20..ZN6	03/2012 - 08/2013	4
SU003-06052	FA20..ZN6	02/2015 - 03/2015	4
Common parts
SU003-02195
SU003-02196
SU003-02197
SU003-04260
SU003-04311
SU003-04312
Linked diagrams
1105
1502
8401

ZN6-C248 (2014)
