ZN6-A2E7 (2012)

Toyota 86

Production Mar 2012 - Sep 2013
Engine FA20
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

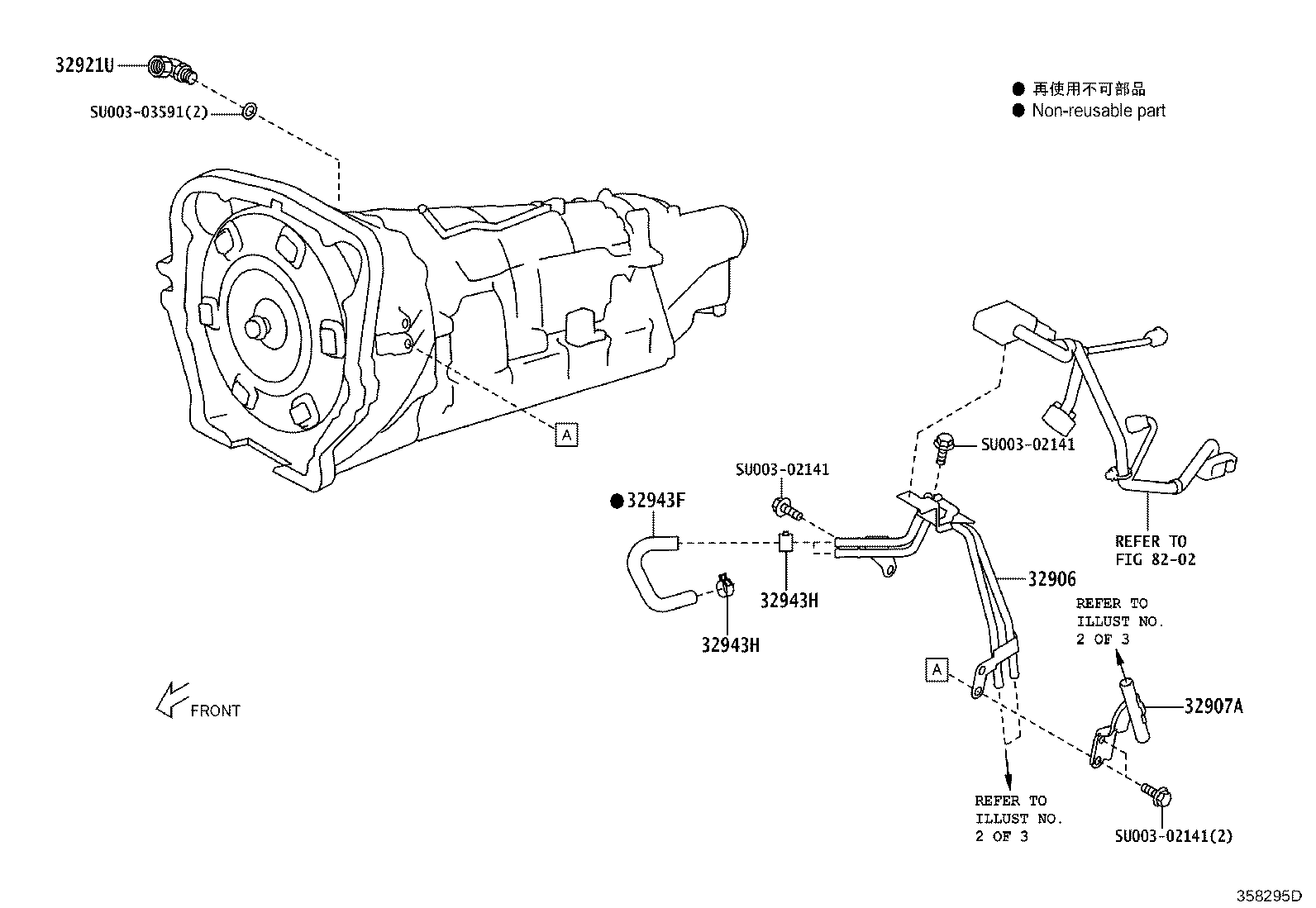

ILLUST NO. 1 OF 2(1203- )6FC

Click highlighted areas on diagram

TX6A

diagram 32906 32907A 32921U 32943F 32943H 32943H 8202 SU00302141 SU00302141 SU00302141 SU00303591
Part # Description Qty Price
32906 - TUBE SUB-ASSY, OIL COOLER
SU003-00410

ZN6..6FC

 1
32907A - TUBE, OIL COOLER
SU003-00411

ZN6..6FC

 1
32921U - ELBOW(FOR OIL COOLER TUBE)
SU003-03839

ZN6..6FC

 2
32943F - HOSE, TRANSMISSION OIL COOLER, NO.5
SU003-03439

ZN6..6FC

 2
32943H - CLIP, NO.4(FOR OIL COOLER HOSE)
SU003-02994

ZN6..6FC

 4
32943H - CLIP, NO.4(FOR OIL COOLER HOSE)
SU003-02994

ZN6..6FC

 4
Common parts
SU003-02141
SU003-03591
Linked diagrams
8202

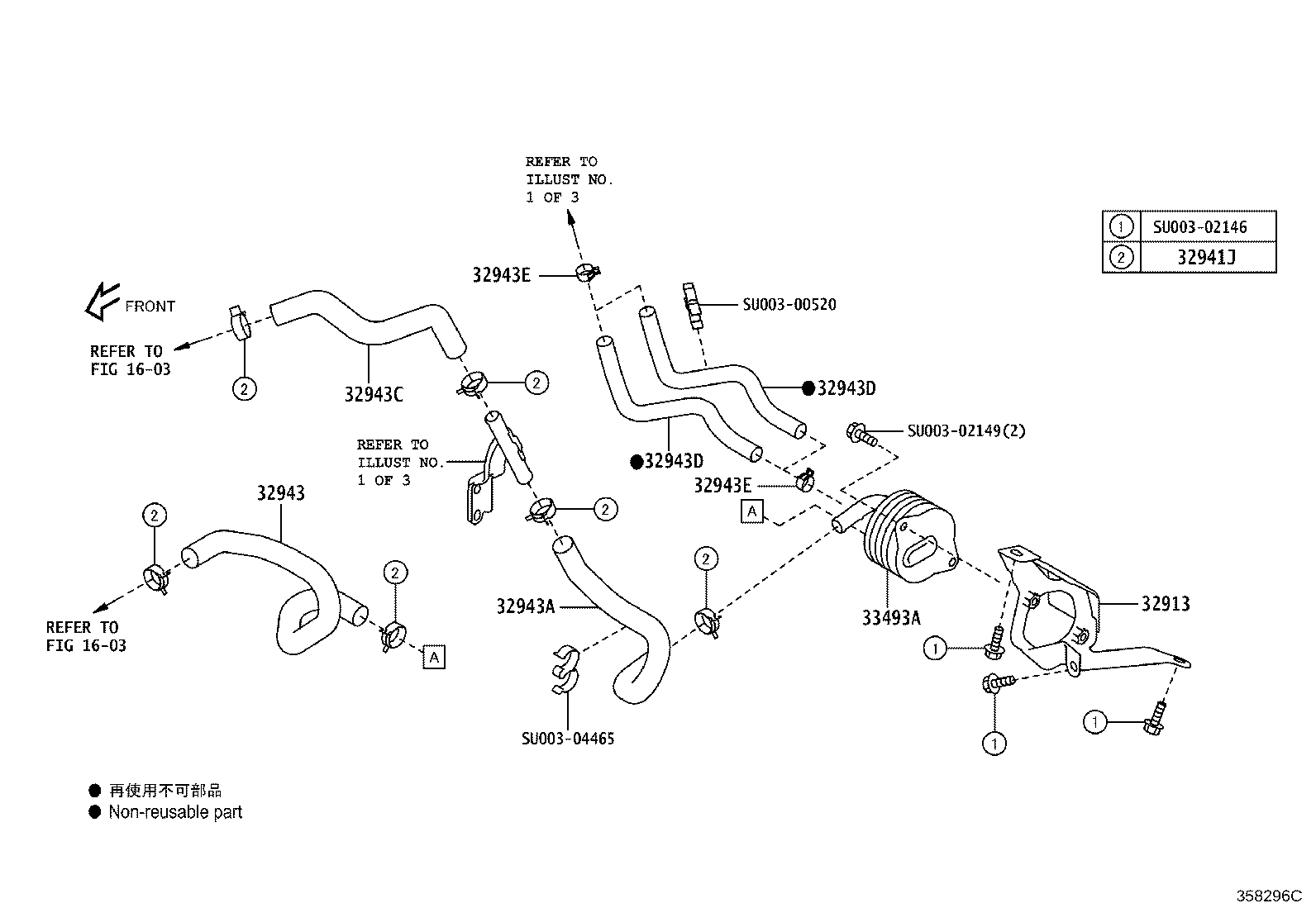

ILLUST NO. 2 OF 2(1203- )6FC

Click highlighted areas on diagram

TX6A

diagram 1603 1603 32913 32941J 32943 32943A 32943C 32943D 32943D 32943E 32943E 33493A SU00300520 SU00302146 SU00302149 SU00304465
Part # Description Qty Price
32913 - BRACKET, OIL COOLER
SU003-00817

ZN6..6FC

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
SU003-02995

ZN6..6FC

 6
32943 - HOSE, TRANSMISSION OIL COOLER, NO.1
SU003-03436

ZN6..6FC

 1
32943A - HOSE, TRANSMISSION OIL COOLER, NO.2
SU003-03437

ZN6..6FC

 1
32943C - HOSE, TRANSMISSION OIL COOLER, NO.3
SU003-03438

ZN6..6FC

 1
32943D - HOSE, TRANSMISSION OIL COOLER, NO.4
SU003-03440

ZN6..6FC

 2
32943D - HOSE, TRANSMISSION OIL COOLER, NO.4
SU003-03440

ZN6..6FC

 2
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
SU003-02994

ZN6..6FC

 4
32943E - CLIP, NO.3(FOR OIL COOLER HOSE)
SU003-02994

ZN6..6FC

 4
33493A - COOLER, TRANSMISSION OIL
SU003-00815

ZN6..6FC

 1
Common parts
SU003-00520
SU003-02146
SU003-02149
SU003-04465
Linked diagrams
1603
