AGT20L-ALTGKV (2013)
Toyota Zelas
Production
May 2013
-
Jul 2016
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1305- )GCC,GEN ; (1306- )CHI

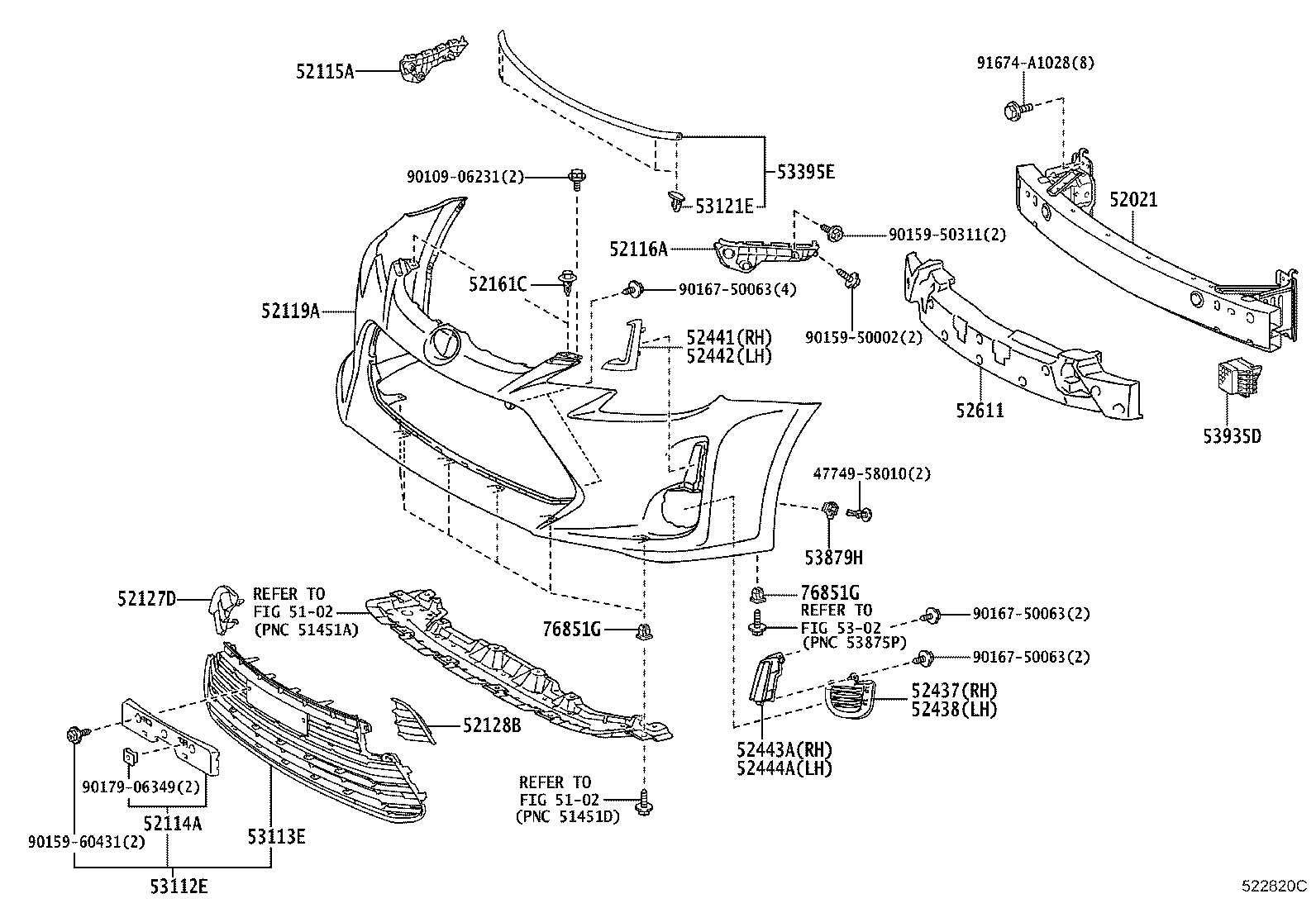

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-21030 |
AGT20 |
1 | ||
| 52021-21060 |
AGT20 |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-21060 |
AGT20 |
1 | ||
| 52114-21040 |
AGT20 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-21030 |
AGT20 |
1 | ||
| 52115-21030 |
AGT20 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-21030 |
AGT20 |
1 | ||
| 52116-21030 |
AGT20 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-21916 |
AGT20 PAINT REQ. |
1 | ||
| 52119-21923 |
AGT20 PAINT REQ. |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-21080 |
AGT20 |
1 | ||
| 52127-21902 |
AGT20 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-21901 |
AGT20 |
1 | ||
| 52128-21080 |
AGT20 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AGT20 |
5 | ||
| 52161-16010 |
AGT20 |
2 | ||
| 52437 - COVER, FRONT BUMPER GUARD, RH | ||||
| 52437-21040 |
AGT20 |
1 | ||
| 52437-21020 |
AGT20 |
1 | ||
| 52438 - COVER, FRONT BUMPER GUARD, LH | ||||
| 52438-21040 |
AGT20 |
1 | ||
| 52438-21020 |
AGT20 |
1 | ||
| 52441 - BASE, FRONT BUMPER GUARD, NO.1 RH | ||||
| 52441-21010 |
AGT20 |
1 | ||
| 52442 - BASE, FRONT BUMPER GUARD, NO.1 LH | ||||
| 52442-21010 |
AGT20 |
1 | ||
| 52443A - BASE, FRONT BUMPER GUARD, NO.2 RH | ||||
| 52443-21010 |
AGT20 |
1 | ||
| 52444A - BASE, FRONT BUMPER GUARD, NO.2 LH | ||||
| 52444-21010 |
AGT20 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-21060 |
AGT20 |
1 | ||
| 52611-21040 |
AGT20 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-21050 |
AGT20 NO PAINT REQ. |
1 | ||
| 53102-21010 |
AGT20 NO PAINT REQ. |
1 | ||
| 53113E - GRILLE, RADIATOR, LOWER NO.2 | ||||
| 53112-21070 |
AGT20 |
1 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 53145-60030 |
AGT20 |
4 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-21030 |
AGT20 |
1 | ||
| 53395-21020 |
AGT20 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
AGT20 |
2 | ||
| 53879-58010 |
AGT20 |
2 | ||
| 53935D - PROTECTOR, FRONT END PANEL | ||||
| 53935-21010 |
AGT20 |
1 | ||
| 53935-21010 |
AGT20 |
1 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06193 |
AGT20 |
8 | ||
| 90189-06193 |
AGT20 |
8 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06193 |
AGT20 |
8 | ||
| 90189-06193 |
AGT20 |
8 | ||
| Common parts | ||||
| 47749-58010 | ||||
| 90109-06231 | ||||
| 90159-50002 | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
