AGT20L-ALTGK (2010)

Toyota Zelas

Production Aug 2010 - May 2013
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1008- )

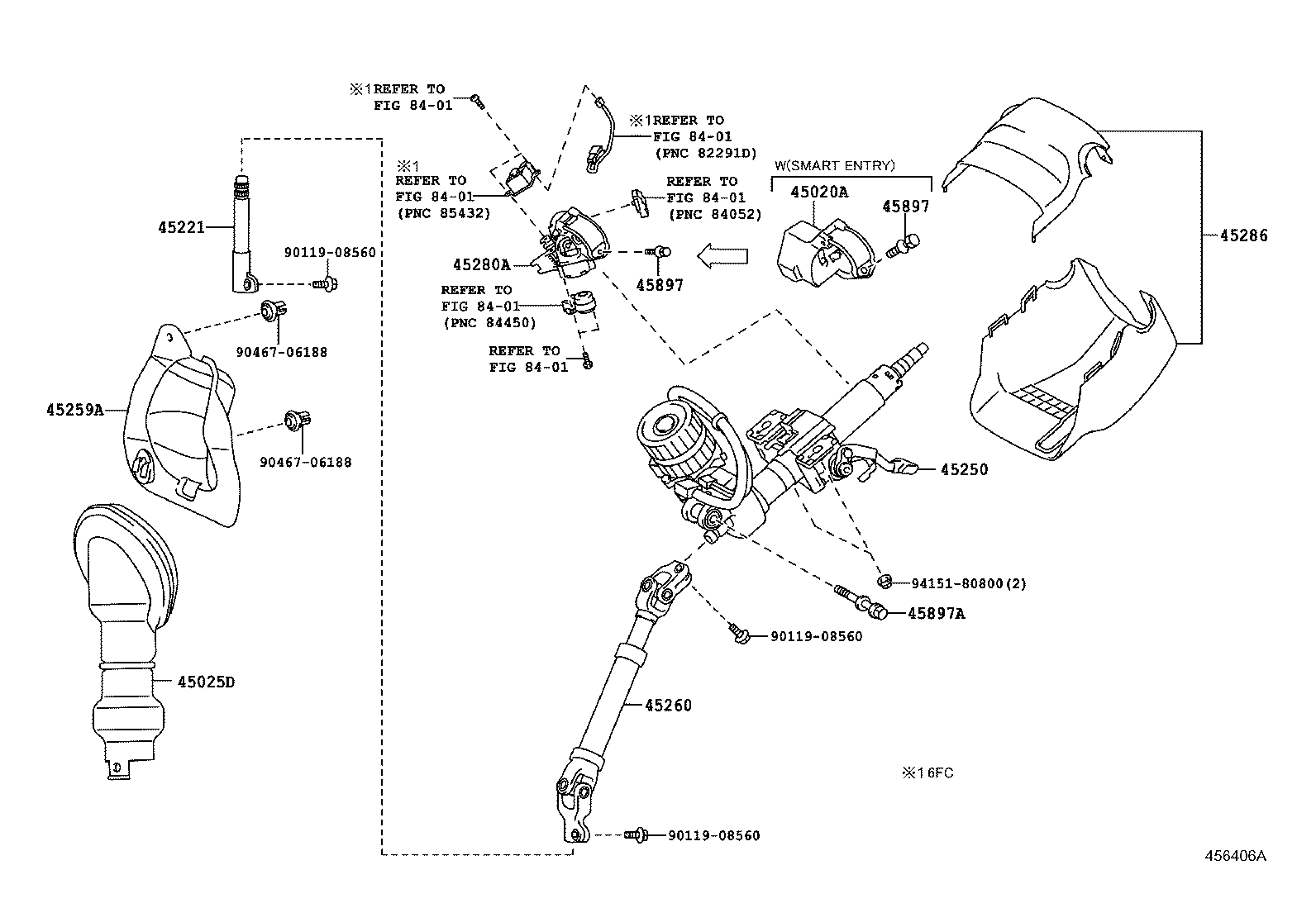

Click highlighted areas on diagram

diagram 45020A 45025D 45221 45250 45259A 45260 45280A 45286 45897 45897 45897A 8401 8401 8401 8401 8401 8401 9011908560 9011908560 9011908560 9046706188 9046706188 9415180800
Part # Description Qty Price
45020A - ACTUATOR ASSY, STEERING LOCK
45020-68040

AGT20..GCC,GEN

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

 1
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-21030

AGT20

 1
45221 - SHAFT, STEERING INTERMEDIATE
45221-21010

AGT20

 1
45250 - COLUMN ASSY, STEERING
45250-21231

AGT20..GCC,GEN

 1
45250-21230

AGT20

 1
45250-21210

AGT20

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

 1
45250-21211

AGT20..GCC,GEN

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

 1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-21020

AGT20

 1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-21060

AGT20

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-42140

AGT20..6F

 1
45280-42130

AGT20..6FC..(GCC,GEN)

 1
45286 - COVER, STEERING COLUMN
45286-12986C0

AGT20..6F

BLACK,TRIM1#

 1
45286-12993C0

AGT20..6FC..(GCC,GEN)

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),BLACK,TRIM1#

 1
45286-12993C0

AGT20..6F

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),BLACK,TRIM1#

 1
45286-12986C0

AGT20..6FC..(GCC,GEN)

BLACK,TRIM1#

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

AGT20

 1
45897 - BOLT, STEERING LOCK SET
45897-12020

AGT20

 1
45897A - BOLT, TILT STEERING PAWL SET
45897-42010

AGT20

 1
Common parts
90119-08560
90467-06188
94151-80800
Linked diagrams
8401
