AGT20L-ALTGK (2010)
Toyota Zelas
Production
Aug 2010
-
May 2013
Engine
2ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

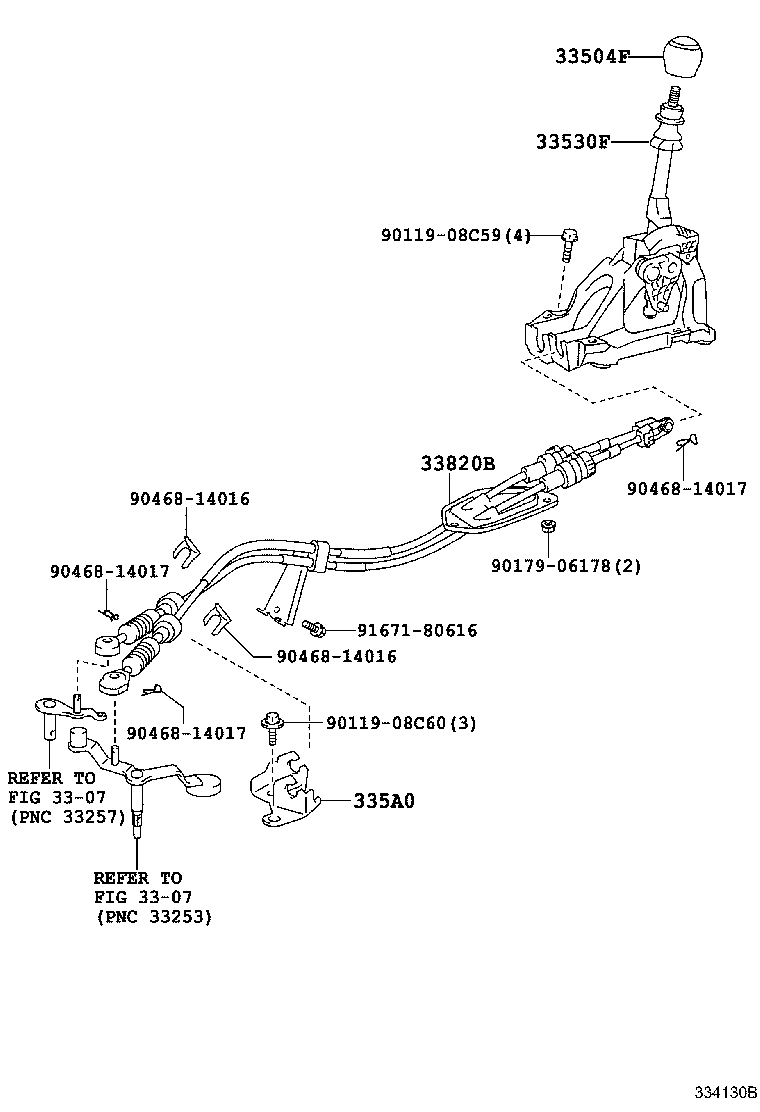

(1008-1304)6F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12320C0 |
AGT20..6F BLACK,TRIM1# |
1 | ||
| 33504-21040C0 |
AGT20..6FC BLACK,TRIM1# |
1 | ||
| 33504-12330C0 |
AGT20..6F SHIFT LEVER & KNOB-LEATHER,BLACK,TRIM1# |
1 | ||
| 33504-21050C0 |
AGT20..6FC SHIFT LEVER & KNOB-LEATHER,BLACK,TRIM1# |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-21030 |
AGT20..6F |
1 | ||
| 335A0 - BRACKET ASSY, CONTROL CABLE | ||||
| 335A0-21010 |
AGT20..6F |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-21190 |
AGT20..6FC |
1 | ||
| 33820-21200 |
AGT20..6F |
1 | ||
| Common parts | ||||
| 90119-08C59 | ||||
| 90119-08C60 | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 3307 | ||||

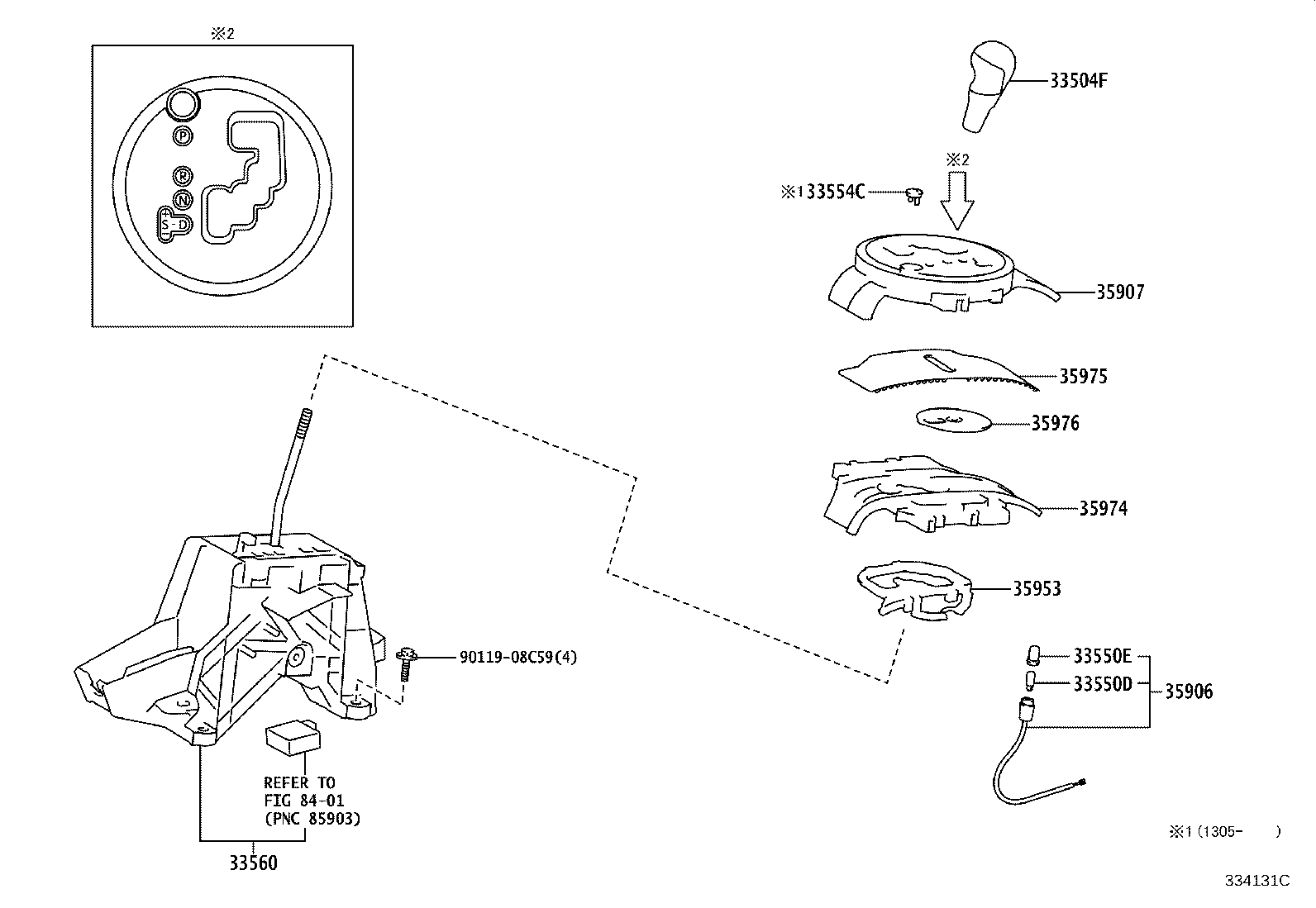

ILLUST NO. 1 OF 2(1008- )6FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12320C0 |
AGT20..6F BLACK,TRIM1# |
1 | ||
| 33504-21040C0 |
AGT20..6FC BLACK,TRIM1# |
1 | ||
| 33504-12330C0 |
AGT20..6F SHIFT LEVER & KNOB-LEATHER,BLACK,TRIM1# |
1 | ||
| 33504-21050C0 |
AGT20..6FC SHIFT LEVER & KNOB-LEATHER,BLACK,TRIM1# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
AGT20..6FC 12V 1.2W W/O SOCKET |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04074 |
AGT20..6FC |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-21060 |
AGT20..6FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-21040 |
AGT20..6FC |
1 | ||
| 35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT) | ||||
| 35907-21050 |
AGT20..6FC |
1 | ||
| 35953 - GUIDE, POSITION INDICATOR LIGHT | ||||
| 35953-21040 |
AGT20..6FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-21040 |
AGT20..6FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-21040 |
AGT20..6FC |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-21070 |
AGT20..6FC |
1 | ||
| Common parts | ||||
| 90119-08C59 | ||||
| Linked diagrams | ||||
| 8401 | ||||

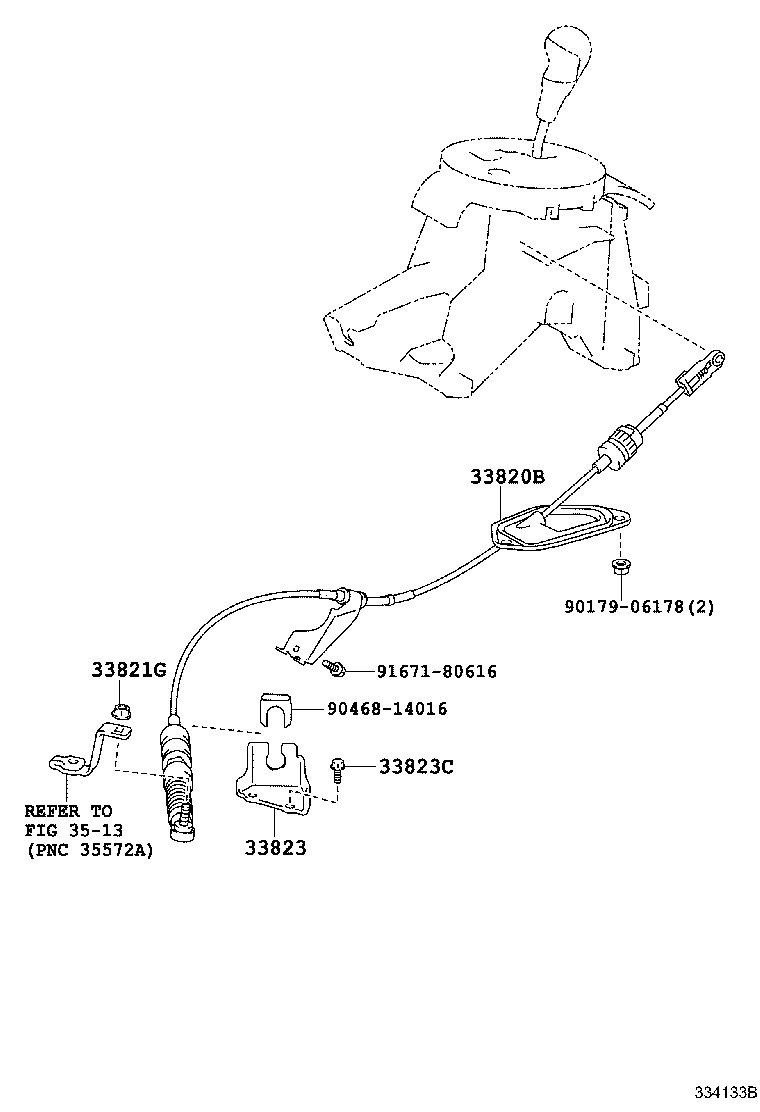

ILLUST NO. 2 OF 2(1008- )6FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-21190 |
AGT20..6FC |
1 | ||
| 33820-21200 |
AGT20..6F |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 94151-80800 |
AGT20..6FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-12330 |
AGT20..6FC |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91611-B0816 |
AGT20..6FC |
2 | ||
| Common parts | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 3513 | ||||
