AGT20L-ALFGK (2010)

Toyota Zelas

Production Aug 2010 - Apr 2013
Engine 2ARFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1008- )

Click highlighted areas on diagram

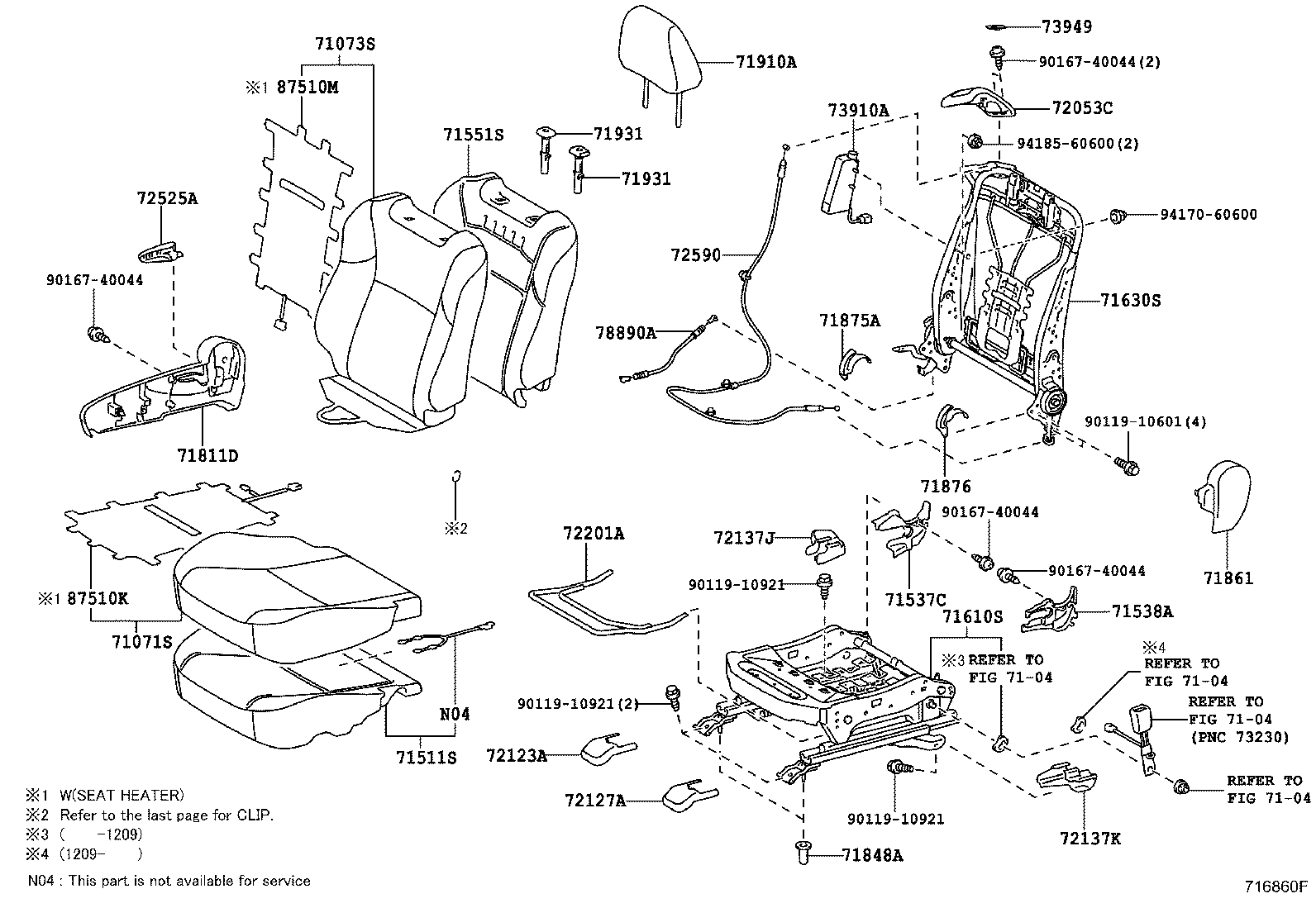

RH SEAT

diagram 7104 7104 7104 7104 71071S 71073S 71511S 71537C 71538A 71551S 71610S 71630S 71811D 71848A 71861 71875A 71876 71910A 71931 71931 72053C 72123A 72127A 72137J 72137K 72201A 72525A 72590 73910A 73949 78890A 87510K 87510M 9011910601 9011910921 9011910921 9011910921 9016740044 9016740044 9016740044 9016740044 9417060600 9418560600
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-21470C1

AGT20..CHI,GEN

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1#

 1
71071-21460B1

AGT20

DARK GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-21510C2

AGT20..CHI,GEN

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1#

 1
71073-21450B0

AGT20

DK.GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71051-21020

AGT20

 1
71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH
71537-21010B0

AGT20

DK.GRAY,TRIM1#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-21010B0

AGT20

DK.GRAY,TRIM1#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-21130

AGT20

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-21020

AGT20

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-21030

AGT20

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-21060B0

AGT20

DK.GRAY,TRIM1#

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-26010

AGT20

 2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-21040B0

AGT20

DK.GRAY,TRIM1#

 1
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-60260B1

AGT20

DK.GRAY,TRIM1#

 1
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-60270B1

AGT20

DK.GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-21290C2

AGT20

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1#

 2
71910-21280B1

AGT20

DARK GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47020B2

AGT20

W(LOCK),DK.GRAY,TRIM1#

 2
71931-47020B2

AGT20

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47020B2

AGT20

W(LOCK),DK.GRAY,TRIM1#

 2
71931-47020B2

AGT20

W/O(LOCK),DK.GRAY,TRIM1#

 2
72053C - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, RH
72053-21010B0

AGT20

DK.GRAY,TRIM1#

 1
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-21010B0

AGT20

DK.GRAY,TRIM1#

 1
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72123-21010B0

AGT20

DK.GRAY,TRIM1#

 1
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-21030B0

AGT20

DK.GRAY,TRIM1#

 1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-21030B0

AGT20

DK.GRAY,TRIM1#

 1
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72211-21030

AGT20

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-47010B1

AGT20

DK.GRAY,TRIM1#

 1
72590 - CABLE ASSY, SEAT BACK CONTROL
72590-21021

AGT20

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-21030

AGT20

 1
73949 - CAP
71848-21010B0

AGT20

DK.GRAY,TRIM1#

 2
78890A - CABLE ASSY, SUB-SEAT LOCK CONTROL
78890-21010

AGT20

 1
87510K - HEATER ASSY, FRONT SEAT CUSHION, RH
87510-21010

AGT20..CHI,GEN

SEAT COVER MATERIAL-NATURAL LEATHER

 1
87510M - HEATER ASSY, FRONT SEAT BACK, RH
87530-21010

AGT20..CHI,GEN

SEAT COVER MATERIAL-NATURAL LEATHER

 1
Common parts
90119-10601
90119-10921
90167-40044
94170-60600
94185-60600
Linked diagrams
7104

(1008- )

Click highlighted areas on diagram

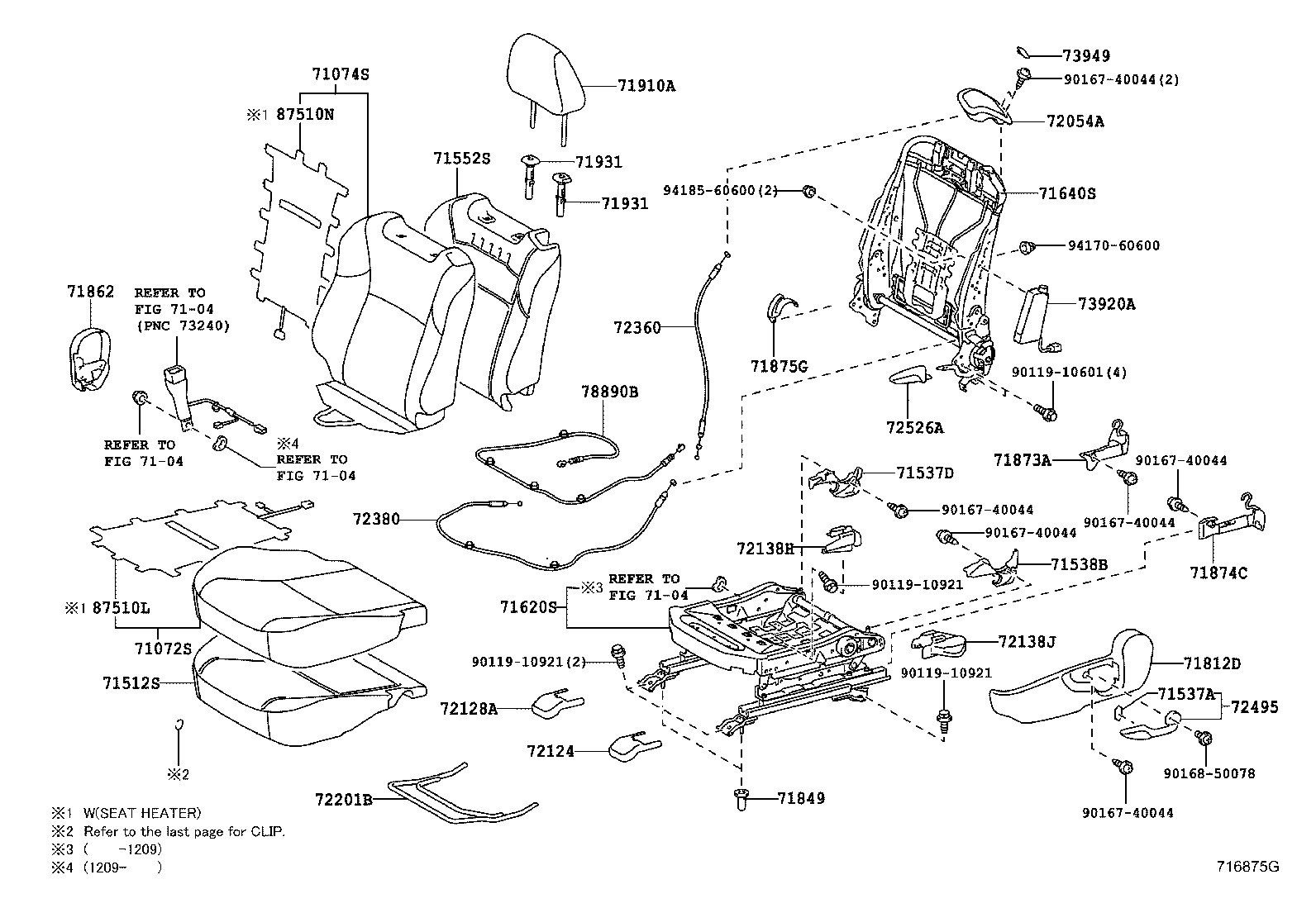

LH SEAT

diagram 7104 7104 7104 7104 71072S 71074S 71512S 71537A 71537D 71538B 71552S 71620S 71640S 71812D 71849 71862 71873A 71874C 71875G 71910A 71931 71931 72054A 72124 72128A 72138H 72138J 72201B 72360 72380 72495 72526A 73920A 73949 78890B 87510L 87510N 9011910601 9011910921 9011910921 9011910921 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016850078 9417060600 9418560600
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-21450B1

AGT20

DARK GRAY,TRIM1#

 1
71072-21460C1

AGT20..CHI,GEN

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-21300B0

AGT20

DK.GRAY,TRIM1#

 1
71074-21360C2

AGT20..CHI,GEN

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-21080

AGT20

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-47040

AGT20

 1
71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH
71538-21020B0

AGT20

DK.GRAY,TRIM1#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71537-21020B0

AGT20

DK.GRAY,TRIM1#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-21160

AGT20

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-21020

AGT20

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-21020

AGT20

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-21060B0

AGT20

DK.GRAY,TRIM1#

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-26010

AGT20

 2
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-21040B0

AGT20

DK.GRAY,TRIM1#

 1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71873-21040B0

AGT20

DK.GRAY,TRIM1#

 1
71874C - SHIELD, FRONT SEAT CUSHION, LOWER
71874-21020B0

AGT20

DK.GRAY,TRIM1#

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-60260B1

AGT20

DK.GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-21290C2

AGT20

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1#

 2
71910-21280B1

AGT20

DARK GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47020B2

AGT20

W(LOCK),DK.GRAY,TRIM1#

 2
71931-47020B2

AGT20

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47020B2

AGT20

W(LOCK),DK.GRAY,TRIM1#

 2
71931-47020B2

AGT20

W/O(LOCK),DK.GRAY,TRIM1#

 2
72054A - LEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH
72054-21020B0

AGT20

DK.GRAY,TRIM1#

 1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72123-21010B0

AGT20

DK.GRAY,TRIM1#

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72123-21010B0

AGT20

DK.GRAY,TRIM1#

 1
72138H - COVER, FRONT SEAT TRACK, LH REAR INNER
72158-21030B0

AGT20

DK.GRAY,TRIM1#

 1
72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER
72138-21020B0

AGT20

DK.GRAY,TRIM1#

 1
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72211-21030

AGT20

 1
72360 - CABLE ASSY, RECLINING ADJUSTER EQUALIZING
72360-21010

AGT20

 1
72380 - CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2
72380-21011

AGT20

 1
72495 - HANDLE, VERTICAL ADJUSTING, LH
72495-21010B0

AGT20

DK.GRAY,TRIM1#

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-21020B0

AGT20

DK.GRAY,TRIM1#

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-21030

AGT20

 1
73949 - CAP
71848-21010B0

AGT20

DK.GRAY,TRIM1#

 2
78890B - CABLE ASSY, SUB-SEAT LOCK CONTROL
78890-21020

AGT20

 1
87510L - HEATER ASSY, FRONT SEAT CUSHION, LH
87510-21010

AGT20..CHI,GEN

SEAT COVER MATERIAL-NATURAL LEATHER

 1
87510N - HEATER ASSY, FRONT SEAT BACK, LH
87530-21010

AGT20..CHI,GEN

SEAT COVER MATERIAL-NATURAL LEATHER

 1
Common parts
90119-10601
90119-10921
90167-40044
90168-50078
94170-60600
94185-60600
Linked diagrams
7104

(1008- )

Click highlighted areas on diagram

CLIP

diagram 9046816019 9046818008
Part # Description Qty Price
Common parts
90468-16019
90468-18008
