AGT20L-ALFGK (2010)

Toyota Zelas

Production Aug 2010 - Apr 2013
Engine 2ARFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1008- )

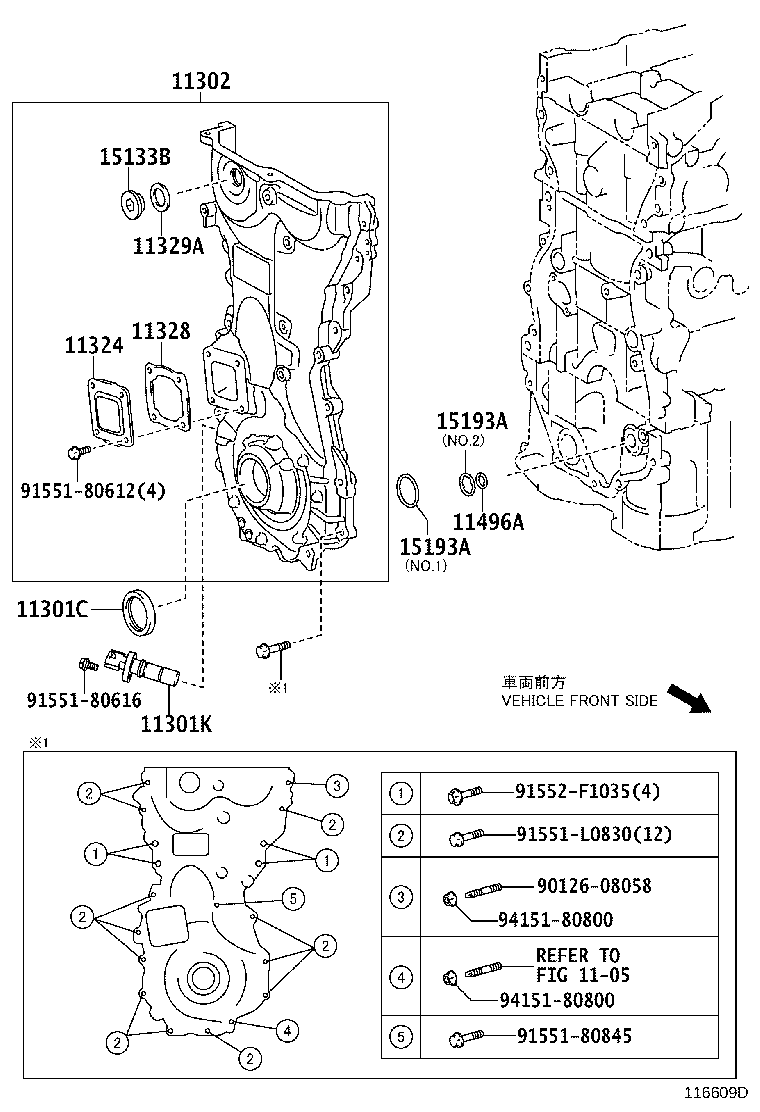

Click highlighted areas on diagram

diagram 1105 11301C 11301K 11302 11324 11328 11329A 11496A 15133B 15193A 15193A 9012608058 9155180612 9155180616 9155180845 91551L0830 91552F1035 9415180800 9415180800
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42043

2ARFE..AGT20

 1
11301K - SENSOR, CRANK POSITION
90919-05070

2ARFE..AGT20

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-36020

2ARFE..AGT20

 1
11310-36040

2ARFE..AGT20

 1
11324 - PLATE, TIMING CHAIN COVER
11324-36010

2ARFE..AGT20

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-36020

2ARFE..AGT20

 1
11329A - GASKET, TIMING BELT OR CHAIN COVER, NO.2
11329-36010

2ARFE..AGT20

 1
11496A - GASKET, OIL HOLE COVER
11496-36010

2ARFE..AGT20

 1
15133B - PLUG, OIL PUMP RELIEF VALVE
15133-36020

2ARFE..AGT20

 1
15193A - GASKET, OIL PUMP
15197-36010

2ARFE..AGT20

NO.2

 1
15193-36010

2ARFE..AGT20

NO.1

 1
15193A - GASKET, OIL PUMP
15197-36010

2ARFE..AGT20

NO.2

 1
15193-36010

2ARFE..AGT20

NO.1

 1
Common parts
90126-08058
91551-80612
91551-80616
91551-80845
91551-L0830
91552-F1035
94151-80800
Linked diagrams
1105
