MXPJ15R-BHXNBQ (2020)

Toyota Yaris Cross

Production Aug 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(2008- )M15AFXE

Click highlighted areas on diagram

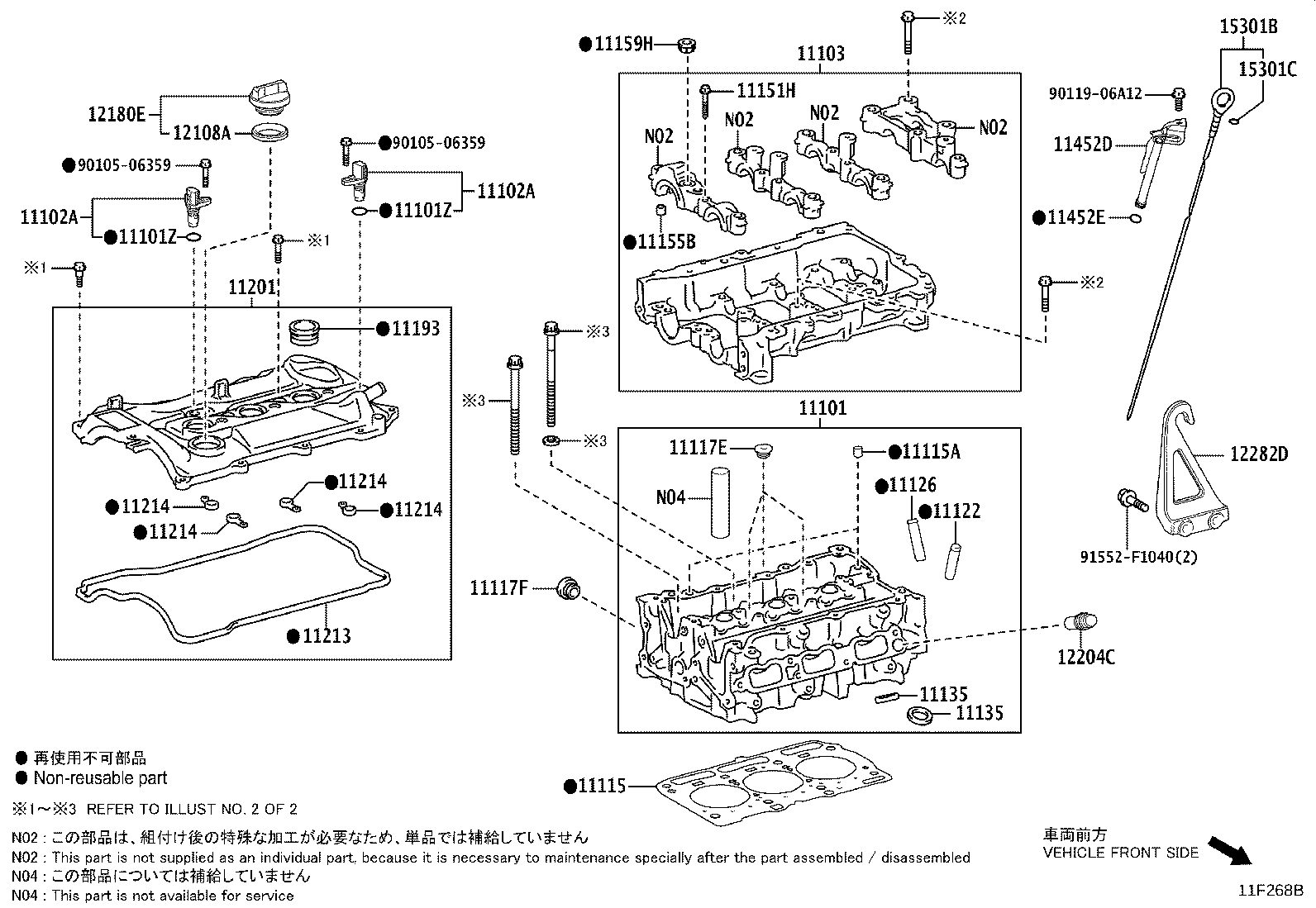

CYLINDER HEAD

diagram 11101 11101Z 11101Z 11102A 11102A 11103 11115 11115A 11117E 11117F 11122 11126 11135 11135 11151H 11155B 11159H 11193 11201 11213 11214 11214 11214 11214 11452D 11452E 12108A 12180E 12204C 12282D 15301B 15301C 9010506359 9010506359 9011906A12 91552F1040
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-19545

M15AFXE..MXPJ1#

 1
11101Z - O RING, CAM POSITION SENSOR
90301-11038

M15#..MXPB10,MXPJ1#

 2
11101Z - O RING, CAM POSITION SENSOR
90301-11038

M15#..MXPB10,MXPJ1#

 2
11102A - SENSOR, CAMSHAFT POSITION
90919-05096

M15#..MXPB10,MXPJ1#

 2
11102A - SENSOR, CAMSHAFT POSITION
90919-05096

M15#..MXPB10,MXPJ1#

 2
11103 - HOUSING SUB-ASSY, CAMSHAFT
11103-15020

M15AFXE..MXPJ1#

 1
11115 - GASKET, CYLINDER HEAD
11115-15100

M15#..MXPB10,MXPJ1#

 1
11115A - PIN, RING
90253-12002

M15#..MXPB10,MXPJ1#

 2
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-14015

M15#..MXPB10,MXPJ1#

 3
11117F - PLUG, W/HEAD STRAIGHT SCREW, NO.2
90341-20012

M15#..MXPB10,MXPJ1#

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-31090

M15#..MXPB10,MXPJ1#

STD

 6
11123-31090

M15#..MXPB10,MXPJ1#

O/S 0.05

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11123-31041

M15#..MXPB10,MXPJ1#

O/S 0.05

 6
11122-31041

M15#..MXPB10,MXPJ1#

STD

 6
11135 - SEAT, EXHAUST VALVE
11135-24020

M15#..MXPB10,MXPJ1#

STD

 6
11135 - SEAT, EXHAUST VALVE
11135-24020

M15#..MXPB10,MXPJ1#

STD

 6
11151H - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
90119-07009

M15#..MXPB10,MXPJ1#

 7
11155B - PIN, RING
90253-13005

M15#..MXPB10,MXPJ1#

 8
11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE
11159-31040

M15#..MXPB10,MXPJ1#

 1
11193 - GASKET, SPARK PLUG TUBE
11193-37030

M15#..MXPB10,MXPJ1#

 3
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-15040

M15AFXE..MXPJ1#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-15100

M15#..MXPB10,MXPJ1#

 1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11213-31080

M15#..MXPB10,MXPJ1#

 4
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11213-31080

M15#..MXPB10,MXPJ1#

 4
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11213-31080

M15#..MXPB10,MXPJ1#

 4
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11213-31080

M15#..MXPB10,MXPJ1#

 4
11452D - GUIDE, OIL LEVEL GAGE
11452-24020

M15#..MXPB10,MXPJ1#

 1
11452E - RING, O(FOR OIL LEVEL GAGE GUIDE)
96741-19010

M15#..MXPB10,MXPJ1#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-35001

M15#..MXPB10,MXPJ1#

 1
12180E - CAP ASSY, OIL FILLER
12180-38010

M15#..MXPB10,MXPJ1#

 1
12204C - VALVE SUB-ASSY, VENTILATION
12204-25010

M15#..MXPB10,MXPJ1#

 1
12282D - HANGER, ENGINE, NO.2
12282-25010

M15#..MXPB10,MXPJ1#

 1
15301B - GAGE SUB-ASSY, OIL LEVEL
15301-15070

M15AFXE..MXPJ1#

 1
15301C - RING, O(FOR OIL LEVEL GAGE)
96741-19005

M15#..MXPB10,MXPJ1#

 1
Common parts
90105-06359
90119-06A12
91552-F1040

ILLUST NO. 2 OF 2(2008- )M15AFXE

Click highlighted areas on diagram

FITTING PARTS

diagram 11101A 11101A 11101B 11103A 11103F 11201H 11201H
Part # Description Qty Price
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02205

M15#..MXPB10,MXPJ1#

NO.2:REFER ILLUST.

 4
90910-02202

M15#..MXPB10,MXPJ1#

NO.1:REFER ILLUST.

 4
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02205

M15#..MXPB10,MXPJ1#

NO.2:REFER ILLUST.

 4
90910-02202

M15#..MXPB10,MXPJ1#

NO.1:REFER ILLUST.

 4
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12079

M15#..MXPB10,MXPJ1#

 4
11103A - BOLT(FOR CAMSHAFT HOUSING SET)
91551-G0840

M15#..MXPB10,MXPJ1#

 2
11103F - BOLT(FOR CAMSHAFT HOUSING SET)
91551-G0865

M15#..MXPB10,MXPJ1#

 12
11201H - BOLT(FOR CYLINDER HEAD COVER)
90109-06384

M15#..MXPB10,MXPJ1#

NO.2:REFER ILLUST.

 11
90105-06359

M15#..MXPB10,MXPJ1#

NO.1:REFER ILLUST.

 2
11201H - BOLT(FOR CYLINDER HEAD COVER)
90109-06384

M15#..MXPB10,MXPJ1#

NO.2:REFER ILLUST.

 11
90105-06359

M15#..MXPB10,MXPJ1#

NO.1:REFER ILLUST.

 2
