MXPJ10R-BHXNBQ (2020)

Toyota Yaris Cross

Production Aug 2020 - Sep 9999
Engine M15AFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )

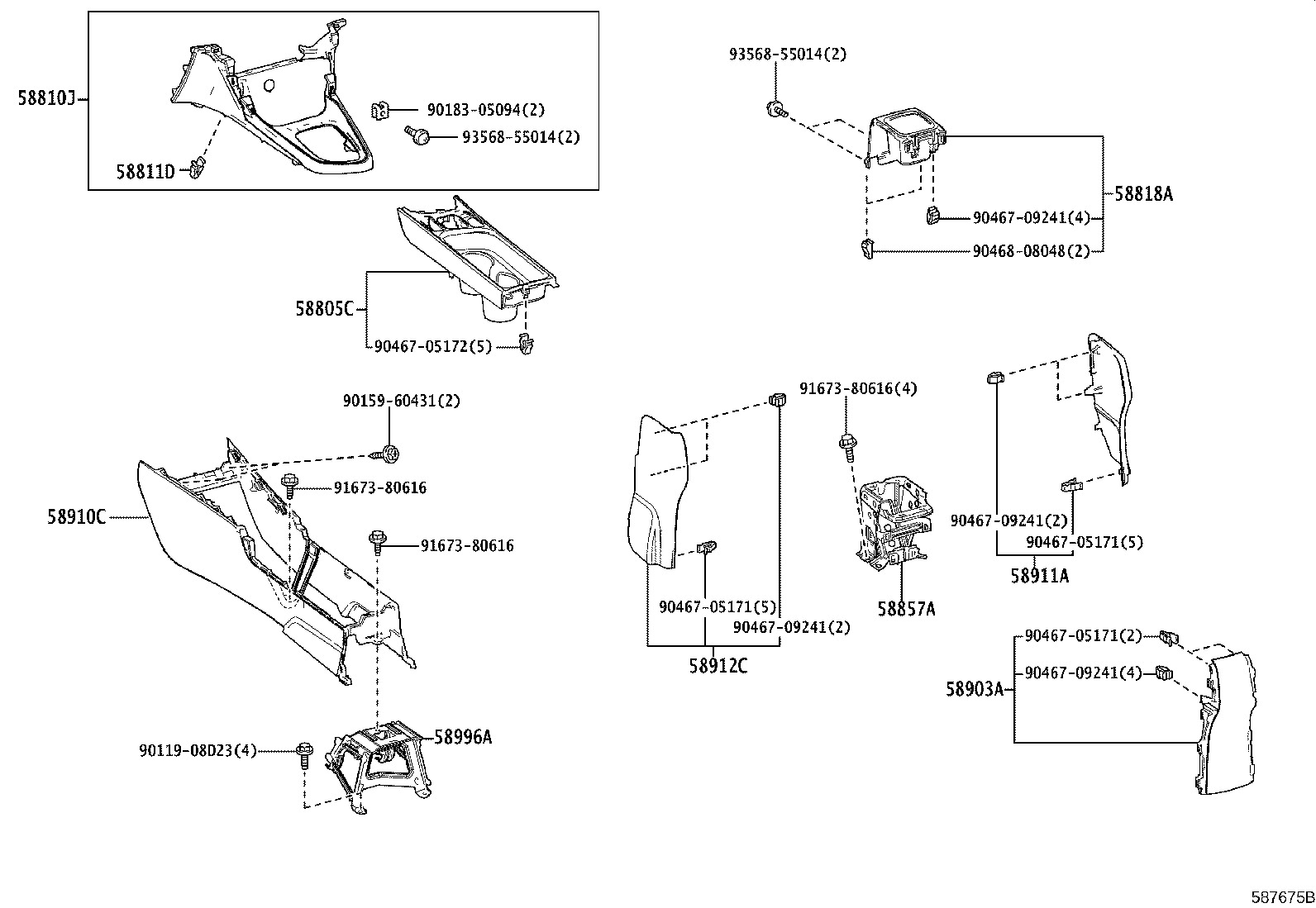

Click highlighted areas on diagram

diagram 58805C 58810J 58811D 58818A 58857A 58903A 58910C 58911A 58912C 58996A 9011908D23 9015960431 9018305094 9046705171 9046705171 9046705171 9046705172 9046709241 9046709241 9046709241 9046709241 9046808048 9167380616 9167380616 9167380616 9356855014 9356855014
Part # Description Qty Price
58805C - PANEL SUB-ASSY, CONSOLE, UPPER REAR
58805-52040C0

MXPB10,MXPJ10

BLACK,TRIM2#,4#,6#

 1
58810J - BOX ASSY, CONSOLE
58810-52020C0

MXPB10,MXPJ1#

BLACK,TRIM41

 1
58810-52020B0

MXPB10,MXPJ1#

BLACK/SILVER,TRIM2#,40,6#

 1
58811D - CLIP(FOR CONSOLE BOX)
90467-05172

MXPB10,MXPJ1#

 11
58818A - COVER, CONSOLE BOX, FR
58818-K0030C0

MXPB10,MXPJ1#

BLACK,TRIM2#,4#,6#

 1
58857A - BRACKET, CONSOLE SUPPORT, UPPER NO.1
58857-K0010

MXPB10,MXPJ1#

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-K0100C0

MXPB10,MXPJ1#

BLACK,TRIM2#,4#,6#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-K0010C0

MXPB10,MXPJ1#

BLACK,TRIM2#,4#,6#

 1
58911A - PANEL, BOX SIDE, NO.1
58911-K0030C0

MXPB10,MXPJ1#

BLACK,TRIM2#,4#,6#

 1
58912C - PANEL, BOX SIDE, NO.2
58912-K0030C0

MXPB10,MXPJ1#

BLACK,TRIM2#,4#,6#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-K0110

MXPB10,MXPJ1#

 1
Common parts
90119-08D23
90159-60431
90183-05094
90467-05171
90467-05172
90467-09241
90468-08048
91673-80616
93568-55014
