MXPB10R-BHXNBQ (2020)

Toyota Yaris Cross

Production Aug 2020 - Sep 9999
Engine M15AFKS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

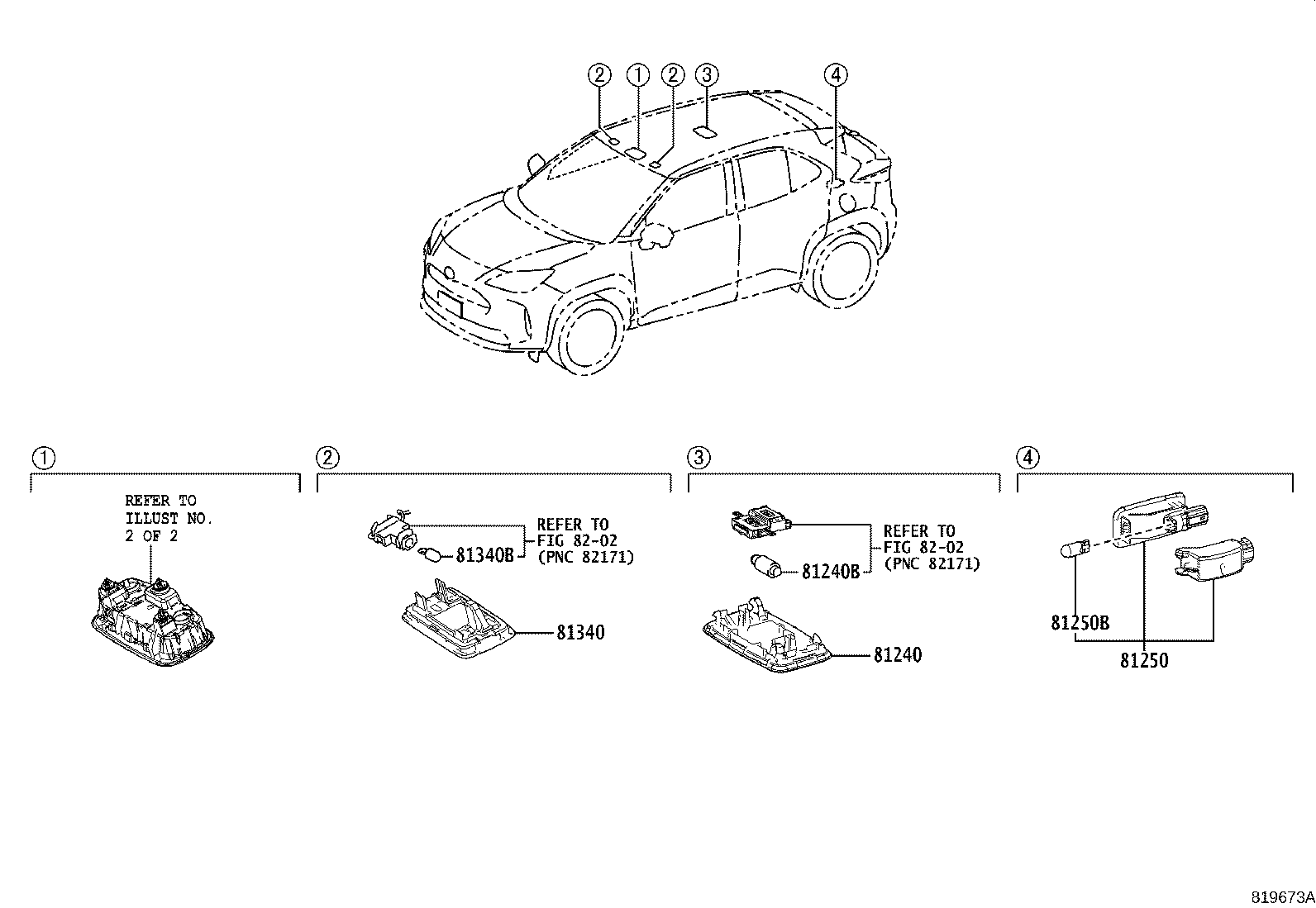

ILLUST NO. 1 OF 2(2008- )

Click highlighted areas on diagram

diagram 81240 81240B 81250 81250B 81340 81340B 8202 8202
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-42020B0

MXPB10,MXPJ1#

LT.GRAY,TRIM40,6#

 1
81240-42020C0

MXPB10,MXPJ1#

BLACK,TRIM2#,41

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

MXPB10,MXPJ1#

12V 8W

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-30210

MXPB10,MXPJ1#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-12050

MXPB10,MXPJ1#

12V 5W

 1
81340 - LAMP ASSY, VANITY
81340-30110

MXPB10,MXPJ1#

SUN VISOR-VANITY MIRROR(*DRP) & WITH(VANITY LAMP)

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

MXPB10,MXPJ1#

12V 8W,SUN VISOR-VANITY MIRROR(*DRP) & WITH(VANITY LAMP)

 2
Linked diagrams
8202

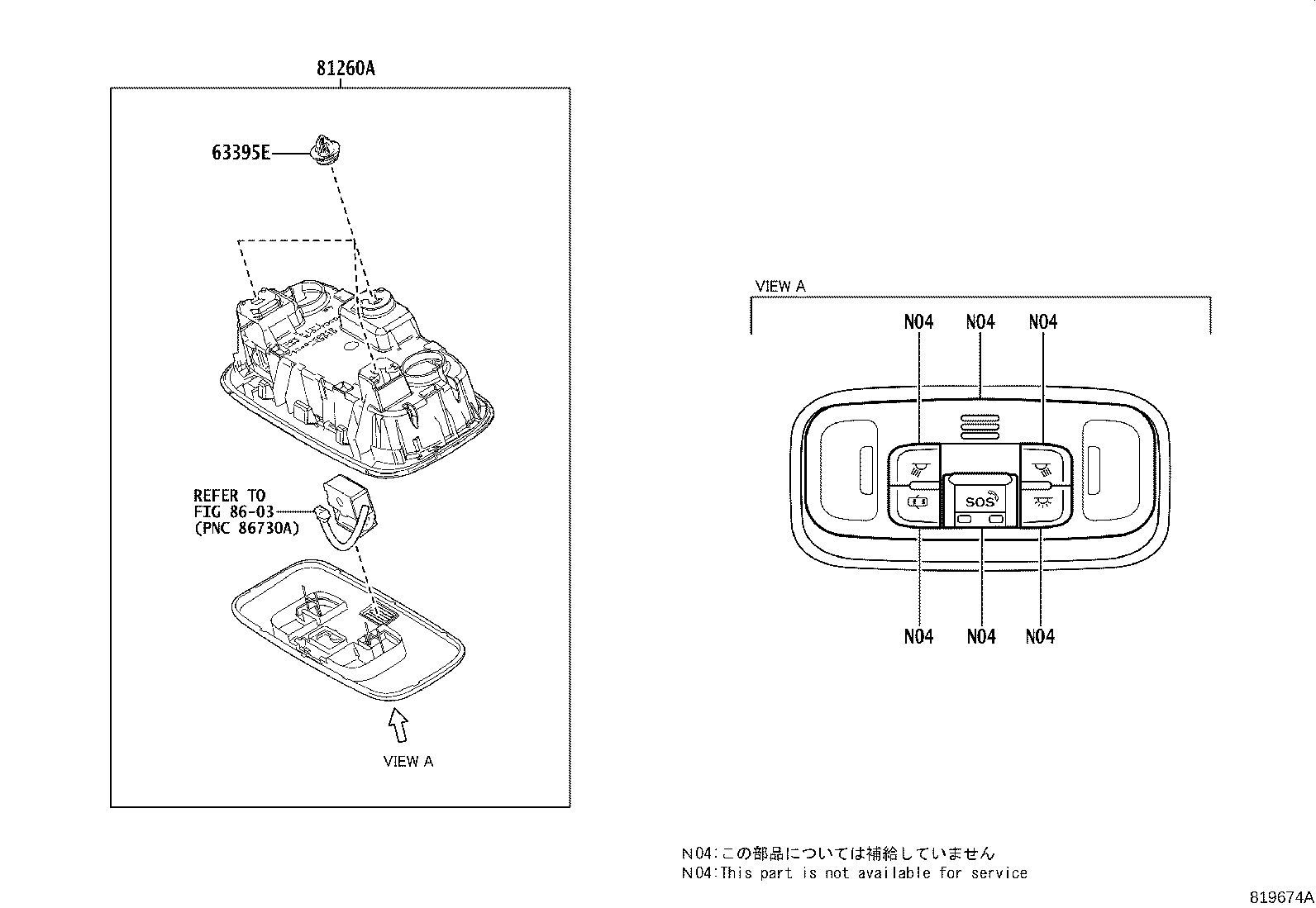

ILLUST NO. 2 OF 2(2008- )

Click highlighted areas on diagram

diagram 63395E 81260A 8603
Part # Description Qty Price
63395E - CLIP(FOR MAP LAMP)
90467-09240

MXPB10,MXPJ1#

 3
81260A - LAMP ASSY, MAP
81260-K0010B0

MXPB10,MXPJ1#

NEW ZEALAND SPEC&DATA COMMUNICATION MODULE-WITHOUT,LT.GRAY,TRIM40,6#

 1
81260-K0020C0

MXPB10,MXPJ1#

BLACK,TRIM2#,41

 1
81260-K0020B0

MXPB10,MXPJ1#

LT.GRAY,TRIM40,6#

 1
81260-K0010C0

MXPB10,MXPJ1#

NEW ZEALAND SPEC&DATA COMMUNICATION MODULE-WITHOUT,BLACK,TRIM2#,41

 1
Linked diagrams
8603
