ZSP91L-AHPHKC (2008)

Toyota Yaris (China)

Production May 2008 - Aug 2013
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

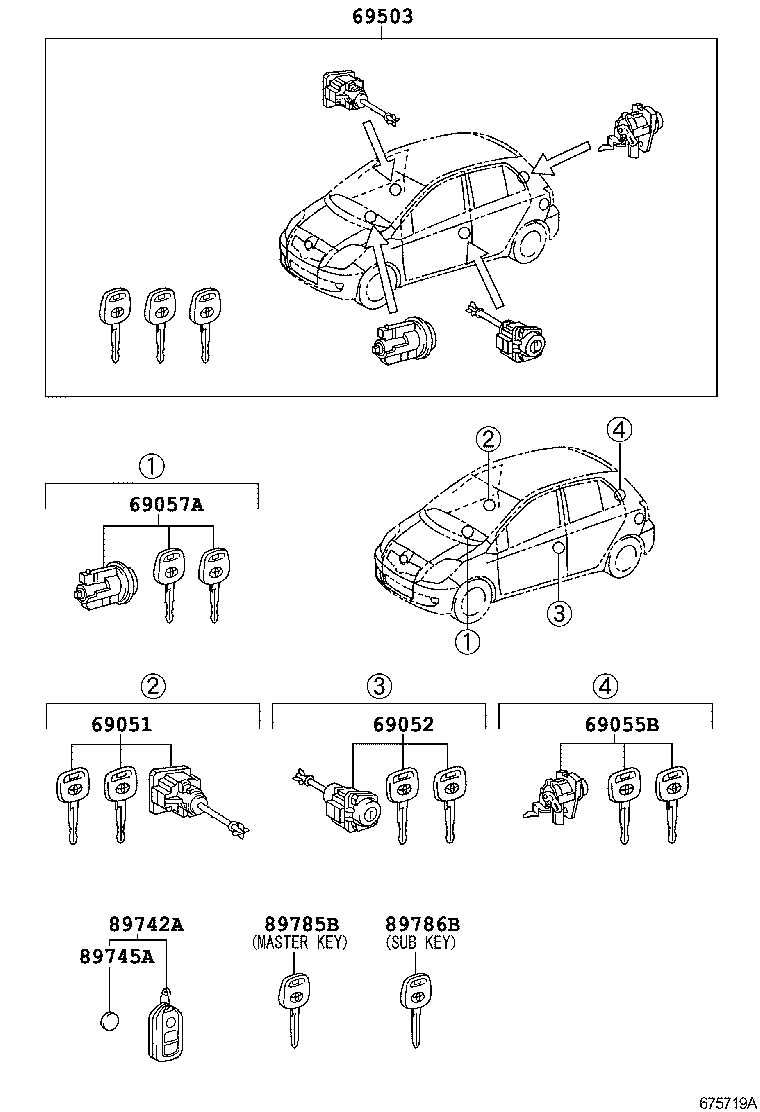

(0805- )STD

Click highlighted areas on diagram

W/O(SMART KEY)

diagram 69051 69052 69055B 69057A 69503 89742A 89745A 89785B 89786B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-0D120

NCP90,ZSP91..STD

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-0D120

NCP90,ZSP91..STD

 1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-0D110

NCP90,ZSP91..STD

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-0D190

NCP90,ZSP91..STD

 1
69057-0F030

NCP90,ZSP91

 1
69503 - CYLINDER SET, LOCK
69005-0D290

NCP90,ZSP91..STD

 1
69005-0D300

ZSP91..4FC

1.6GS GRADE

 1
69005-0D300

ZSP91..STD

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

 1
69005-0D291

NCP90,ZSP91

 1
89742A - TRANSMITTER, DOOR CONTROL
89742-0D011

ZSP91..4FC

1.6GS GRADE

 1
89742-0D011

NCP90,ZSP91

 1
89742-0D010

ZSP91..STD

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

 1
89742-0D010

ZSP91..4FC..STD

1.6GS GRADE

 1
89742-0D010

NCP90,ZSP91..STD

 1
89742-0D011

ZSP91

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

 1
89745A - BATTERY, TRANSMITTER
89745-52020

ZSP91..STD

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

 1
89745-50020

ZSP91..STD

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

 1
89745-50020

NCP90,ZSP91..STD

 1
89745-50020

ZSP91..4FC..STD

1.6GS GRADE

 1
89745-45010

ZSP91

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

 1
89745-45010

NCP90,ZSP91

 1
89745-45010

ZSP91..4FC

1.6GS GRADE

 1
89745-52020

ZSP91..4FC

1.6GS GRADE

 1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60160

NCP90,ZSP91..STD

 1
89785-60210

NCP90,ZSP91

 1
89785-60160

ZSP91..4FC..STD

1.6GS GRADE

 1
89785-60210

ZSP91

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

 1
89785-60160

ZSP91..STD

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

 1
89785-60210

ZSP91..4FC

1.6GS GRADE

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-60170

ZSP91..STD

BLANK KEY,WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

 1
89786-60170

NCP90,ZSP91..STD

BLANK KEY

 1
89786-60220

ZSP91..4FC

BLANK KEY,1.6GS GRADE

 1
89786-60220

ZSP91

BLANK KEY,WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

 1
89786-60170

ZSP91..4FC..STD

BLANK KEY,1.6GS GRADE

 1
89786-60220

NCP90,ZSP91

BLANK KEY

 1

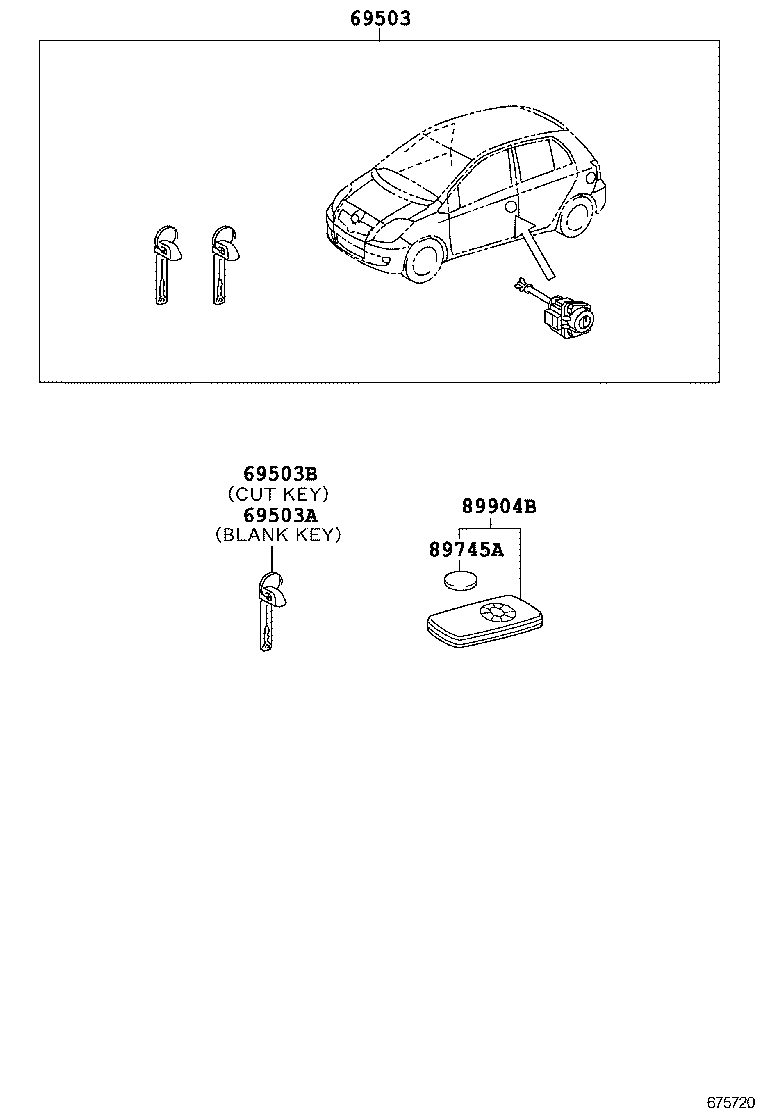

(0805- )ZSP91

Click highlighted areas on diagram

W(SMART KEY)

diagram 69503 69503A 69503B 89745A 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-0D290

NCP90,ZSP91..STD

 1
69005-0D300

ZSP91..4FC

1.6GS GRADE

 1
69005-0D300

ZSP91..STD

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

 1
69005-0D291

NCP90,ZSP91

 1
69503A - KEY, BLANK
69515-52120

ZSP91..4FC..STD

MASTER KEY,W(*68),1.6GS GRADE

 1
69515-52120

ZSP91..STD

MASTER KEY,W(*68),WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

 1
69503B - KEY, CUT
69515-52110

ZSP91..4FC..STD

MASTER KEY,W(*68),1.6GS GRADE

 1
69515-52110

ZSP91..STD

MASTER KEY,W(*68),WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

 1
89745A - BATTERY, TRANSMITTER
89745-52020

ZSP91..STD

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

 1
89745-50020

ZSP91..STD

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

 1
89745-50020

NCP90,ZSP91..STD

 1
89745-50020

ZSP91..4FC..STD

1.6GS GRADE

 1
89745-45010

ZSP91

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

 1
89745-45010

NCP90,ZSP91

 1
89745-45010

ZSP91..4FC

1.6GS GRADE

 1
89745-52020

ZSP91..4FC

1.6GS GRADE

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-0D041

ZSP91..4FC

1.6GS GRADE

 1
89904-0D040

ZSP91..4FC

1.6GS GRADE

 1
89904-0D040

ZSP91..STD

WIRELESS DOOR LOCK-W(SMART KEY:FRONT(D)+BACK & PUSH START)

 1
