ZSP91L-AHPHKC (2008)
Toyota Yaris (China)
Production
May 2008
-
Aug 2013
Engine
1ZRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0805- )

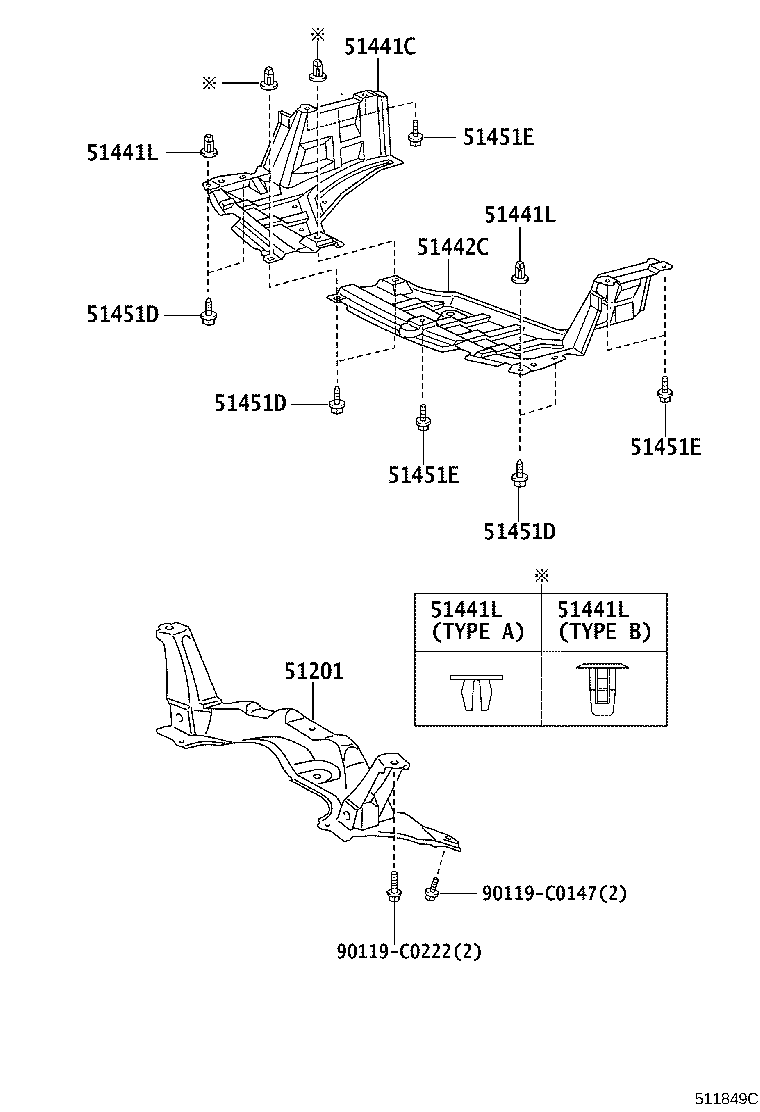

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-0D121 |
ZSP91 |
1 | ||
| 51201-0D120 |
ZSP91 |
1 | ||
| 51201-0D122 |
ZSP91 |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-0D170 |
NCP90,ZSP91..STD |
1 | ||
| 51441L - GROMMET, NO.2(FOR ENGINE UNDER COVER) | ||||
| 90189-06006 |
NCP90,ZSP91 TYPE A:REFER ILLUST. |
1 | ||
| 90189-06076 |
NCP90,ZSP91 TYPE B:REFER ILLUST. |
1 | ||
| 51441L - GROMMET, NO.2(FOR ENGINE UNDER COVER) | ||||
| 90189-06006 |
NCP90,ZSP91 TYPE A:REFER ILLUST. |
1 | ||
| 90189-06076 |
NCP90,ZSP91 TYPE B:REFER ILLUST. |
1 | ||
| 51441L - GROMMET, NO.2(FOR ENGINE UNDER COVER) | ||||
| 90189-06006 |
NCP90,ZSP91 TYPE A:REFER ILLUST. |
1 | ||
| 90189-06076 |
NCP90,ZSP91 TYPE B:REFER ILLUST. |
1 | ||
| 51441L - GROMMET, NO.2(FOR ENGINE UNDER COVER) | ||||
| 90189-06006 |
NCP90,ZSP91 TYPE A:REFER ILLUST. |
1 | ||
| 90189-06076 |
NCP90,ZSP91 TYPE B:REFER ILLUST. |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-0D120 |
NCP90,ZSP91..STD |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-C0007 |
NCP90,ZSP91 |
6 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-C0007 |
NCP90,ZSP91 |
6 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-C0007 |
NCP90,ZSP91 |
6 | ||
| 51451E - SCREW, NO.2 | ||||
| 90119-06767 |
NCP90,ZSP91 |
5 | ||
| 90119-C0186 |
NCP90,ZSP91 |
5 | ||
| 51451E - SCREW, NO.2 | ||||
| 90119-06767 |
NCP90,ZSP91 |
5 | ||
| 90119-C0186 |
NCP90,ZSP91 |
5 | ||
| 51451E - SCREW, NO.2 | ||||
| 90119-06767 |
NCP90,ZSP91 |
5 | ||
| 90119-C0186 |
NCP90,ZSP91 |
5 | ||
| Common parts | ||||
| 90119-C0147 | ||||
| 90119-C0222 | ||||
