ZSP91L-AHPHKC (2008)

Toyota Yaris (China)

Production May 2008 - Aug 2013
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0805- )1ZRFE

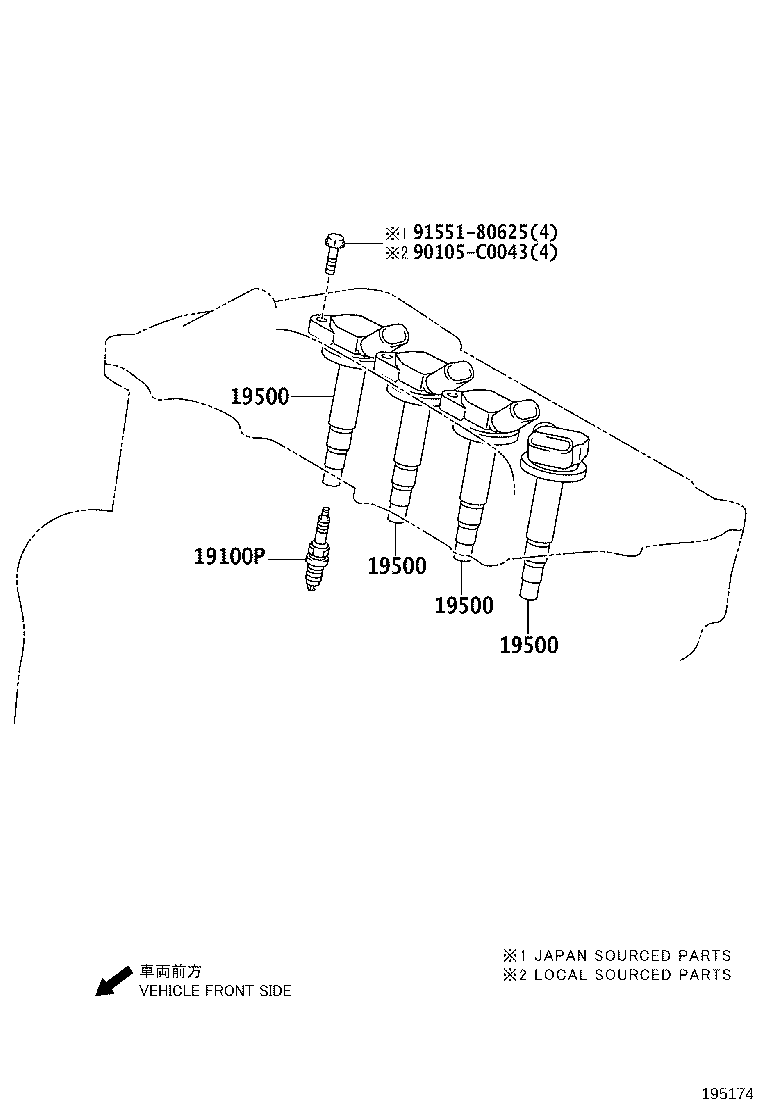

Click highlighted areas on diagram

diagram 19100P 19500 19500 19500 19500 90105C0043 9155180625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01253

1ZRFE..ZSP91

SC20HR11,STAMPING MODEL = 4ZR

 4
90919-T1009

1ZRFE..ZSP91..4FC

SC20HR11,STAMPING MODEL = 4ZR

 4
90919-T1009

1ZRFE..ZSP91..4FC

SC20HR11

 4
19500 - COIL ASSY, IGNITION
90919-02252

1ZRFE..ZSP91..4FC

(J)

 4
90919-02258

1ZRFE..ZSP91..STD

(J)

 4
90919-02258

1ZRFE..ZSP91..STD

STAMPING MODEL = 4ZR,(J)

 4
90919-C2003

1ZRFE..ZSP91..4FC

(L)

 4
90919-02252

1ZRFE..ZSP91..4FC

STAMPING MODEL = 4ZR,(J)

 4
90919-C2005

1ZRFE..ZSP91..STD

(L)

 4
90919-02252

1ZRFE..ZSP91

STAMPING MODEL = 4ZR

 4
19500 - COIL ASSY, IGNITION
90919-02252

1ZRFE..ZSP91..4FC

(J)

 4
90919-02258

1ZRFE..ZSP91..STD

(J)

 4
90919-02258

1ZRFE..ZSP91..STD

STAMPING MODEL = 4ZR,(J)

 4
90919-C2003

1ZRFE..ZSP91..4FC

(L)

 4
90919-02252

1ZRFE..ZSP91..4FC

STAMPING MODEL = 4ZR,(J)

 4
90919-C2005

1ZRFE..ZSP91..STD

(L)

 4
90919-02252

1ZRFE..ZSP91

STAMPING MODEL = 4ZR

 4
19500 - COIL ASSY, IGNITION
90919-02252

1ZRFE..ZSP91..4FC

(J)

 4
90919-02258

1ZRFE..ZSP91..STD

(J)

 4
90919-02258

1ZRFE..ZSP91..STD

STAMPING MODEL = 4ZR,(J)

 4
90919-C2003

1ZRFE..ZSP91..4FC

(L)

 4
90919-02252

1ZRFE..ZSP91..4FC

STAMPING MODEL = 4ZR,(J)

 4
90919-C2005

1ZRFE..ZSP91..STD

(L)

 4
90919-02252

1ZRFE..ZSP91

STAMPING MODEL = 4ZR

 4
19500 - COIL ASSY, IGNITION
90919-02252

1ZRFE..ZSP91..4FC

(J)

 4
90919-02258

1ZRFE..ZSP91..STD

(J)

 4
90919-02258

1ZRFE..ZSP91..STD

STAMPING MODEL = 4ZR,(J)

 4
90919-C2003

1ZRFE..ZSP91..4FC

(L)

 4
90919-02252

1ZRFE..ZSP91..4FC

STAMPING MODEL = 4ZR,(J)

 4
90919-C2005

1ZRFE..ZSP91..STD

(L)

 4
90919-02252

1ZRFE..ZSP91

STAMPING MODEL = 4ZR

 4
Common parts
90105-C0043
91551-80625
