ZSP91L-AHMSKC (2008)

Toyota Yaris (China)

Production May 2008 - Aug 2010
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0805- )ZSP91

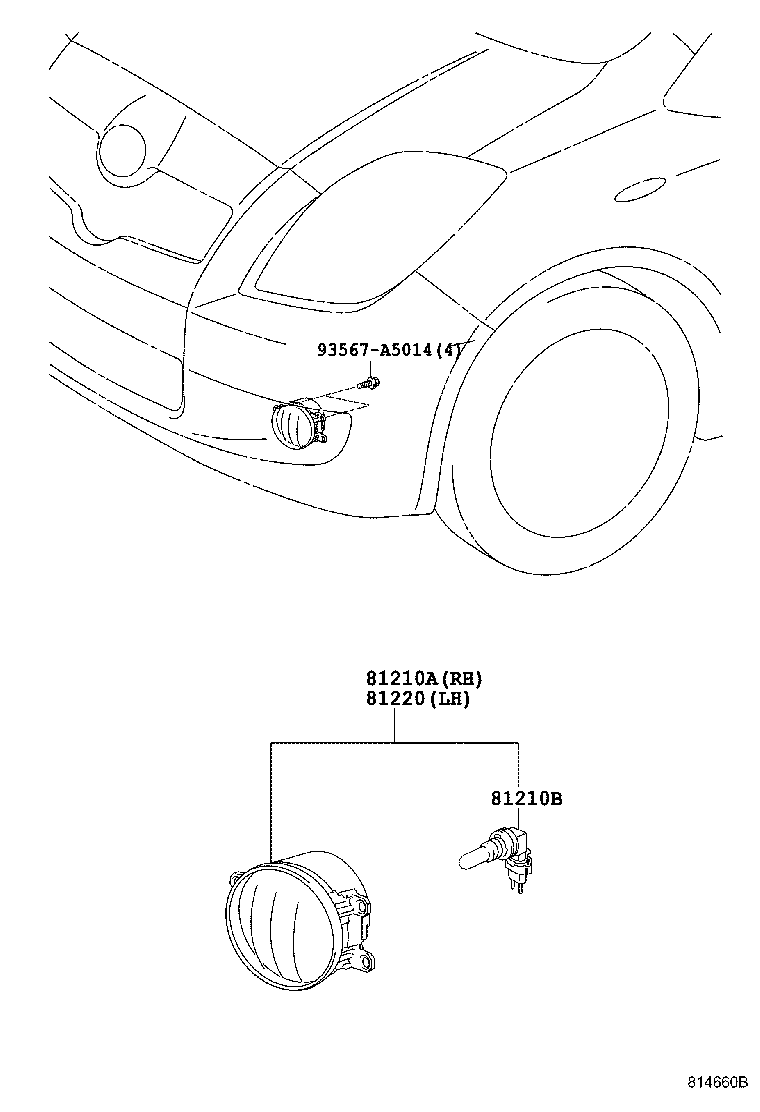

Click highlighted areas on diagram

diagram 81210A 81210B 81220 93567A5014
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-06052

ZSP91..RS

 1
81210B - BULB, FOG LAMP
90981-13075

ZSP91

12V 55W,HALOGEN,PHILIPS

 2
90981-13081

ZSP91

12V 55W,HALOGEN,OSRAM

 2
81220 - LAMP ASSY, FOG, LH
81220-06052

ZSP91..RS

 1
Common parts
93567-A5014
