ZSP91L-AHMSKC (2008)

Toyota Yaris (China)

Production May 2008 - Aug 2010
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

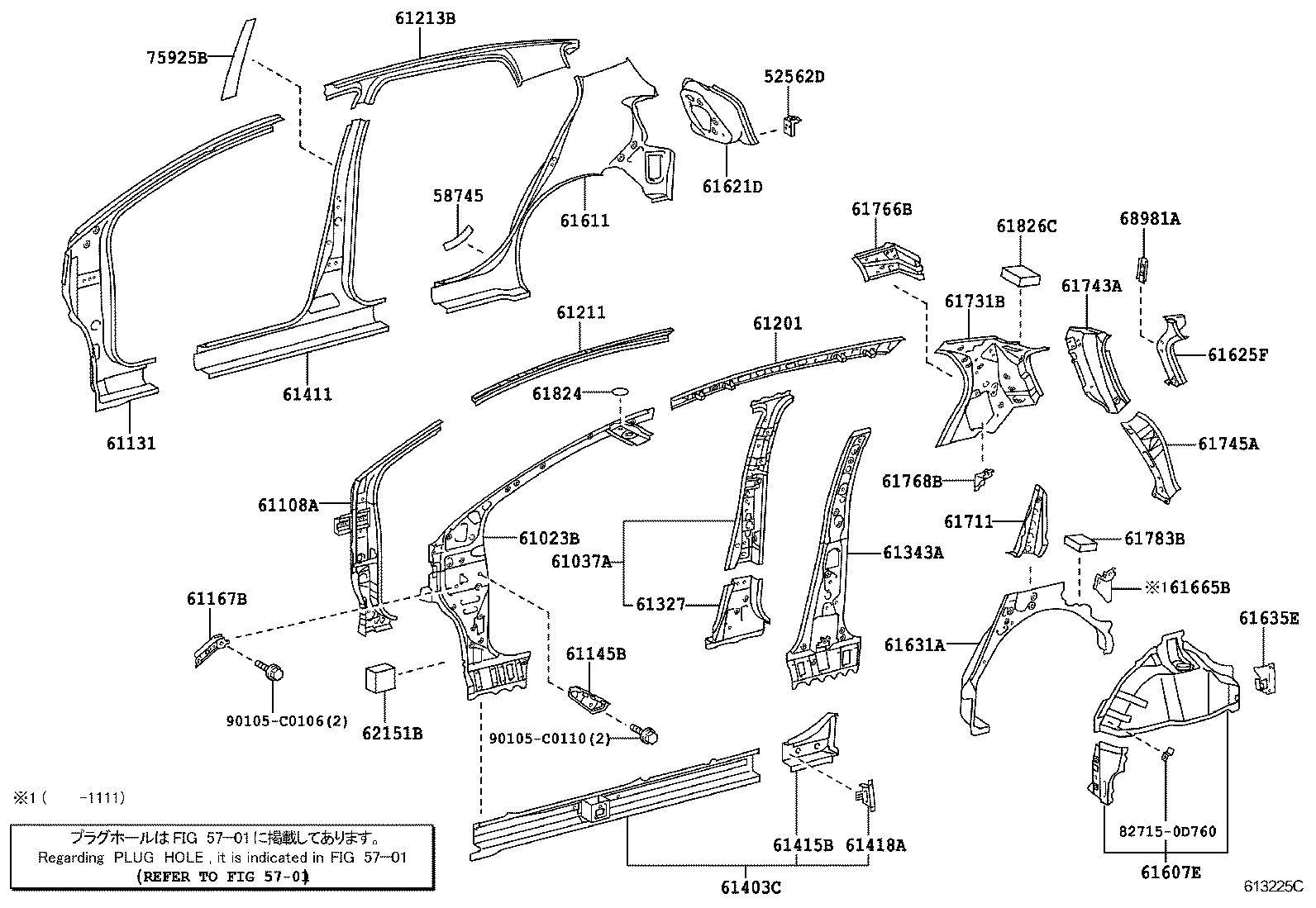

ILLUST NO. 1 OF 2(0805- )

Click highlighted areas on diagram

RH

diagram 52562D 5701 58745 61023B 61037A 61108A 61131 61145B 61167B 61201 61211 61213B 61327 61343A 61403C 61411 61415B 61418A 61607E 61611 61621D 61625F 61631A 61635E 61665B 61711 61731B 61743A 61745A 61766B 61768B 61783B 61824 61826C 62151B 68981A 75925B 827150D760 90105C0106 90105C0110
Part # Description Qty Price
52562D - RETAINER, REAR BUMPER, UPPER SIDE, RH
52562-0D030

ZSP91..RS

 1
58745 - PROTECTOR, QUARTER PANEL, FRONT RH
58741-0D090

ZSP91..RS

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-0D080

NCP90,ZSP91

 1
61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61037-0D905

ZSP91..RS

 1
61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108-0D060

ZSP91..RS

 1
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-0D130

ZSP91..RS

 1
61145B - GUSSET, FRONT BODY PILLAR, LOWER RH
61145-0D050

ZSP91..RS

 1
61167B - BRACE, FRONT BODY PILLAR, LOWER
61167-0D030

ZSP91..RS

 2
61201 - RAIL SUB-ASSY, ROOF SIDE, RH
61201-0D060

ZSP91..RS

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-0D080

ZSP91..RS

 1
61213B - RAIL, ROOF SIDE, OUTER NO.2 RH
61213-0D040

ZSP91..RS

 1
61327 - REINFORCEMENT, CENTER BODY PILLAR, OUTER RH
61327-0D090

ZSP91..RS

 1
61343A - PILLAR, CENTER BODY, INNER RH
61032-0D050

ZSP91..RS

 1
61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH
61403-0D110

ZSP91..RS

 1
61411 - PANEL, ROCKER, OUTER RH
61411-0D080

ZSP91..RS

 1
61415B - EXTENSION, ROCKER, OUTER RH
61415-0D020

ZSP91..RS

 1
61418A - REINFORCEMENT, ROCKER PANEL, RH
61418-0D020

ZSP91..RS

 1
61607E - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-0D905

ZSP91..RS

 1
61611 - PANEL, QUARTER, RH
61601-0D190

ZSP91..RS

 1
61621D - TROUGH, BACK DOOR OPENING, RH
61621-52110

ZSP91..RS

 1
61625F - EXTENSION, QUARTER PANEL, UPPER RH
61625-52110

ZSP91..RS

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-52120

ZSP91..RS

 1
61635E - EXTENSION, QUARTER WHEEL HOUSE, RH
61635-0D030

ZSP91..RS

 1
61665B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE,
61665-0D050

NCP90,ZSP91

 1
61711 - PANEL, ROOF SIDE, OUTER RH
61711-52130

ZSP91..RS

 1
61731B - PANEL, ROOF SIDE, INNER RH
61731-52180

ZSP91..RS

 1
61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH
61743-0D020

ZSP91..RS

 1
61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH
61745-52080

ZSP91..RS

 1
61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61766-0D060

ZSP91..RS

 1
61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61768-0D050

ZSP91..RS

 1
61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1
61783-0D010

ZSP91..RS

 2
61824 - PLATE, NOISE CONTROL, NO.1
61824-0D050

ZSP91..RS

 2
61826C - PAD, NOISE SHUTTER, NO.3
61826-0D040

ZSP91..RS

 2
62151B - PAD, COWL SIDE SILENCER
62151-0D060

ZSP91..RS

 2
68981A - RETAINER, BACK DOOR STAY, RH
68981-0D030

ZSP91..RS

 1
75925B - TAPE, BLACK OUT, NO.3 RH
75925-0D020

ZSP91..RS

 1
Common parts
82715-0D760
90105-C0106
90105-C0110
Linked diagrams
5701

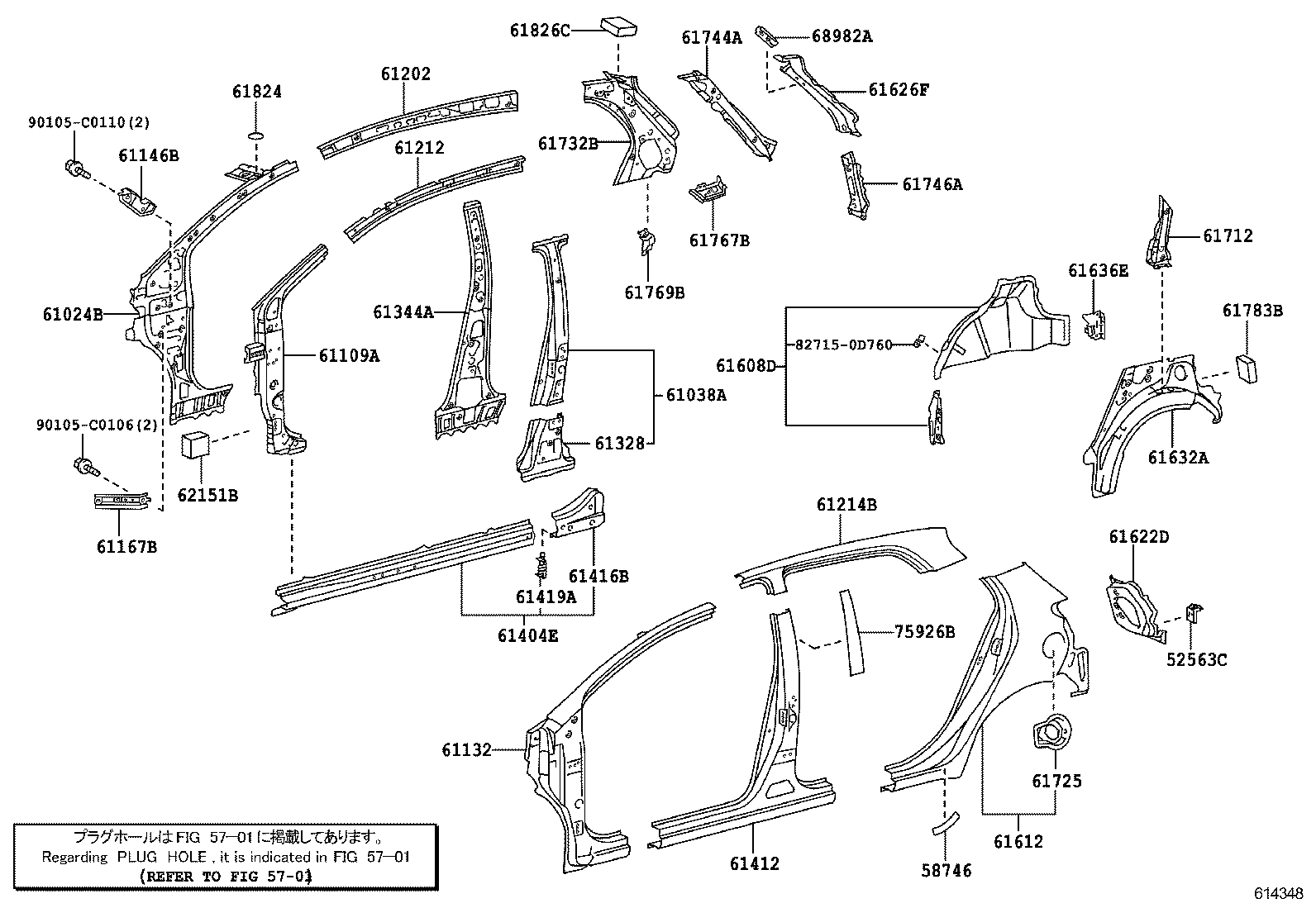

ILLUST NO. 2 OF 2(0805- )

Click highlighted areas on diagram

LH

diagram 52563C 5701 58746 61024B 61038A 61109A 61132 61146B 61167B 61202 61212 61214B 61328 61344A 61404E 61412 61416B 61419A 61608D 61612 61622D 61626F 61632A 61636E 61712 61725 61732B 61744A 61746A 61767B 61769B 61783B 61824 61826C 62151B 68982A 75926B 827150D760 90105C0106 90105C0110
Part # Description Qty Price
52563C - RETAINER, REAR BUMPER, UPPER SIDE, LH
52562-0D030

ZSP91..RS

 1
58746 - PROTECTOR, QUARTER PANEL, FRONT LH
58742-0D090

ZSP91..RS

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-0D080

NCP90,ZSP91

 1
61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61038-0D905

ZSP91..RS

 1
61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61109-0D060

ZSP91..RS

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-0D130

ZSP91..RS

 1
61146B - GUSSET, FRONT BODY PILLAR, LOWER LH
61146-0D050

ZSP91..RS

 1
61167B - BRACE, FRONT BODY PILLAR, LOWER
61167-0D030

ZSP91..RS

 2
61202 - RAIL SUB-ASSY, ROOF SIDE, LH
61202-0D060

ZSP91..RS

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-0D080

ZSP91..RS

 1
61214B - RAIL, ROOF SIDE, OUTER NO.2 LH
61214-0D040

ZSP91..RS

 1
61328 - REINFORCEMENT, CENTER BODY PILLAR, OUTER LH
61328-0D090

ZSP91..RS

 1
61344A - PILLAR, CENTER BODY, INNER LH
61042-0D050

ZSP91..RS

 1
61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH
61404-0D110

ZSP91..RS

 1
61412 - PANEL, ROCKER, OUTER LH
61412-0D080

ZSP91..RS

 1
61416B - EXTENSION, ROCKER, OUTER LH
61416-0D020

ZSP91..RS

 1
61419A - REINFORCEMENT, ROCKER PANEL, LH
61419-0D020

ZSP91..RS

 1
61608D - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-0D905

ZSP91..RS

 1
61612 - PANEL, QUARTER, LH
61602-0D080

ZSP91..RS

 1
61622D - TROUGH, BACK DOOR OPENING, LH
61622-52110

ZSP91..RS

 1
61626F - EXTENSION, QUARTER PANEL, UPPER LH
61626-52110

ZSP91..RS

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-52120

ZSP91..RS

 1
61636E - EXTENSION, QUARTER WHEEL HOUSE, LH
61636-0D030

ZSP91..RS

 1
61712 - PANEL, ROOF SIDE, OUTER LH
61712-52160

ZSP91..RS

 1
61725 - BOX, FUEL INLET
61725-0D040

ZSP91..RS

 1
61732B - PANEL, ROOF SIDE, INNER LH
61732-52231

ZSP91..RS

 1
61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH
61744-0D020

ZSP91..RS

 1
61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH
61746-52080

ZSP91..RS

 1
61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61767-0D060

ZSP91..RS

 1
61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH
61769-0D050

ZSP91..RS

 1
61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1
61783-0D010

ZSP91..RS

 2
61824 - PLATE, NOISE CONTROL, NO.1
61824-0D050

ZSP91..RS

 2
61826C - PAD, NOISE SHUTTER, NO.3
61826-0D040

ZSP91..RS

 2
62151B - PAD, COWL SIDE SILENCER
62151-0D060

ZSP91..RS

 2
68982A - RETAINER, BACK DOOR STAY, LH
68981-0D030

ZSP91..RS

 1
75926B - TAPE, BLACK OUT, NO.3 LH
75926-0D020

ZSP91..RS

 1
Common parts
82715-0D760
90105-C0106
90105-C0110
