ZSP91L-AHMSKC (2008)

Toyota Yaris (China)

Production May 2008 - Aug 2010
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0805- )

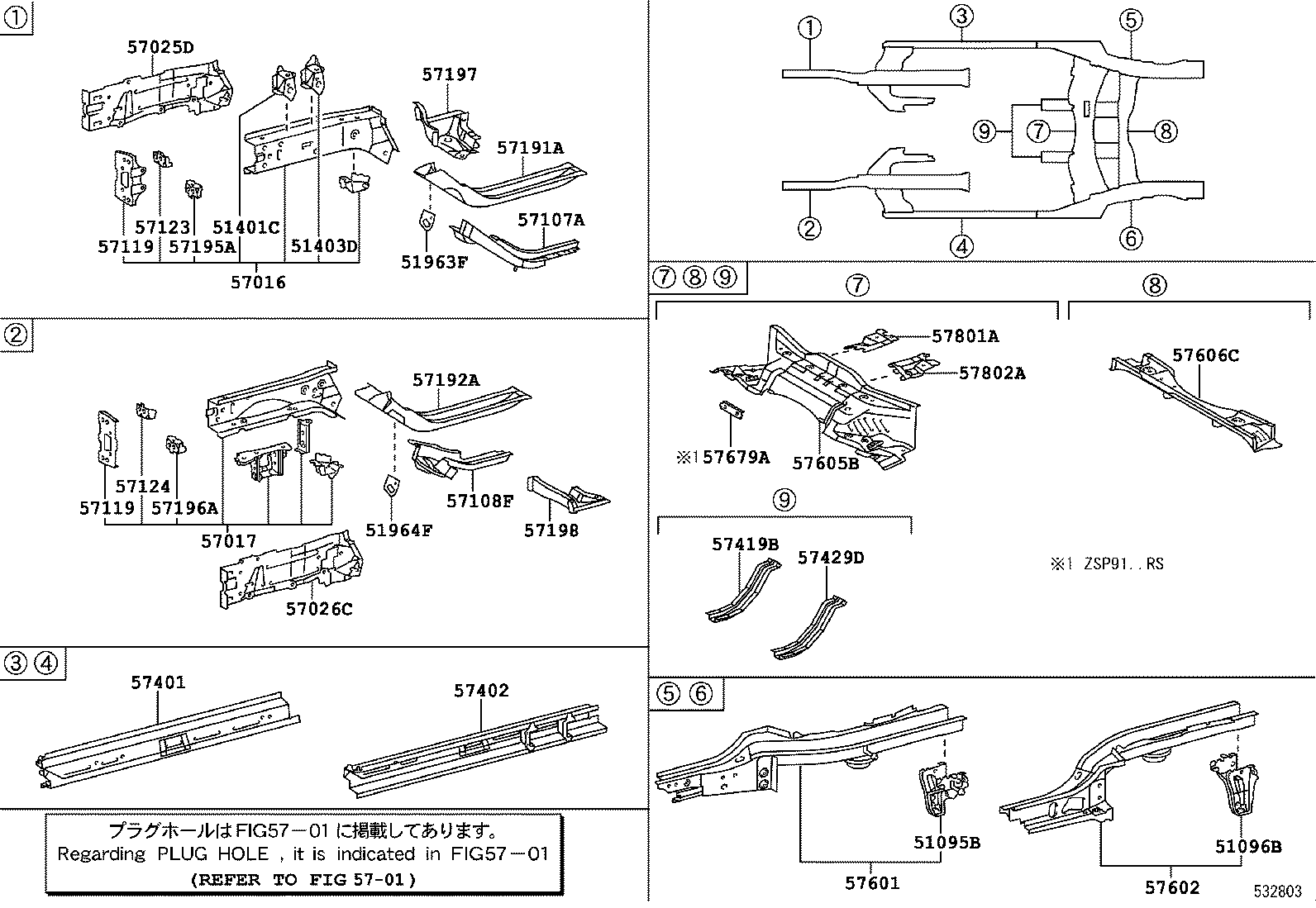

Click highlighted areas on diagram

diagram 51095B 51096B 51401C 51403D 51963F 51964F 5701 57016 57017 57025D 57026C 57107A 57108F 57119 57119 57123 57124 57191A 57192A 57195A 57196A 57197 57198 57401 57402 57419B 57429D 57601 57602 57605B 57606C 57679A 57801A 57802A
Part # Description Qty Price
51095B - HOOK SUB-ASSY, TRANSPORT, REAR RH
51095-0D020

ZSP91..RS

 1
51096B - HOOK SUB-ASSY, TRANSPORT, REAR LH
51096-0D020

ZSP91..RS

 1
51401C - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-0D020

ZSP91..RS

 1
51403D - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-0D020

ZSP91..RS

 1
51963F - HOOK, TRANSPORT
51963-0D080

ZSP91..RS

 1
51964F - HOOK, TRANSPORT, LH
51963-0D080

ZSP91..RS

 1
57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57016-0D070

ZSP91..RS

 1
57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57017-0D130

ZSP91..RS

 1
57025D - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57025-0D050

ZSP91..RS

 1
57026C - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57026-0D050

ZSP91..RS

 1
57107A - PLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57107-0D060

ZSP91..RS

 1
57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA
57108-0D060

ZSP91..RS

 1
57119 - PLATE, FRONT SIDE MEMBER, FRONT
57119-0D020

ZSP91..RS

RH

 1
57129-0D020

ZSP91..RS

LH

 1
57119 - PLATE, FRONT SIDE MEMBER, FRONT
57119-0D020

ZSP91..RS

RH

 1
57129-0D020

ZSP91..RS

LH

 1
57123 - SUPPORT, FRONT SIDE MEMBER, RH
57123-0D020

ZSP91..RS

 1
57124 - SUPPORT, FRONT SIDE MEMBER, LH
57124-0D020

ZSP91..RS

 1
57191A - MEMBER, FRONT SIDE, INNER REAR RH
57191-52020

ZSP91..RS

 1
57192A - MEMBER, FRONT SIDE, INNER REAR LH
57192-52020

ZSP91..RS

 1
57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH
57195-0D020

ZSP91..RS

 1
57196A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH
57196-0D020

ZSP91..RS

 1
57197 - BOX, TORQUE, FRONT RH
57197-0D040

ZSP91..RS

 1
57198 - BOX, TORQUE, FRONT LH
57198-0D040

ZSP91..RS

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-0D140

ZSP91..RS

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-0D140

ZSP91..RS

 1
57419B - REINFORCEMENT, FRONT FLOOR UNDER, REAR
57419-0D050

ZSP91..RS

 1
57429D - REINFORCEMENT, FRONT FLOOR UNDER, REAR LH
57429-0D050

ZSP91..RS

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-0D140

ZSP91..RS

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-0D130

ZSP91..RS

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-0D080

ZSP91..RS

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-0D090

ZSP91..RS

 1
57679A - RETAINER, REAR FLOOR CROSSMEMBER
57679-0D040

ZSP91..RS

 1
57801A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH
57801-0D070

ZSP91..RS

 1
57802A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH
57802-0D060

ZSP91..RS

 1
Linked diagrams
5701
