ZSP91L-AHMSKC (2008)

Toyota Yaris (China)

Production May 2008 - Aug 2010
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0805- )

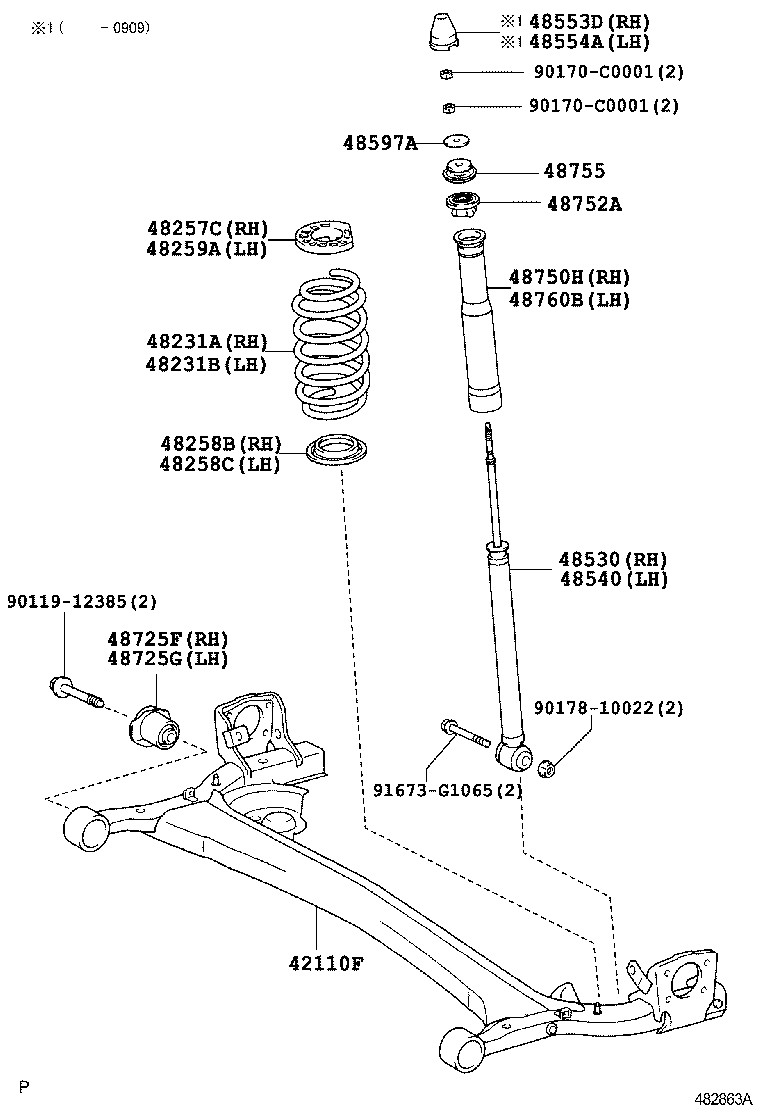

Click highlighted areas on diagram

diagram 42110F 48231A 48231B 48257C 48258B 48258C 48259A 48530 48540 48553D 48554A 48597A 48725F 48725G 48750H 48752A 48755 48760B 9011912385 90170C0001 90170C0001 9017810022 91673G1065
Part # Description Qty Price
42110F - BEAM ASSY, REAR AXLE
42101-52211

NCP90,ZSP91

 1
42101-52212

ZSP91..RS

 1
48231A - SPRING, COIL, REAR RH
48231-0D270

ZSP91..RS

 1
48231B - SPRING, COIL, REAR LH
48231-0D270

ZSP91..RS

 1
48257C - INSULATOR, REAR COIL SPRING, UPPER RH
48257-0D070

ZSP91..RS

 1
48258B - INSULATOR, REAR COIL SPRING, LOWER RH
48258-0D090

ZSP91..RS

 1
48258C - INSULATOR, REAR COIL SPRING, LOWER LH
48258-0D090

ZSP91..RS

 1
48259A - INSULATOR, REAR COIL SPRING, UPPER LH
48257-0D070

ZSP91..RS

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-0D300

NCP90,ZSP91

MARK 48530-0D300

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-0D300

NCP90,ZSP91

MARK 48530-0D300

 1
48553D - CAP, REAR SHOCK ABSORBER, RH
48553-0D020

NCP90,ZSP91

 1
48554A - CAP, REAR SHOCK ABSORBER, LH
48553-0D020

NCP90,ZSP91

 1
48597A - RETAINER, REAR SHOCK ABSORBER CUSHION
90201-10320

ZSP91..RS

 2
48725F - BUSH, REAR AXLE CARRIER, RH
48725-0D080

ZSP91..RS

 1
48725G - BUSH, REAR AXLE CARRIER, LH
48725-0D080

ZSP91..RS

 1
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-0D100

ZSP91..RS

 1
48752A - STOPPER, REAR SUSPENSION SUPPORT
48752-0D040

ZSP91..RS

 2
48755 - SUPPORT, REAR SUSPENSION
48755-0D140

ZSP91..RS

 2
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48750-0D100

ZSP91..RS

 1
Common parts
90119-12385
90170-C0001
90178-10022
91673-G1065
