ZSP91L-AHMSKC (2008)

Toyota Yaris (China)

Production May 2008 - Aug 2010
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0805- )

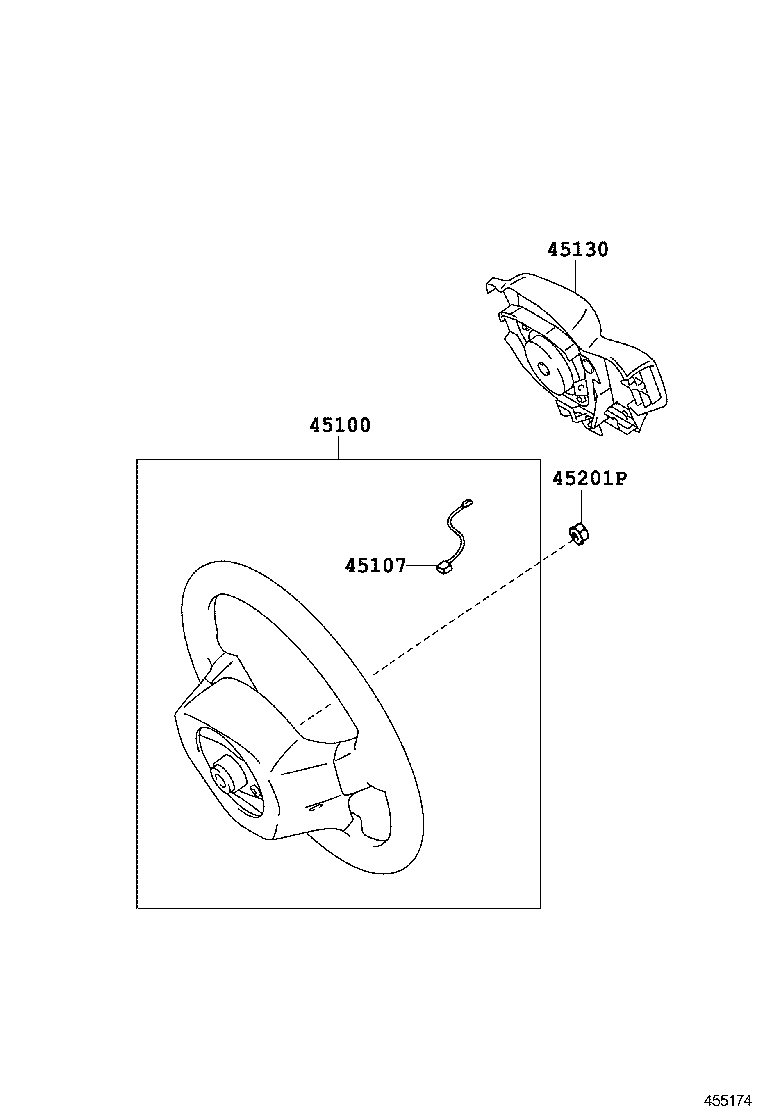

Click highlighted areas on diagram

diagram 45100 45107 45130 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-0D270B0

ZSP91..RS

3-SPOKE,LEATHER,DK.GRAY,TRIM1#

 1
45107 - WIRE SUB-ASSY, HORN BUTTON
45107-0D020

NCP90,ZSP91

 1
45130 - BUTTON ASSY, HORN
45130-0D230B0

ZSP91..RS

DK.GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90178-C0025

ZSP91..RS

 1
