ZSP91L-AHMHKC (2008)

Toyota Yaris (China)

Production May 2008 - Aug 2013
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0805- )

Click highlighted areas on diagram

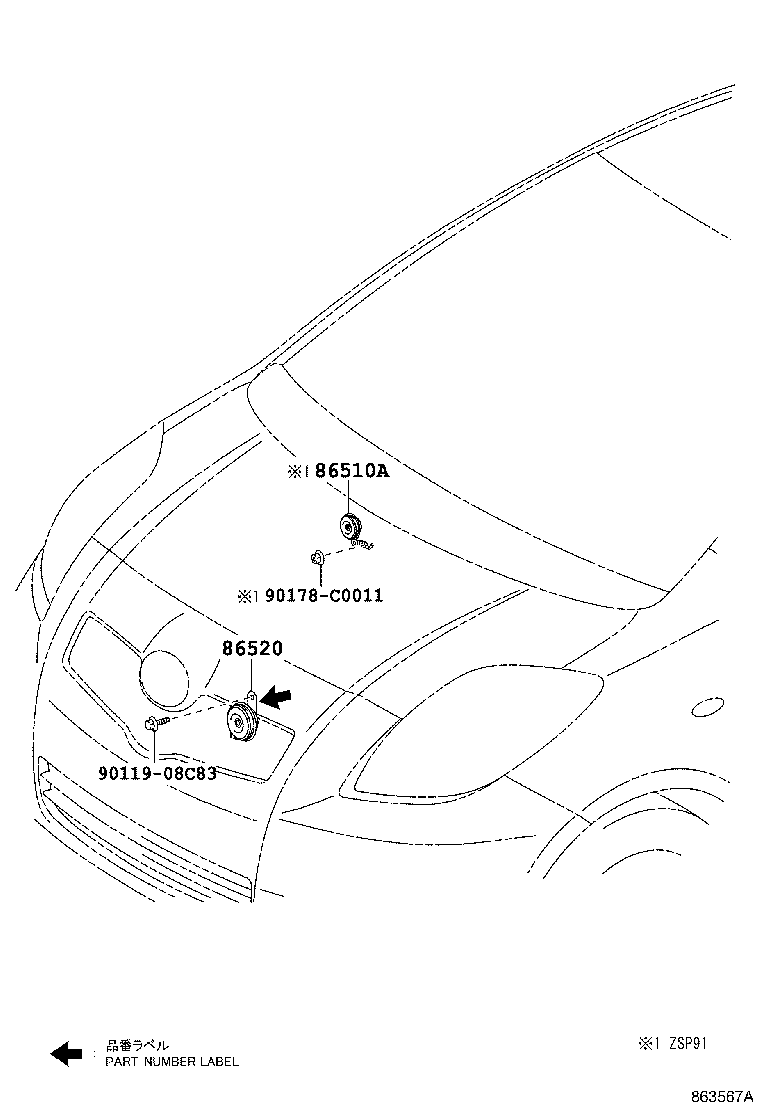

diagram 86510A 86520 9011908C83 90178C0011
Part # Description Qty Price
86510A - HORN ASSY, SECURITY
86560-0D050

ZSP91

 1
86560-0D050

ZSP91..STD

1.6E GRADE

 1
86520 - HORN ASSY, LOW PITCHED
86520-0D101

NCP90,ZSP91

P/N LABEL=865200D101

 1
86520-0D100

NCP90,ZSP91

P/N LABEL=865200D100

 1
86520-0D030

NCP90,ZSP91

 1
Common parts
90119-08C83
90178-C0011
