Toyota Yaris (china) ZSP91 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
GR
YARIS (CHINA)
ZSP91L-AHMHKC (2008)
5201 - FRONT BUMPER & BUMPER STAY

ZSP91L-AHMHKC (2008)

Toyota Yaris (China)

Production May 2008 - Aug 2013

Engine 1ZRFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

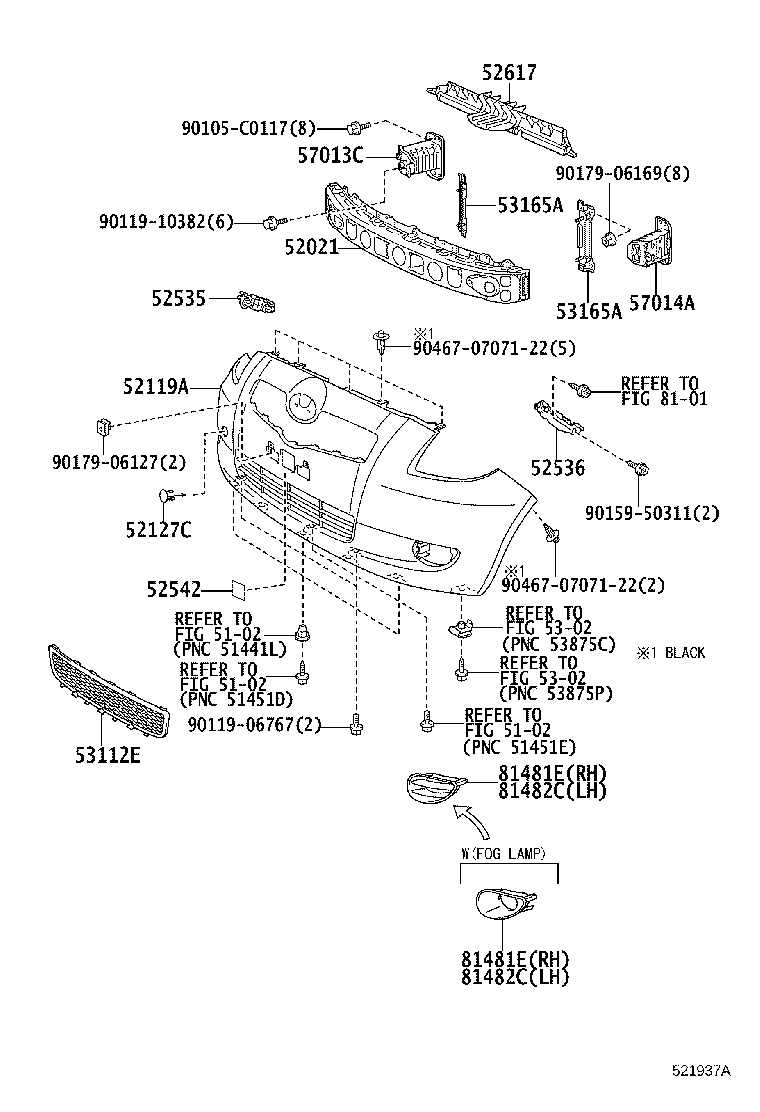

(0805-1008)

Click highlighted areas on diagram

Part #	Description	Period	Qty
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0D100	NCP90,ZSP91	05/2008 - 08/2013	1
52119A - COVER, FRONT BUMPER
52119-0D999	NCP90,ZSP91 PAINT REQ.	05/2008 - 08/2010	1
52119-0U901	NCP90,ZSP91..STD PAINT REQ.	08/2010 - 12/2999	1
52127C - COVER, FRONT BUMPER HOLE
52127-0D908	NCP90,ZSP91	05/2008 - 08/2010	1
52127-0D913	NCP90,ZSP91..STD	08/2010 - 12/2999	1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0D040	NCP90,ZSP91..STD	05/2008 - 12/2999	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0D040	NCP90,ZSP91..STD	05/2008 - 12/2999	1
52542 - SEAL, FRONT BUMPER, CENTER
52542-0D020	NCP90,ZSP91	05/2008 - 08/2010	1
52617 - ABSORBER, RADIATOR SUPPORT, UPPER
52617-0D060	NCP90,ZSP91	05/2008 - 08/2010	1
52617-0D030	NCP90,ZSP91..STD	08/2010 - 12/2999	1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0D080	NCP90,ZSP91 NO PAINT REQ.	05/2008 - 08/2010	1
53112-0D230	NCP90,ZSP91..STD NO PAINT REQ.	08/2010 - 12/2999	1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53165-0D040	NCP90,ZSP91 LH	05/2008 - 08/2013	1
53164-0D040	NCP90,ZSP91 RH	05/2008 - 08/2013	1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53165-0D040	NCP90,ZSP91 LH	05/2008 - 08/2013	1
53164-0D040	NCP90,ZSP91 RH	05/2008 - 08/2013	1
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-0D020	NCP90,ZSP91	05/2008 - 01/2013	1
57013-0D021	NCP90,ZSP91	02/2013 - 08/2013	1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-0D020	NCP90,ZSP91	05/2008 - 08/2013	1
81481E - COVER, FOG LAMP, RH
81481-0D030	ZSP91..STD 1.6E GRADE	03/2009 - 08/2010	1
81481-0D040	ZSP91	05/2008 - 08/2010	1
81481-0D160	ZSP91..STD 1.6E GRADE	08/2010 - 12/2999	1
81481-0D170	ZSP91..STD	08/2010 - 12/2999	1
81481E - COVER, FOG LAMP, RH
81481-0D030	ZSP91..STD 1.6E GRADE	03/2009 - 08/2010	1
81481-0D040	ZSP91	05/2008 - 08/2010	1
81481-0D160	ZSP91..STD 1.6E GRADE	08/2010 - 12/2999	1
81481-0D170	ZSP91..STD	08/2010 - 12/2999	1
81482C - COVER, FOG LAMP, LH
81482-0D050	ZSP91	05/2008 - 08/2010	1
81482-0D180	ZSP91..STD	08/2010 - 12/2999	1
81482-0D040	ZSP91..STD 1.6E GRADE	03/2009 - 08/2010	1
81482-0D170	ZSP91..STD 1.6E GRADE	08/2010 - 12/2999	1
81482C - COVER, FOG LAMP, LH
81482-0D050	ZSP91	05/2008 - 08/2010	1
81482-0D180	ZSP91..STD	08/2010 - 12/2999	1
81482-0D040	ZSP91..STD 1.6E GRADE	03/2009 - 08/2010	1
81482-0D170	ZSP91..STD 1.6E GRADE	08/2010 - 12/2999	1
Common parts
90105-C0117
90119-06767
90119-10382
90159-50311
90179-06127
90179-06169
90467-0707122
Linked diagrams
5102
5302
8101

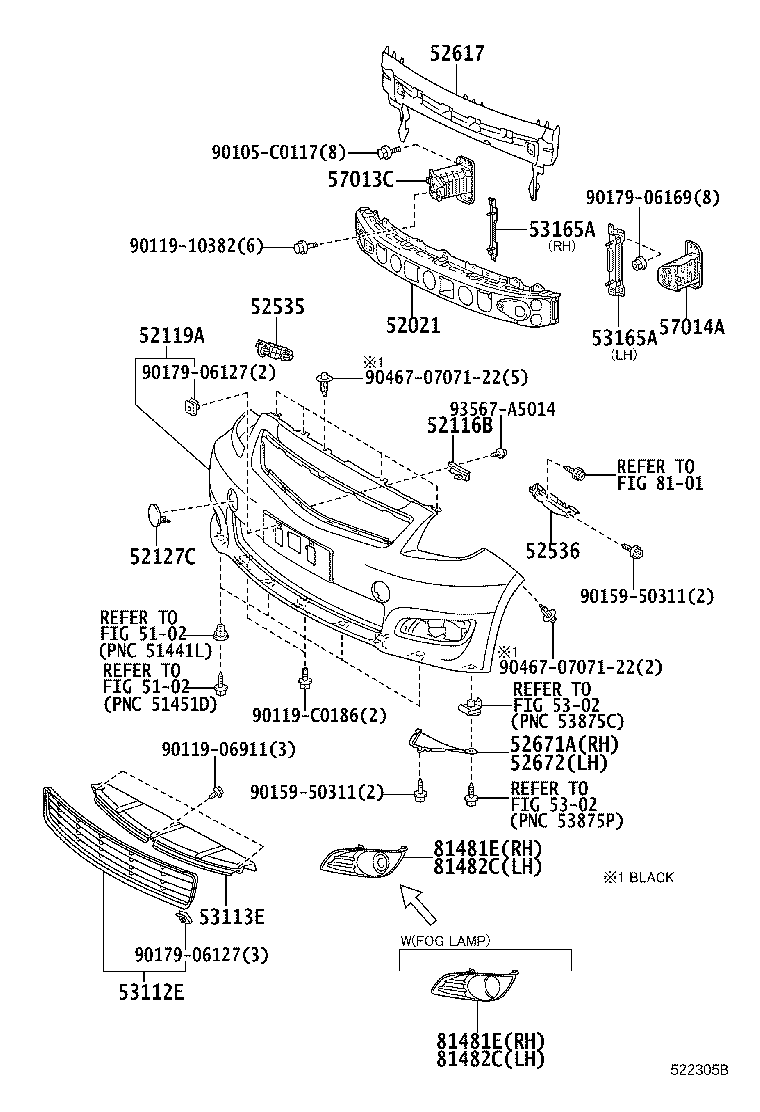

(1008- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-0D100	NCP90,ZSP91	05/2008 - 08/2013	1
52116B - RETAINER, FRONT BUMPER
52116-0D040	NCP90,ZSP91..STD	08/2010 - 12/2999	1
52119A - COVER, FRONT BUMPER
52119-0D999	NCP90,ZSP91 PAINT REQ.	05/2008 - 08/2010	1
52119-0U901	NCP90,ZSP91..STD PAINT REQ.	08/2010 - 12/2999	1
52127C - COVER, FRONT BUMPER HOLE
52127-0D908	NCP90,ZSP91	05/2008 - 08/2010	1
52127-0D913	NCP90,ZSP91..STD	08/2010 - 12/2999	1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-0D040	NCP90,ZSP91..STD	05/2008 - 12/2999	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-0D040	NCP90,ZSP91..STD	05/2008 - 12/2999	1
52617 - ABSORBER, RADIATOR SUPPORT, UPPER
52617-0D060	NCP90,ZSP91	05/2008 - 08/2010	1
52617-0D030	NCP90,ZSP91..STD	08/2010 - 12/2999	1
52671A - EXTENSION, FRONT BUMPER ARM, RH
52671-0D010	NCP90,ZSP91..STD	08/2010 - 12/2999	1
52672 - EXTENSION, FRONT BUMPER ARM, LH
52672-0D010	NCP90,ZSP91..STD	08/2010 - 12/2999	1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-0D080	NCP90,ZSP91 NO PAINT REQ.	05/2008 - 08/2010	1
53112-0D230	NCP90,ZSP91..STD NO PAINT REQ.	08/2010 - 12/2999	1
53113E - GRILLE, RADIATOR, LOWER NO.2
53113-0D010	NCP90,ZSP91..STD	08/2010 - 12/2999	1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53165-0D040	NCP90,ZSP91 LH	05/2008 - 08/2013	1
53164-0D040	NCP90,ZSP91 RH	05/2008 - 08/2013	1
53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1
53165-0D040	NCP90,ZSP91 LH	05/2008 - 08/2013	1
53164-0D040	NCP90,ZSP91 RH	05/2008 - 08/2013	1
57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-0D020	NCP90,ZSP91	05/2008 - 01/2013	1
57013-0D021	NCP90,ZSP91	02/2013 - 08/2013	1
57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-0D020	NCP90,ZSP91	05/2008 - 08/2013	1
81481E - COVER, FOG LAMP, RH
81481-0D030	ZSP91..STD 1.6E GRADE	03/2009 - 08/2010	1
81481-0D040	ZSP91	05/2008 - 08/2010	1
81481-0D160	ZSP91..STD 1.6E GRADE	08/2010 - 12/2999	1
81481-0D170	ZSP91..STD	08/2010 - 12/2999	1
81481E - COVER, FOG LAMP, RH
81481-0D030	ZSP91..STD 1.6E GRADE	03/2009 - 08/2010	1
81481-0D040	ZSP91	05/2008 - 08/2010	1
81481-0D160	ZSP91..STD 1.6E GRADE	08/2010 - 12/2999	1
81481-0D170	ZSP91..STD	08/2010 - 12/2999	1
81482C - COVER, FOG LAMP, LH
81482-0D050	ZSP91	05/2008 - 08/2010	1
81482-0D180	ZSP91..STD	08/2010 - 12/2999	1
81482-0D040	ZSP91..STD 1.6E GRADE	03/2009 - 08/2010	1
81482-0D170	ZSP91..STD 1.6E GRADE	08/2010 - 12/2999	1
81482C - COVER, FOG LAMP, LH
81482-0D050	ZSP91	05/2008 - 08/2010	1
81482-0D180	ZSP91..STD	08/2010 - 12/2999	1
81482-0D040	ZSP91..STD 1.6E GRADE	03/2009 - 08/2010	1
81482-0D170	ZSP91..STD 1.6E GRADE	08/2010 - 12/2999	1
Common parts
90105-C0117
90119-06911
90119-10382
90119-C0186
90159-50311
90179-06127
90179-06169
90467-0707122
93567-A5014
Linked diagrams
5102
5302
8101

ZSP91L-AHMHKC (2008)

(0805-1008)

(1008- )
