ZSP91L-AHMHKC (2008)

Toyota Yaris (China)

Production May 2008 - Aug 2013
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0805- )

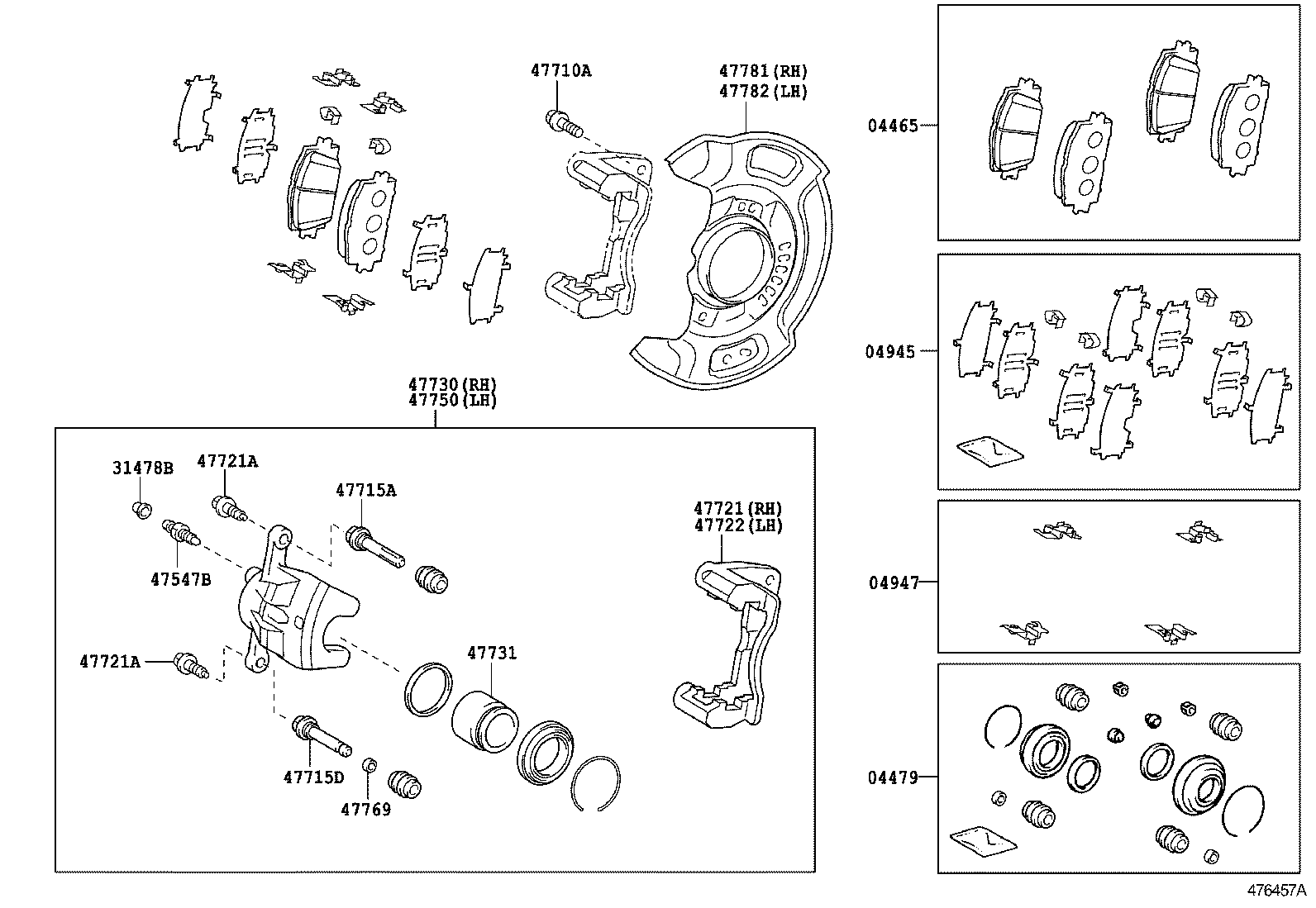

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715D 47721 47721A 47721A 47722 47730 47731 47750 47769 47781 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-52260

NCP90,ZSP91

MARK AK PA563H

 1
04465-0D110

NCP90,ZSP91

MARK AK PA563H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-0D091

NCP90,ZSP91..STD

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-0D060

NCP90,ZSP91..STD

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-02100

NCP90,ZSP91..STD

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-0N010

NCP90,ZSP91

 2
31478-0N010

NCP90,ZSP91..STD

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

NCP90,ZSP91..STD

 2
47547-20010

NCP90,ZSP91

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-C0021

NCP90,ZSP91

*12-1.25PX29.5-23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47714-06270

NCP90,ZSP91..STD

 2
47714-06270

NCP90,ZSP91

 2
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-06270

NCP90,ZSP91..STD

 2
47715-06270

NCP90,ZSP91

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-0D130

NCP90,ZSP91..STD

 1
47721-0D130

NCP90,ZSP91

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

NCP90,ZSP91..STD

*8-1.00PX23-15

 4
90105-08164

NCP90,ZSP91

*8-1.00PX23-15

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90105-08164

NCP90,ZSP91..STD

*8-1.00PX23-15

 4
90105-08164

NCP90,ZSP91

*8-1.00PX23-15

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-0D130

NCP90,ZSP91

 1
47722-0D130

NCP90,ZSP91..STD

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-0D130

NCP90,ZSP91..STD

 1
47730-0D130

NCP90,ZSP91

 1
47731 - PISTON, FRONT DISC BRAKE
47731-0D130

NCP90,ZSP91..STD

 2
47731-0D130

NCP90,ZSP91

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-0D130

NCP90,ZSP91

 1
47750-0D130

NCP90,ZSP91..STD

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-0P010

NCP90,ZSP91..STD

 2
47769-0P010

NCP90,ZSP91

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-0D090

NCP90,ZSP91

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-0D090

NCP90,ZSP91

 1
