ZSP91L-AHMHKC (2008)

Toyota Yaris (China)

Production May 2008 - Aug 2013
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0805- )ZSP91

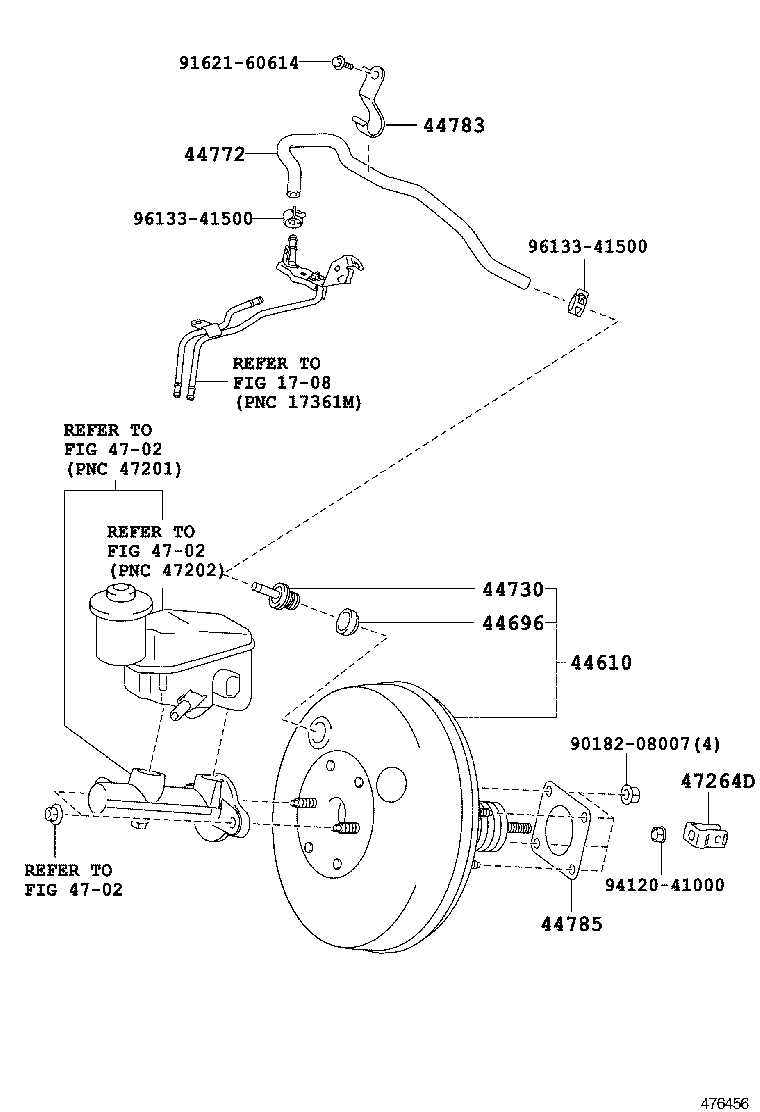

Click highlighted areas on diagram

diagram 1708 44610 44696 44730 44772 44783 44785 4702 4702 4702 47264D 9018208007 9162160614 9412041000 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0D190

NCP90,ZSP91..STD

 1
44696 - GROMMET, CHECK VALVE
90080-48071

NCP90,ZSP91..STD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-20080

NCP90,ZSP91..STD

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-0D060

ZSP91..STD

 1
44783 - CLAMP, VACUUM HOSE
44783-52040

NCP90,ZSP91..STD

 1
44785 - GASKET, BRAKE BOOSTER
44785-06020

NCP90,ZSP91..STD

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0D050

NCP90,ZSP91..STD

 1
Common parts
90182-08007
91621-60614
94120-41000
96133-41500
Linked diagrams
1708
4702
