ZSP91L-AHMHKC (2008)

Toyota Yaris (China)

Production May 2008 - Aug 2013
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0805- )

Click highlighted areas on diagram

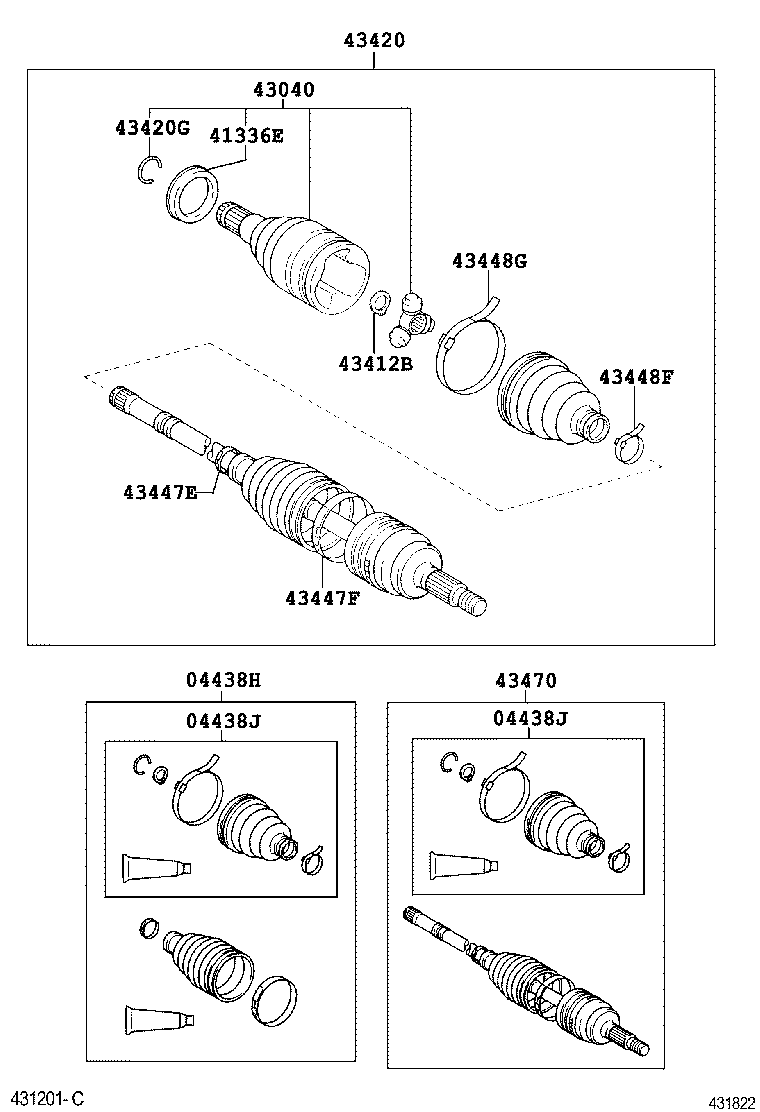

LH

diagram 04438H 04438J 04438J 41336E 43040 43412B 43420 43420G 43447E 43447F 43448F 43448G 43470
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-02460

ZSP91..STD

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-02310

ZSP91..STD

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-02310

ZSP91..STD

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-12010

NCP90,ZSP91..STD

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-02110

ZSP91..STD

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-12070

ZSP91..STD

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-0D230

ZSP91

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-26004

NCP90,ZSP91..STD

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12230

ZSP91..STD

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12240

ZSP91..STD

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12230

ZSP91..STD

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12180

ZSP91..STD

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-09V81

ZSP91..STD

 1

(0805- )ZSP91

Click highlighted areas on diagram

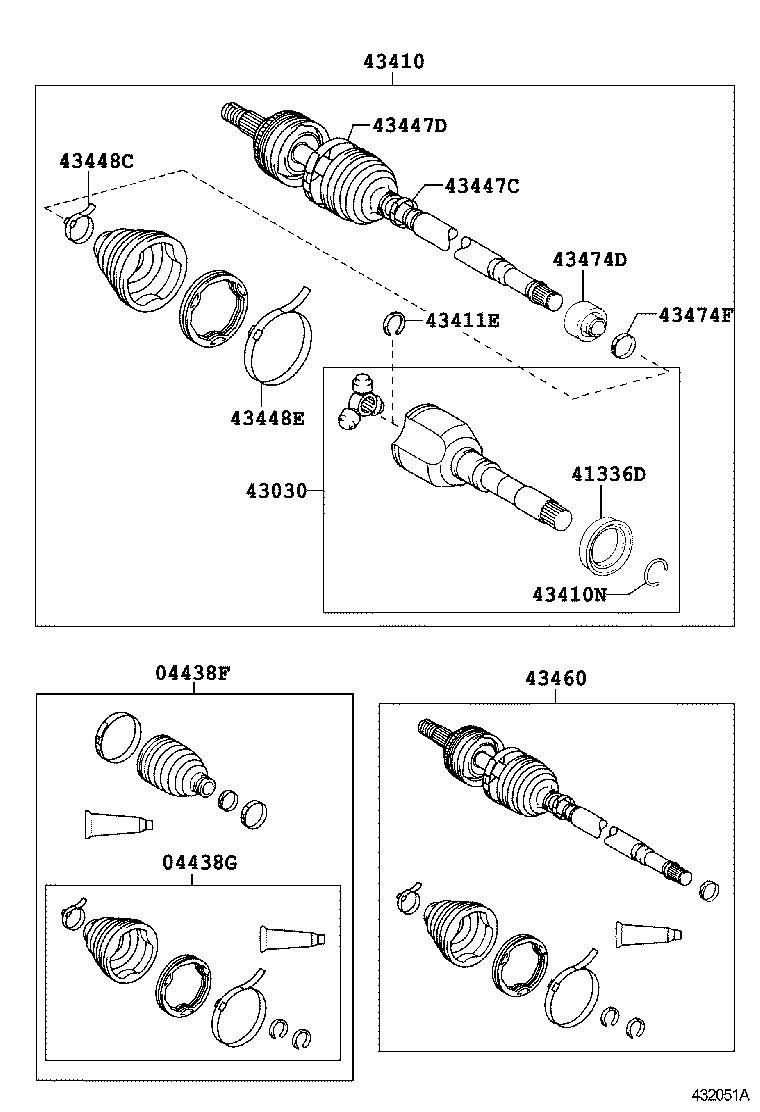

RH

diagram 04438F 04438G 41336D 43030 43410 43410N 43411E 43447C 43447D 43448C 43448E 43460 43474D 43474F
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-0D191

ZSP91..STD

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-02310

ZSP91..STD

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-12010

NCP90,ZSP91..STD

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43040-02110

ZSP91..STD

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-0D310

ZSP91

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90521-26004

NCP90,ZSP91..STD

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-12070

ZSP91..STD

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12230

ZSP91..STD

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12240

ZSP91..STD

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12230

ZSP91..STD

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12180

ZSP91..STD

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-09S71

ZSP91..STD

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-0D100

ZSP91..STD

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-06420

NCP90,ZSP91..STD

 1
