ZSP91L-AHMHKC (2008)

Toyota Yaris (China)

Production May 2008 - Aug 2013
Engine 1ZRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0805- )1ZRFE

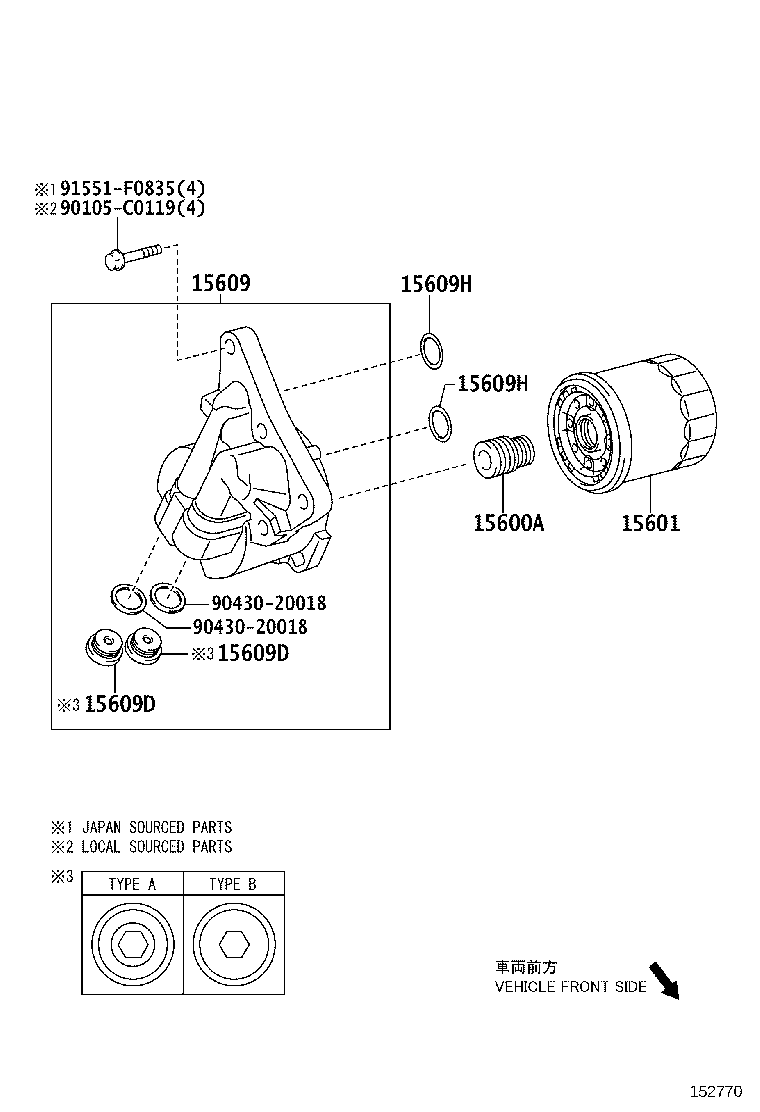

Click highlighted areas on diagram

diagram 15600A 15601 15609 15609D 15609D 15609H 15609H 90105C0119 9043020018 9043020018 91551F0835
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90904-04006

1ZRFE..ZSP91..5F

STAMPING MODEL = 4ZR

 1
90904-04006

1ZRFE..ZSP91..5F..STD

STAMPING MODEL = 4ZR

 1
90904-04006

1ZRFE..ZSP91..5F..STD

 1
15601 - FILTER SUB-ASSY, OIL
90915-10003

1ZRFE..ZSP91

STAMPING MODEL = 4ZR

 1
90915-CA003

1ZRFE..ZSP91..5F..STD

STAMPING MODEL = 4ZR

 1
90915-CA003

1ZRFE..ZSP91..5F..STD

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-37010

1ZRFE..ZSP91..5F

(J)

 1
15609-0T010

1ZRFE..ZSP91..5F..STD

(L)

 1
15609-0T010

1ZRFE..ZSP91..5F..STD

STAMPING MODEL = 4ZR,(L)

 1
15609-37010

1ZRFE..ZSP91

STAMPING MODEL = 4ZR

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20012

1ZRFE..ZSP91..5F..STD

TYPE B:REFER ILLUST.

 2
90341-20002

1ZRFE..ZSP91..5F

TYPE A:REFER ILLUST.

 2
90341-20002

1ZRFE..ZSP91..5F

STAMPING MODEL = 4ZR,TYPE A:REFER ILLUST.

 2
90341-20012

1ZRFE..ZSP91..5F..STD

STAMPING MODEL = 4ZR,TYPE B:REFER ILLUST.

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20012

1ZRFE..ZSP91..5F..STD

TYPE B:REFER ILLUST.

 2
90341-20002

1ZRFE..ZSP91..5F

TYPE A:REFER ILLUST.

 2
90341-20002

1ZRFE..ZSP91..5F

STAMPING MODEL = 4ZR,TYPE A:REFER ILLUST.

 2
90341-20012

1ZRFE..ZSP91..5F..STD

STAMPING MODEL = 4ZR,TYPE B:REFER ILLUST.

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96723-24020

1ZRFE..ZSP91

STAMPING MODEL = 4ZR

 2
96723-24020

1ZRFE..ZSP91

(J)

 2
90301-C0033

1ZRFE..ZSP91

(L)

 2
90301-C0033

1ZRFE..ZSP91

STAMPING MODEL = 4ZR,(L)

 2
96721-24020

1ZRFE..ZSP91..5F

STAMPING MODEL = 4ZR

 2
96721-24020

1ZRFE..ZSP91..5F

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
96723-24020

1ZRFE..ZSP91

STAMPING MODEL = 4ZR

 2
96723-24020

1ZRFE..ZSP91

(J)

 2
90301-C0033

1ZRFE..ZSP91

(L)

 2
90301-C0033

1ZRFE..ZSP91

STAMPING MODEL = 4ZR,(L)

 2
96721-24020

1ZRFE..ZSP91..5F

STAMPING MODEL = 4ZR

 2
96721-24020

1ZRFE..ZSP91..5F

 2
Common parts
90105-C0119
90430-20018
91551-F0835
