NSP151L-AHXRKC (2016)
Toyota Yaris (China)

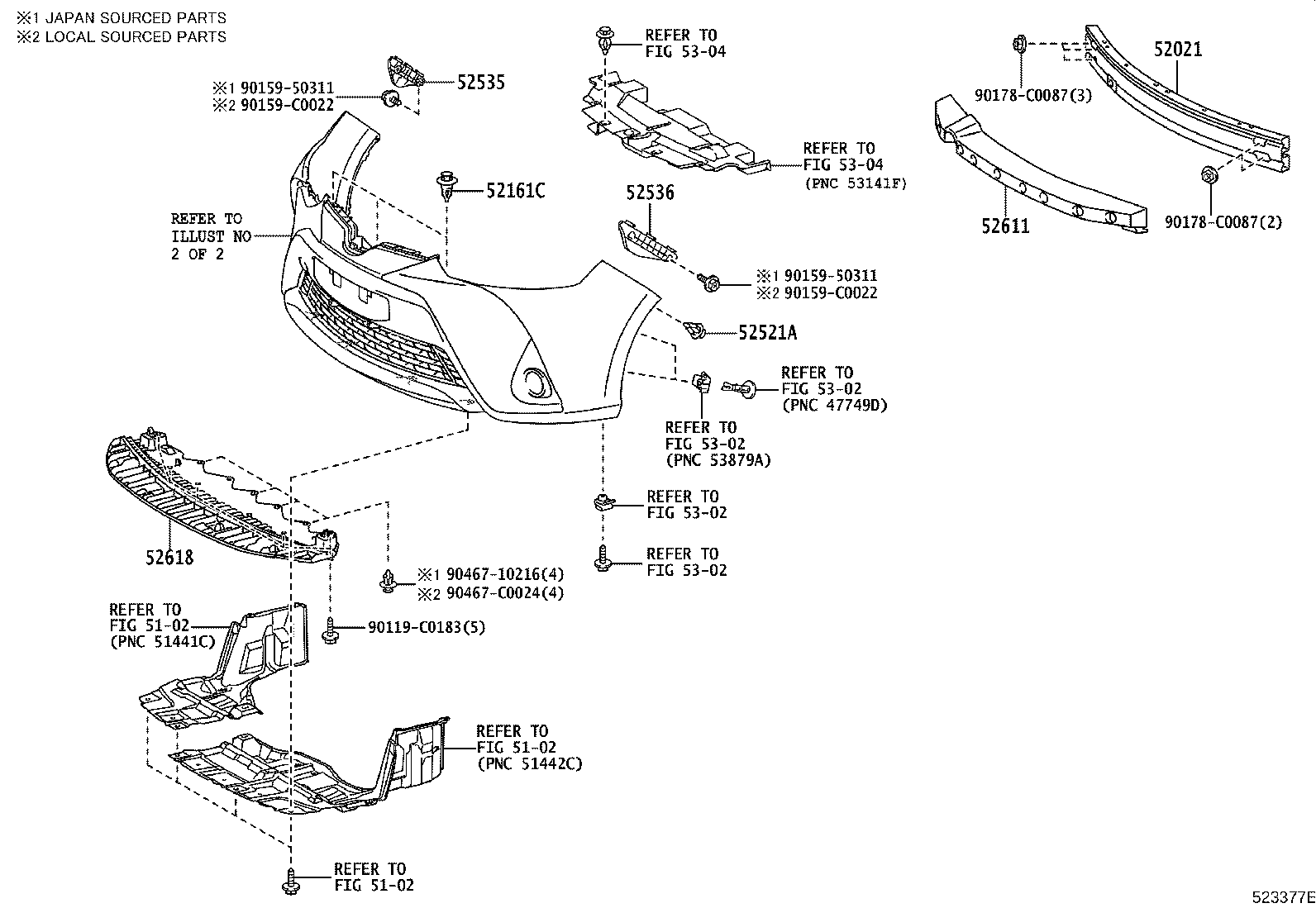

ILLUST NO. 1 OF 2(1608- )5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-0D130 |
NSP15# |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NSP151..CVT..R BASE UP CROSS PACKAGE |
3 | ||
| 52161-02040 |
NSP15#..5D (L) |
3 | ||
| 52161-16010 |
NSP151..R BASE HB, SD PACKAGE |
3 | ||
| 52161-16010 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
3 | ||
| 52161-16010 |
NSP151..CVT..N MID HB, SD PACKAGE |
3 | ||
| 52161-16010 |
NSP15#..5D (J) |
3 | ||
| 52161-16010 |
NSP15# |
3 | ||
| 52161-16010 |
NSP151..CVT..R BASE CROSS PACKAGE |
3 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-05170 |
NSP151..R BASE HB, SD PACKAGE |
2 | ||
| 90467-05170 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
2 | ||
| 90467-05170 |
NSP15# |
2 | ||
| 90467-05170 |
NSP15# (J) |
2 | ||
| 90467-05170 |
NSP151..5D..CVT..R BASE CROSS PACKAGE,(J) |
2 | ||
| 90467-C0032 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
2 | ||
| 90467-05170 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
2 | ||
| 90467-C0032 |
NSP15# (L) |
2 | ||
| 90467-05170 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
2 | ||
| 90467-05170 |
NSP151..CVT..N MID HB, SD PACKAGE |
2 | ||
| 90467-05170 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE,(J) |
2 | ||
| 90467-C0032 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-0D310 |
NSP15# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-0D310 |
NSP15# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-0D040 |
NSP15# |
1 | ||
| 52611-0D040 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52611-0D040 |
NSP151..5D..CVT..R BASE HB, SD PACKAGE |
1 | ||
| 52611-0D040 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 52611-YL010 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52611-0D040 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52611-YL010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-0D100 |
NSP15# |
1 | ||
| Common parts | ||||
| 90119-C0183 | ||||
| 90159-50311 | ||||
| 90159-C0022 | ||||
| 90178-C0087 | ||||
| 90467-10216 | ||||
| 90467-C0024 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 5304 | ||||

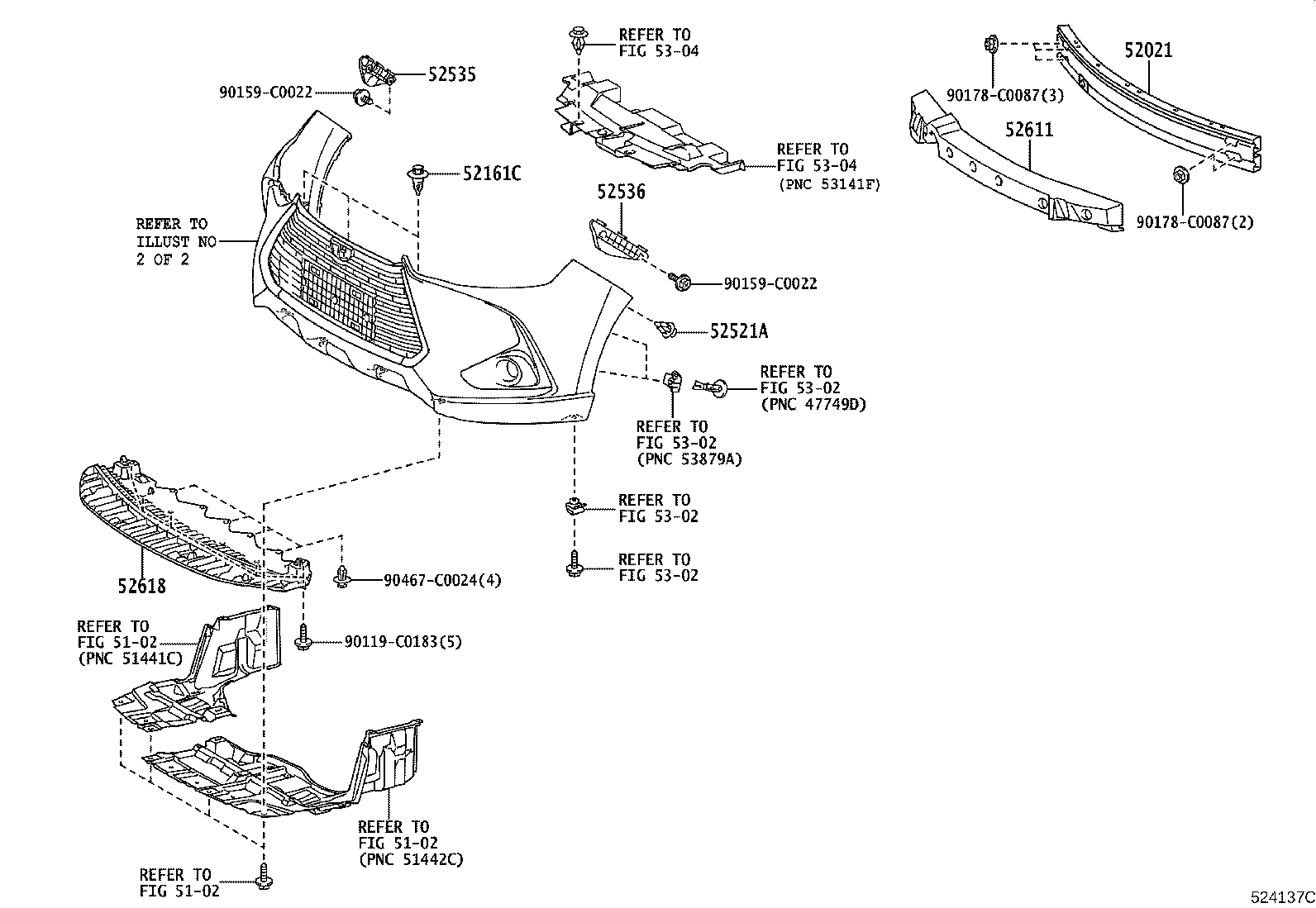

ILLUST NO. 1 OF 2(1910- )NSP151..5D..CVT..R ; (1911- )5D..G
CROSS PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-0D130 |
NSP15# |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NSP151..CVT..R BASE UP CROSS PACKAGE |
3 | ||
| 52161-02040 |
NSP15#..5D (L) |
3 | ||
| 52161-16010 |
NSP151..R BASE HB, SD PACKAGE |
3 | ||
| 52161-16010 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
3 | ||
| 52161-16010 |
NSP151..CVT..N MID HB, SD PACKAGE |
3 | ||
| 52161-16010 |
NSP15#..5D (J) |
3 | ||
| 52161-16010 |
NSP15# |
3 | ||
| 52161-16010 |
NSP151..CVT..R BASE CROSS PACKAGE |
3 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-05170 |
NSP151..R BASE HB, SD PACKAGE |
2 | ||
| 90467-05170 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
2 | ||
| 90467-05170 |
NSP15# |
2 | ||
| 90467-05170 |
NSP15# (J) |
2 | ||
| 90467-05170 |
NSP151..5D..CVT..R BASE CROSS PACKAGE,(J) |
2 | ||
| 90467-C0032 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
2 | ||
| 90467-05170 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
2 | ||
| 90467-C0032 |
NSP15# (L) |
2 | ||
| 90467-05170 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
2 | ||
| 90467-05170 |
NSP151..CVT..N MID HB, SD PACKAGE |
2 | ||
| 90467-05170 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE,(J) |
2 | ||
| 90467-C0032 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-0D310 |
NSP15# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-0D310 |
NSP15# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-0D040 |
NSP15# |
1 | ||
| 52611-0D040 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52611-0D040 |
NSP151..5D..CVT..R BASE HB, SD PACKAGE |
1 | ||
| 52611-0D040 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 52611-YL010 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52611-0D040 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52611-YL010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-0D100 |
NSP15# |
1 | ||
| Common parts | ||||
| 90119-C0183 | ||||
| 90159-C0022 | ||||
| 90178-C0087 | ||||
| 90467-C0024 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 5304 | ||||

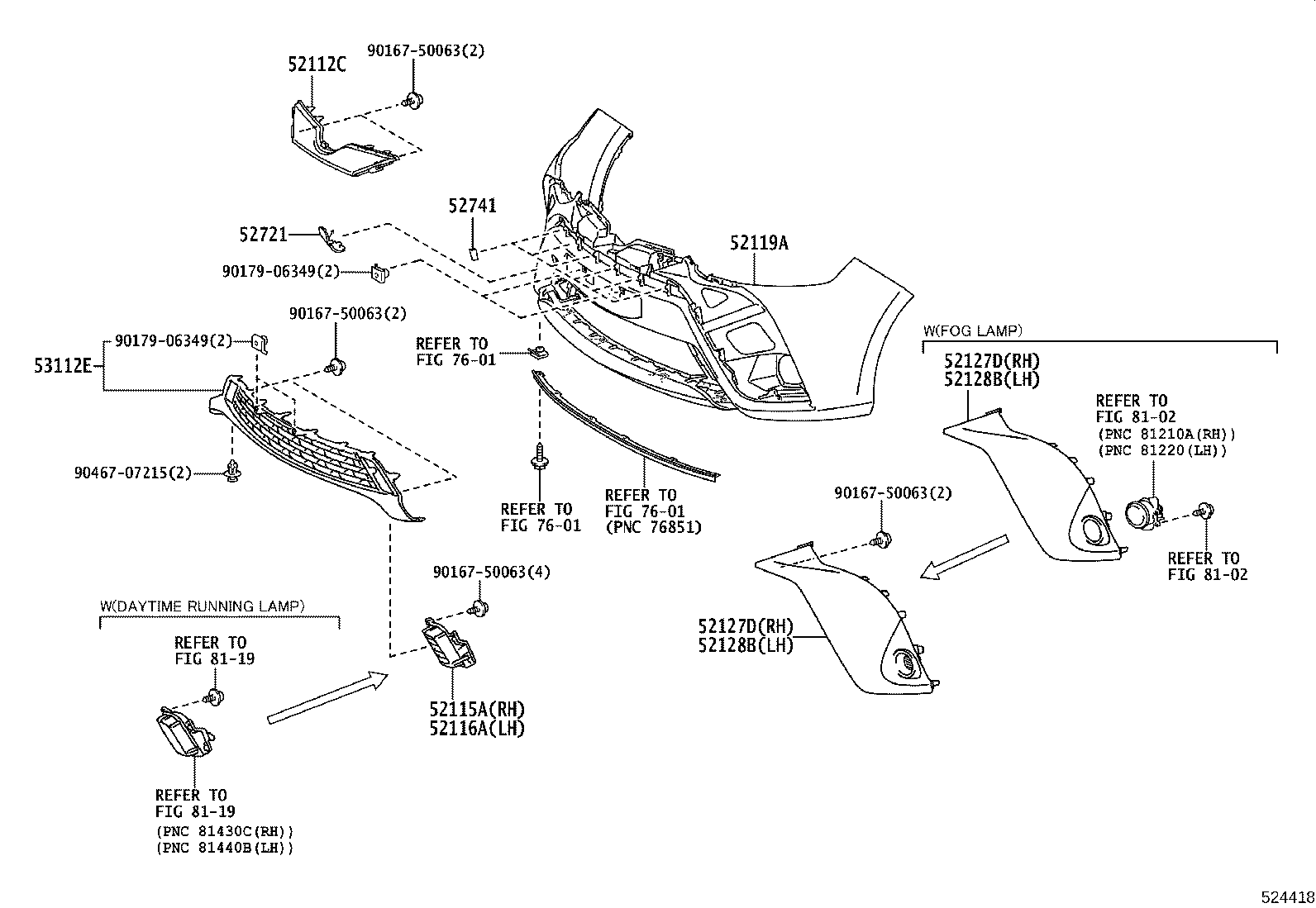

ILLUST NO. 2 OF 2(1608- )5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112C - EXTENSION, FRONT BUMPER | ||||
| 52112-0D100 |
NSP15#..5D |
1 | ||
| 52112-0D100 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52112-0D100 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-0D100 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 52115-0D100 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-0D100 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 52116-0D100 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0Z979 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52119-0Z979 |
NSP151..5D..CVT..R PAINT REQ.,BASE HB, SD PACKAGE |
1 | ||
| 52119-0Z979 |
NSP15# |
1 | ||
| 52119-0Z979 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52119-YL900 |
NSP151..5D..CVT..R PAINT REQ.,BASE CROSS PACKAGE |
1 | ||
| 52119-YL900 |
NSP151..5D..CVT..R PAINT REQ.,BASE UP CROSS PACKAGE |
1 | ||
| 52119-0Z979 |
NSP151..5D..CVT..R PAINT REQ.,BASE UP HB, SD PACKAGE |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-0D650 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 52127-0D650 |
NSP15#..5D..R |
1 | ||
| 52127-0D650 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52127-0D660 |
NSP151..5D..(G,N) |
1 | ||
| 52127-0D660 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 52127-0D650 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 81481-YL010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52127-0D650 |
NSP151..5D..CVT..R BASE HB, SD PACKAGE |
1 | ||
| 81481-YL020 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-0D650 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 52127-0D650 |
NSP15#..5D..R |
1 | ||
| 52127-0D650 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52127-0D660 |
NSP151..5D..(G,N) |
1 | ||
| 52127-0D660 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 52127-0D650 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 81481-YL010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52127-0D650 |
NSP151..5D..CVT..R BASE HB, SD PACKAGE |
1 | ||
| 81481-YL020 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-0D410 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52128-0D410 |
NSP15#..5D..R |
1 | ||
| 52128-0D410 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 52128-0D420 |
NSP151..5D..(G,N) |
1 | ||
| 52128-0D410 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52128-0D420 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 81482-YL020 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 81482-YL010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52128-0D410 |
NSP151..5D..CVT..R BASE HB, SD PACKAGE |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-0D410 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52128-0D410 |
NSP15#..5D..R |
1 | ||
| 52128-0D410 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 52128-0D420 |
NSP151..5D..(G,N) |
1 | ||
| 52128-0D410 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52128-0D420 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 81482-YL020 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 81482-YL010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52128-0D410 |
NSP151..5D..CVT..R BASE HB, SD PACKAGE |
1 | ||
| 52721 - MOULDING, FRONT BUMPER EXTENSION, RH | ||||
| 52721-0D907 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52721-0D907 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52721-0D907 |
NSP15# |
1 | ||
| 52741 - GARNISH, FRONT BUMPER BAR, NO.1 | ||||
| 52741-0D010 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
6 | ||
| 52741-0D010 |
NSP15# |
6 | ||
| 52741-0D010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
6 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-0D500 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 53112-0D500 |
NSP151..5D..CVT..R BASE HB, SD PACKAGE |
1 | ||
| 53112-0D500 |
NSP15#..5D |
1 | ||
| 53112-0D500 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 53112-YL020 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 53112-0D500 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 53112-YL020 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 7601 | ||||
| 8102 | ||||
| 8119 | ||||

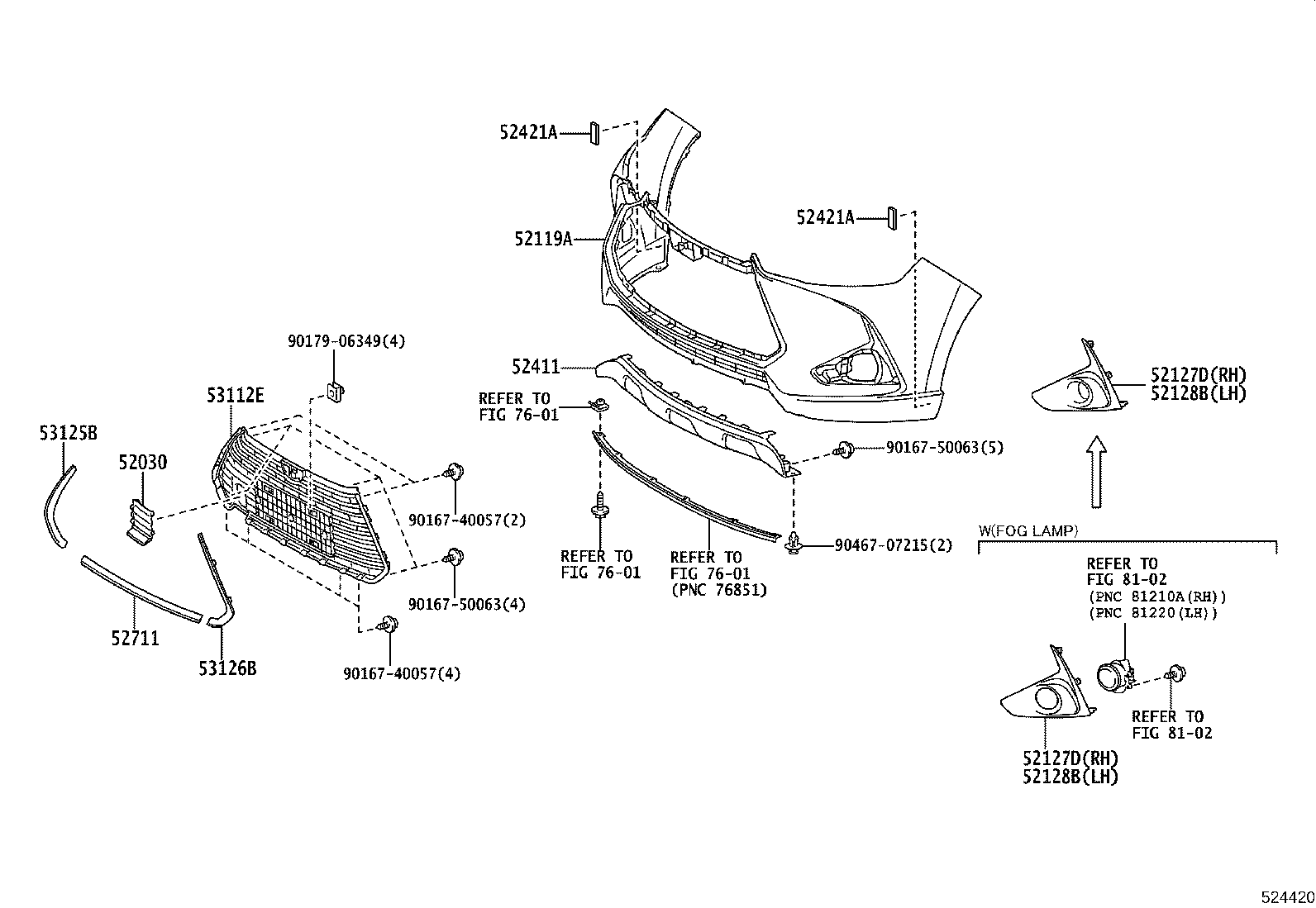

ILLUST NO. 2 OF 2(1910- )NSP151..5D..CVT..R ; (1911- )5D..G
CROSS PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-YL020 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52030-YL020 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0Z979 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52119-0Z979 |
NSP151..5D..CVT..R PAINT REQ.,BASE HB, SD PACKAGE |
1 | ||
| 52119-0Z979 |
NSP15# |
1 | ||
| 52119-0Z979 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52119-YL900 |
NSP151..5D..CVT..R PAINT REQ.,BASE CROSS PACKAGE |
1 | ||
| 52119-YL900 |
NSP151..5D..CVT..R PAINT REQ.,BASE UP CROSS PACKAGE |
1 | ||
| 52119-0Z979 |
NSP151..5D..CVT..R PAINT REQ.,BASE UP HB, SD PACKAGE |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-0D650 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 52127-0D650 |
NSP15#..5D..R |
1 | ||
| 52127-0D650 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52127-0D660 |
NSP151..5D..(G,N) |
1 | ||
| 52127-0D660 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 52127-0D650 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 81481-YL010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52127-0D650 |
NSP151..5D..CVT..R BASE HB, SD PACKAGE |
1 | ||
| 81481-YL020 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-0D650 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 52127-0D650 |
NSP15#..5D..R |
1 | ||
| 52127-0D650 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52127-0D660 |
NSP151..5D..(G,N) |
1 | ||
| 52127-0D660 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 52127-0D650 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 81481-YL010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52127-0D650 |
NSP151..5D..CVT..R BASE HB, SD PACKAGE |
1 | ||
| 81481-YL020 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-0D410 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52128-0D410 |
NSP15#..5D..R |
1 | ||
| 52128-0D410 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 52128-0D420 |
NSP151..5D..(G,N) |
1 | ||
| 52128-0D410 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52128-0D420 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 81482-YL020 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 81482-YL010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52128-0D410 |
NSP151..5D..CVT..R BASE HB, SD PACKAGE |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-0D410 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52128-0D410 |
NSP15#..5D..R |
1 | ||
| 52128-0D410 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 52128-0D420 |
NSP151..5D..(G,N) |
1 | ||
| 52128-0D410 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52128-0D420 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 81482-YL020 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 81482-YL010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52128-0D410 |
NSP151..5D..CVT..R BASE HB, SD PACKAGE |
1 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52411-YL010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52411-YL010 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-YL010 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
2 | ||
| 52421-YL010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
2 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-YL010 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
2 | ||
| 52421-YL010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
2 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-YL010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 52711-YL010 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-0D500 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 53112-0D500 |
NSP151..5D..CVT..R BASE HB, SD PACKAGE |
1 | ||
| 53112-0D500 |
NSP15#..5D |
1 | ||
| 53112-0D500 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 53112-YL020 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 53112-0D500 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 53112-YL020 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 53125B - MOULDING, RADIATOR GRILLE, CENTER RH | ||||
| 53125-YL010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 53125-YL010 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 53126B - MOULDING, RADIATOR GRILLE, CENTER LH | ||||
| 53126-YL010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 53126-YL010 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| Common parts | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 7601 | ||||
| 8102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
