NSP151L-AHXRKC (2016)

Toyota Yaris (China)

Production Aug 2016 - Sep 9999
Engine 7NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1608-1812)6NRFE,7NRFE..CVT ; (1812- )6NRFE..CVT

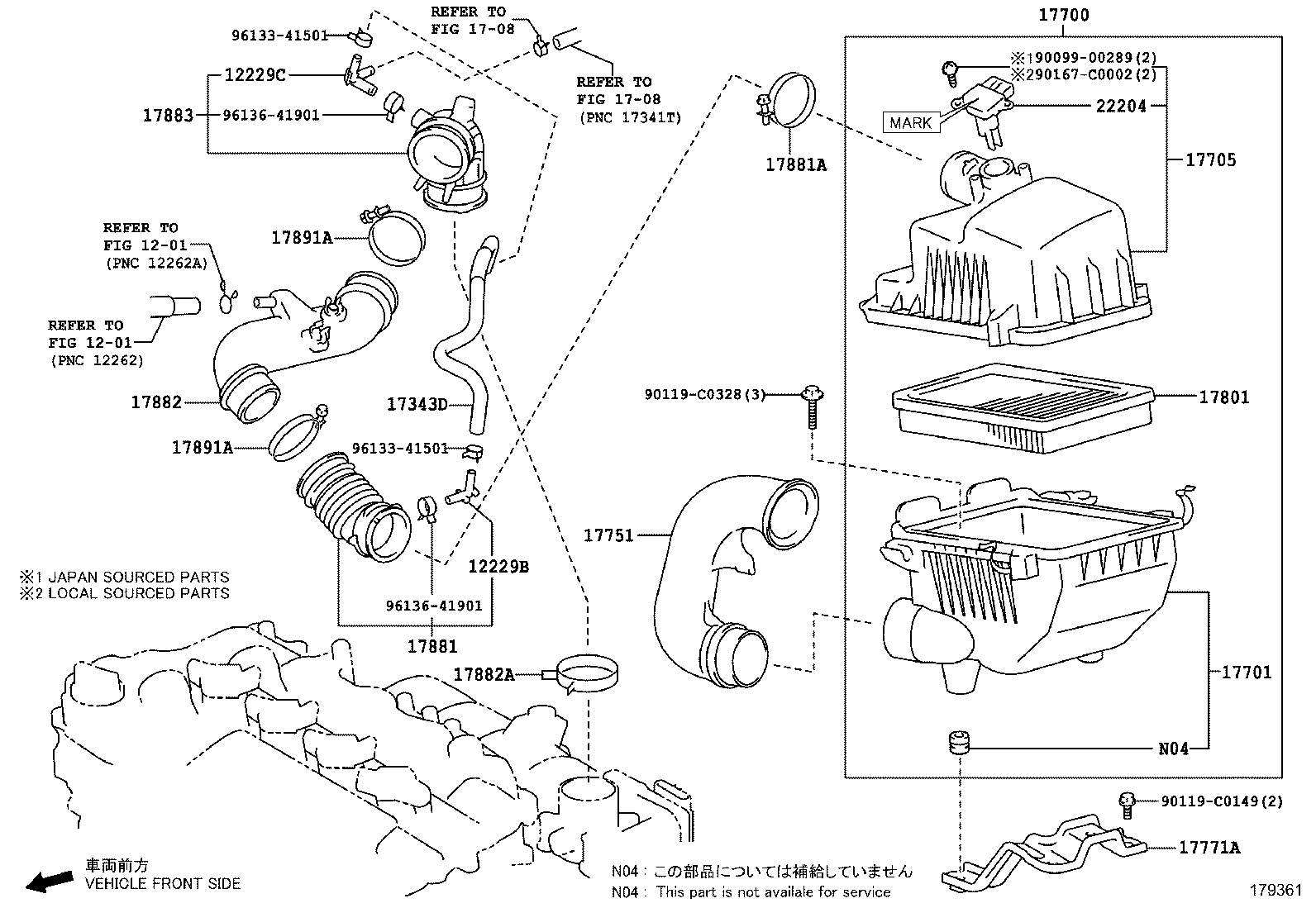

Click highlighted areas on diagram

diagram 1201 1201 12229B 12229C 1708 1708 17343D 17700 17701 17705 17751 17771A 17801 17881 17881A 17882 17882A 17883 17891A 17891A 22204 9009900289 90119C0149 90119C0328 90167C0002 9613341501 9613341501 9613641901 9613641901
Part # Description Qty Price
12229B - PIPE, VENTILATION, NO.1
12229-0Y200

7NRFE..NSP151..CVT

 1
12229C - PIPE, VENTILATION, NO.2
12229-0Y140

7NRFE..NSP151..CVT

 1
17343D - HOSE, AIR, NO.3
17343-0Y060

7NRFE..NSP151..CVT

 1
17700 - CLEANER ASSY, AIR
17700-0Y130

6NRFE..NSP150;7NRFE..NSP151..CVT

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0Y170

6NRFE,7NRFE..NSP15#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0Y310

7NRFE..NSP151

EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)

 1
17705-0Y220

6NRFE..NSP150;7NRFE..NSP151..CVT

 1
17751 - INLET, AIR CLEANER, NO.1
17751-0Y220

7NRFE..NSP151

 1
17771A - BRACKET, AIR CLEANER
17771-0Y020

7NRFE..NSP151

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0Y060

6NRFE,7NRFE..NSP15#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0Y260

7NRFE..NSP151..CVT

 1
17881-0Y190

7NRFE..NSP151..CVT

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

6NRFE,7NRFE..NSP15#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-0Y190

7NRFE..NSP151

EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)

 1
17882-0Y180

7NRFE..NSP151..CVT

 1
17882-0Y100

7NRFE..NSP151..CVT

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90466-62002

6NRFE,7NRFE..NSP15#

(J)

 1
90466-C0019

6NRFE,7NRFE..NSP15#

(L)

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-0Y090

7NRFE..NSP151..CVT

 1
17883-0Y160

7NRFE..NSP151..CVT

 1
17891A - CLAMP, AIR CLEANER HOSE
96111-10730

6NRFE,7NRFE..NSP15#

 2
17891A - CLAMP, AIR CLEANER HOSE
96111-10730

6NRFE,7NRFE..NSP15#

 2
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0T040

6NRFE,7NRFE..NSP15#

MARK 22204-0T040

 1
22204-0V020

6NRFE,7NRFE..NSP15#

MARK 22204-0V020

 1
22204-28010

6NRFE,7NRFE..NSP15#

MARK 22204-28010

 1
Common parts
90099-00289
90119-C0149
90119-C0328
90167-C0002
96133-41501
96136-41901
Linked diagrams
1201
1708

(1812- )7NRFE..CVT

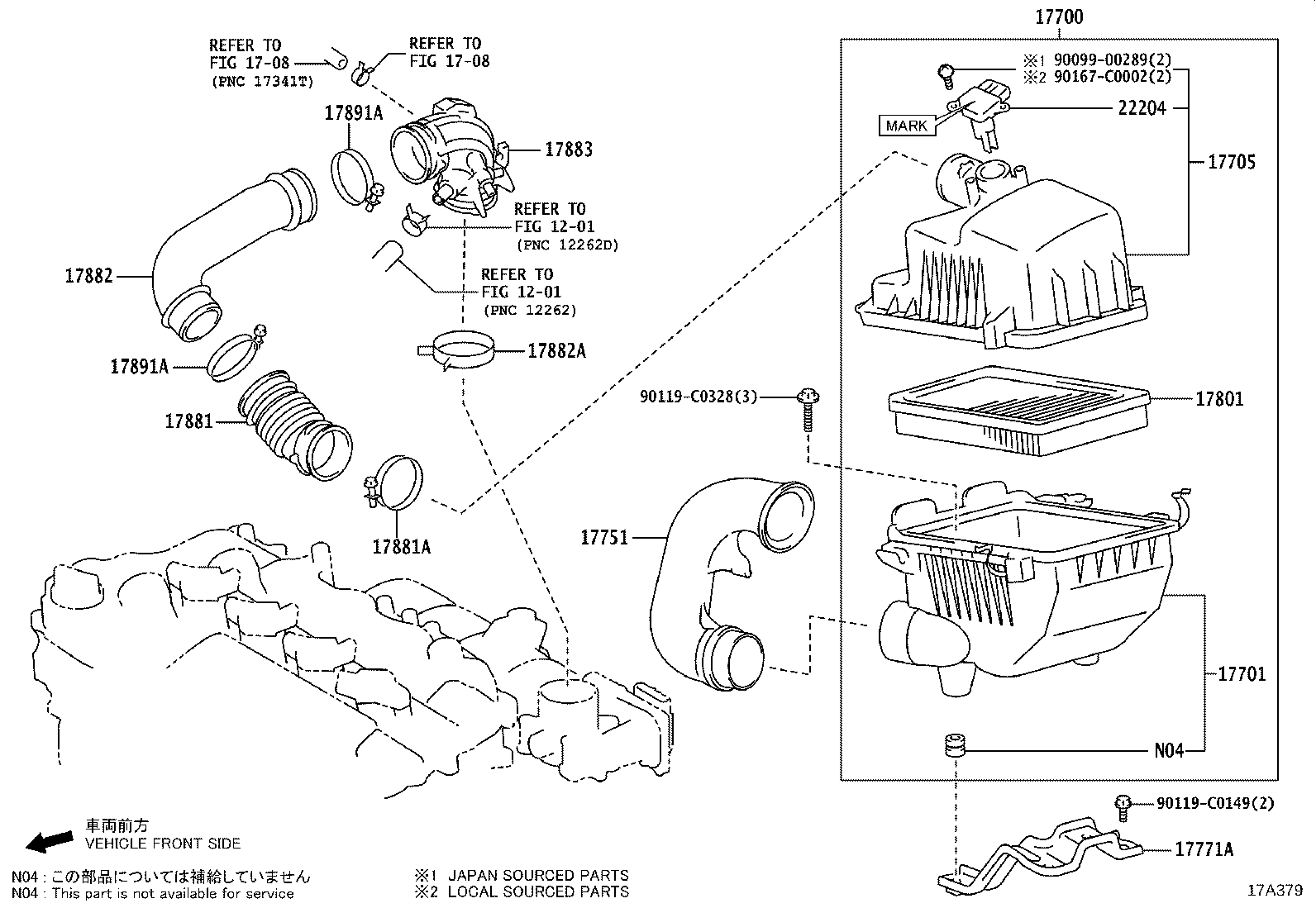

Click highlighted areas on diagram

diagram 1201 1201 1708 1708 17700 17701 17705 17751 17771A 17801 17881 17881A 17882 17882A 17883 17891A 17891A 22204 9009900289 90119C0149 90119C0328 90167C0002
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-0Y130

6NRFE..NSP150;7NRFE..NSP151..CVT

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0Y170

6NRFE,7NRFE..NSP15#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0Y310

7NRFE..NSP151

EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)

 1
17705-0Y220

6NRFE..NSP150;7NRFE..NSP151..CVT

 1
17751 - INLET, AIR CLEANER, NO.1
17751-0Y220

7NRFE..NSP151

 1
17771A - BRACKET, AIR CLEANER
17771-0Y020

7NRFE..NSP151

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0Y060

6NRFE,7NRFE..NSP15#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0Y260

7NRFE..NSP151..CVT

 1
17881-0Y190

7NRFE..NSP151..CVT

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

6NRFE,7NRFE..NSP15#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-0Y190

7NRFE..NSP151

EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)

 1
17882-0Y180

7NRFE..NSP151..CVT

 1
17882-0Y100

7NRFE..NSP151..CVT

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90466-62002

6NRFE,7NRFE..NSP15#

(J)

 1
90466-C0019

6NRFE,7NRFE..NSP15#

(L)

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-0Y090

7NRFE..NSP151..CVT

 1
17883-0Y160

7NRFE..NSP151..CVT

 1
17891A - CLAMP, AIR CLEANER HOSE
96111-10730

6NRFE,7NRFE..NSP15#

 2
17891A - CLAMP, AIR CLEANER HOSE
96111-10730

6NRFE,7NRFE..NSP15#

 2
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0T040

6NRFE,7NRFE..NSP15#

MARK 22204-0T040

 1
22204-0V020

6NRFE,7NRFE..NSP15#

MARK 22204-0V020

 1
22204-28010

6NRFE,7NRFE..NSP15#

MARK 22204-28010

 1
Common parts
90099-00289
90119-C0149
90119-C0328
90167-C0002
Linked diagrams
1201
1708
