NSP151L-AHXNKC (2016)

Toyota Yaris (China)

Production Aug 2016 - Sep 9999
Engine 7NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1812- )7NRFE

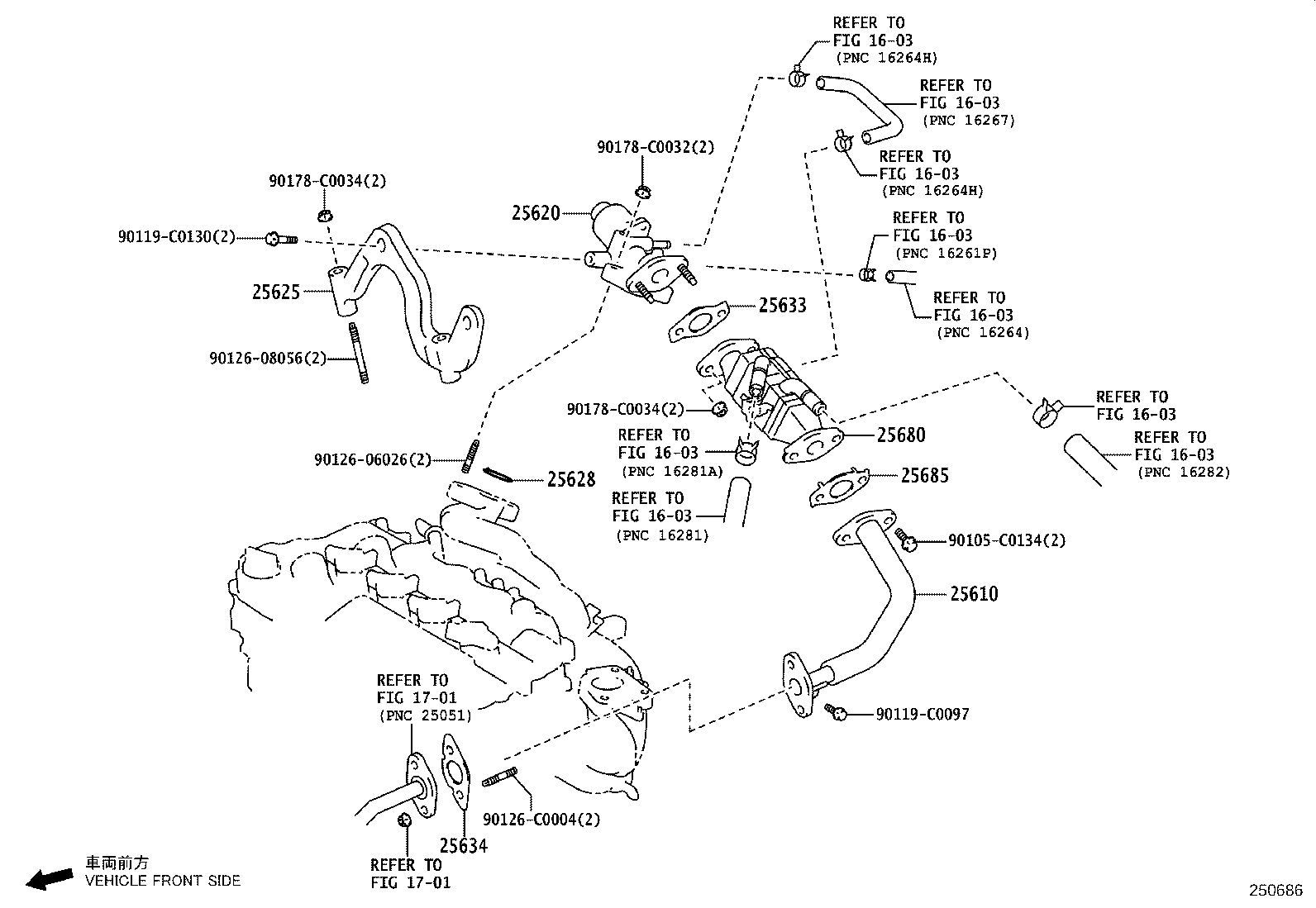

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1603 1603 1603 1701 1701 25610 25620 25625 25628 25633 25634 25680 25685 90105C0134 90119C0097 90119C0130 9012606026 9012608056 90126C0004 90178C0032 90178C0034 90178C0034
Part # Description Qty Price
25610 - PIPE ASSY, EGR
25610-0Y030

7NRFE..NSP151

 1
25620 - VALVE ASSY, EGR
25620-47040

7NRFE..NSP151

 1
25625 - BRACKET, EGR VALVE
25625-0Y020

7NRFE..NSP151

 1
25628 - GASKET, EGR INLET
25628-36010

7NRFE..NSP151

 1
25628-25010

7NRFE..NSP151

 1
25633 - GASKET, EGR VALVE
25633-0Y010

7NRFE..NSP151

 1
25633-0Y020

7NRFE..NSP151

 1
25634 - GASKET, EGR PIPE
25685-0Y020

7NRFE..NSP151

 1
25680 - COOLER ASSY, EGR
25680-47020

7NRFE..NSP151

 1
25685 - GASKET, EGR COOLER, NO.1
25685-0Y040

7NRFE..NSP151

 1
Common parts
90105-C0134
90119-C0097
90119-C0130
90126-06026
90126-08056
90126-C0004
90178-C0032
90178-C0034
Linked diagrams
1603
1701
