NSP151L-AHXGKC (2016)
Toyota Yaris (China)
ILLUST NO. 4 OF 7(1608- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-C2001 |
7NRFE..NSP151..G |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-T2005 |
7NRFE..NSP151..G |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08295 |
NSP151 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
NSP151 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08295 |
NSP151 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08294 |
NSP151 40A,TERM.:FEMALE,GRN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
NSP151 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
NSP151 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
NSP151 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
NSP151 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
NSP151 25A,MINI FUSE |
1 | ||
| 90982-09023 |
NSP151 20A,MINI FUSE,YELLOW |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
NSP151 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
NSP151 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
NSP151 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
NSP151 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
NSP151 25A,MINI FUSE |
1 | ||
| 90982-09023 |
NSP151 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&MOON ROOF-WITH(TILT & SLIDE)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09008 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BRN,BASE UP CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09008 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BRN,BASE CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&MOON ROOF-WITH(TILT & SLIDE)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&MOON ROOF-WITH(TILT & SLIDE)&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09008 |
NSP151..CVT..R 7.5A,MINI FUSE,BRN,BASE UP HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09008 |
NSP151..CVT..N 7.5A,MINI FUSE,BRN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 90982-09008 |
NSP151..CVT..N 7.5A,MINI FUSE,BRN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09008 |
NSP151..G 7.5A,MINI FUSE,BRN,HIGH HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09008 |
NSP151..5D..G 7.5A,MINI FUSE,BRN,HIGH CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP15# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE |
1 | ||
| 90982-09008 |
NSP151..R 7.5A,MINI FUSE,BRN,BASE HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09008 |
NSP15# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 90982-09008 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BRN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09008 |
NSP151..R 7.5A,MINI FUSE,BRN,BASE HB, SD PACKAGE |
1 | ||
| 90982-09008 |
NSP151..CVT..R 7.5A,MINI FUSE,BRN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE |
1 | ||
| 90982-09008 |
NSP151..CVT..N 7.5A,MINI FUSE,BRN,MID HB, SD PACKAGE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 90982-09008 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BRN,BASE CROSS PACKAGE |
1 | ||
| 90982-09008 |
NSP151..CVT..N 7.5A,MINI FUSE,BRN,MID HB, SD PACKAGE |
1 | ||
| 90982-09008 |
NSP151..G 7.5A,MINI FUSE,BRN,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09008 |
NSP151..5D..G 7.5A,MINI FUSE,BRN,HIGH CROSS PACKAGE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&MOON ROOF-WITH(TILT & SLIDE)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09008 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BRN,BASE UP CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09008 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BRN,BASE CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&MOON ROOF-WITH(TILT & SLIDE)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&MOON ROOF-WITH(TILT & SLIDE)&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09008 |
NSP151..CVT..R 7.5A,MINI FUSE,BRN,BASE UP HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09008 |
NSP151..CVT..N 7.5A,MINI FUSE,BRN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 90982-09008 |
NSP151..CVT..N 7.5A,MINI FUSE,BRN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09008 |
NSP151..G 7.5A,MINI FUSE,BRN,HIGH HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09008 |
NSP151..5D..G 7.5A,MINI FUSE,BRN,HIGH CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP15# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE |
1 | ||
| 90982-09008 |
NSP151..R 7.5A,MINI FUSE,BRN,BASE HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09008 |
NSP15# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 90982-09008 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BRN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09008 |
NSP151..R 7.5A,MINI FUSE,BRN,BASE HB, SD PACKAGE |
1 | ||
| 90982-09008 |
NSP151..CVT..R 7.5A,MINI FUSE,BRN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE |
1 | ||
| 90982-09008 |
NSP151..CVT..N 7.5A,MINI FUSE,BRN,MID HB, SD PACKAGE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 90982-09008 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BRN,BASE CROSS PACKAGE |
1 | ||
| 90982-09008 |
NSP151..CVT..N 7.5A,MINI FUSE,BRN,MID HB, SD PACKAGE |
1 | ||
| 90982-09008 |
NSP151..G 7.5A,MINI FUSE,BRN,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09008 |
NSP151..5D..G 7.5A,MINI FUSE,BRN,HIGH CROSS PACKAGE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&MOON ROOF-WITH(TILT & SLIDE)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09008 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BRN,BASE UP CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09008 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BRN,BASE CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&MOON ROOF-WITH(TILT & SLIDE)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&MOON ROOF-WITH(TILT & SLIDE)&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09008 |
NSP151..CVT..R 7.5A,MINI FUSE,BRN,BASE UP HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09008 |
NSP151..CVT..N 7.5A,MINI FUSE,BRN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 90982-09008 |
NSP151..CVT..N 7.5A,MINI FUSE,BRN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09008 |
NSP151..G 7.5A,MINI FUSE,BRN,HIGH HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09008 |
NSP151..5D..G 7.5A,MINI FUSE,BRN,HIGH CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP15# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE |
1 | ||
| 90982-09008 |
NSP151..R 7.5A,MINI FUSE,BRN,BASE HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARDDIAGNOSIS) |
1 | ||
| 90982-09007 |
NSP151..CVT..R 5A,MINI FUSE,TAN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..G 5A,MINI FUSE,TAN,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09008 |
NSP15# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09007 |
NSP151..5D..G 5A,MINI FUSE,TAN,HIGH CROSS PACKAGE |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE CROSS PACKAGE |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 90982-09008 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BRN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09008 |
NSP151..R 7.5A,MINI FUSE,BRN,BASE HB, SD PACKAGE |
1 | ||
| 90982-09008 |
NSP151..CVT..R 7.5A,MINI FUSE,BRN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..R 5A,MINI FUSE,TAN,BASE HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 90982-09007 |
NSP151..CVT..N 5A,MINI FUSE,TAN,MID HB, SD PACKAGE |
1 | ||
| 90982-09008 |
NSP151..CVT..N 7.5A,MINI FUSE,BRN,MID HB, SD PACKAGE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 90982-09008 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BRN,BASE CROSS PACKAGE |
1 | ||
| 90982-09008 |
NSP151..CVT..N 7.5A,MINI FUSE,BRN,MID HB, SD PACKAGE |
1 | ||
| 90982-09008 |
NSP151..G 7.5A,MINI FUSE,BRN,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09007 |
NSP151..5D..CVT..R 5A,MINI FUSE,TAN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09008 |
NSP151..5D..G 7.5A,MINI FUSE,BRN,HIGH CROSS PACKAGE |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 90987-T2005 |
NSP151 (L) |
1 | ||
| 90987-02027 |
NSP151 (J) |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-74010 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 82660-74010 |
NSP151..R BASE HB, SD PACKAGE |
1 | ||
| 82660-74010 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 82660-74010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82660-74010 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82660-74010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 82660-74010 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82660-74010 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82660-74010 |
NSP151..G HIGH HB, SD PACKAGE |
1 | ||
| 82660-74010 |
NSP151..5D..G HIGH CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 82660-74010 |
NSP151..CVT..R BASE UP HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 82660-74010 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-74010 |
NSP151..5D..G HIGH CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-74010 |
NSP151..R BASE HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 82660-74010 |
NSP151..CVT..N MID HB, SD PACKAGE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 82660-74010 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-74010 |
NSP151..CVT..N MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 82660-74010 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-74010 |
NSP151..CVT..N MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 82660-74010 |
NSP151..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-74010 |
NSP151..CVT..N MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-74010 |
NSP151..CVT..N MID HB, SD PACKAGE&MOON ROOF-WITH(TILT & SLIDE)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-74010 |
NSP151..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-74010 |
NSP151..CVT..R BASE UP HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-74010 |
NSP151..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-74010 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 82660-74010 |
NSP151..CVT..N MID HB, SD PACKAGE&MOON ROOF-WITH(TILT & SLIDE)&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 82660-74010 |
NSP151..5D..G HIGH CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 82660-74010 |
NSP151..CVT..N MID HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&MOON ROOF-WITH(TILT & SLIDE)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-74010 |
NSP151..R BASE HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-74010 |
NSP151..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-74010 |
NSP151..CVT..N MID HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 82660-74010 |
NSP151..CVT..R BASE UP HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 82660-74010 |
NSP151..G HIGH HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 82660-74010 |
NSP151..G HIGH HB, SD PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-74010 |
NSP151..G HIGH HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 82660-74010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 82660-74010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS)&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-74010 |
NSP151..R BASE HB, SD PACKAGE&SEAT BELT WARNING-WITH(FRONT & REAR) |
1 | ||
| 82660-74010 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-74010 |
NSP15# |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-0D890 |
NSP151 |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-0D780 |
NSP151 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09240 |
NSP151 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0R010 |
NSP151 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
NSP151 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-T2005 |
NSP151 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2005 |
NSP151..G,N |
1 | ||
| 90987-T2005 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 90987-T2005 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-T2005 |
NSP151 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-T2005 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 90987-T2005 |
NSP151..G |
1 | ||
| 90987-T2005 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 90987-T2005 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 90987-T2005 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-02025 |
NSP151 (J) |
1 | ||
| 90987-T2004 |
NSP151 (L) |
1 | ||
| 89221B - COMPUTER, BODY | ||||
| 89221-0D331 |
NSP15#..5D;NSP151..4D..G |
1 | ||
| 89420F - SENSOR ASSY, VACUUM | ||||
| 89420-52100 |
NSP151 EXHAUST EMISSION CONTROL-EURO6,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 89420-52100 |
NSP151 |
1 | ||
| 89420-52100 |
NSP151 EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS) |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0D590 |
NSP151 |
1 | ||
| Common parts | ||||
| 90119-C0235 | ||||
| 90159-C0002 | ||||
| 90159-C0030 | ||||
| 90170-10017 | ||||
| 90178-C0032 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 7(1712- )
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-0V020 |
7NRFE..NSP151 |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-0V010 |
7NRFE..NSP151 |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52032 |
NSP151 |
1 | ||
| Common parts | ||||
| 90119-C0107 | ||||
| 90178-C0049 | ||||
| 91673-80616 | ||||
ILLUST NO. 1 OF 7(1608-1712)
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
NSP151 YAZAKI |
1 | ||
| 83530-28020 |
NSP151 DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-02020 |
NSP151..CVT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0D230 |
NSP151..CVT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0D230 |
NSP151..CVT |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-0D060 |
NSP151 |
1 | ||
| 89467-0D050 |
NSP151 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NSP151 |
1 | ||
| Common parts | ||||
| 82715-0DL00 | ||||
| 82715-0DR20 | ||||
| 82715-0DR30 | ||||
| 90105-C0048 | ||||
| 90105-C0079 | ||||
| 90119-C0096 | ||||
| 90119-C0100 | ||||
| 90119-C0234 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
| 91551-80835 | ||||

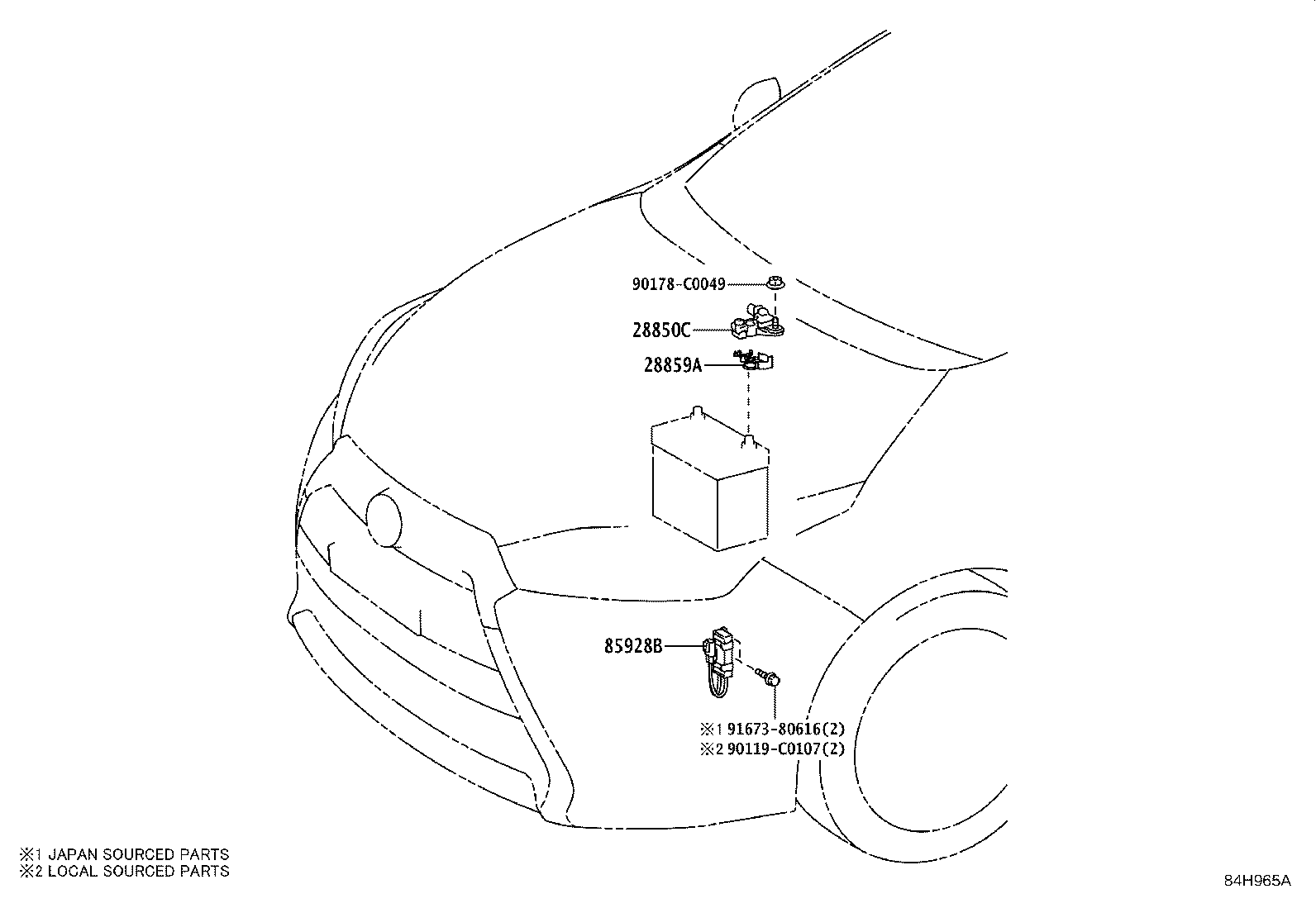

ILLUST NO. 2 OF 7(1608-1712)
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-0V020 |
7NRFE..NSP151 |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-0V010 |
7NRFE..NSP151 |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52032 |
NSP151 |
1 | ||
| Common parts | ||||
| 90119-C0107 | ||||
| 90178-C0049 | ||||
| 91673-80616 | ||||
ILLUST NO. 1 OF 7(1712- )CVT
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
NSP151 YAZAKI |
1 | ||
| 83530-28020 |
NSP151 DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-02020 |
NSP151..CVT |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0D230 |
NSP151..CVT |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-0D060 |
NSP151 |
1 | ||
| 89467-0D050 |
NSP151 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-0D070 |
NSP151..CVT |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NSP151 |
1 | ||
| Common parts | ||||
| 82715-0DR20 | ||||
| 82715-0DR30 | ||||
| 82715-0U210 | ||||
| 90105-C0048 | ||||
| 90105-C0079 | ||||
| 90119-C0100 | ||||
| 90119-C0234 | ||||
| 91551-80835 | ||||
ILLUST NO. 3 OF 7(1608-1712)
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
7NRFE..NSP151 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08274 |
NSP151..5D..G 120A,TERM.:MALE,WHT,HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08274 |
NSP151..CVT..N 120A,TERM.:MALE,WHT,MID HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..R 120A,TERM.:MALE,WHT,BASE HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..5D..G 120A,TERM.:MALE,WHT,HIGH CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151..CVT..R 120A,TERM.:MALE,WHT,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..5D..CVT..R 120A,TERM.:MALE,WHT,BASE UP CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151..5D..CVT..R 120A,TERM.:MALE,WHT,BASE CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151;NSP150..4D;NSP150..5D..5F 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08274 |
NSP151..G 120A,TERM.:MALE,WHT,HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08274 |
NSP151..5D..CVT..R 120A,TERM.:MALE,WHT,BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08274 |
NSP151..G 120A,TERM.:MALE,WHT,HIGH HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..R 120A,TERM.:MALE,WHT,BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08296 |
NSP151;NSP150..4D;NSP150..5D..5F 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08274 |
NSP151..5D..CVT..R 120A,TERM.:MALE,WHT,BASE UP CROSS PACKAGE |
1 | ||
| 90982-08302 |
NSP151;NSP150..4D;NSP150..5D..5F 50A-30A-50A,FEMALE |
1 | ||
| 90982-08274 |
NSP151..CVT..N 120A,TERM.:MALE,WHT,MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08274 |
NSP151..R 120A,TERM.:MALE,WHT,BASE HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..5D..CVT..R 120A,TERM.:MALE,WHT,BASE CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151..CVT..R 120A,TERM.:MALE,WHT,BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08294 |
NSP151;NSP150..4D;NSP150..5D..5F 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08294 |
NSP151..5D..CVT..R 40A,TERM.:FEMALE,GRN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-08296 |
NSP151..5D..CVT..R 50A,TERM.:FEMALE,RED,BASE UP CROSS PACKAGE |
1 | ||
| 90982-08294 |
NSP151..CVT..R 40A,TERM.:FEMALE,GRN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-08302 |
NSP151..5D..CVT..R 50A-30A-50A,FEMALE,BASE CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151..5D..CVT..R 120A,TERM.:MALE,WHT,BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08296 |
NSP151..5D..CVT..R 50A,TERM.:FEMALE,RED,BASE CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151..5D..G 120A,TERM.:MALE,WHT,HIGH CROSS PACKAGE |
1 | ||
| 90982-08294 |
NSP151..R 40A,TERM.:FEMALE,GRN,BASE HB, SD PACKAGE |
1 | ||
| 90982-08294 |
NSP151..CVT..N 40A,TERM.:FEMALE,GRN,MID HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..CVT..N 120A,TERM.:MALE,WHT,MID HB, SD PACKAGE |
1 | ||
| 90982-08296 |
NSP151..R 50A,TERM.:FEMALE,RED,BASE HB, SD PACKAGE |
1 | ||
| 90982-08302 |
NSP151..5D..CVT..R 50A-30A-50A,FEMALE,BASE UP CROSS PACKAGE |
1 | ||
| 90982-08296 |
NSP151..CVT..R 50A,TERM.:FEMALE,RED,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-08294 |
NSP151..5D..CVT..R 40A,TERM.:FEMALE,GRN,BASE CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151..CVT..R 120A,TERM.:MALE,WHT,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-08302 |
NSP151..CVT..R 50A-30A-50A,FEMALE,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-08296 |
NSP151..G 50A,TERM.:FEMALE,RED,HIGH HB, SD PACKAGE |
1 | ||
| 90982-08296 |
NSP151..5D..G 50A,TERM.:FEMALE,RED,HIGH CROSS PACKAGE |
1 | ||
| 90982-08296 |
NSP151..CVT..N 50A,TERM.:FEMALE,RED,MID HB, SD PACKAGE |
1 | ||
| 90982-08294 |
NSP151..5D..G 40A,TERM.:FEMALE,GRN,HIGH CROSS PACKAGE |
1 | ||
| 90982-08302 |
NSP151..R 50A-30A-50A,FEMALE,BASE HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..G 120A,TERM.:MALE,WHT,HIGH HB, SD PACKAGE |
1 | ||
| 90982-08294 |
NSP151..G 40A,TERM.:FEMALE,GRN,HIGH HB, SD PACKAGE |
1 | ||
| 90982-08302 |
NSP151..5D..G 50A-30A-50A,FEMALE,HIGH CROSS PACKAGE |
1 | ||
| 90982-08302 |
NSP151..CVT..N 50A-30A-50A,FEMALE,MID HB, SD PACKAGE |
1 | ||
| 90982-08302 |
NSP151..G 50A-30A-50A,FEMALE,HIGH HB, SD PACKAGE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09025 |
NSP151..CVT..N 30A,MINI FUSE,GRN,MID HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BROWN,BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09020 |
NSP151..5D..G 7.5A,MINI FUSE,BROWN,HIGH CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..5D..G 7.5A,MINI FUSE,BROWN,HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09020 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BROWN,BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09020 |
NSP151..CVT..N 7.5A,MINI FUSE,BROWN,MID HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..CVT..N 7.5A,MINI FUSE,BROWN,MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09020 |
NSP151..G 7.5A,MINI FUSE,BROWN,HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09020 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BROWN,BASE CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BROWN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09024 |
NSP151;NSP150..4D;NSP150..5D..5F 25A,MINI FUSE |
1 | ||
| 90982-09020 |
NSP151..CVT..R 7.5A,MINI FUSE,BROWN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..R 7.5A,MINI FUSE,BROWN,BASE HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151;NSP150..4D;NSP150..5D..5F 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
NSP151;NSP150..4D;NSP150..5D..5F 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
NSP151..CVT..R 7.5A,MINI FUSE,BROWN,BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09025 |
NSP151;NSP150..4D;NSP150..5D..5F 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
NSP151;NSP150..4D;NSP150..5D..5F 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
NSP151;NSP150..4D;NSP150..5D..5F 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09022 |
NSP151..R 15A,MINI FUSE,BLUE,BASE HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..G 7.5A,MINI FUSE,BROWN,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..CVT..R 7.5A,MINI FUSE,BROWN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09022 |
NSP151..5D..CVT..R 15A,MINI FUSE,BLUE,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..R 7.5A,MINI FUSE,BROWN,BASE HB, SD PACKAGE |
1 | ||
| 90982-09023 |
NSP151..5D..CVT..R 20A,MINI FUSE,YELLOW,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..R 7.5A,MINI FUSE,BROWN,BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09022 |
NSP151..CVT..R 15A,MINI FUSE,BLUE,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09023 |
NSP151..R 20A,MINI FUSE,YELLOW,BASE HB, SD PACKAGE |
1 | ||
| 90982-09021 |
NSP151..R 10A,MINI FUSE,RED,BASE HB, SD PACKAGE |
1 | ||
| 90982-09021 |
NSP151..5D..CVT..R 10A,MINI FUSE,RED,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09023 |
NSP151..5D..CVT..R 20A,MINI FUSE,YELLOW,BASE CROSS PACKAGE |
1 | ||
| 90982-09021 |
NSP151..5D..CVT..R 10A,MINI FUSE,RED,BASE CROSS PACKAGE |
1 | ||
| 90982-09022 |
NSP151..5D..CVT..R 15A,MINI FUSE,BLUE,BASE CROSS PACKAGE |
1 | ||
| 90982-09024 |
NSP151..5D..CVT..R 25A,MINI FUSE,BASE CROSS PACKAGE |
1 | ||
| 90982-09023 |
NSP151..CVT..R 20A,MINI FUSE,YELLOW,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09024 |
NSP151..5D..CVT..R 25A,MINI FUSE,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09025 |
NSP151..5D..CVT..R 30A,MINI FUSE,GRN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09021 |
NSP151..CVT..R 10A,MINI FUSE,RED,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BROWN,BASE CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BROWN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09025 |
NSP151..R 30A,MINI FUSE,GRN,BASE HB, SD PACKAGE |
1 | ||
| 90982-09025 |
NSP151..CVT..R 30A,MINI FUSE,GRN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09022 |
NSP151..G 15A,MINI FUSE,BLUE,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09024 |
NSP151..R 25A,MINI FUSE,BASE HB, SD PACKAGE |
1 | ||
| 90982-09024 |
NSP151..5D..G 25A,MINI FUSE,HIGH CROSS PACKAGE |
1 | ||
| 90982-09024 |
NSP151..CVT..R 25A,MINI FUSE,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09022 |
NSP151..CVT..N 15A,MINI FUSE,BLUE,MID HB, SD PACKAGE |
1 | ||
| 90982-09023 |
NSP151..5D..G 20A,MINI FUSE,YELLOW,HIGH CROSS PACKAGE |
1 | ||
| 90982-09023 |
NSP151..G 20A,MINI FUSE,YELLOW,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09021 |
NSP151..G 10A,MINI FUSE,RED,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09021 |
NSP151..CVT..N 10A,MINI FUSE,RED,MID HB, SD PACKAGE |
1 | ||
| 90982-09023 |
NSP151..CVT..N 20A,MINI FUSE,YELLOW,MID HB, SD PACKAGE |
1 | ||
| 90982-09021 |
NSP151..5D..G 10A,MINI FUSE,RED,HIGH CROSS PACKAGE |
1 | ||
| 90982-09025 |
NSP151..5D..CVT..R 30A,MINI FUSE,GRN,BASE CROSS PACKAGE |
1 | ||
| 90982-09024 |
NSP151..G 25A,MINI FUSE,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09022 |
NSP151..5D..G 15A,MINI FUSE,BLUE,HIGH CROSS PACKAGE |
1 | ||
| 90982-09024 |
NSP151..CVT..N 25A,MINI FUSE,MID HB, SD PACKAGE |
1 | ||
| 90982-09025 |
NSP151..5D..G 30A,MINI FUSE,GRN,HIGH CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..G 7.5A,MINI FUSE,BROWN,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..5D..G 7.5A,MINI FUSE,BROWN,HIGH CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..CVT..N 7.5A,MINI FUSE,BROWN,MID HB, SD PACKAGE |
1 | ||
| 90982-09025 |
NSP151..G 30A,MINI FUSE,GRN,HIGH HB, SD PACKAGE |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-0D040 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D040 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D040 |
NSP151..R BASE HB, SD PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D040 |
NSP151;NSP150..4D;NSP150..5D..5F |
1 | ||
| 82660-0D040 |
NSP151..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D040 |
NSP151..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D040 |
NSP151..G HIGH HB, SD PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D040 |
NSP151..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0D050 |
NSP151..G HIGH HB, SD PACKAGE |
1 | ||
| 82660-0D050 |
NSP151..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 82660-0D050 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82660-0D050 |
NSP151..R BASE HB, SD PACKAGE |
1 | ||
| 82660-0D050 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82660-0D050 |
NSP151..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82660-0D050 |
NSP151..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151;NSP150..4D;NSP150..5D..5F |
1 | ||
| 82660-0D050 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-52050 |
NSP151 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0D490 |
NSP151..5D..G |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D490 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82662-0D480 |
NSP151..5D..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D480 |
NSP150..5D..5F;NSP151..5D..(N,R) |
1 | ||
| 82662-0D480 |
NSP151..5D..R BASE HB, SD PACKAGE |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82662-0D490 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 82662-0D490 |
NSP151..5D..G HIGH HB, SD PACKAGE |
1 | ||
| 82662-0D490 |
NSP151..5D..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D491 |
NSP151..5D..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D491 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D481 |
NSP15#..5D..(N,R) |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82662-0D491 |
NSP151..5D..G |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82662-0D481 |
NSP151..5D..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D491 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE HB, SD PACKAGE |
1 | ||
| 82662-0D491 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82662-0D491 |
NSP151..5D..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82662-0D491 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0D080 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82663-0D080 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82663-0D080 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82663-0D080 |
NSP151..R BASE HB, SD PACKAGE |
1 | ||
| 82663-0D080 |
NSP151..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82663-0D080 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 82663-0D080 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82663-0D080 |
NSP151..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82663-0D080 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82663-0D080 |
NSP151..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82663-0D080 |
NSP151..G HIGH HB, SD PACKAGE |
1 | ||
| 82663-0D080 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82663-0D080 |
NSP151;NSP150..4D;NSP150..5D..5F |
1 | ||
| 82663-0D080 |
NSP151..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82663-0D080 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0D090 |
NSP151..G HIGH HB, SD PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..R BASE HB, SD PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151;NSP150..4D;NSP150..5D..5F |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2004 |
NSP151..5D..G |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-T2005 |
NSP151..G NO.2 |
1 | ||
| 90987-T2005 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 90987-T2005 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 90987-T2005 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 90987-T2004 |
NSP151..G NO.1 |
1 | ||
| 90987-T2005 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 90987-T2004 |
NSP151..5D..G HIGH CROSS PACKAGE,NO.1 |
1 | ||
| 90987-T2004 |
NSP151..G HIGH HB, SD PACKAGE,NO.1 |
1 | ||
| 90987-T2005 |
NSP151..G HIGH HB, SD PACKAGE |
1 | ||
| 90987-T2005 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NSP151 MARK 90987-02027 |
1 | ||
| 90987-T2005 |
NSP151 MARK 90987-T2005 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NSP151 MARK 90987-04004 |
1 | ||
| 90987-T4001 |
NSP151 MARK 90987-T4001 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
NSP151 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2005 |
NSP151 |
1 | ||
| Common parts | ||||
| 90119-C0155 | ||||
| 90178-C0032 | ||||
ILLUST NO. 3 OF 7(1712-2101)
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
7NRFE..NSP151 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08274 |
NSP151..5D..G 120A,TERM.:MALE,WHT,HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08274 |
NSP151..CVT..N 120A,TERM.:MALE,WHT,MID HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..R 120A,TERM.:MALE,WHT,BASE HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..5D..G 120A,TERM.:MALE,WHT,HIGH CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151..CVT..R 120A,TERM.:MALE,WHT,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..5D..CVT..R 120A,TERM.:MALE,WHT,BASE UP CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151..5D..CVT..R 120A,TERM.:MALE,WHT,BASE CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151;NSP150..4D;NSP150..5D..5F 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08274 |
NSP151..G 120A,TERM.:MALE,WHT,HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08274 |
NSP151..5D..CVT..R 120A,TERM.:MALE,WHT,BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08274 |
NSP151..G 120A,TERM.:MALE,WHT,HIGH HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..R 120A,TERM.:MALE,WHT,BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08296 |
NSP151;NSP150..4D;NSP150..5D..5F 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08274 |
NSP151..5D..CVT..R 120A,TERM.:MALE,WHT,BASE UP CROSS PACKAGE |
1 | ||
| 90982-08302 |
NSP151;NSP150..4D;NSP150..5D..5F 50A-30A-50A,FEMALE |
1 | ||
| 90982-08274 |
NSP151..CVT..N 120A,TERM.:MALE,WHT,MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08274 |
NSP151..R 120A,TERM.:MALE,WHT,BASE HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..5D..CVT..R 120A,TERM.:MALE,WHT,BASE CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151..CVT..R 120A,TERM.:MALE,WHT,BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08294 |
NSP151;NSP150..4D;NSP150..5D..5F 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08294 |
NSP151..5D..CVT..R 40A,TERM.:FEMALE,GRN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-08296 |
NSP151..5D..CVT..R 50A,TERM.:FEMALE,RED,BASE UP CROSS PACKAGE |
1 | ||
| 90982-08294 |
NSP151..CVT..R 40A,TERM.:FEMALE,GRN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-08302 |
NSP151..5D..CVT..R 50A-30A-50A,FEMALE,BASE CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151..5D..CVT..R 120A,TERM.:MALE,WHT,BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08296 |
NSP151..5D..CVT..R 50A,TERM.:FEMALE,RED,BASE CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151..5D..G 120A,TERM.:MALE,WHT,HIGH CROSS PACKAGE |
1 | ||
| 90982-08294 |
NSP151..R 40A,TERM.:FEMALE,GRN,BASE HB, SD PACKAGE |
1 | ||
| 90982-08294 |
NSP151..CVT..N 40A,TERM.:FEMALE,GRN,MID HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..CVT..N 120A,TERM.:MALE,WHT,MID HB, SD PACKAGE |
1 | ||
| 90982-08296 |
NSP151..R 50A,TERM.:FEMALE,RED,BASE HB, SD PACKAGE |
1 | ||
| 90982-08302 |
NSP151..5D..CVT..R 50A-30A-50A,FEMALE,BASE UP CROSS PACKAGE |
1 | ||
| 90982-08296 |
NSP151..CVT..R 50A,TERM.:FEMALE,RED,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-08294 |
NSP151..5D..CVT..R 40A,TERM.:FEMALE,GRN,BASE CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151..CVT..R 120A,TERM.:MALE,WHT,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-08302 |
NSP151..CVT..R 50A-30A-50A,FEMALE,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-08296 |
NSP151..G 50A,TERM.:FEMALE,RED,HIGH HB, SD PACKAGE |
1 | ||
| 90982-08296 |
NSP151..5D..G 50A,TERM.:FEMALE,RED,HIGH CROSS PACKAGE |
1 | ||
| 90982-08296 |
NSP151..CVT..N 50A,TERM.:FEMALE,RED,MID HB, SD PACKAGE |
1 | ||
| 90982-08294 |
NSP151..5D..G 40A,TERM.:FEMALE,GRN,HIGH CROSS PACKAGE |
1 | ||
| 90982-08302 |
NSP151..R 50A-30A-50A,FEMALE,BASE HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..G 120A,TERM.:MALE,WHT,HIGH HB, SD PACKAGE |
1 | ||
| 90982-08294 |
NSP151..G 40A,TERM.:FEMALE,GRN,HIGH HB, SD PACKAGE |
1 | ||
| 90982-08302 |
NSP151..5D..G 50A-30A-50A,FEMALE,HIGH CROSS PACKAGE |
1 | ||
| 90982-08302 |
NSP151..CVT..N 50A-30A-50A,FEMALE,MID HB, SD PACKAGE |
1 | ||
| 90982-08302 |
NSP151..G 50A-30A-50A,FEMALE,HIGH HB, SD PACKAGE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BROWN,BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09020 |
NSP151..5D..G 7.5A,MINI FUSE,BROWN,HIGH CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..5D..G 7.5A,MINI FUSE,BROWN,HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09020 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BROWN,BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09020 |
NSP151..CVT..N 7.5A,MINI FUSE,BROWN,MID HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..CVT..N 7.5A,MINI FUSE,BROWN,MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09020 |
NSP151..G 7.5A,MINI FUSE,BROWN,HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09020 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BROWN,BASE CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BROWN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09024 |
NSP151;NSP150..4D;NSP150..5D..5F 25A,MINI FUSE |
1 | ||
| 90982-09020 |
NSP151..CVT..R 7.5A,MINI FUSE,BROWN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..R 7.5A,MINI FUSE,BROWN,BASE HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151;NSP150..4D;NSP150..5D..5F 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
NSP151;NSP150..4D;NSP150..5D..5F 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
NSP151..CVT..R 7.5A,MINI FUSE,BROWN,BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09025 |
NSP151;NSP150..4D;NSP150..5D..5F 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
NSP151;NSP150..4D;NSP150..5D..5F 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
NSP151;NSP150..4D;NSP150..5D..5F 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09022 |
NSP151..R 15A,MINI FUSE,BLUE,BASE HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..G 7.5A,MINI FUSE,BROWN,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..CVT..R 7.5A,MINI FUSE,BROWN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09022 |
NSP151..5D..CVT..R 15A,MINI FUSE,BLUE,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..R 7.5A,MINI FUSE,BROWN,BASE HB, SD PACKAGE |
1 | ||
| 90982-09023 |
NSP151..5D..CVT..R 20A,MINI FUSE,YELLOW,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..R 7.5A,MINI FUSE,BROWN,BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09022 |
NSP151..CVT..R 15A,MINI FUSE,BLUE,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09023 |
NSP151..R 20A,MINI FUSE,YELLOW,BASE HB, SD PACKAGE |
1 | ||
| 90982-09021 |
NSP151..R 10A,MINI FUSE,RED,BASE HB, SD PACKAGE |
1 | ||
| 90982-09021 |
NSP151..5D..CVT..R 10A,MINI FUSE,RED,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09023 |
NSP151..5D..CVT..R 20A,MINI FUSE,YELLOW,BASE CROSS PACKAGE |
1 | ||
| 90982-09021 |
NSP151..5D..CVT..R 10A,MINI FUSE,RED,BASE CROSS PACKAGE |
1 | ||
| 90982-09022 |
NSP151..5D..CVT..R 15A,MINI FUSE,BLUE,BASE CROSS PACKAGE |
1 | ||
| 90982-09024 |
NSP151..5D..CVT..R 25A,MINI FUSE,BASE CROSS PACKAGE |
1 | ||
| 90982-09023 |
NSP151..CVT..R 20A,MINI FUSE,YELLOW,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09024 |
NSP151..5D..CVT..R 25A,MINI FUSE,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09025 |
NSP151..5D..CVT..R 30A,MINI FUSE,GRN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09021 |
NSP151..CVT..R 10A,MINI FUSE,RED,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BROWN,BASE CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BROWN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09025 |
NSP151..R 30A,MINI FUSE,GRN,BASE HB, SD PACKAGE |
1 | ||
| 90982-09025 |
NSP151..CVT..R 30A,MINI FUSE,GRN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09022 |
NSP151..G 15A,MINI FUSE,BLUE,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09024 |
NSP151..R 25A,MINI FUSE,BASE HB, SD PACKAGE |
1 | ||
| 90982-09024 |
NSP151..5D..G 25A,MINI FUSE,HIGH CROSS PACKAGE |
1 | ||
| 90982-09024 |
NSP151..CVT..R 25A,MINI FUSE,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09022 |
NSP151..CVT..N 15A,MINI FUSE,BLUE,MID HB, SD PACKAGE |
1 | ||
| 90982-09023 |
NSP151..5D..G 20A,MINI FUSE,YELLOW,HIGH CROSS PACKAGE |
1 | ||
| 90982-09023 |
NSP151..G 20A,MINI FUSE,YELLOW,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09021 |
NSP151..G 10A,MINI FUSE,RED,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09021 |
NSP151..CVT..N 10A,MINI FUSE,RED,MID HB, SD PACKAGE |
1 | ||
| 90982-09023 |
NSP151..CVT..N 20A,MINI FUSE,YELLOW,MID HB, SD PACKAGE |
1 | ||
| 90982-09021 |
NSP151..5D..G 10A,MINI FUSE,RED,HIGH CROSS PACKAGE |
1 | ||
| 90982-09025 |
NSP151..5D..CVT..R 30A,MINI FUSE,GRN,BASE CROSS PACKAGE |
1 | ||
| 90982-09024 |
NSP151..G 25A,MINI FUSE,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09022 |
NSP151..5D..G 15A,MINI FUSE,BLUE,HIGH CROSS PACKAGE |
1 | ||
| 90982-09024 |
NSP151..CVT..N 25A,MINI FUSE,MID HB, SD PACKAGE |
1 | ||
| 90982-09025 |
NSP151..5D..G 30A,MINI FUSE,GRN,HIGH CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..G 7.5A,MINI FUSE,BROWN,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09025 |
NSP151..CVT..N 30A,MINI FUSE,GRN,MID HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..5D..G 7.5A,MINI FUSE,BROWN,HIGH CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..CVT..N 7.5A,MINI FUSE,BROWN,MID HB, SD PACKAGE |
1 | ||
| 90982-09025 |
NSP151..G 30A,MINI FUSE,GRN,HIGH HB, SD PACKAGE |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-0D040 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D040 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D040 |
NSP151..R BASE HB, SD PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D040 |
NSP151;NSP150..4D;NSP150..5D..5F |
1 | ||
| 82660-0D040 |
NSP151..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D040 |
NSP151..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D040 |
NSP151..G HIGH HB, SD PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D040 |
NSP151..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0D050 |
NSP151..G HIGH HB, SD PACKAGE |
1 | ||
| 82660-0D050 |
NSP151..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 82660-0D050 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82660-0D050 |
NSP151..R BASE HB, SD PACKAGE |
1 | ||
| 82660-0D050 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82660-0D050 |
NSP151..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82660-0D050 |
NSP151..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151;NSP150..4D;NSP150..5D..5F |
1 | ||
| 82660-0D050 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-52050 |
NSP151 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0D490 |
NSP151..5D..G |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D490 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82662-0D480 |
NSP151..5D..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D480 |
NSP150..5D..5F;NSP151..5D..(N,R) |
1 | ||
| 82662-0D480 |
NSP151..5D..R BASE HB, SD PACKAGE |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82662-0D490 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 82662-0D490 |
NSP151..5D..G HIGH HB, SD PACKAGE |
1 | ||
| 82662-0D490 |
NSP151..5D..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D491 |
NSP151..5D..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D491 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D481 |
NSP15#..5D..(N,R) |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82662-0D491 |
NSP151..5D..G |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82662-0D481 |
NSP151..5D..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D491 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE HB, SD PACKAGE |
1 | ||
| 82662-0D491 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82662-0D491 |
NSP151..5D..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82662-0D491 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0D080 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82663-0D080 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82663-0D080 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82663-0D080 |
NSP151..R BASE HB, SD PACKAGE |
1 | ||
| 82663-0D080 |
NSP151..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82663-0D080 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 82663-0D080 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82663-0D080 |
NSP151..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82663-0D080 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82663-0D080 |
NSP151..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82663-0D080 |
NSP151..G HIGH HB, SD PACKAGE |
1 | ||
| 82663-0D080 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82663-0D080 |
NSP151;NSP150..4D;NSP150..5D..5F |
1 | ||
| 82663-0D080 |
NSP151..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82663-0D080 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0D090 |
NSP151..G HIGH HB, SD PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..R BASE HB, SD PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151;NSP150..4D;NSP150..5D..5F |
1 | ||
| 85912K - RELAY, VVT | ||||
| 90987-T2005 |
NSP151 (L) |
1 | ||
| 90987-02027 |
NSP151 (J) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2004 |
NSP151..5D..G |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-T2005 |
NSP151..G NO.2 |
1 | ||
| 90987-T2005 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 90987-T2005 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 90987-T2005 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 90987-T2004 |
NSP151..G NO.1 |
1 | ||
| 90987-T2005 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 90987-T2004 |
NSP151..5D..G HIGH CROSS PACKAGE,NO.1 |
1 | ||
| 90987-T2004 |
NSP151..G HIGH HB, SD PACKAGE,NO.1 |
1 | ||
| 90987-T2005 |
NSP151..G HIGH HB, SD PACKAGE |
1 | ||
| 90987-T2005 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NSP151 MARK 90987-02027 |
1 | ||
| 90987-T2005 |
NSP151 MARK 90987-T2005 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NSP151 MARK 90987-04004 |
1 | ||
| 90987-T4001 |
NSP151 MARK 90987-T4001 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
NSP151 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2005 |
NSP151 |
1 | ||
| Common parts | ||||
| 90119-C0155 | ||||
| 90178-C0032 | ||||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 3 OF 7(2101- )
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
7NRFE..NSP151 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08274 |
NSP151..5D..G 120A,TERM.:MALE,WHT,HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08274 |
NSP151..CVT..N 120A,TERM.:MALE,WHT,MID HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..R 120A,TERM.:MALE,WHT,BASE HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..5D..G 120A,TERM.:MALE,WHT,HIGH CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151..CVT..R 120A,TERM.:MALE,WHT,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..5D..CVT..R 120A,TERM.:MALE,WHT,BASE UP CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151..5D..CVT..R 120A,TERM.:MALE,WHT,BASE CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151;NSP150..4D;NSP150..5D..5F 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08274 |
NSP151..G 120A,TERM.:MALE,WHT,HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08274 |
NSP151..5D..CVT..R 120A,TERM.:MALE,WHT,BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08274 |
NSP151..G 120A,TERM.:MALE,WHT,HIGH HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..R 120A,TERM.:MALE,WHT,BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08296 |
NSP151;NSP150..4D;NSP150..5D..5F 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08274 |
NSP151..5D..CVT..R 120A,TERM.:MALE,WHT,BASE UP CROSS PACKAGE |
1 | ||
| 90982-08302 |
NSP151;NSP150..4D;NSP150..5D..5F 50A-30A-50A,FEMALE |
1 | ||
| 90982-08274 |
NSP151..CVT..N 120A,TERM.:MALE,WHT,MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08274 |
NSP151..R 120A,TERM.:MALE,WHT,BASE HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..5D..CVT..R 120A,TERM.:MALE,WHT,BASE CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151..CVT..R 120A,TERM.:MALE,WHT,BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08294 |
NSP151;NSP150..4D;NSP150..5D..5F 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08294 |
NSP151..5D..CVT..R 40A,TERM.:FEMALE,GRN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-08296 |
NSP151..5D..CVT..R 50A,TERM.:FEMALE,RED,BASE UP CROSS PACKAGE |
1 | ||
| 90982-08294 |
NSP151..CVT..R 40A,TERM.:FEMALE,GRN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-08302 |
NSP151..5D..CVT..R 50A-30A-50A,FEMALE,BASE CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151..5D..CVT..R 120A,TERM.:MALE,WHT,BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-08296 |
NSP151..5D..CVT..R 50A,TERM.:FEMALE,RED,BASE CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151..5D..G 120A,TERM.:MALE,WHT,HIGH CROSS PACKAGE |
1 | ||
| 90982-08294 |
NSP151..R 40A,TERM.:FEMALE,GRN,BASE HB, SD PACKAGE |
1 | ||
| 90982-08294 |
NSP151..CVT..N 40A,TERM.:FEMALE,GRN,MID HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..CVT..N 120A,TERM.:MALE,WHT,MID HB, SD PACKAGE |
1 | ||
| 90982-08296 |
NSP151..R 50A,TERM.:FEMALE,RED,BASE HB, SD PACKAGE |
1 | ||
| 90982-08302 |
NSP151..5D..CVT..R 50A-30A-50A,FEMALE,BASE UP CROSS PACKAGE |
1 | ||
| 90982-08296 |
NSP151..CVT..R 50A,TERM.:FEMALE,RED,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-08294 |
NSP151..5D..CVT..R 40A,TERM.:FEMALE,GRN,BASE CROSS PACKAGE |
1 | ||
| 90982-08274 |
NSP151..CVT..R 120A,TERM.:MALE,WHT,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-08302 |
NSP151..CVT..R 50A-30A-50A,FEMALE,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-08296 |
NSP151..G 50A,TERM.:FEMALE,RED,HIGH HB, SD PACKAGE |
1 | ||
| 90982-08296 |
NSP151..5D..G 50A,TERM.:FEMALE,RED,HIGH CROSS PACKAGE |
1 | ||
| 90982-08296 |
NSP151..CVT..N 50A,TERM.:FEMALE,RED,MID HB, SD PACKAGE |
1 | ||
| 90982-08294 |
NSP151..5D..G 40A,TERM.:FEMALE,GRN,HIGH CROSS PACKAGE |
1 | ||
| 90982-08302 |
NSP151..R 50A-30A-50A,FEMALE,BASE HB, SD PACKAGE |
1 | ||
| 90982-08274 |
NSP151..G 120A,TERM.:MALE,WHT,HIGH HB, SD PACKAGE |
1 | ||
| 90982-08294 |
NSP151..G 40A,TERM.:FEMALE,GRN,HIGH HB, SD PACKAGE |
1 | ||
| 90982-08302 |
NSP151..5D..G 50A-30A-50A,FEMALE,HIGH CROSS PACKAGE |
1 | ||
| 90982-08302 |
NSP151..CVT..N 50A-30A-50A,FEMALE,MID HB, SD PACKAGE |
1 | ||
| 90982-08302 |
NSP151..G 50A-30A-50A,FEMALE,HIGH HB, SD PACKAGE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BROWN,BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09020 |
NSP151..5D..G 7.5A,MINI FUSE,BROWN,HIGH CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..5D..G 7.5A,MINI FUSE,BROWN,HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09020 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BROWN,BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09020 |
NSP151..CVT..N 7.5A,MINI FUSE,BROWN,MID HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..CVT..N 7.5A,MINI FUSE,BROWN,MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09020 |
NSP151..G 7.5A,MINI FUSE,BROWN,HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09020 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BROWN,BASE CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BROWN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09024 |
NSP151;NSP150..4D;NSP150..5D..5F 25A,MINI FUSE |
1 | ||
| 90982-09020 |
NSP151..CVT..R 7.5A,MINI FUSE,BROWN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..R 7.5A,MINI FUSE,BROWN,BASE HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151;NSP150..4D;NSP150..5D..5F 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
NSP151;NSP150..4D;NSP150..5D..5F 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
NSP151..CVT..R 7.5A,MINI FUSE,BROWN,BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09025 |
NSP151;NSP150..4D;NSP150..5D..5F 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
NSP151;NSP150..4D;NSP150..5D..5F 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
NSP151;NSP150..4D;NSP150..5D..5F 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09022 |
NSP151..R 15A,MINI FUSE,BLUE,BASE HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..G 7.5A,MINI FUSE,BROWN,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..CVT..R 7.5A,MINI FUSE,BROWN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09022 |
NSP151..5D..CVT..R 15A,MINI FUSE,BLUE,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..R 7.5A,MINI FUSE,BROWN,BASE HB, SD PACKAGE |
1 | ||
| 90982-09023 |
NSP151..5D..CVT..R 20A,MINI FUSE,YELLOW,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..R 7.5A,MINI FUSE,BROWN,BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 90982-09022 |
NSP151..CVT..R 15A,MINI FUSE,BLUE,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09023 |
NSP151..R 20A,MINI FUSE,YELLOW,BASE HB, SD PACKAGE |
1 | ||
| 90982-09021 |
NSP151..R 10A,MINI FUSE,RED,BASE HB, SD PACKAGE |
1 | ||
| 90982-09021 |
NSP151..5D..CVT..R 10A,MINI FUSE,RED,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09023 |
NSP151..5D..CVT..R 20A,MINI FUSE,YELLOW,BASE CROSS PACKAGE |
1 | ||
| 90982-09021 |
NSP151..5D..CVT..R 10A,MINI FUSE,RED,BASE CROSS PACKAGE |
1 | ||
| 90982-09022 |
NSP151..5D..CVT..R 15A,MINI FUSE,BLUE,BASE CROSS PACKAGE |
1 | ||
| 90982-09024 |
NSP151..5D..CVT..R 25A,MINI FUSE,BASE CROSS PACKAGE |
1 | ||
| 90982-09023 |
NSP151..CVT..R 20A,MINI FUSE,YELLOW,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09024 |
NSP151..5D..CVT..R 25A,MINI FUSE,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09025 |
NSP151..5D..CVT..R 30A,MINI FUSE,GRN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09021 |
NSP151..CVT..R 10A,MINI FUSE,RED,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BROWN,BASE CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..5D..CVT..R 7.5A,MINI FUSE,BROWN,BASE UP CROSS PACKAGE |
1 | ||
| 90982-09025 |
NSP151..R 30A,MINI FUSE,GRN,BASE HB, SD PACKAGE |
1 | ||
| 90982-09025 |
NSP151..CVT..R 30A,MINI FUSE,GRN,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09022 |
NSP151..G 15A,MINI FUSE,BLUE,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09024 |
NSP151..R 25A,MINI FUSE,BASE HB, SD PACKAGE |
1 | ||
| 90982-09024 |
NSP151..5D..G 25A,MINI FUSE,HIGH CROSS PACKAGE |
1 | ||
| 90982-09024 |
NSP151..CVT..R 25A,MINI FUSE,BASE UP HB, SD PACKAGE |
1 | ||
| 90982-09022 |
NSP151..CVT..N 15A,MINI FUSE,BLUE,MID HB, SD PACKAGE |
1 | ||
| 90982-09023 |
NSP151..5D..G 20A,MINI FUSE,YELLOW,HIGH CROSS PACKAGE |
1 | ||
| 90982-09023 |
NSP151..G 20A,MINI FUSE,YELLOW,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09021 |
NSP151..G 10A,MINI FUSE,RED,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09021 |
NSP151..CVT..N 10A,MINI FUSE,RED,MID HB, SD PACKAGE |
1 | ||
| 90982-09023 |
NSP151..CVT..N 20A,MINI FUSE,YELLOW,MID HB, SD PACKAGE |
1 | ||
| 90982-09021 |
NSP151..5D..G 10A,MINI FUSE,RED,HIGH CROSS PACKAGE |
1 | ||
| 90982-09025 |
NSP151..5D..CVT..R 30A,MINI FUSE,GRN,BASE CROSS PACKAGE |
1 | ||
| 90982-09024 |
NSP151..G 25A,MINI FUSE,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09022 |
NSP151..5D..G 15A,MINI FUSE,BLUE,HIGH CROSS PACKAGE |
1 | ||
| 90982-09024 |
NSP151..CVT..N 25A,MINI FUSE,MID HB, SD PACKAGE |
1 | ||
| 90982-09025 |
NSP151..5D..G 30A,MINI FUSE,GRN,HIGH CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..G 7.5A,MINI FUSE,BROWN,HIGH HB, SD PACKAGE |
1 | ||
| 90982-09025 |
NSP151..CVT..N 30A,MINI FUSE,GRN,MID HB, SD PACKAGE |
1 | ||
| 90982-09020 |
NSP151..5D..G 7.5A,MINI FUSE,BROWN,HIGH CROSS PACKAGE |
1 | ||
| 90982-09020 |
NSP151..CVT..N 7.5A,MINI FUSE,BROWN,MID HB, SD PACKAGE |
1 | ||
| 90982-09025 |
NSP151..G 30A,MINI FUSE,GRN,HIGH HB, SD PACKAGE |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-0D040 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D040 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D040 |
NSP151..R BASE HB, SD PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D040 |
NSP151;NSP150..4D;NSP150..5D..5F |
1 | ||
| 82660-0D040 |
NSP151..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D040 |
NSP151..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D040 |
NSP151..G HIGH HB, SD PACKAGE |
1 | ||
| 82660-0D040 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D040 |
NSP151..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0D050 |
NSP151..G HIGH HB, SD PACKAGE |
1 | ||
| 82660-0D050 |
NSP151..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 82660-0D050 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82660-0D050 |
NSP151..R BASE HB, SD PACKAGE |
1 | ||
| 82660-0D050 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82660-0D050 |
NSP151..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82660-0D050 |
NSP151..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82660-0D050 |
NSP151;NSP150..4D;NSP150..5D..5F |
1 | ||
| 82660-0D050 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-52050 |
NSP151 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0D490 |
NSP151..5D..G |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D490 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82662-0D480 |
NSP151..5D..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D480 |
NSP150..5D..5F;NSP151..5D..(N,R) |
1 | ||
| 82662-0D480 |
NSP151..5D..R BASE HB, SD PACKAGE |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82662-0D490 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 82662-0D490 |
NSP151..5D..G HIGH HB, SD PACKAGE |
1 | ||
| 82662-0D490 |
NSP151..5D..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D480 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D491 |
NSP151..5D..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D491 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D481 |
NSP15#..5D..(N,R) |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82662-0D491 |
NSP151..5D..G |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82662-0D481 |
NSP151..5D..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82662-0D491 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82662-0D481 |
NSP151..5D..CVT..R BASE HB, SD PACKAGE |
1 | ||
| 82662-0D491 |
NSP151..5D..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82662-0D491 |
NSP151..5D..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82662-0D491 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0D080 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82663-0D080 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82663-0D080 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82663-0D080 |
NSP151..R BASE HB, SD PACKAGE |
1 | ||
| 82663-0D080 |
NSP151..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82663-0D080 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 82663-0D080 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82663-0D080 |
NSP151..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82663-0D080 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82663-0D080 |
NSP151..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82663-0D080 |
NSP151..G HIGH HB, SD PACKAGE |
1 | ||
| 82663-0D080 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82663-0D080 |
NSP151;NSP150..4D;NSP150..5D..5F |
1 | ||
| 82663-0D080 |
NSP151..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82663-0D080 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0D090 |
NSP151..G HIGH HB, SD PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..5D..G HIGH CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151..5D..CVT..R BASE CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..R BASE HB, SD PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..CVT..R BASE UP HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 82741-0D090 |
NSP151..R BASE HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151..G HIGH HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151..CVT..N MID HB, SD PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82741-0D090 |
NSP151;NSP150..4D;NSP150..5D..5F |
1 | ||
| 85912K - RELAY, VVT | ||||
| 90987-T2005 |
NSP151 (L) |
1 | ||
| 90987-02027 |
NSP151 (J) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2004 |
NSP151..5D..G |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-T2005 |
NSP151..G NO.2 |
1 | ||
| 90987-T2005 |
NSP151..5D..CVT..R BASE UP CROSS PACKAGE |
1 | ||
| 90987-T2005 |
NSP151..CVT..R BASE UP HB, SD PACKAGE |
1 | ||
| 90987-T2005 |
NSP151..5D..G HIGH CROSS PACKAGE |
1 | ||
| 90987-T2004 |
NSP151..G NO.1 |
1 | ||
| 90987-T2005 |
NSP151..5D..CVT..R BASE CROSS PACKAGE |
1 | ||
| 90987-T2004 |
NSP151..5D..G HIGH CROSS PACKAGE,NO.1 |
1 | ||
| 90987-T2004 |
NSP151..G HIGH HB, SD PACKAGE,NO.1 |
1 | ||
| 90987-T2005 |
NSP151..G HIGH HB, SD PACKAGE |
1 | ||
| 90987-T2005 |
NSP151..CVT..N MID HB, SD PACKAGE |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NSP151 MARK 90987-02027 |
1 | ||
| 90987-T2005 |
NSP151 MARK 90987-T2005 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NSP151 MARK 90987-04004 |
1 | ||
| 90987-T4001 |
NSP151 MARK 90987-T4001 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
NSP151 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2005 |
NSP151 |
1 | ||
| Common parts | ||||
| 90119-C0588 | ||||
| 90178-C0032 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
