NSP151L-AHXGKC (2016)
Toyota Yaris (China)

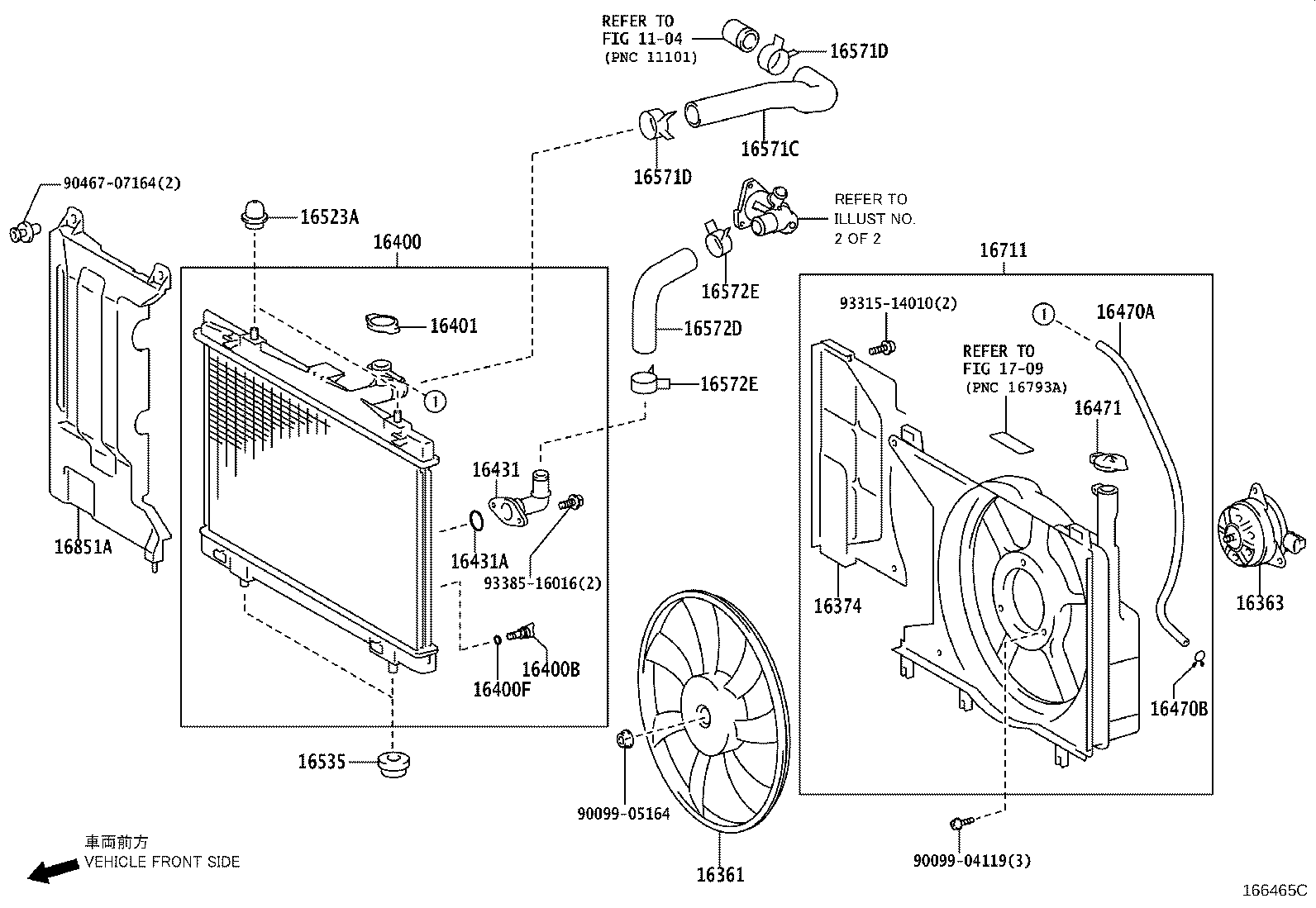

ILLUST NO. 1 OF 2(1608- )
RADIATOR SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-0Y160 |
7NRFE..NSP151 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0Y030 |
7NRFE..NSP151 |
1 | ||
| 16374 - INSULATOR, COOLING FAN MOTOR | ||||
| 16366-0Y060 |
7NRFE..NSP151 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0Y110 |
7NRFE..NSP151 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-0H290 |
7NRFE..NSP151 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-0T270 |
7NRFE..NSP151 |
1 | ||
| 16492-21050 |
6NRFE,7NRFE..NSP15# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-0Y060 |
7NRFE..NSP151 |
1 | ||
| 16431 - INLET, RADIATOR WATER | ||||
| 16431-0Y120 |
7NRFE..NSP151 |
1 | ||
| 16431A - RING, O(FOR RADIATOR WATER INLET) | ||||
| 16492-0Y120 |
7NRFE..NSP151 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-0Y220 |
7NRFE..NSP151 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
7NRFE..NSP151 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-0T010 |
7NRFE..NSP151 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-0M070 |
7NRFE..NSP151 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-22025 |
7NRFE..NSP151 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0Y160 |
7NRFE..NSP151 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-C0008 |
7NRFE..NSP151 (L) |
2 | ||
| 96136-43901 |
7NRFE..NSP151 (J) |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-C0008 |
7NRFE..NSP151 (L) |
2 | ||
| 96136-43901 |
7NRFE..NSP151 (J) |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0Y090 |
7NRFE..NSP151 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-C0008 |
7NRFE..NSP151 (L) |
2 | ||
| 96136-43901 |
7NRFE..NSP151 (J) |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-C0008 |
7NRFE..NSP151 (L) |
2 | ||
| 96136-43901 |
7NRFE..NSP151 (J) |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0Y140 |
7NRFE..NSP151 |
1 | ||
| 16851A - COVER, SHROUD SIDE | ||||
| 16851-0Y020 |
7NRFE..NSP151 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90467-07164 | ||||
| 93315-14010 | ||||
| 93385-16016 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1709 | ||||
ILLUST NO. 2 OF 2(1608-1812)6NRFE,7NRFE..CVT ; (1812- )6NRFE..CVT
ENGINE SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16260 - HOSE ASSY, WATER BY-PASS | ||||
| 16260-0Y090 |
7NRFE..NSP151..CVT |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0Y080 |
7NRFE..NSP151 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-42901 |
7NRFE..NSP151 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-42901 |
7NRFE..NSP151 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0Y060 |
7NRFE..NSP151 |
1 | ||
| 16264-0Y190 |
7NRFE..NSP151 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0044 |
7NRFE..NSP151 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0044 |
7NRFE..NSP151 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0Y170 |
7NRFE..NSP151 |
1 | ||
| 16267-0Y020 |
7NRFE..NSP151 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-C0044 |
7NRFE..NSP151 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-C0044 |
7NRFE..NSP151 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-0Y100 |
7NRFE..NSP151..CVT |
1 | ||
| 16268-0Y030 |
7NRFE..NSP151 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-47011 |
7NRFE..NSP151 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-47020 |
7NRFE..NSP151 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03147 |
7NRFE..NSP151 *WAX 82-95 |
1 | ||
| Common parts | ||||
| 87124-0D510 | ||||
| 90105-C0043 | ||||
| 90119-C0132 | ||||
| 90466-C0006 | ||||
| 90466-C0014 | ||||
| 90469-C0013 | ||||
| 96136-42501 | ||||
| 96136-52201 | ||||
| Linked diagrams | ||||
| 3401 | ||||
| 8716 | ||||

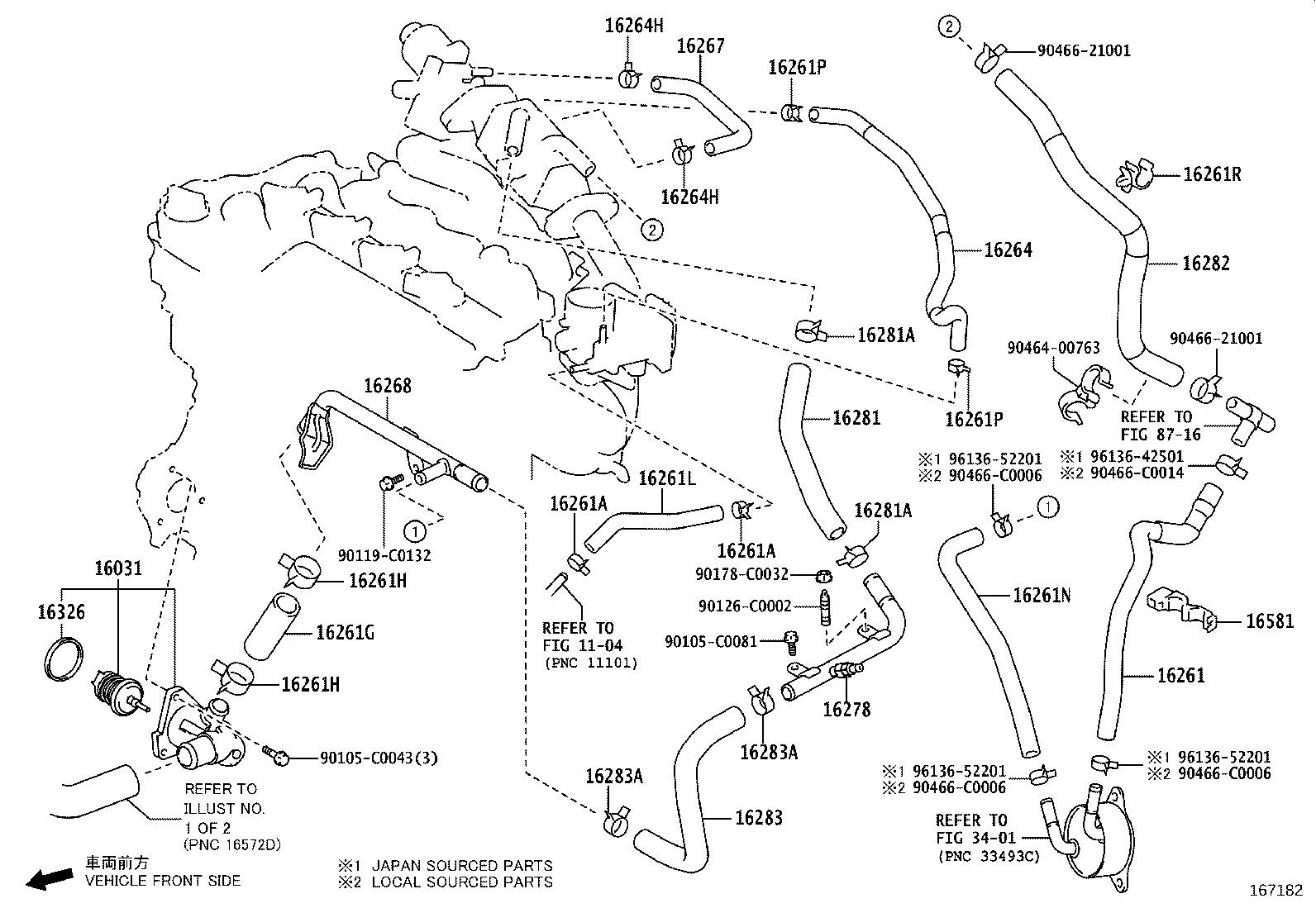

ILLUST NO. 2 OF 2(1812- )7NRFE..CVT
ENGINE SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-47041 |
7NRFE..NSP151 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0Y170 |
7NRFE..NSP151..CVT |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-C0044 |
7NRFE..NSP151 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90466-C0044 |
7NRFE..NSP151 |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0Y080 |
7NRFE..NSP151 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-42901 |
7NRFE..NSP151 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-42901 |
7NRFE..NSP151 |
2 | ||
| 16261L - HOSE, WATER BY-PASS | ||||
| 16261-0Y190 |
7NRFE..NSP151 |
1 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| 16262-0Y010 |
7NRFE..NSP151..CVT |
1 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0044 |
7NRFE..NSP151 |
2 | ||
| 16261P - CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-C0044 |
7NRFE..NSP151 |
2 | ||
| 16261R - CLAMP OR CLIP(FOR WATER BY-PASS HOSE) | ||||
| 12251-0Y010 |
7NRFE..NSP151 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-0Y060 |
7NRFE..NSP151 |
1 | ||
| 16264-0Y190 |
7NRFE..NSP151 |
1 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-C0044 |
7NRFE..NSP151 |
2 | ||
| 16264H - CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-C0044 |
7NRFE..NSP151 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0Y170 |
7NRFE..NSP151 |
1 | ||
| 16267-0Y020 |
7NRFE..NSP151 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-0Y100 |
7NRFE..NSP151..CVT |
1 | ||
| 16268-0Y030 |
7NRFE..NSP151 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16270-0Y020 |
7NRFE..NSP151 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-0Y140 |
7NRFE..NSP151 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-C0014 |
7NRFE..NSP151 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-C0014 |
7NRFE..NSP151 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-0Y030 |
7NRFE..NSP151 |
1 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-0Y020 |
7NRFE..NSP151 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90466-C0014 |
7NRFE..NSP151 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90466-C0014 |
7NRFE..NSP151 |
2 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-47020 |
7NRFE..NSP151 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-47060 |
7NRFE..NSP151..CVT |
1 | ||
| Common parts | ||||
| 90105-C0043 | ||||
| 90105-C0081 | ||||
| 90119-C0132 | ||||
| 90126-C0002 | ||||
| 90178-C0032 | ||||
| 90464-00763 | ||||
| 90466-21001 | ||||
| 90466-C0006 | ||||
| 90466-C0014 | ||||
| 96136-42501 | ||||
| 96136-52201 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 3401 | ||||
| 8716 | ||||
