NSP151L-AHPGKC (2013)
Toyota Yaris (China)

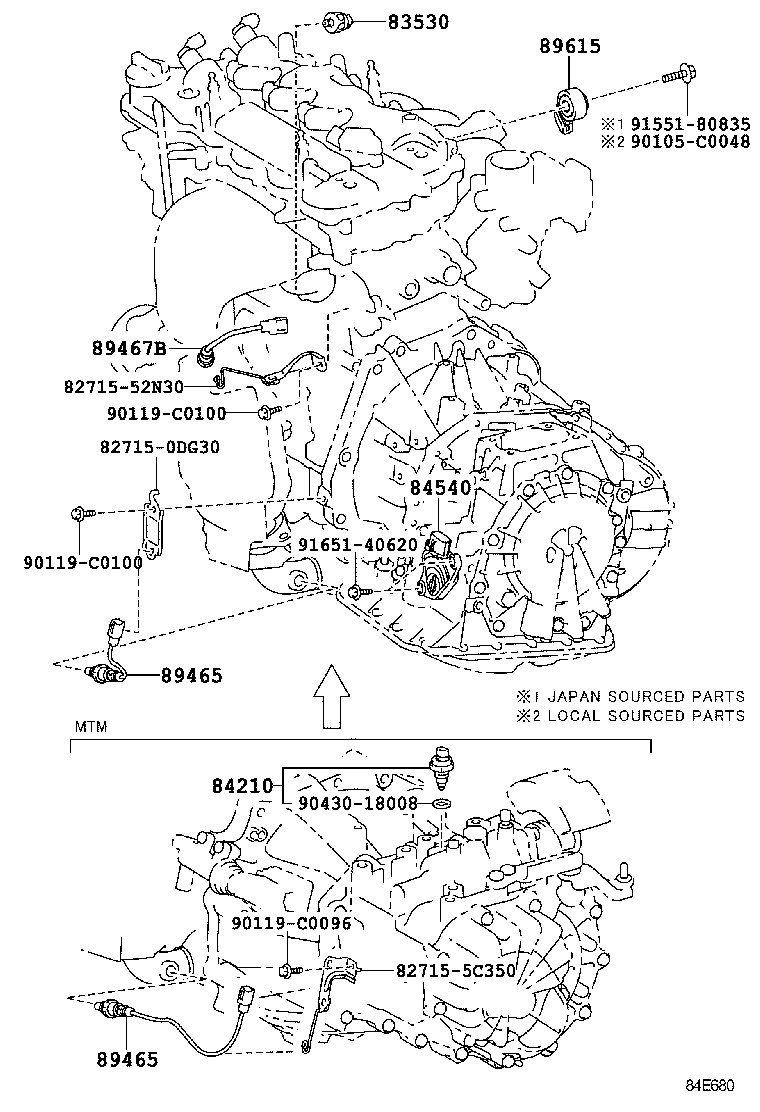

ILLUST NO. 1 OF 7(1312-1608)
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
NSP15# YAZAKI |
1 | ||
| 83530-28020 |
NSP15# DENSO |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52110 |
NSP15#..4FC |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0D230 |
NSP15#..4FC |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-0D230 |
NSP15#..4FC |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-0D040 |
NSP15# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NSP15# |
1 | ||
| Common parts | ||||
| 82715-0DG30 | ||||
| 82715-52N30 | ||||
| 82715-5C350 | ||||
| 90105-C0048 | ||||
| 90119-C0096 | ||||
| 90119-C0100 | ||||
| 90430-18008 | ||||
| 91551-80835 | ||||
| 91651-40620 | ||||

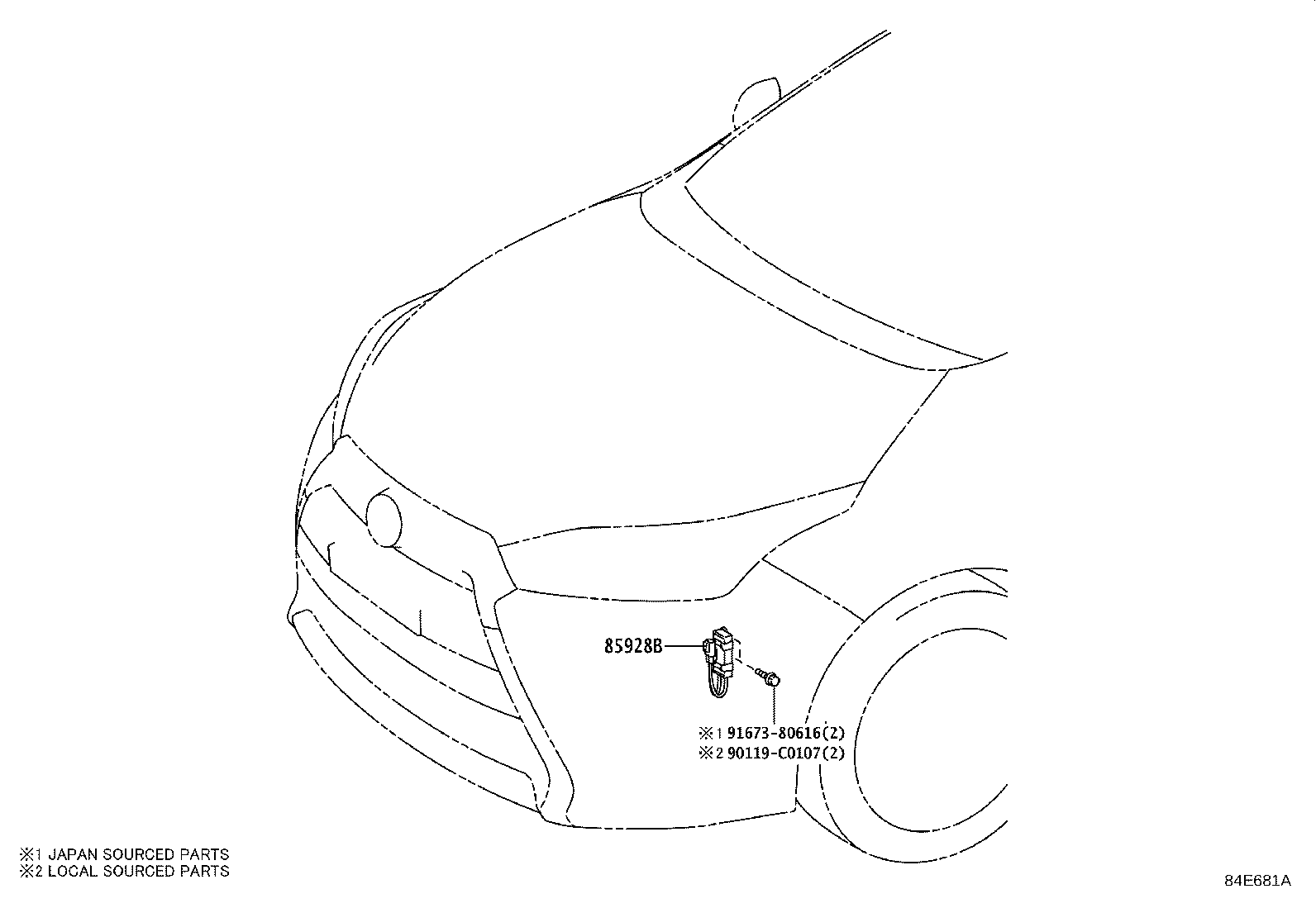

ILLUST NO. 2 OF 7(1312-1608)
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52030 |
NSP15# |
1 | ||
| 85928-52032 |
NSP15# |
1 | ||
| Common parts | ||||
| 90119-C0107 | ||||
| 91673-80616 | ||||

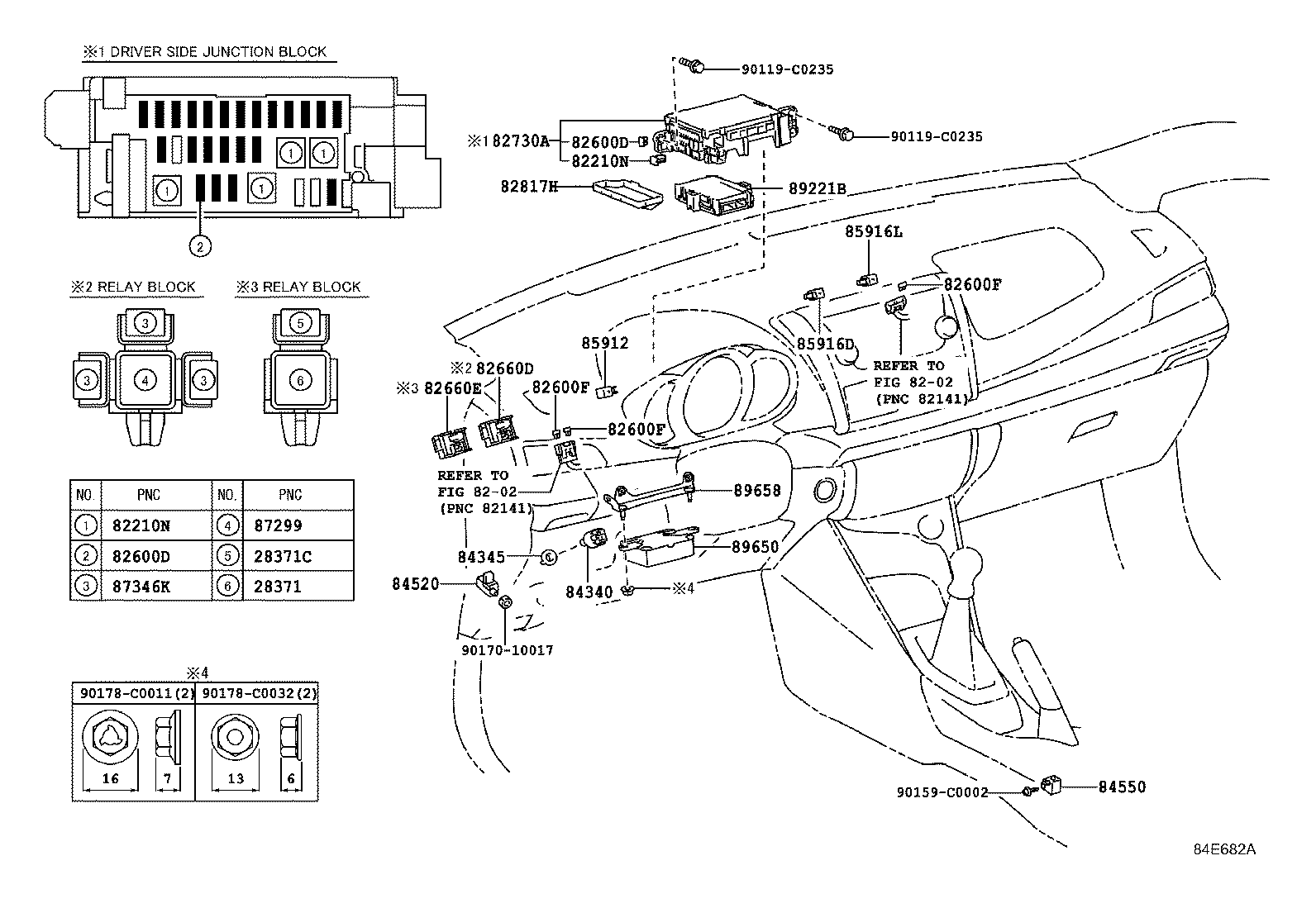

ILLUST NO. 4 OF 7(1312-1608)
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-C2001 |
7NRFE..NSP151..G |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-T2005 |
7NRFE..NSP151..G |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08294 |
NSP15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
NSP15# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08294 |
NSP15# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
NSP15# 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
NSP15# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
NSP15# 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
NSP15# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
NSP15# 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NSP15# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NSP15# 20A,MINI FUSE,YELLOW |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
NSP15# 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
NSP15# 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
NSP15# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
NSP15# 25A,MINI FUSE |
1 | ||
| 90982-09022 |
NSP15# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
NSP15# 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
NSP15# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09008 |
NSP15# 7.5A,MINI FUSE,BRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
NSP15# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09008 |
NSP15# 7.5A,MINI FUSE,BRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09007 |
NSP15# 5A,MINI FUSE,TAN |
1 | ||
| 90982-09008 |
NSP15# 7.5A,MINI FUSE,BRN |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-74010 |
NSP15# |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-74010 |
NSP151..G |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-0D571 |
NSP15# |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-0D780 |
NSP15# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09160 |
NSP15# |
1 | ||
| 84340-09151 |
NSP15# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0R010 |
NSP15# |
1 | ||
| 84345-51010 |
NSP15# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
NSP15# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-T2005 |
NSP15# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2005 |
NSP15#..G,N |
1 | ||
| 85916L - RELAY, REAR FOG LAMP | ||||
| 90987-T2005 |
NSP15# |
1 | ||
| 87299 - RELAY, HEATER | ||||
| 90987-02025 |
NSP15# (J) |
1 | ||
| 90987-T2004 |
NSP15# (L) |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02027 |
NSP15# COLD AREA SPEC,(J) |
3 | ||
| 90987-T2005 |
NSP15# COLD AREA SPEC,(L) |
3 | ||
| 89221B - COMPUTER, BODY | ||||
| 89221-0D330 |
NSP15# |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-0D410 |
NSP15# |
1 | ||
| 89658 - BRACKET, POWER STEERING COMPUTER | ||||
| 89658-0D030 |
NSP15# |
1 | ||
| Common parts | ||||
| 90119-C0235 | ||||
| 90159-C0002 | ||||
| 90170-10017 | ||||
| 90178-C0011 | ||||
| 90178-C0032 | ||||
| Linked diagrams | ||||
| 8202 | ||||

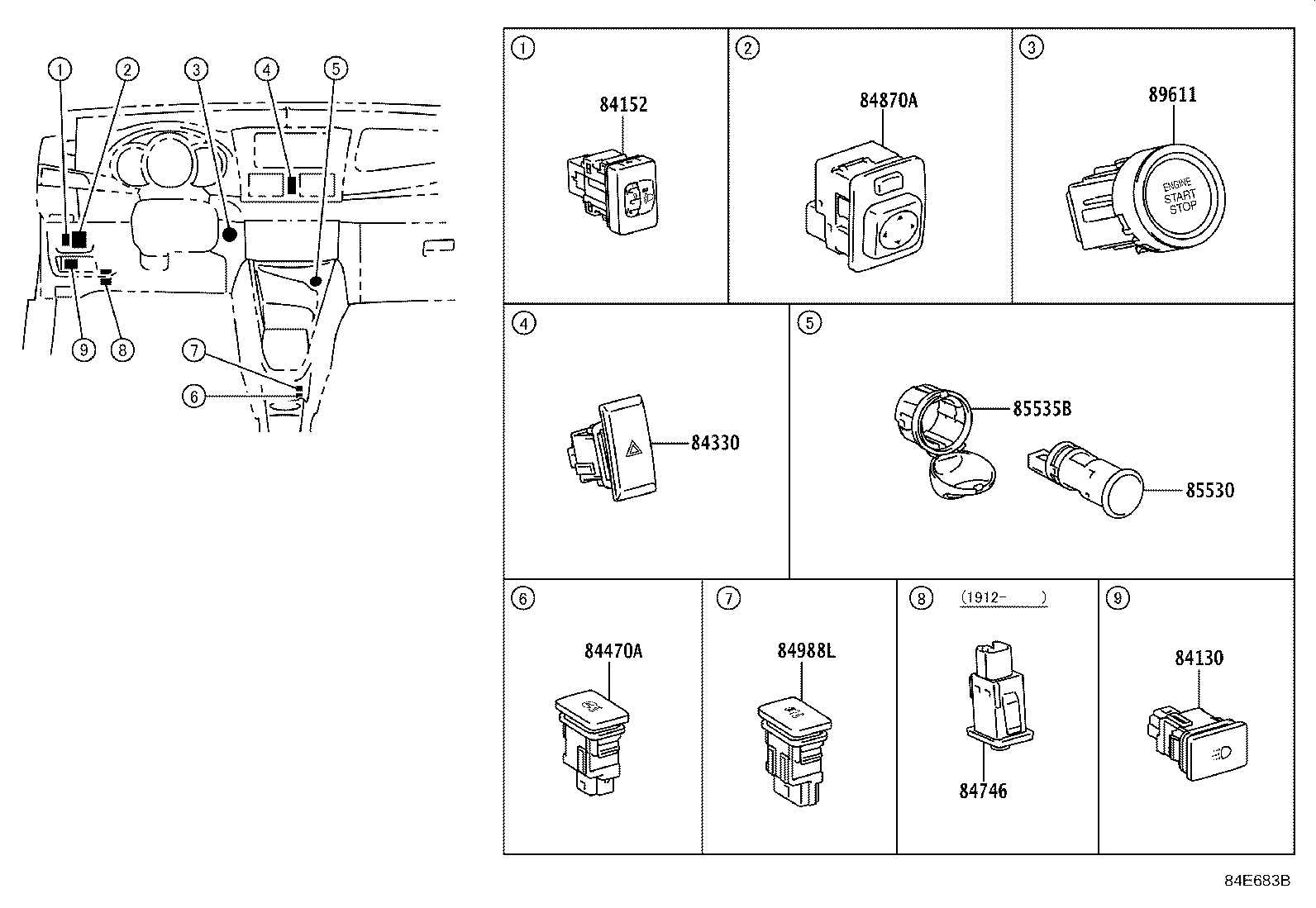

ILLUST NO. 5 OF 7(1312- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-0D051 |
NSP15# |
1 | ||
| 84152-0D050 |
NSP15# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-0D130 |
NSP15# |
1 | ||
| 84332-0D131 |
NSP15# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0D070 |
NSP15# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-06040 |
NSP15# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-0D040 |
NSP15# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-0D040 |
NSP151..G |
1 | ||
| 89611-0D041 |
NSP151..G |
1 | ||
| 89611-0D042 |
NSP151..G |
1 | ||

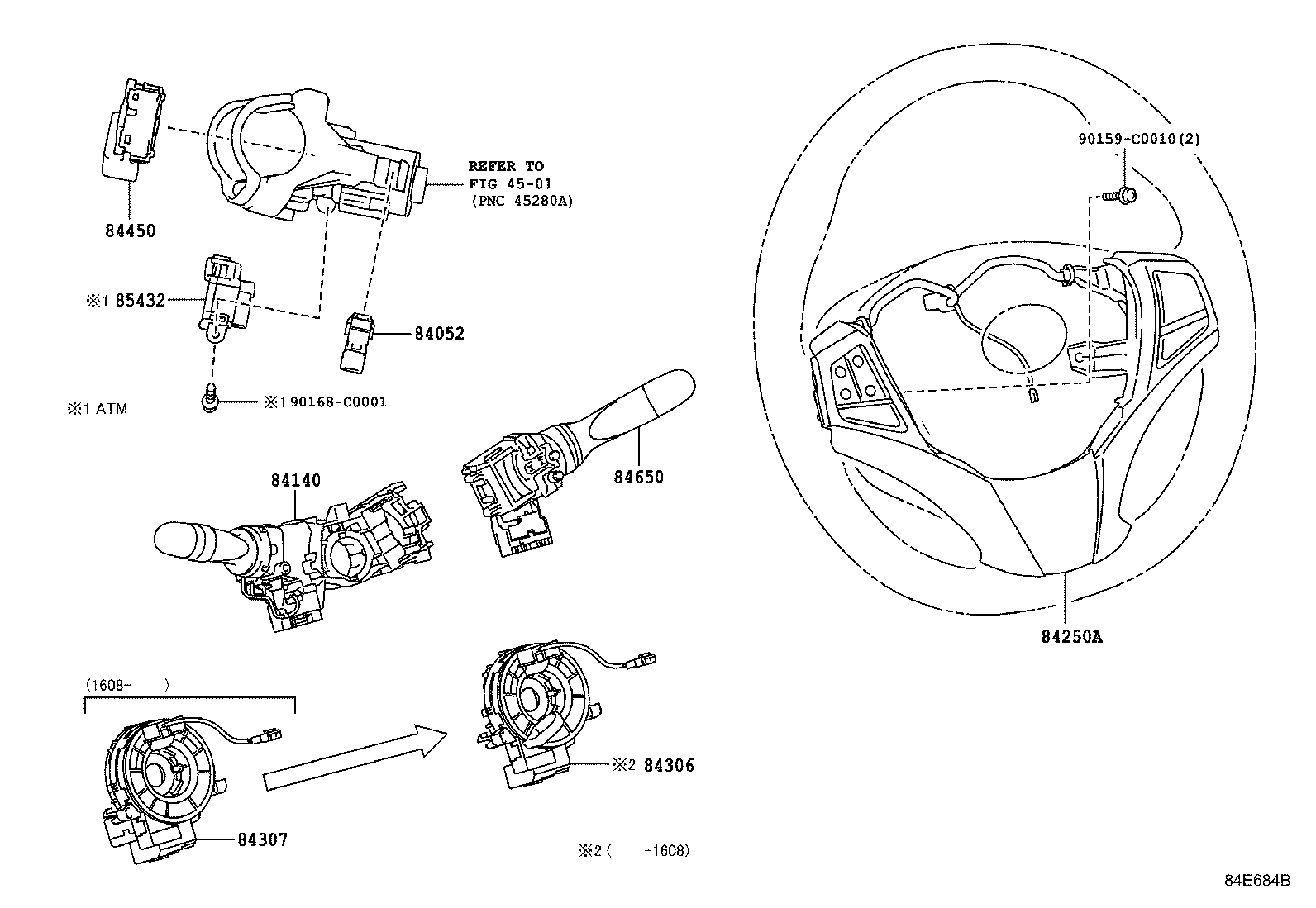

ILLUST NO. 6 OF 7(1312- )
SREERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-06010 |
NSP15#..N,R |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0D281 |
NSP15#..G,N |
1 | ||
| 84140-0D291 |
NSP15#..R |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-0D120E0 |
NSP151..G DK. BROWN,TRIM0#,2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-0N020 |
NSP151..G |
1 | ||
| 84306-0D130 |
NSP15#..N,R |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-06040 |
NSP15#..N,R |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-0D161 |
NSP15# |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-06020 |
NSP15#..4FC..(N,R) |
1 | ||
| Common parts | ||||
| 90159-C0010 | ||||
| 90168-C0001 | ||||
| Linked diagrams | ||||
| 4501 | ||||

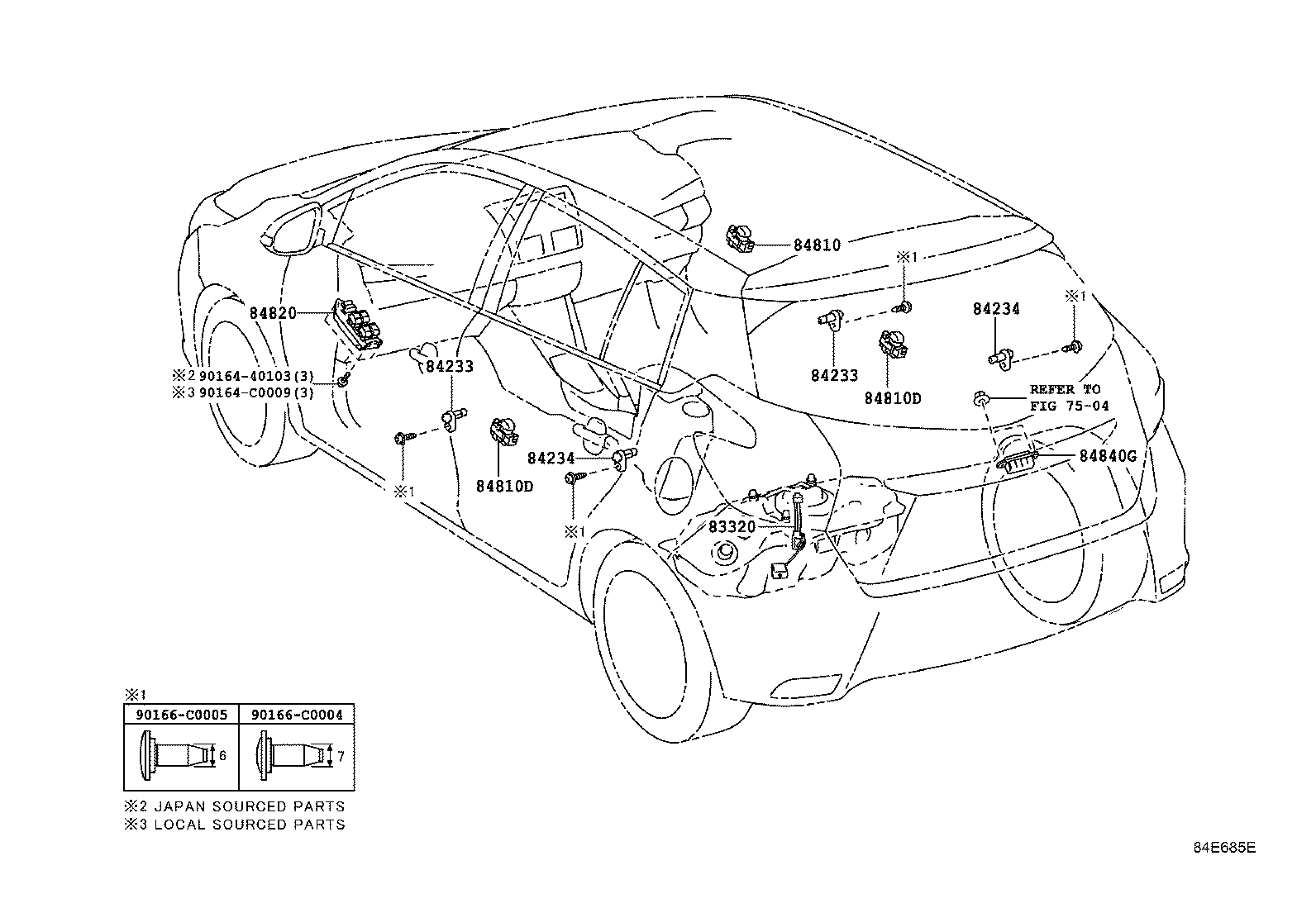

ILLUST NO. 7 OF 7(1312- )5D
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-0D140 |
NSP15# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D110 |
NSP15# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0D110 |
NSP15# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D110 |
NSP15# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0D110 |
NSP15# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-06060 |
NSP15# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-06060 |
NSP15# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-06060 |
NSP15# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-0D360 |
NSP15# |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-0D070 |
NSP151..G |
1 | ||
| 84840-06030 |
NSP15#..N,R |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90164-C0009 | ||||
| 90166-C0004 | ||||
| 90166-C0005 | ||||
| Linked diagrams | ||||
| 7504 | ||||

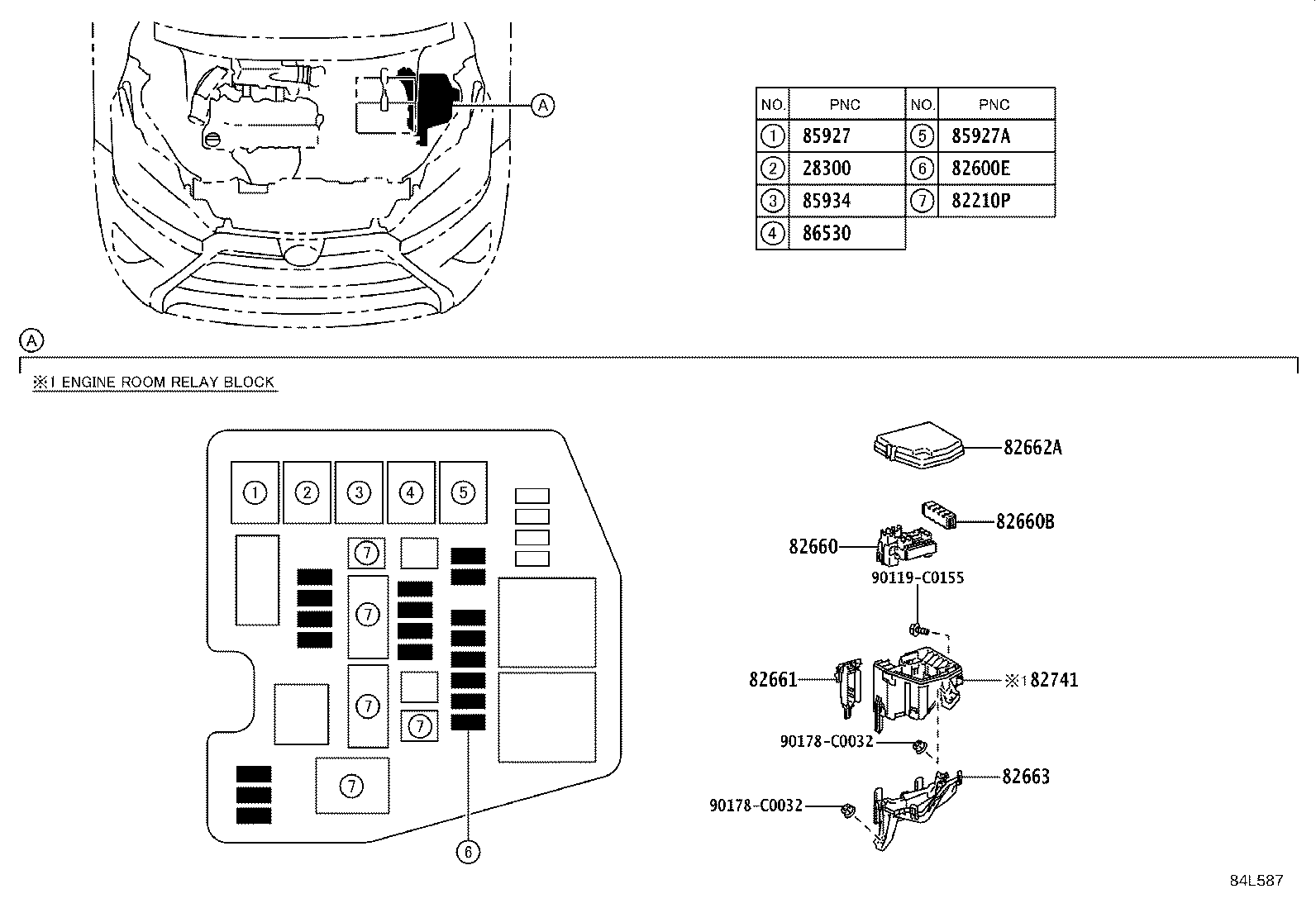

ILLUST NO. 3 OF 7(1312-1608)
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
6NRFE,7NRFE..NSP15# |
1 | ||
| 28300-28010 |
6NRFE,7NRFE..NSP15# |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08274 |
NSP15# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08302 |
NSP15# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08296 |
NSP15# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-09020 |
NSP15#..4FC 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-08295 |
NSP15# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08308 |
NSP15# 40A-30A-30A,FEMALE,COLD AREA SPEC |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09023 |
NSP15# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
NSP15# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
NSP15#..4FC 7.5A,MINI FUSE,BROWN,COLD AREA SPEC |
1 | ||
| 90982-09022 |
NSP15# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
NSP15# 25A,MINI FUSE |
1 | ||
| 90982-09021 |
NSP15# 10A,MINI FUSE,RED |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-0D040 |
NSP15# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0D050 |
NSP15# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-52050 |
NSP15# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0D240 |
NSP15# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0D080 |
NSP15# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0D090 |
NSP15# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NSP15# MARK 90987-02027 |
1 | ||
| 90987-T2005 |
NSP15# MARK 90987-T2005 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NSP15# MARK 90987-04004 |
1 | ||
| 90987-T4001 |
NSP15# MARK 90987-T4001 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
NSP15# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2005 |
NSP15# |
1 | ||
| Common parts | ||||
| 90119-C0155 | ||||
| 90178-C0032 | ||||

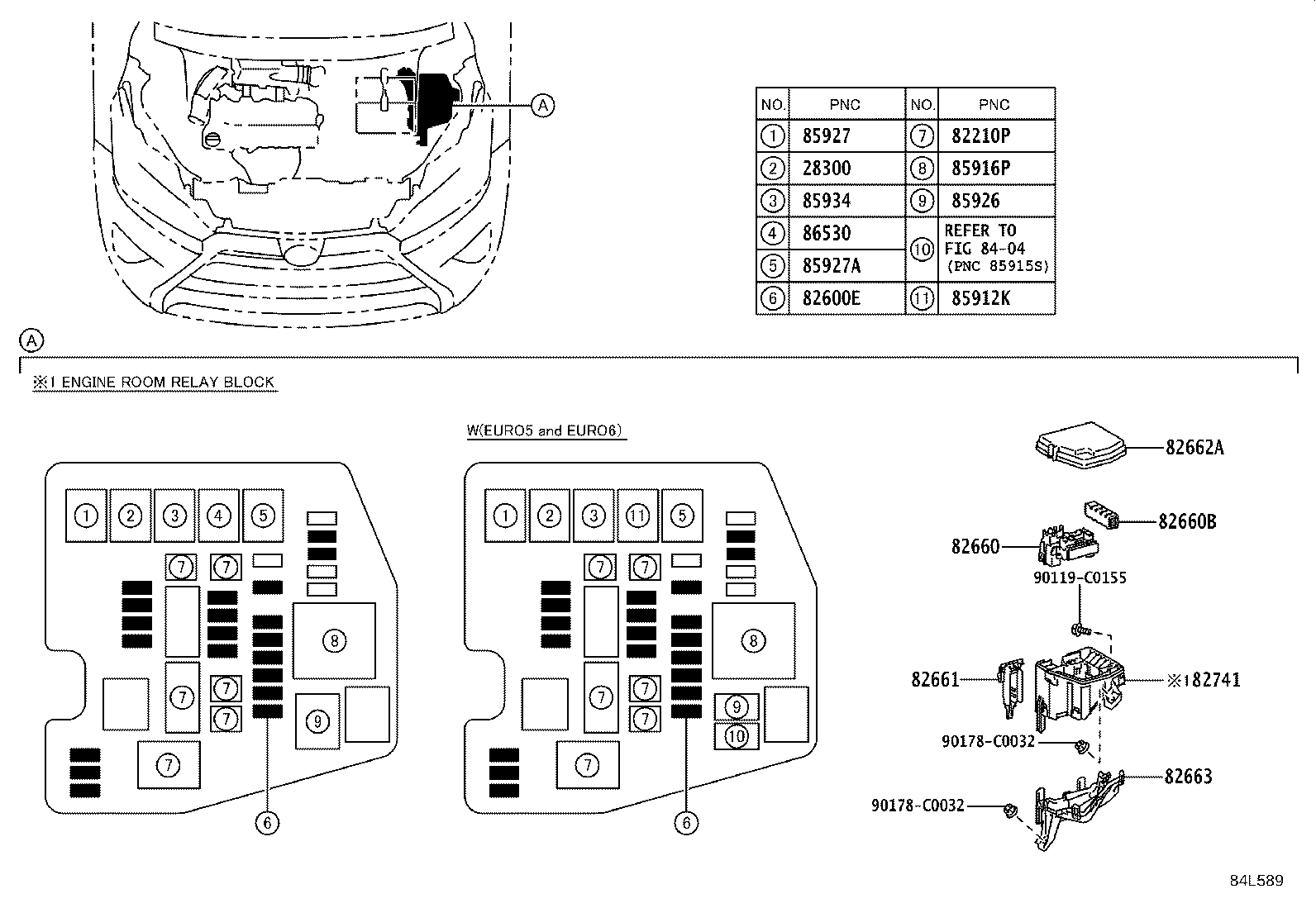

ILLUST NO. 3 OF 7(1712-2101)
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
6NRFE,7NRFE..NSP15# |
1 | ||
| 28300-28010 |
6NRFE,7NRFE..NSP15# |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08274 |
NSP15# 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08302 |
NSP15# 50A-30A-50A,FEMALE |
1 | ||
| 90982-08296 |
NSP15# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-09020 |
NSP15#..4FC 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-08295 |
NSP15# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08308 |
NSP15# 40A-30A-30A,FEMALE,COLD AREA SPEC |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09023 |
NSP15# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
NSP15# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
NSP15#..4FC 7.5A,MINI FUSE,BROWN,COLD AREA SPEC |
1 | ||
| 90982-09022 |
NSP15# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
NSP15# 25A,MINI FUSE |
1 | ||
| 90982-09021 |
NSP15# 10A,MINI FUSE,RED |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-0D040 |
NSP15# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0D050 |
NSP15# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-52050 |
NSP15# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-0D240 |
NSP15# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-0D080 |
NSP15# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-0D090 |
NSP15# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NSP15# MARK 90987-02027 |
1 | ||
| 90987-T2005 |
NSP15# MARK 90987-T2005 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NSP15# MARK 90987-04004 |
1 | ||
| 90987-T4001 |
NSP15# MARK 90987-T4001 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
NSP15# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2005 |
NSP15# |
1 | ||
| Common parts | ||||
| 90119-C0155 | ||||
| 90178-C0032 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
