NSP151L-AHPGKC (2013)

Toyota Yaris (China)

Production Dec 2013 - Aug 2016
Engine 7NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1608)

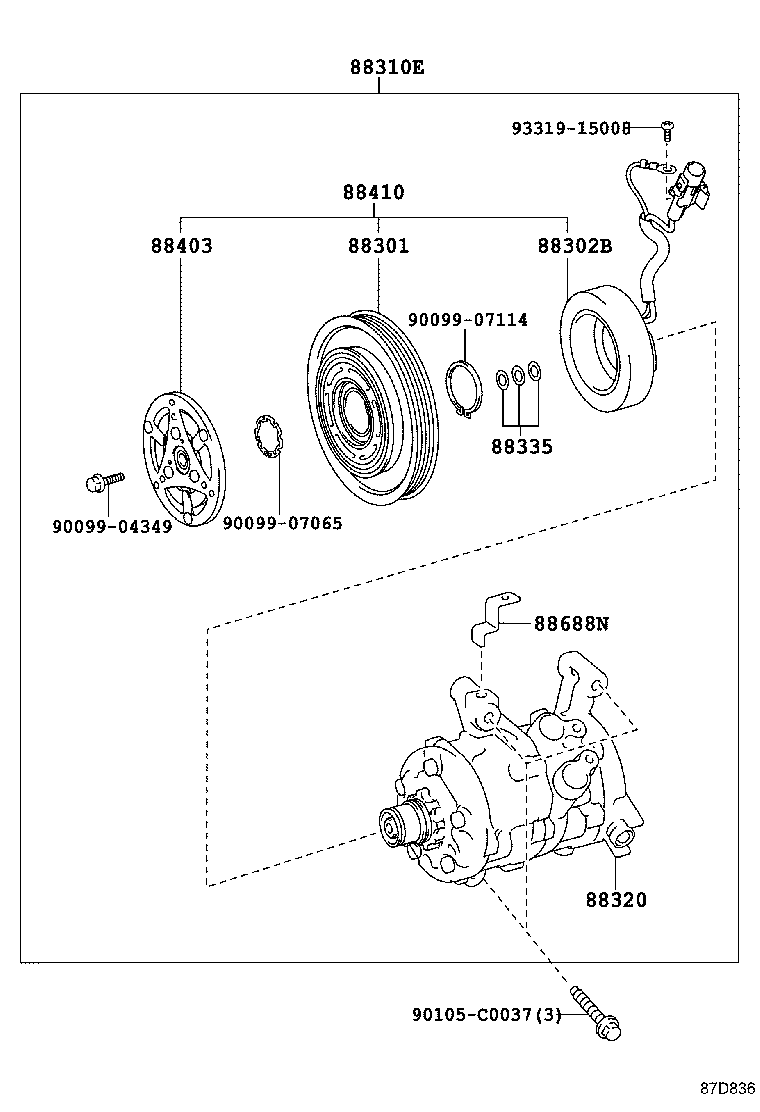

Click highlighted areas on diagram

diagram 88301 88302B 88310E 88320 88335 88403 88410 88688N 9009904349 9009907065 9009907114 90105C0037 9331915008
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-0D190

NSP151;NSP150..5F

 1
88302B - STATOR, MAGNET CLUTCH
88411-0D160

NSP151;NSP150..5F

 1
88310E - COMPRESSOR, W/MAGNET CLUTCH
88310-0D510

NSP151;NSP150..5F

 1
88320 - COMPRESSOR ASSY, COOLER
88320-0D090

NSP15#

 1
88335 - GASKET KIT, OVERHAUL
88335-14020

NSP15#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-0D090

NSP151;NSP150..5F

 1
88410 - CLUTCH ASSY, MAGNET
88410-0D300

NSP151;NSP150..5F

 1
88688N - BRACKET, COOLER
88849-0D010

NSP15#

 1
Common parts
90099-04349
90099-07065
90099-07114
90105-C0037
93319-15008
