NSP151L-AHPGKC (2013)

Toyota Yaris (China)

Production Dec 2013 - Aug 2016
Engine 7NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1312- )

Click highlighted areas on diagram

diagram 86120 86120 86120A 86120A 86211 86212 90153C0001 90153C0001 90159C0022 90159C0022 90159C0022 90159C0022
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-0D760

NSP15#..R

PIONEER,ID=P10405

 1
86120-0D750

NSP151..G

PANASONIC,ID=528CO,NAVI(ACCESSORY)PACKAGE

 1
86120-0D750

NSP15#..G,N

PANASONIC,ID=528CO

 1
86120 - RECEIVER ASSY, RADIO
86120-0D760

NSP15#..R

PIONEER,ID=P10405

 1
86120-0D750

NSP151..G

PANASONIC,ID=528CO,NAVI(ACCESSORY)PACKAGE

 1
86120-0D750

NSP15#..G,N

PANASONIC,ID=528CO

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90011-25229

NSP151..G

NAVI(ACCESSORY)PACKAGE

 2
90011-25229

NSP15#..G,N

 2
90011-25230

NSP15#..R

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90011-25229

NSP151..G

NAVI(ACCESSORY)PACKAGE

 2
90011-25229

NSP15#..G,N

 2
90011-25230

NSP15#..R

 2
86211 - BRACKET, RADIO, NO.1
86211-0D180

NSP15#

 1
86212 - BRACKET, RADIO, NO.2
86212-0D180

NSP15#

 1
Common parts
90153-C0001
90159-C0022

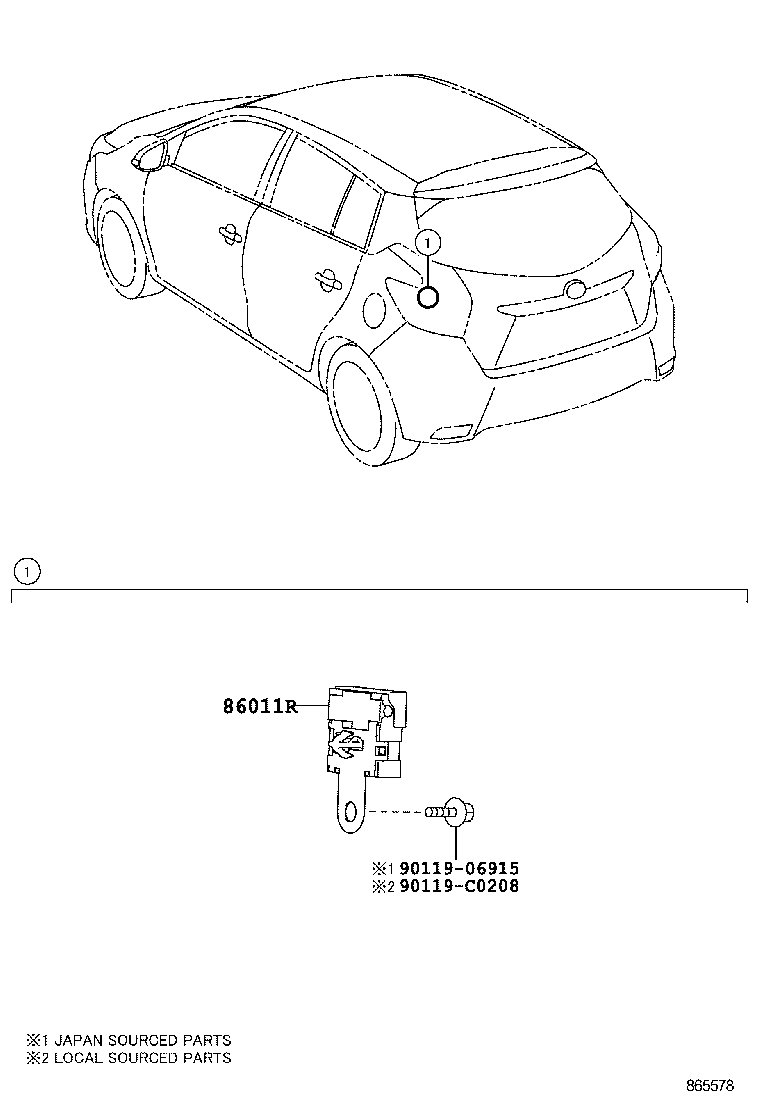

ILLUST NO. 2 OF 2(1312- )5D

Click highlighted areas on diagram

CONDENSER

diagram 86011R 9011906915 90119C0208
Part # Description Qty Price
86011R - CONDENSER, RADIO SETTING
90980-04189

NSP15#

 1
Common parts
90119-06915
90119-C0208
