NSP151L-AHPGKC (2013)

Toyota Yaris (China)

Production Dec 2013 - Aug 2016
Engine 7NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )5D..N,R

Click highlighted areas on diagram

W/O(SMART KEY)

diagram 89741 90119C0208
Part # Description Qty Price
89741 - RECEIVER, DOOR CONTROL
89741-0D180

NSP15#..N,R

 1
89741-0D181

NSP15#..N,R

 1
Common parts
90119-C0208

(1312- )5D..G

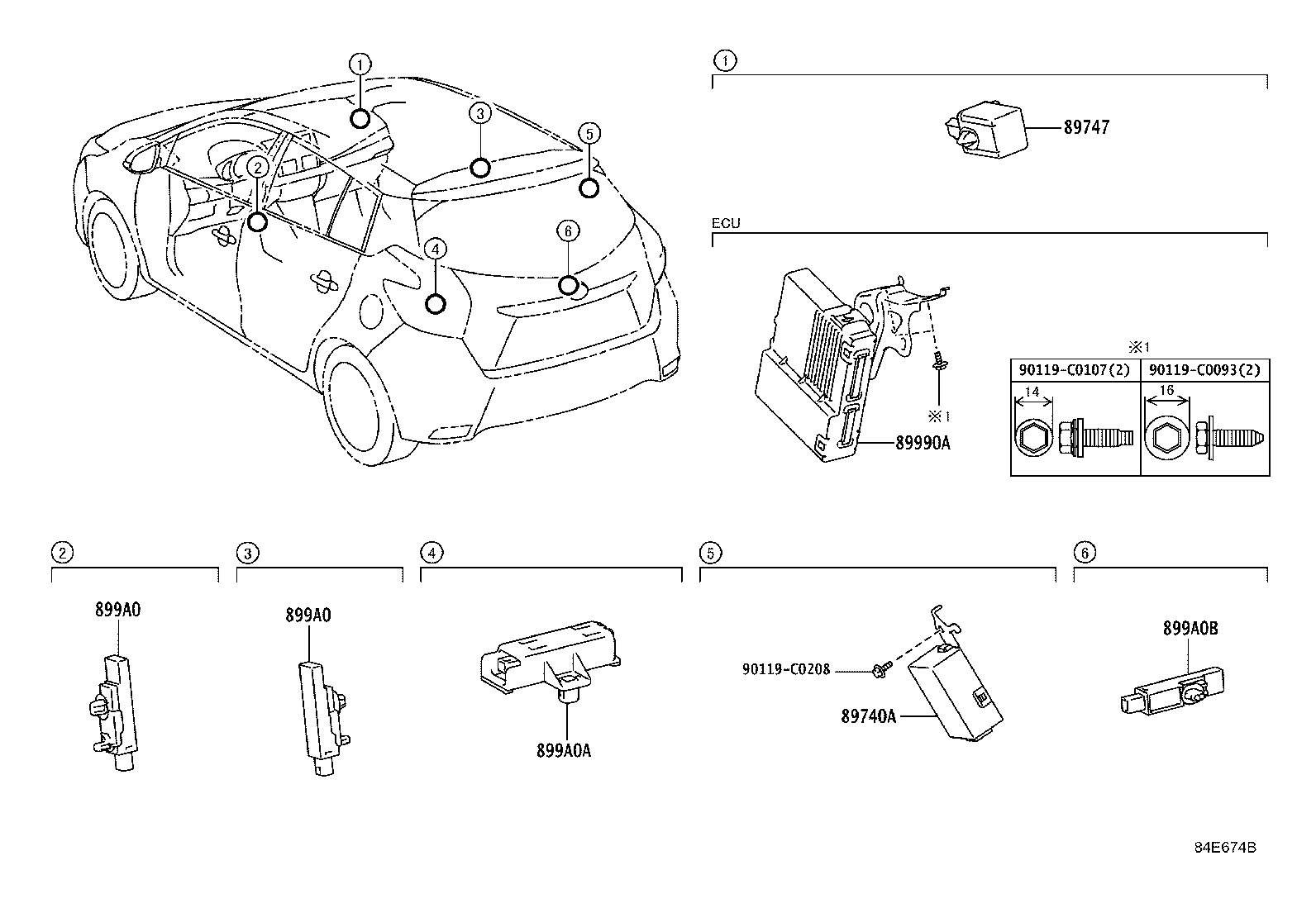

Click highlighted areas on diagram

W(SMART KEY)

diagram 89740A 89747 89990A 899A0 899A0 899A0A 899A0B 90119C0093 90119C0107 90119C0208
Part # Description Qty Price
89740A - RECEIVER ASSY, SMART DOOR CONTROL
89740-0D160

NSP151..G

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-0E020

NSP151..G

 1
89990A - COMPUTER ASSY, SMART KEY
89990-0D120

NSP151..G

 1
89990-0D121

NSP151..G

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-0D150

NSP151..G

 2
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-0D150

NSP151..G

 2
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-0D160

NSP151..G

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-0D180

NSP151..G

 1
Common parts
90119-C0093
90119-C0107
90119-C0208
