NSP151L-AHPGKC (2013)

Toyota Yaris (China)

Production Dec 2013 - Aug 2016
Engine 7NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )

Click highlighted areas on diagram

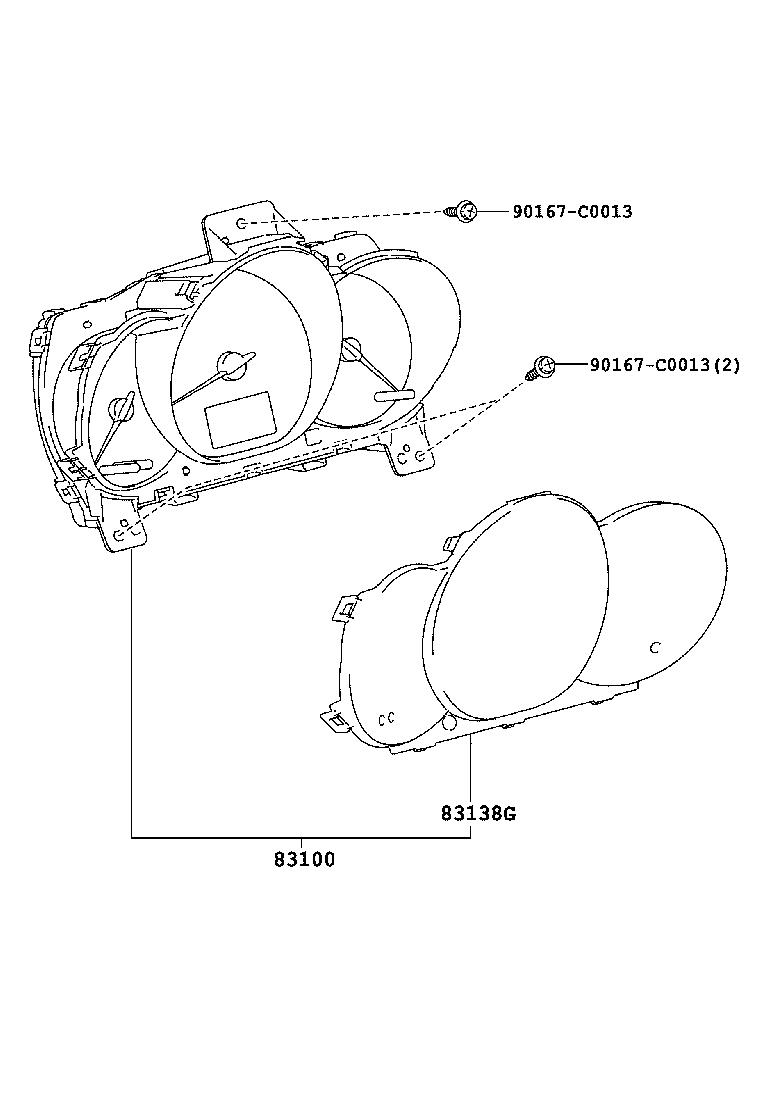

diagram 83100 83138G 90167C0013 90167C0013
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-0UF70

NSP151..4FC..N

TWO TONE-ORANGE PACKAGE

 1
83800-0UF80

NSP151..G

TWO TONE PACKAGE

 1
83800-0UF70

NSP151..4FC..N

TWO TONE PACKAGE

 1
83800-0DX10

NSP151..G

 1
83800-0DX40

NSP15#..4FC..(N,R)

 1
83138G - GLASS, COMBINATION METER
83852-0DU20

NSP15#

 1
Common parts
90167-C0013
