NSP151L-AHPGKC (2013)
Toyota Yaris (China)

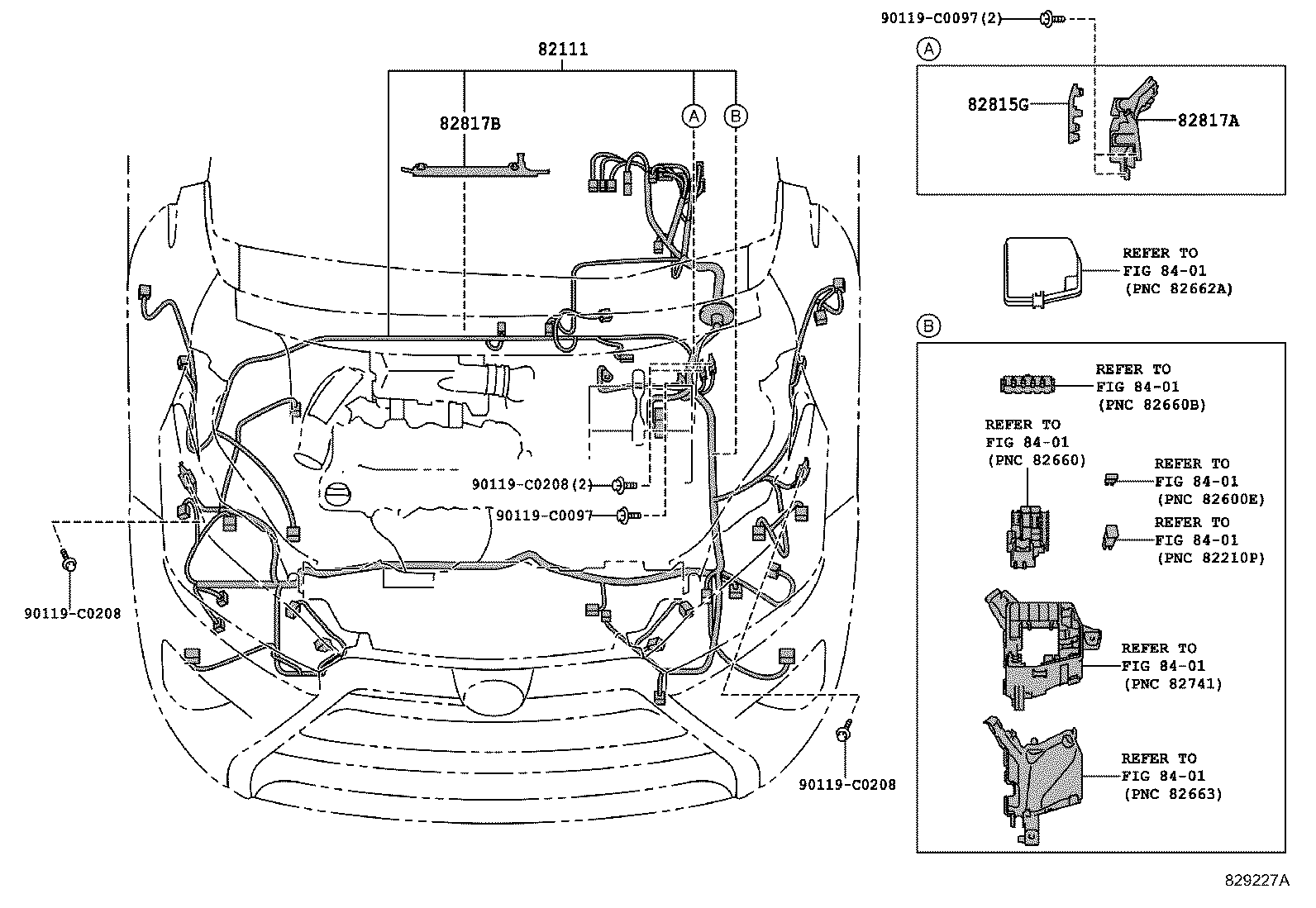

ILLUST NO. 1 OF 7(1312-1608)
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-0U570 |
NSP15#..4FC |
1 | ||
| 82111-0U580 |
NSP15#..4FC COLD AREA SPEC |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-0D230 |
NSP15# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-0D520 |
NSP15# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-0D530 |
NSP15# |
1 | ||
| Common parts | ||||
| 90119-C0097 | ||||
| 90119-C0208 | ||||
| Linked diagrams | ||||
| 8401 | ||||

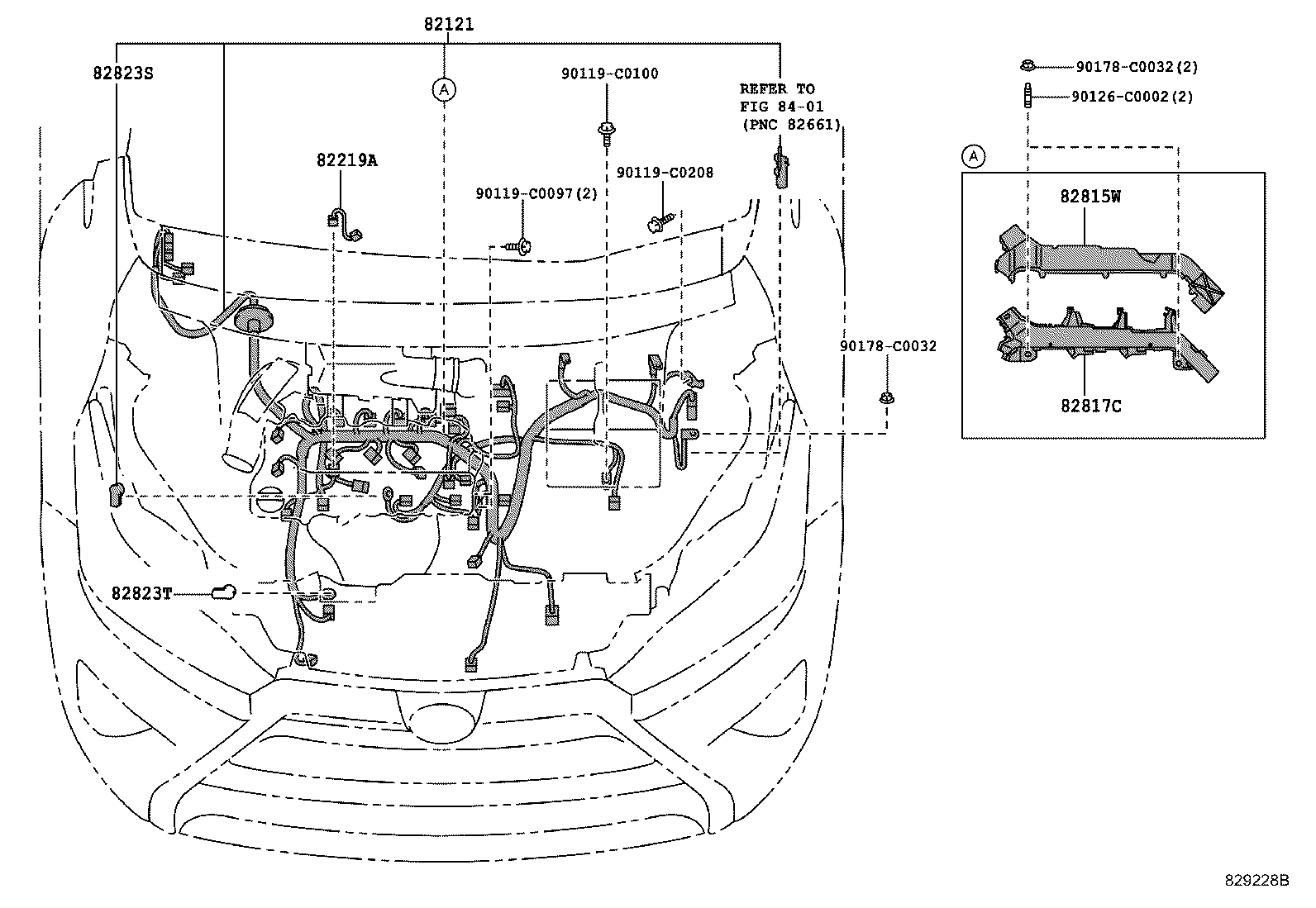

ILLUST NO. 2 OF 7(1312-1608)
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0DK20 |
NSP15#..4FC |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-0D100 |
NSP15# |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-52230 |
NSP15# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-52B80 |
NSP15# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20080 |
NSP15# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NSP15# |
1 | ||
| Common parts | ||||
| 90119-C0097 | ||||
| 90119-C0100 | ||||
| 90119-C0208 | ||||
| 90126-C0002 | ||||
| 90178-C0032 | ||||
| Linked diagrams | ||||
| 8401 | ||||

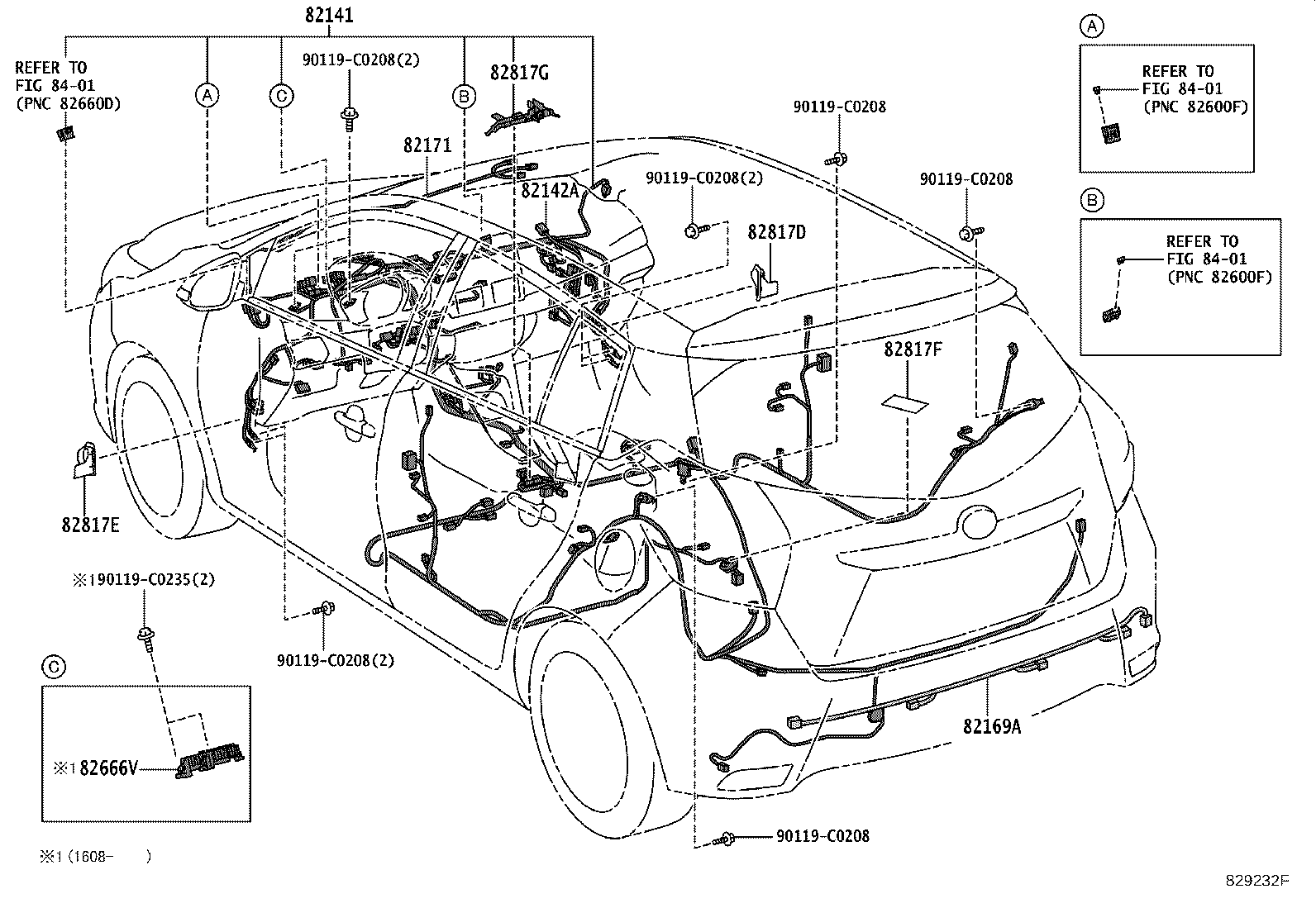

ILLUST NO. 3 OF 7(1312- )5D
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-0DP20 |
NSP151..G |
1 | ||
| 82145-0DP00 |
NSP15#..4FC..N |
1 | ||
| 82145-0DP50 |
NSP151..G COLD AREA SPEC |
1 | ||
| 82145-0DP40 |
NSP15#..4FC..N COLD AREA SPEC |
1 | ||
| 82145-0DP10 |
NSP15#..4FC..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 82145-0DP30 |
NSP15#..4FC..R COLD AREA SPEC |
1 | ||
| 82145-0DN90 |
NSP15#..4FC..R |
1 | ||
| 82145-0DP40 |
NSP15#..4FC..N COLD AREA SPEC&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-0D020 |
NSP15# |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0D280 |
NSP15#..N,R |
1 | ||
| 82171-0D290 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 82171-0D290 |
NSP151..G |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-0D630 |
NSP15# |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-0D640 |
NSP15# |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-52710 |
NSP15# |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-0D690 |
NSP15# |
1 | ||
| Common parts | ||||
| 90119-C0208 | ||||
| 90119-C0235 | ||||
| Linked diagrams | ||||
| 8401 | ||||

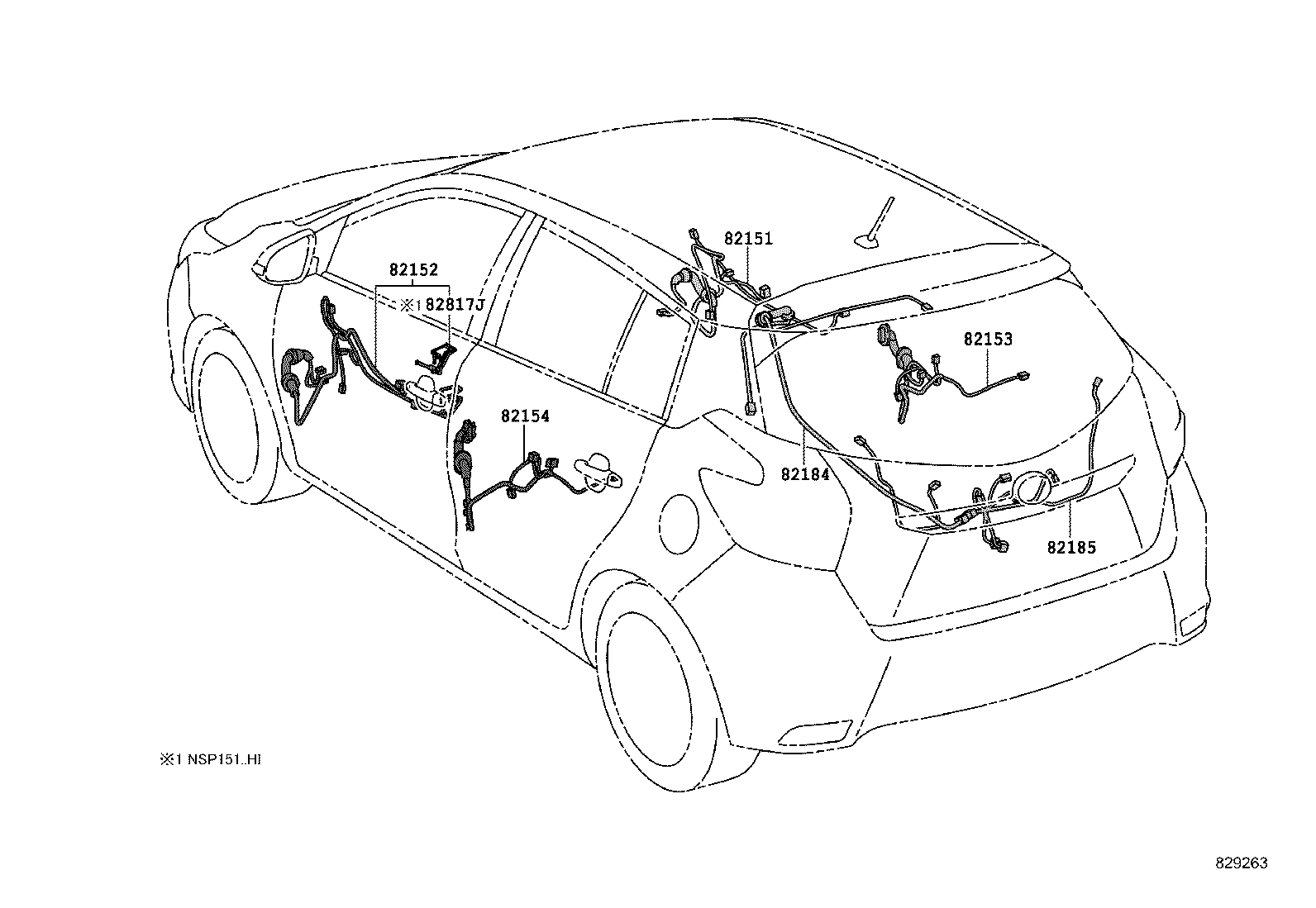

ILLUST NO. 5 OF 7(1312- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0DJ00 |
NSP151..G |
1 | ||
| 82151-0DG90 |
NSP15#..N,R |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0DG80 |
NSP15#..N,R |
1 | ||
| 82152-0DG90 |
NSP151..G |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-0D470 |
NSP15#..R |
1 | ||
| 82153-0D460 |
NSP15#..N |
1 | ||
| 82153-0D480 |
NSP151..G |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-0D330 |
NSP15#..N |
1 | ||
| 82154-0D350 |
NSP151..G |
1 | ||
| 82154-0D340 |
NSP15#..R |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-0D270 |
NSP151..G |
1 | ||
| 82184-0D260 |
NSP15#..N,R |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-0D350 |
NSP151..G |
1 | ||
| 82185-0D340 |
NSP15#..N,R |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-0D570 |
NSP151..G |
1 | ||

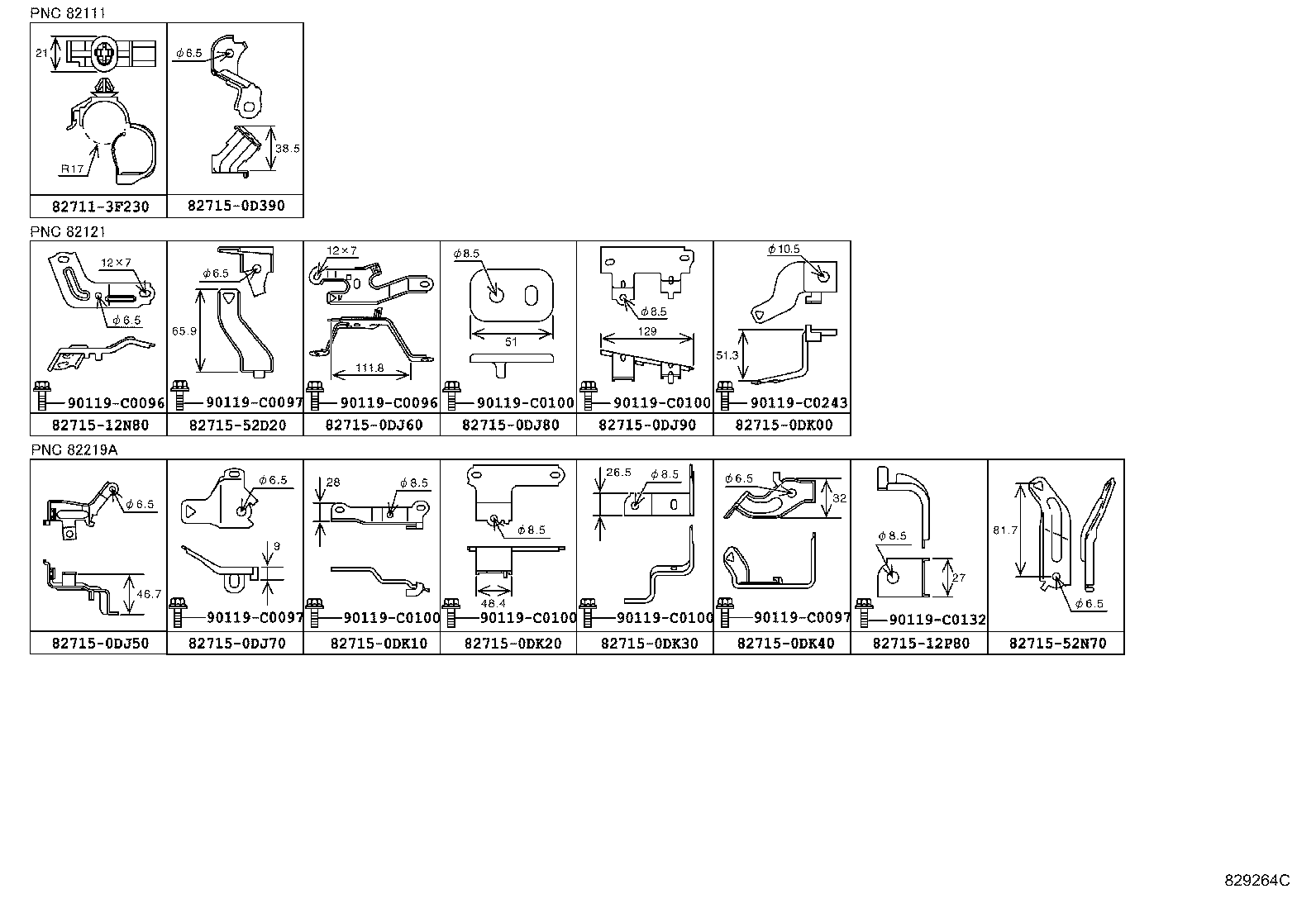

ILLUST NO. 6 OF 7(1312-1608)
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-3F230 | ||||
| 82715-0D390 | ||||
| 82715-0DJ50 | ||||
| 82715-0DJ60 | ||||
| 82715-0DJ70 | ||||
| 82715-0DJ80 | ||||
| 82715-0DJ90 | ||||
| 82715-0DK00 | ||||
| 82715-0DK10 | ||||
| 82715-0DK20 | ||||
| 82715-0DK30 | ||||
| 82715-0DK40 | ||||
| 82715-12N80 | ||||
| 82715-12P80 | ||||
| 82715-52D20 | ||||
| 82715-52N70 | ||||
| 90119-C0096 | ||||
| 90119-C0097 | ||||
| 90119-C0100 | ||||
| 90119-C0132 | ||||
| 90119-C0243 | ||||

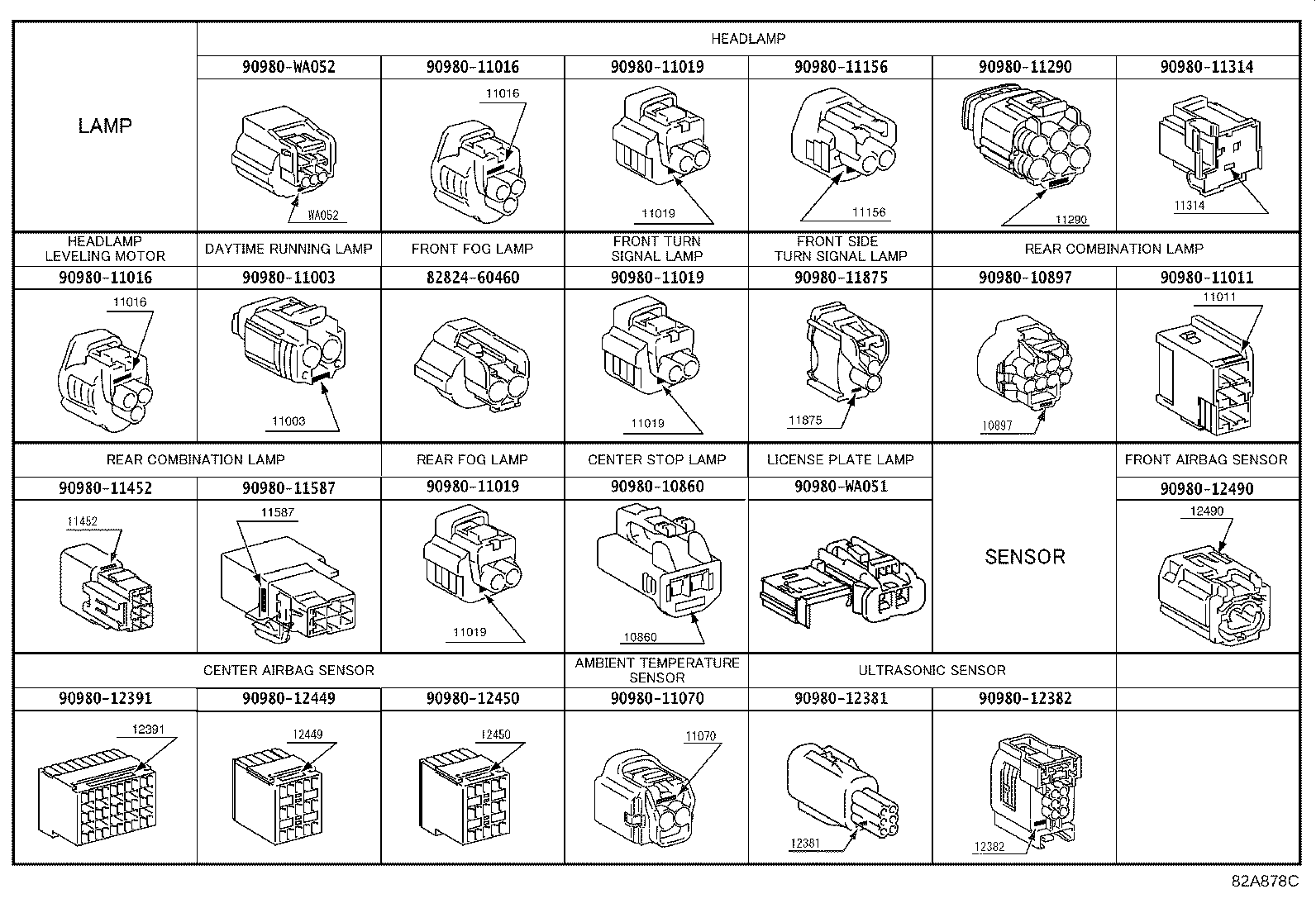

ILLUST NO. 7 OF 7(1312- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10860 | ||||
| 90980-10897 | ||||
| 90980-11003 | ||||
| 90980-11011 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11070 | ||||
| 90980-11156 | ||||
| 90980-11290 | ||||
| 90980-11314 | ||||
| 90980-11452 | ||||
| 90980-11587 | ||||
| 90980-11875 | ||||
| 90980-12381 | ||||
| 90980-12382 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-WA051 | ||||
| 90980-WA052 | ||||

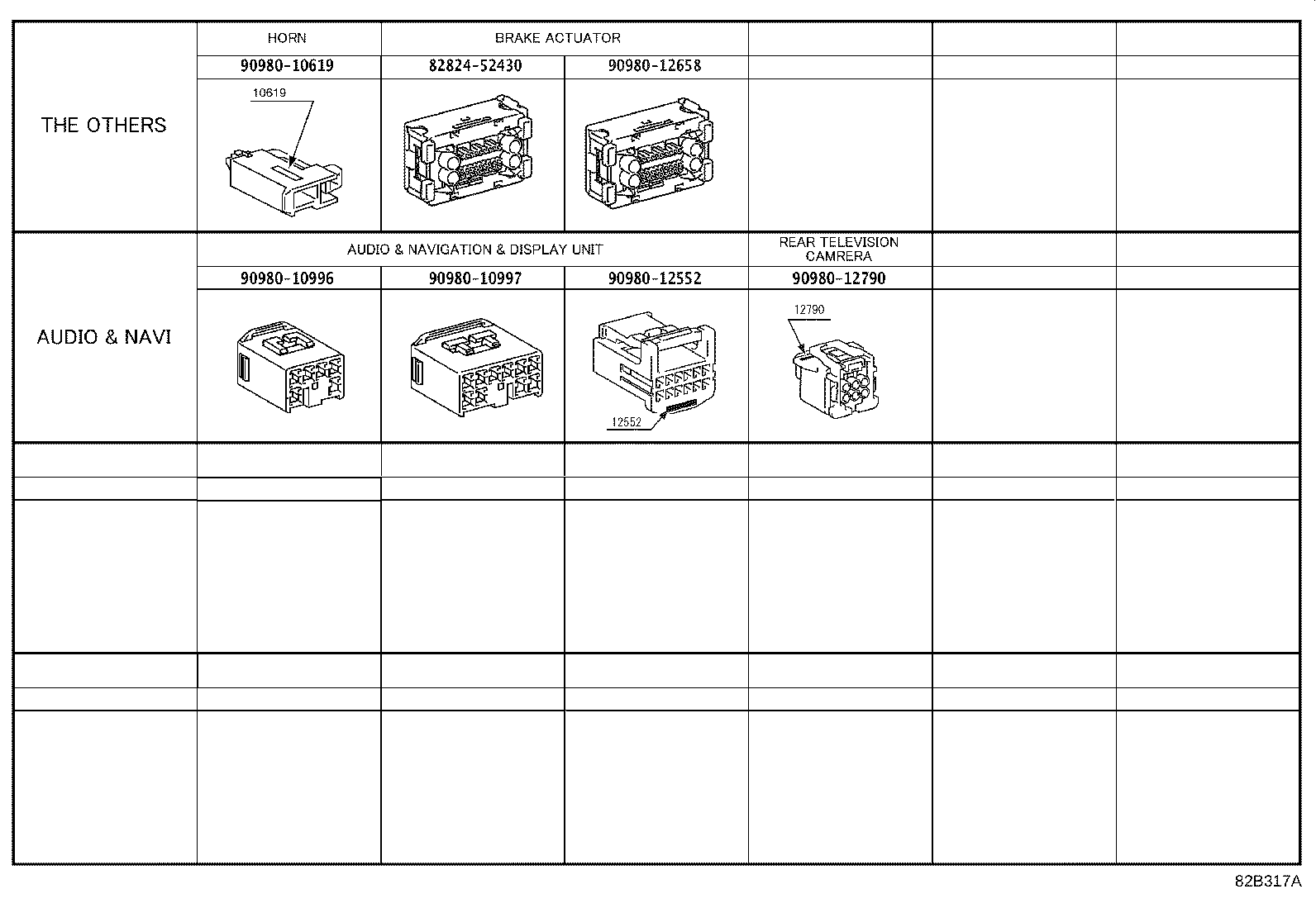

ILLUST NO. 7 OF 7(1312- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52430 | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12552 | ||||
| 90980-12658 | ||||
| 90980-12790 | ||||
