NSP151L-AHPGKC (2013)

Toyota Yaris (China)

Production Dec 2013 - Aug 2016
Engine 7NRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )5D ; (1703- )4D

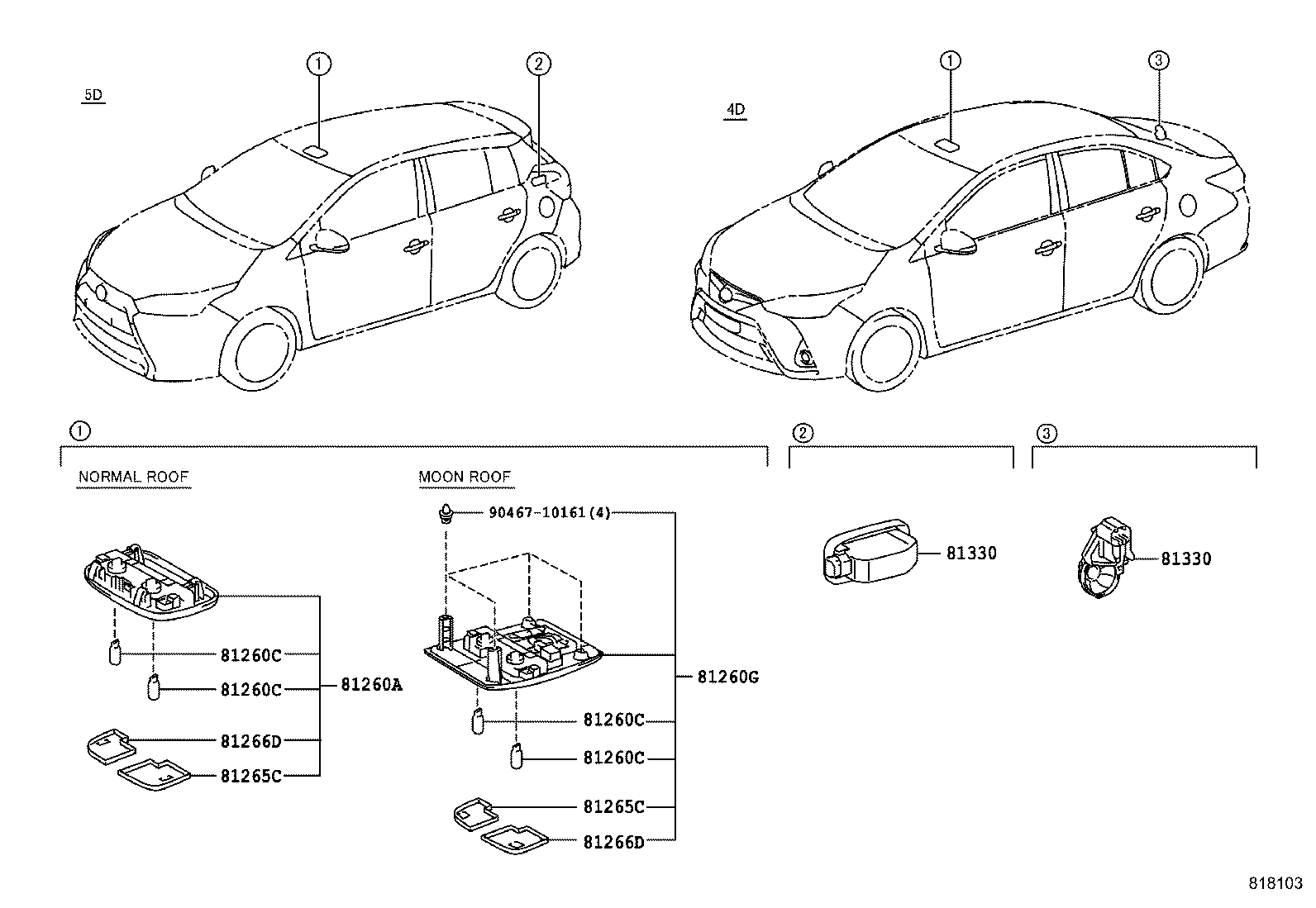

Click highlighted areas on diagram

diagram 81260A 81260C 81260C 81260C 81260C 81260G 81265C 81265C 81266D 81266D 81330 81330 9046710161
Part # Description Qty Price
81260A - LAMP ASSY, MAP
81260-0D180A0

NSP15#..N,R

IVORY,TRIM0#

 1
81260-0D180B0

NSP15#..N,R

GRAY,TRIM2#

 1
81260C - BULB(FOR MAP LAMP)
90981-11062

NSP15#

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

NSP15#

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

NSP15#

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

NSP15#

12V 8W

 2
81260G - LAMP ASSY, MAP, NO.2
81260-0D190A0

NSP15#..N

MOON ROOF-WITH(TILT & SLIDE),IVORY,TRIM0#

 1
81260-0D190A0

NSP151..G

IVORY,TRIM0#

 1
81260-0D190B0

NSP15#..N

MOON ROOF-WITH(TILT & SLIDE),GRAY,TRIM2#

 1
81260-0D190B0

NSP151..G

GRAY,TRIM2#

 1
81265C - LENS, MAP LAMP, NO.1
81265-0D180

NSP15#

 1
81265C - LENS, MAP LAMP, NO.1
81265-0D180

NSP15#

 1
81266D - LENS, MAP LAMP, NO.2
81266-0D180

NSP15#

 1
81266D - LENS, MAP LAMP, NO.2
81266-0D180

NSP15#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-0D100

NSP15#

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-0D100

NSP15#

 1
Common parts
90467-10161
