NSP151L-AHPGKC (2013)
Toyota Yaris (China)
Production
Dec 2013
-
Aug 2016
Engine
7NRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 3(1312- )
Click highlighted areas on diagram

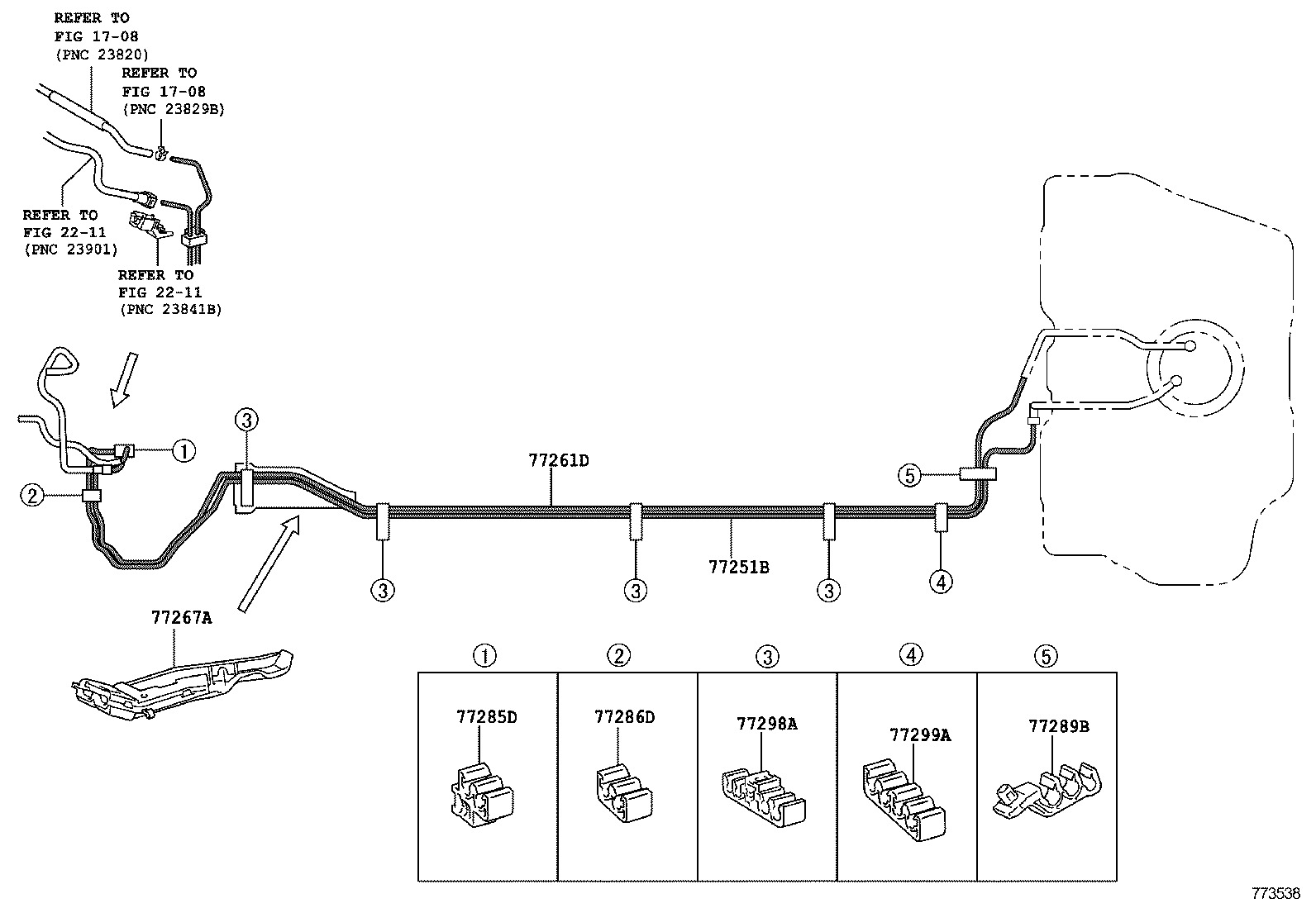

FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0D390 |
NSP15# |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-0D330 |
NSP15# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-0D090 |
NSP15# |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0D170 |
NSP15# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0D140 |
NSP15# |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-0D110 |
NSP15# |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-0D130 |
NSP15# |
4 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-0D100 |
NSP15# |
1 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 3 OF 3(1312- )5D
Click highlighted areas on diagram

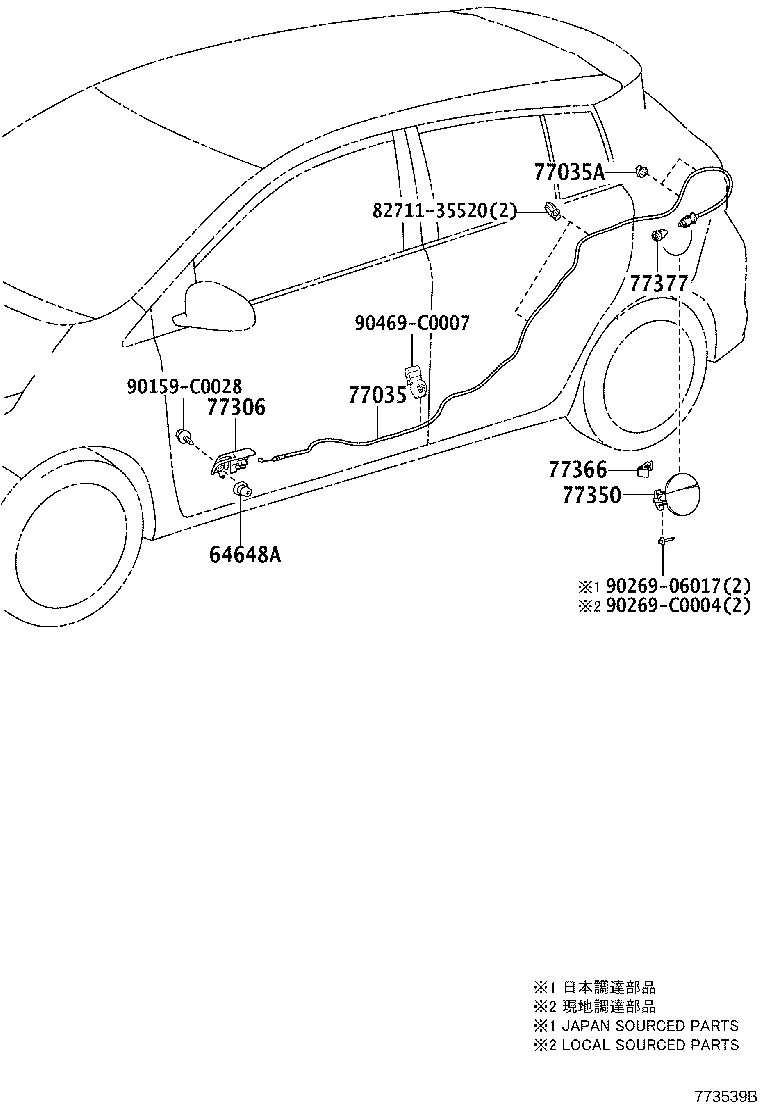

FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64648A - GROMMET, LUGGAGE DOOR LOCK OPENER | ||||
| 64648-32020 |
NSP15# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0D350 |
NSP15# |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-06005 |
NSP15# |
2 | ||
| 90469-C0008 |
NSP15# |
2 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0D060 |
NSP15# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-0D130 |
NSP15# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-52011 |
NSP15# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0D090 |
NSP15# |
1 | ||
| Common parts | ||||
| 82711-35520 | ||||
| 90159-C0028 | ||||
| 90269-06017 | ||||
| 90269-C0004 | ||||
| 90469-C0007 | ||||
ILLUST NO. 1 OF 3(1312- )
Click highlighted areas on diagram

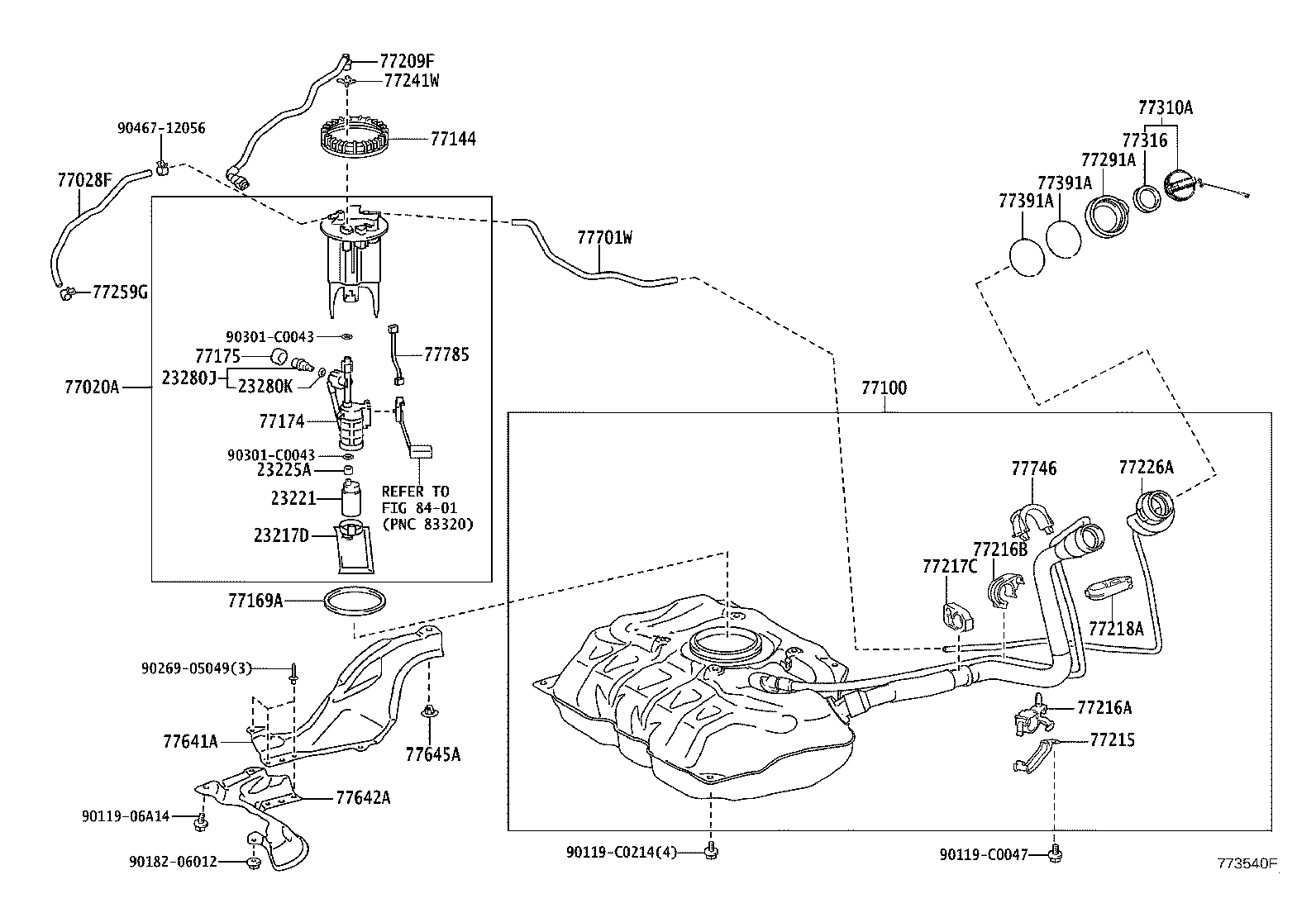

FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-0Y030 |
6NRFE,7NRFE..NSP15# |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-0Y010 |
6NRFE,7NRFE..NSP15# |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-0H020 |
6NRFE,7NRFE..NSP15# |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-22010 |
6NRFE,7NRFE..NSP15# |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
6NRFE,7NRFE..NSP15# |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-0D180 |
NSP15# |
1 | ||
| 77028F - TUBE SUB-ASSY, FUEL EMISSION, NO.2 | ||||
| 77028-0D150 |
NSP15# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0D240 |
NSP15# |
1 | ||
| 77001-0D241 |
NSP15# |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0D050 |
NSP15# |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0D110 |
NSP15# |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-0D090 |
NSP15# |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-0D040 |
NSP15# |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0D180 |
NSP15# |
1 | ||
| 77215 - PLATE, FUEL TANK FILLER PIPE FLANGE | ||||
| 77219-0D060 |
NSP15# |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-0D120 |
NSP15# |
1 | ||
| 77216B - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77216-0D130 |
NSP15# |
1 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-0D110 |
NSP15# |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-0D040 |
NSP15# |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-0D051 |
NSP15# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
NSP15# |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90466-C0037 |
NSP15# |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-0D150 |
NSP15# |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-02030 |
NSP15# |
1 | ||
| 77300-0F010 |
NSP15# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-0F020 |
NSP15# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NSP15# |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NSP15# |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-0D110 |
NSP15# |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-0D110 |
NSP15# |
1 | ||
| 77645A - RETAINER, FUEL TANK PROTECTOR | ||||
| 77645-0D050 |
NSP15# |
1 | ||
| 77701W - HOSE SUB-ASSY, CANISTER OUTLET, NO.1 | ||||
| 77701-0D100 |
NSP15# |
1 | ||
| 77746 - FILTER, CHARCOAL CANISTER, NO.2 | ||||
| 77746-0D040 |
NSP15# MARK 77746-0D040 |
1 | ||
| 77746-52020 |
NSP15# MARK 77746-52020 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-0D100 |
NSP15# |
1 | ||
| Common parts | ||||
| 90119-06A14 | ||||
| 90119-C0047 | ||||
| 90119-C0214 | ||||
| 90182-06012 | ||||
| 90269-05049 | ||||
| 90301-C0043 | ||||
| 90467-12056 | ||||
| Linked diagrams | ||||
| 8401 | ||||
