NSP151L-AHPGKC (2013)
Toyota Yaris (China)
Production
Dec 2013
-
Aug 2016
Engine
7NRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

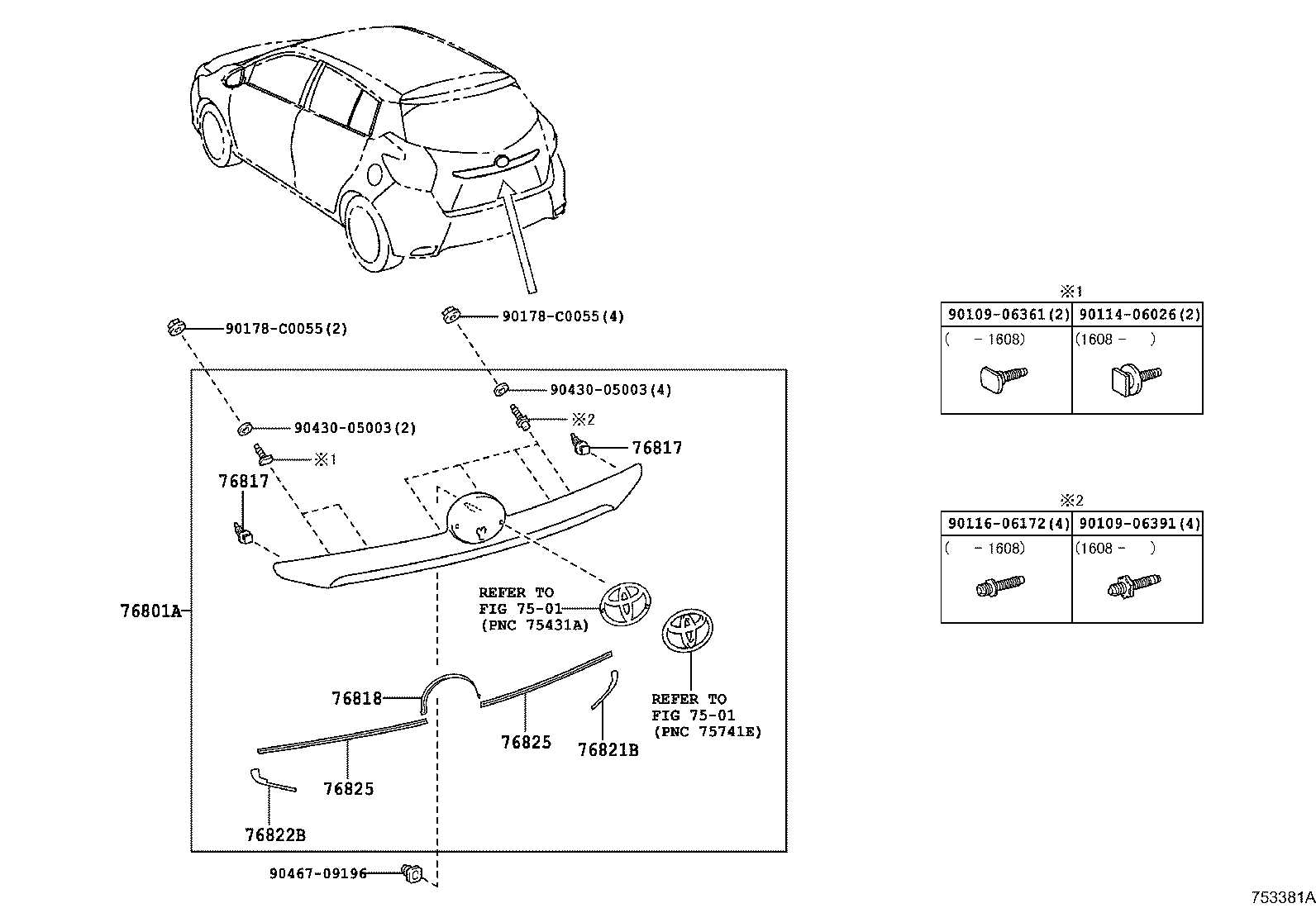

(1312- )5D..N,R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE | ||||
| 76801-0D470 |
NSP151..G PLATED |
1 | ||
| 76801-0D460 |
NSP150..N;NSP151..N,R NO PAINT REQ. |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-07010 |
NSP15# |
2 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-07010 |
NSP15# |
2 | ||
| 76818 - PAD, BACK DOOR OUTSIDE GARNISH | ||||
| 76818-0D030 |
NSP15# |
1 | ||
| 76821B - PROTECTOR, BACK DOOR GARNISH SIDE, RH | ||||
| 76821-0D190 |
NSP15# |
1 | ||
| 76822B - PROTECTOR, BACK DOOR GARNISH SIDE, LH | ||||
| 76822-0D080 |
NSP15# |
1 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-0D100 |
NSP15# |
2 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-0D100 |
NSP15# |
2 | ||
| Common parts | ||||
| 90109-06361 | ||||
| 90116-06172 | ||||
| 90178-C0055 | ||||
| 90430-05003 | ||||
| 90467-09196 | ||||
| Linked diagrams | ||||
| 7501 | ||||
(1312- )5D..G
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE | ||||
| 76801-0D470 |
NSP151..G PLATED |
1 | ||
| 76801-0D460 |
NSP150..N;NSP151..N,R NO PAINT REQ. |
1 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-07010 |
NSP15# |
2 | ||
| 76817 - CLIP, BACK DOOR OUTSIDE GARNISH | ||||
| 76817-07010 |
NSP15# |
2 | ||
| 76818 - PAD, BACK DOOR OUTSIDE GARNISH | ||||
| 76818-0D030 |
NSP15# |
1 | ||
| 76821B - PROTECTOR, BACK DOOR GARNISH SIDE, RH | ||||
| 76821-0D190 |
NSP15# |
1 | ||
| 76822B - PROTECTOR, BACK DOOR GARNISH SIDE, LH | ||||
| 76822-0D080 |
NSP15# |
1 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-0D100 |
NSP15# |
2 | ||
| 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH | ||||
| 76825-0D100 |
NSP15# |
2 | ||
| Common parts | ||||
| 90109-06361 | ||||
| 90109-06391 | ||||
| 90114-06026 | ||||
| 90116-06172 | ||||
| 90178-C0055 | ||||
| 90430-05003 | ||||
| 90467-09196 | ||||
| Linked diagrams | ||||
| 7501 | ||||
