NSP151L-AHPGKC (2013)
Toyota Yaris (China)

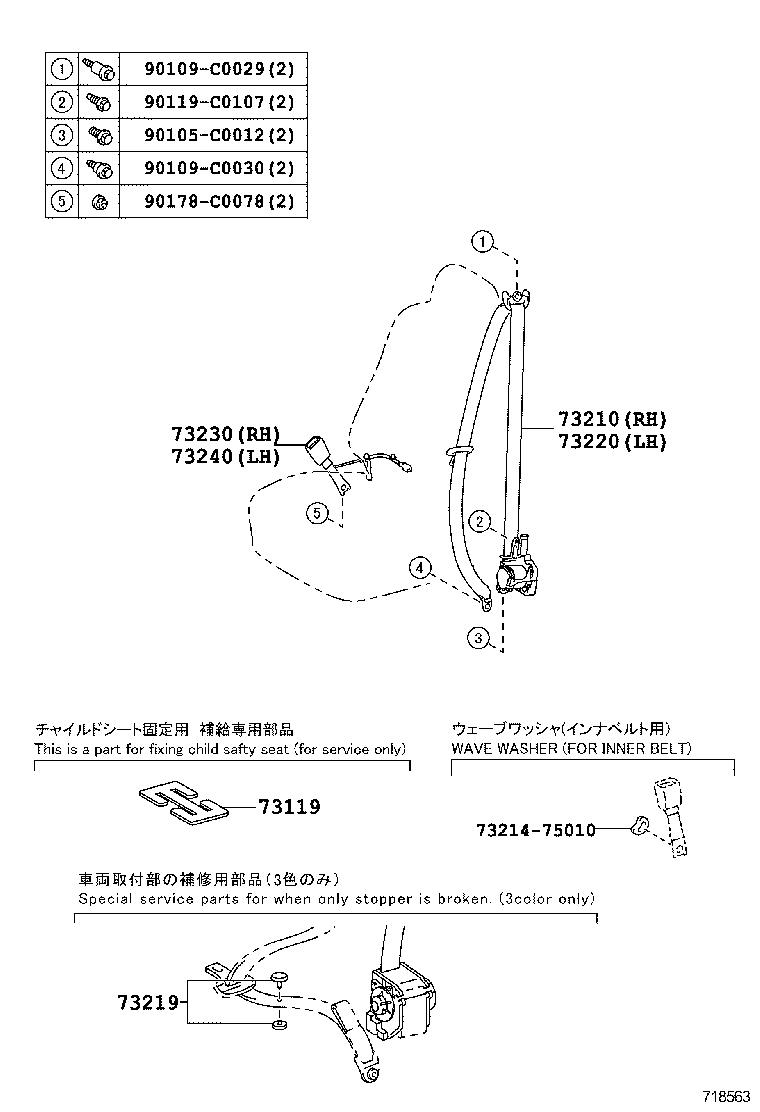

ILLUST NO. 1 OF 2(1312- )
FRONT SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NSP15# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0D400A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73210-0D400C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
NSP15# BLACK |
1 | ||
| 73219-33020 |
NSP15# GRAY |
1 | ||
| 73219-33030 |
NSP15# BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0D390C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73220-0D390A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0D500A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73230-0D500C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-0D510C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73230-0D510A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-C0012 | ||||
| 90109-C0029 | ||||
| 90109-C0030 | ||||
| 90119-C0107 | ||||
| 90178-C0078 | ||||

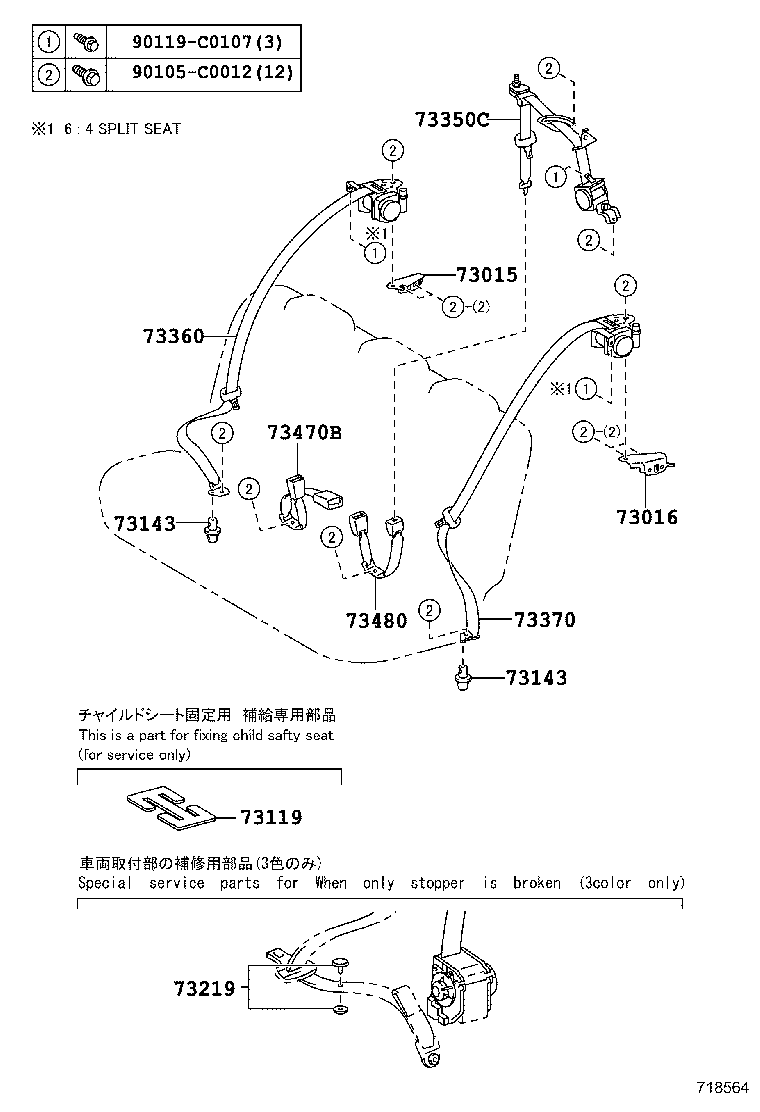

ILLUST NO. 2 OF 2(1312- )5D
REAR SEAT BELT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-0D040 |
NSP15#..G,N |
1 | ||
| 73015-0D030 |
NSP15#..R |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-0D030 |
NSP15#..R |
1 | ||
| 73016-0D040 |
NSP15#..G,N |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NSP15# |
1 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52012 |
NSP15# |
2 | ||
| 73143 - SEAL, SEAT BELT HOLE | ||||
| 73143-52012 |
NSP15# |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
NSP15# BLACK |
1 | ||
| 73219-33020 |
NSP15# GRAY |
1 | ||
| 73219-33030 |
NSP15# BEIGE |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73310-0D070A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73310-0D070C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-0D280C0 |
NSP15#..R BLACK,TRIM2# |
1 | ||
| 73360-0D280A0 |
NSP15#..R IVORY,TRIM0# |
1 | ||
| 73360-0D320C0 |
NSP15#..G,N BLACK,TRIM2# |
1 | ||
| 73360-0D320A0 |
NSP15#..G,N IVORY,TRIM0# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-0D280A0 |
NSP15#..G,N IVORY,TRIM0# |
1 | ||
| 73370-0D240A0 |
NSP15#..R IVORY,TRIM0# |
1 | ||
| 73370-0D280C0 |
NSP15#..G,N BLACK,TRIM2# |
1 | ||
| 73370-0D240C0 |
NSP15#..R BLACK,TRIM2# |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-0D240A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| 73470-0D240C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-0D230C0 |
NSP15# BLACK,TRIM2# |
1 | ||
| 73480-0D230A0 |
NSP15# IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90105-C0012 | ||||
| 90119-C0107 | ||||
