NSP151L-AHPGKC (2013)
Toyota Yaris (China)
Production
Dec 2013
-
Aug 2016
Engine
7NRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

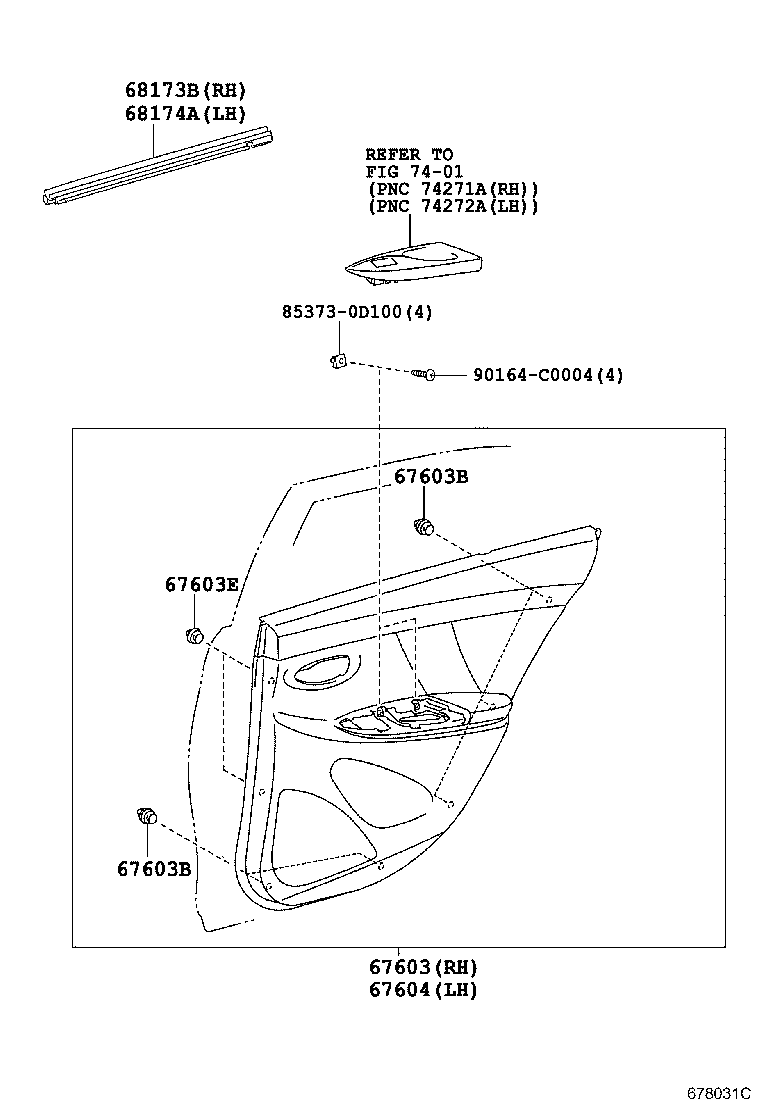

ILLUST NO. 2 OF 2(1312- )
Click highlighted areas on diagram
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-0DD60E3 |
NSP15# DK.BROWN/BLACK,TRIM2# |
1 | ||
| 67630-0DD60E2 |
NSP15# DK.BROWN/IVORY,TRIM0# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
NSP15# |
10 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
NSP15# |
10 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10161 |
NSP15# |
4 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-0DD60E3 |
NSP15# DK.BROWN/BLACK,TRIM2# |
1 | ||
| 67640-0DD60E2 |
NSP15# DK.BROWN/IVORY,TRIM0# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-0D160 |
NSP15# |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-0D160 |
NSP15# |
1 | ||
| Common parts | ||||
| 85373-0D100 | ||||
| 90164-C0004 | ||||
| Linked diagrams | ||||
| 7401 | ||||

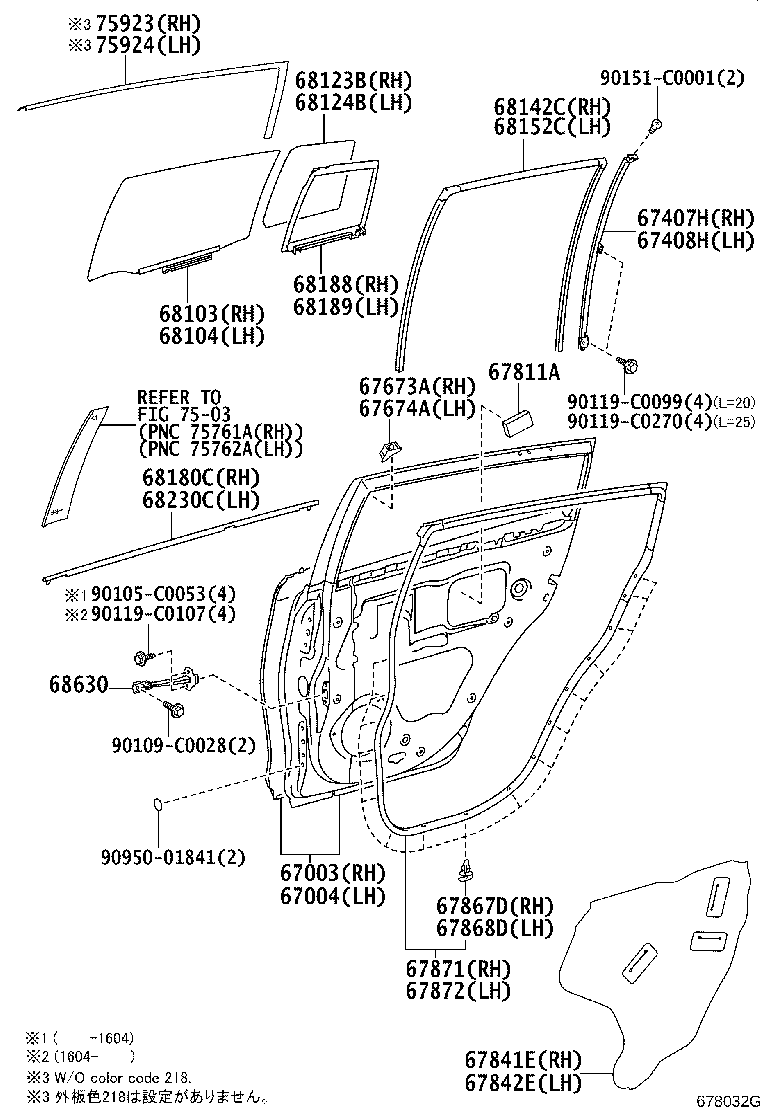

ILLUST NO. 1 OF 2(1312- )5D
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-0D250 |
NSP15# |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-0D250 |
NSP15# |
1 | ||
| 67407H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH | ||||
| 67407-0D130 |
NSP15# |
1 | ||
| 67408H - BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH | ||||
| 67408-0D130 |
NSP15# |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-0E030 |
NSP15# |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-0E030 |
NSP15# |
1 | ||
| 67811A - PAD, REAR DOOR SILENCER | ||||
| 67811-0D010 |
NSP15# |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-0D200 |
NSP15#..R |
1 | ||
| 67841-0D190 |
NSP15#..G,N |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-0D060 |
NSP15#..G,N |
1 | ||
| 67842-0D070 |
NSP15#..R |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-0D030 |
NSP15# |
16 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-0D040 |
NSP15# |
16 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-0D130 |
NSP15# |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-0D130 |
NSP15# |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68130-0D310 |
NSP15# *TEM,T=3.1,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68140-0D310 |
NSP15# *TEM,T=3.1,GREEN |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-0D220 |
NSP15# *TEM,T=3.1,GREEN |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-0D220 |
NSP15# *TEM,T=3.1,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-0D160 |
NSP15# |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-0D140 |
NSP15# |
1 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-0D190 |
NSP15# |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-0D130 |
NSP15# |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-0D130 |
NSP15# |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-0D190 |
NSP15# |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-0D190 |
NSP15# |
2 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-0D130 |
NSP15# |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-0D130 |
NSP15# |
1 | ||
| Common parts | ||||
| 90105-C0053 | ||||
| 90109-C0028 | ||||
| 90119-C0099 | ||||
| 90119-C0107 | ||||
| 90119-C0270 | ||||
| 90151-C0001 | ||||
| 90950-01841 | ||||
| Linked diagrams | ||||
| 7503 | ||||
