NSP151L-AHPGKC (2013)
Toyota Yaris (China)

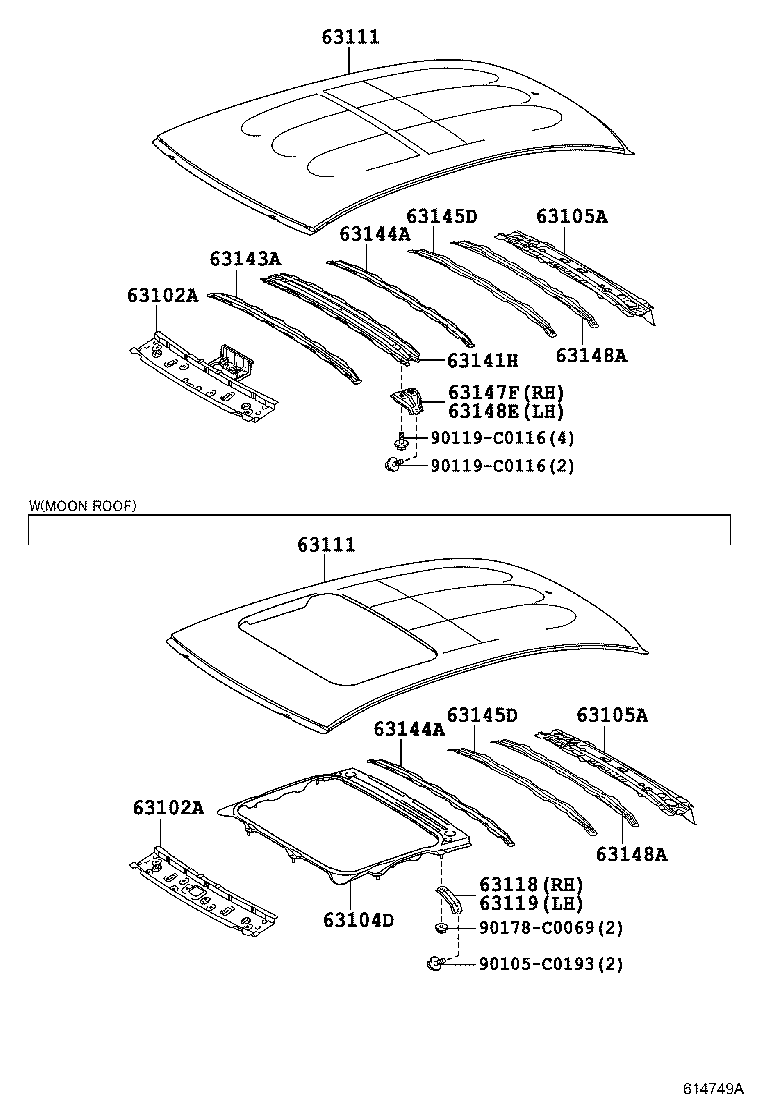

ILLUST NO. 1 OF 3(1312- )5D
ROOF PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0D900 |
NSP15#..N,R |
1 | ||
| 63102-0D901 |
NSP151..G |
1 | ||
| 63102-0D901 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0D900 |
NSP15#..N,R |
1 | ||
| 63102-0D901 |
NSP151..G |
1 | ||
| 63102-0D901 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-0D900 |
NSP15#..N,R |
1 | ||
| 63102-0D901 |
NSP151..G |
1 | ||
| 63102-0D901 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63104D - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2 | ||||
| 63104-0D040 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63104-0D040 |
NSP151..G |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-0D090 |
NSP15# |
1 | ||
| 63105-0D091 |
NSP15# |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-0D090 |
NSP15# |
1 | ||
| 63105-0D091 |
NSP15# |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-K0050 |
NSP15#..N,R |
1 | ||
| 63111-K0060 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63111-K0060 |
NSP151..G |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-K0050 |
NSP15#..N,R |
1 | ||
| 63111-K0060 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63111-K0060 |
NSP151..G |
1 | ||
| 63118 - SUPPORT, ROOF PANEL, RH | ||||
| 63118-0D040 |
NSP151..G |
1 | ||
| 63118-0D040 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63119 - SUPPORT, ROOF PANEL, LH | ||||
| 63118-0D040 |
NSP151..G |
1 | ||
| 63118-0D040 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63141H - REINFORCEMENT, ROOF PANEL, CENTER | ||||
| 63141-0D140 |
NSP15#..N,R |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63143-0D120 |
NSP15#..N,R |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-0D090 |
NSP15# |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-0D090 |
NSP15# |
1 | ||
| 63145D - BRACKET, ROOF REINFORCEMENT | ||||
| 63145-0D020 |
NSP15# |
1 | ||
| 63145D - BRACKET, ROOF REINFORCEMENT | ||||
| 63145-0D020 |
NSP15# |
1 | ||
| 63147F - BRACKET, ROOF PANEL REINFORCEMENT, RH | ||||
| 63147-0D080 |
NSP15#..N,R |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-0D020 |
NSP15# |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-0D020 |
NSP15# |
1 | ||
| 63148E - BRACKET, ROOF PANEL REINFORCEMENT, LH | ||||
| 63147-0D080 |
NSP15#..N,R |
1 | ||
| Common parts | ||||
| 90105-C0193 | ||||
| 90119-C0116 | ||||
| 90178-C0069 | ||||

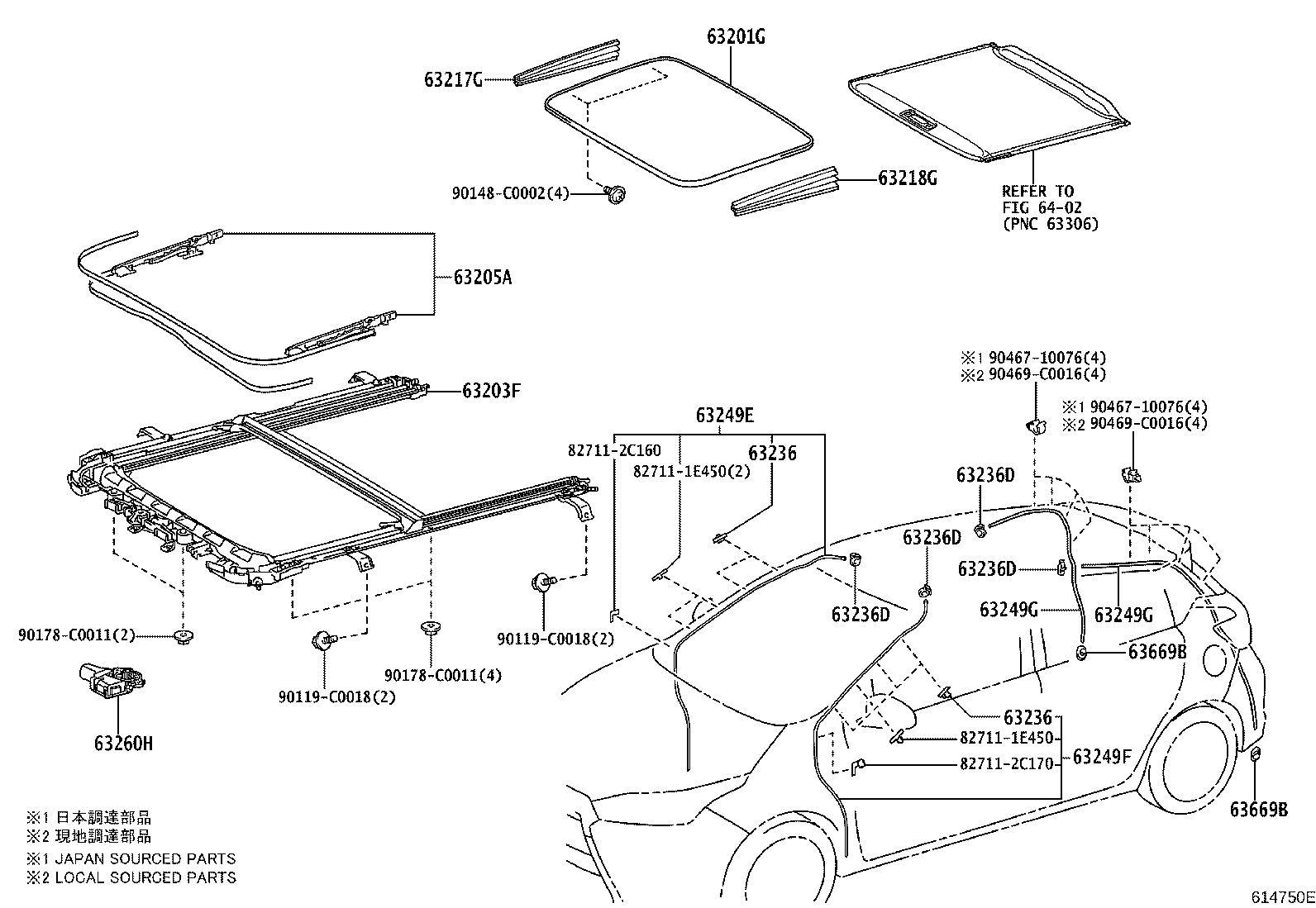

ILLUST NO. 2 OF 3(1312- )5D..G,N
SLIDING ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63201-0D050 |
NSP15#..N *TEM,T=4.0,GREEN,MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63201-0D050 |
NSP151..G *TEM,T=4.0,GREEN |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-0D030 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63203-0D030 |
NSP151..G |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-0D030 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63205-0D030 |
NSP151..G |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-06050 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63217-06050 |
NSP151..G |
1 | ||
| 63217-06130 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63217-06130 |
NSP151..G |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63217-06130 |
NSP151..G |
1 | ||
| 63217-06050 |
NSP151..G |
1 | ||
| 63217-06050 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63217-06130 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-12010 |
NSP151..G |
5 | ||
| 63236-12010 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
5 | ||
| 63236 - CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE | ||||
| 63236-12010 |
NSP151..G |
5 | ||
| 63236-12010 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
5 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-33030 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
4 | ||
| 63236-33030 |
NSP151..G |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-33030 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
4 | ||
| 63236-33030 |
NSP151..G |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-33030 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
4 | ||
| 63236-33030 |
NSP151..G |
4 | ||
| 63236D - CLAMP, SLIDING ROOF DRAIN HOSE | ||||
| 63236-33030 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
4 | ||
| 63236-33030 |
NSP151..G |
4 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-0D060 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63249-0D060 |
NSP151..G |
1 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-0D140 |
NSP151..G |
1 | ||
| 63249-0D140 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63249G - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-0D150 |
NSP151..G |
2 | ||
| 63249-0D150 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
2 | ||
| 63249G - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-0D150 |
NSP151..G |
2 | ||
| 63249-0D150 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
2 | ||
| 63260H - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-0D050 |
NSP151..G |
1 | ||
| 63260-0D050 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 90480-26020 |
NSP151..G |
2 | ||
| 90480-26020 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
2 | ||
| 63669B - GROMMET, SLIDING ROOF DRAIN | ||||
| 90480-26020 |
NSP151..G |
2 | ||
| 90480-26020 |
NSP15#..N MOON ROOF-WITH(TILT & SLIDE) |
2 | ||
| Common parts | ||||
| 82711-1E450 | ||||
| 82711-2C160 | ||||
| 82711-2C170 | ||||
| 90119-C0018 | ||||
| 90148-C0002 | ||||
| 90178-C0011 | ||||
| 90467-10076 | ||||
| 90469-C0016 | ||||
| Linked diagrams | ||||
| 6402 | ||||
